Clean Messy Data and Locate Extrema Using Live Editor Tasks

You can interactively preprocess data using sequences of Live Editor tasks, visualizing the data at each step. This example uses five tasks to clean noisy data with missing values and outliers in order to identify local minima and maxima. For more information on Live Editor tasks, see Add Interactive Tasks to a Live Script.

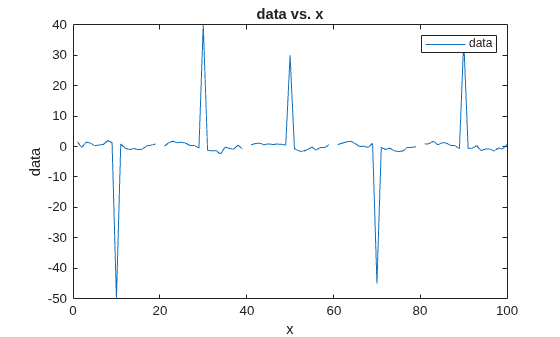

First, create and plot a vector of messy data, which contains four NaN values and five outliers.

x = 1:100;
data = cos(2*pi*0.05*x+2*pi*rand) + 0.5*randn(1,100);
data(20:20:80) = NaN;
data(10:20:90) = [-50 40 30 -45 35];

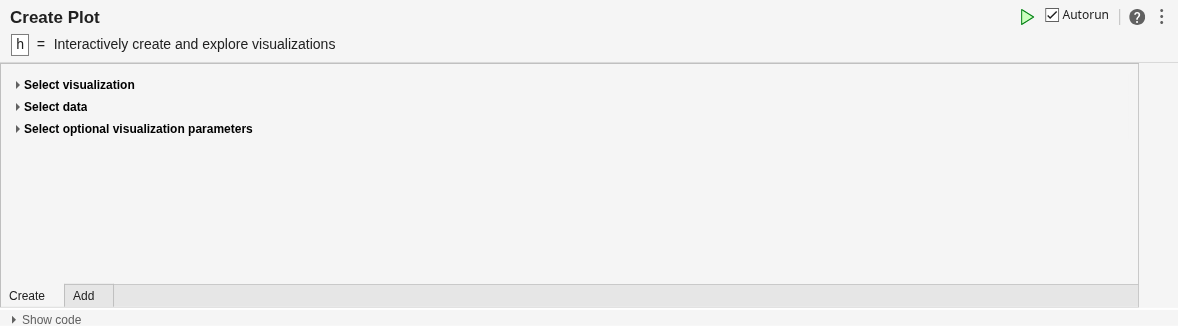

To plot the messy data, open the Create Plot task. Start by typing the keyword plot in a code block, and then click Create Plot when it appears in the menu. Select the plot type and input data to plot the data.

To see the code that this task generates, expand the task display by clicking at the bottom of the task parameter area.

Live Task
% Create plot of x and data
h = plot(x,data,"DisplayName","data");

% Add xlabel, ylabel, title, and legend
xlabel("x")
ylabel("data")
title("x vs. data")
legend

Fill Missing Data

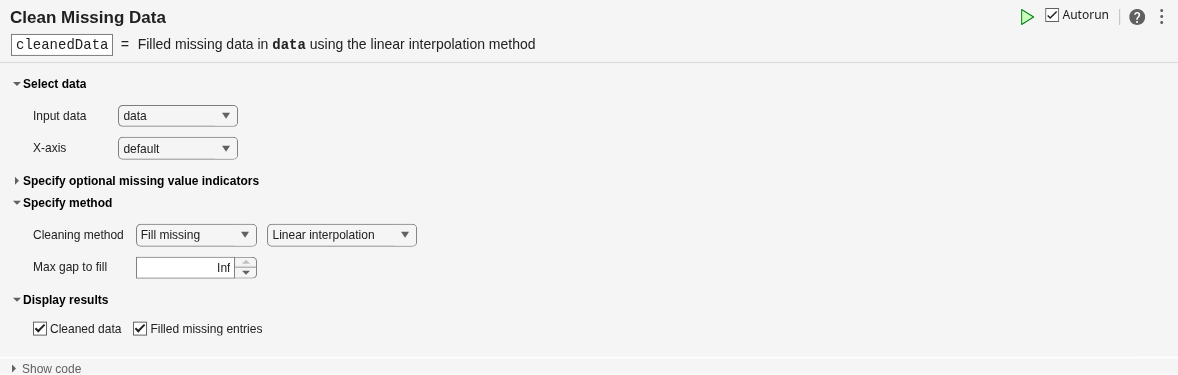

To replace NaN values in the data and visualize the results, open the Clean Missing Data task. Start by typing the keyword missing in a code block, and then click Clean Missing Data when it appears in the menu. Select the input data and the cleaning method to plot the filled data automatically.

To see the code that this task generates, expand the task display by clicking at the bottom of the task parameter area.

Live Task
% Fill missing data
[cleanedData,missingIndices] = fillmissing(data,"linear");

% Display results
clf
plot(cleanedData,"Color",[0 114 189]/255,"LineWidth",1.5,...
    "DisplayName","Cleaned data")
hold on

% Plot filled missing entries
plot(find(missingIndices),cleanedData(missingIndices),".","MarkerSize",12,...
    "Color",[217 83 25]/255,"DisplayName","Filled missing entries")
title("Number of filled missing entries: " + nnz(missingIndices))

hold off
legend

clear missingIndices

Fill Outliers

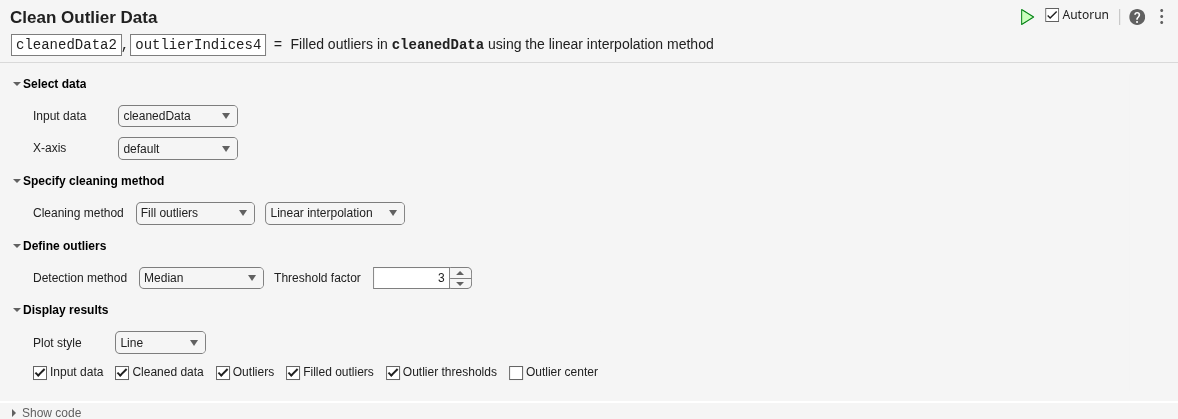

You can now remove the outliers from the cleaned data in the previous task by using the Clean Outlier Data task. Type the keyword outliers in a new code block and click Clean Outlier Data to open the task. Select cleanedData as the input data. You can customize the methods for cleaning and detecting outliers and adjust the threshold to find more or fewer outliers.

To see the code that this task generates, expand the task display by clicking at the bottom of the task parameter area.

Live Task
% Fill outliers
[cleanedData2,outlierIndices,thresholdLow,thresholdHigh] = ...
    filloutliers(cleanedData,"linear");

% Display results
clf
plot(cleanedData,"Color",[77 190 238]/255,"DisplayName","Input data")
hold on
plot(cleanedData2,"Color",[0 114 189]/255,"LineWidth",1.5,...
    "DisplayName","Cleaned data")

% Plot outliers
plot(find(outlierIndices),cleanedData(outlierIndices),"x",...
    "Color",[64 64 64]/255,"DisplayName","Outliers")
title("Number of outliers cleaned: " + nnz(outlierIndices))

% Plot filled outliers
plot(find(outlierIndices),cleanedData2(outlierIndices),".","MarkerSize",12,...
    "Color",[217 83 25]/255,"DisplayName","Filled outliers")

% Plot outlier thresholds
plot([xlim missing xlim],[thresholdLow*[1 1] NaN thresholdHigh*[1 1]],...
    "Color",[145 145 145]/255,"DisplayName","Outlier thresholds")

hold off
legend

clear outlierIndices thresholdLow thresholdHigh

Smooth Data

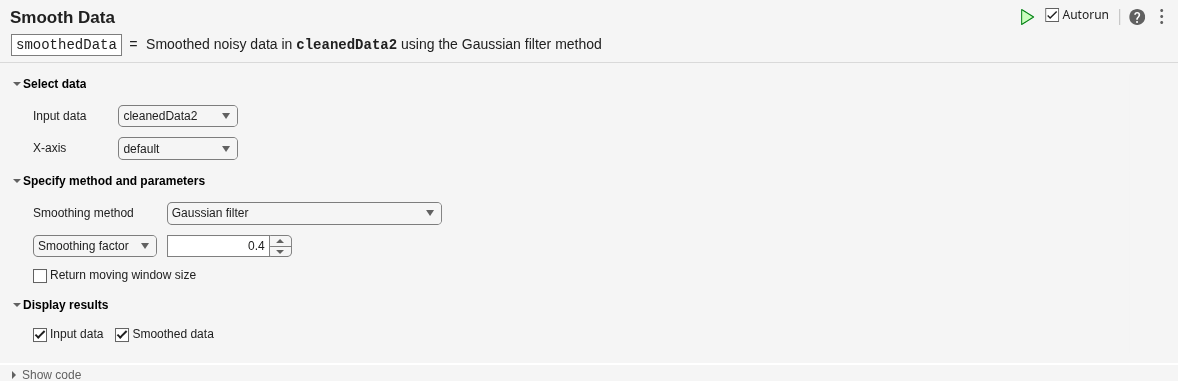

Next, smooth the cleaned data from the previous task by using the Smooth Data task. Type the keyword smooth and click the task when it appears. Select cleanedData2, the output from the previous task, as the input data. Select a smoothing method, and adjust the smoothing factor for more or less smoothing.

To see the code that this task generates, expand the task display by clicking at the bottom of the task parameter area.

Live Task
% Smooth input data
smoothedData = smoothdata(cleanedData2,"gaussian","SmoothingFactor",0.4);

% Display results
clf
plot(cleanedData2,"Color",[77 190 238]/255,"DisplayName","Input data")
hold on
plot(smoothedData,"Color",[0 114 189]/255,"LineWidth",1.5,...
    "DisplayName","Smoothed data")
hold off
legend

Locate Extrema

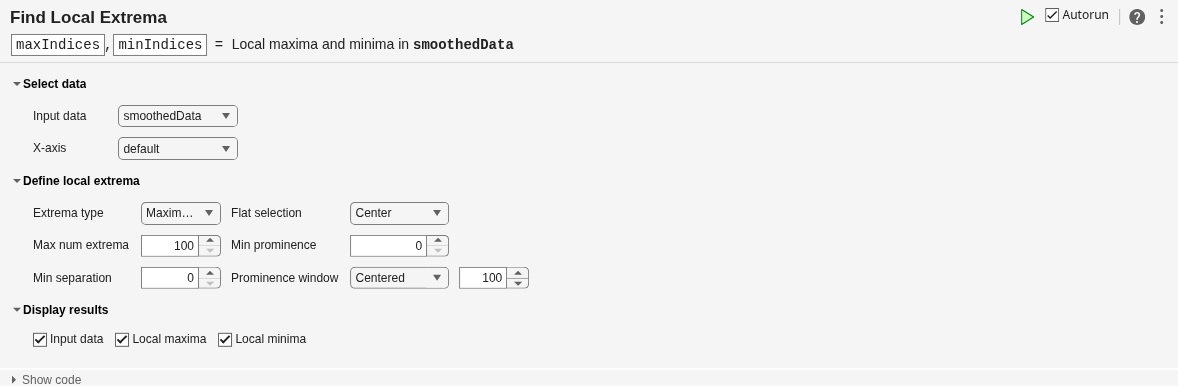

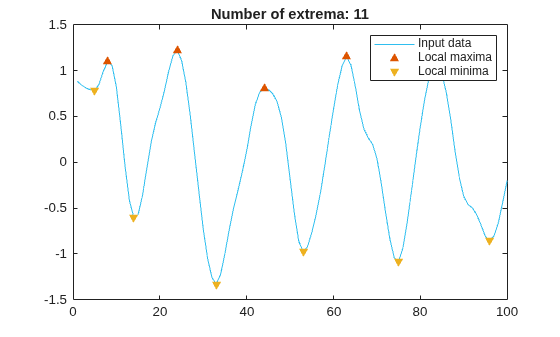

Finally, start typing the keyword extrema and click Find Local Extrema. Use smoothedData as the input data and change the extrema type to find both the local maxima and local minima of the cleaned, smoothed data. You can adjust the local extrema parameters to find more or fewer maxima and minima.

To see the code that this task generates, expand the task display by clicking at the bottom of the task parameter area.

Live Task
% Find local maxima and minima
maxIndices = islocalmax(smoothedData);
minIndices = islocalmin(smoothedData);

% Display results
clf
plot(smoothedData,"Color",[77 190 238]/255,"DisplayName","Input data")
hold on

% Plot local maxima
plot(find(maxIndices),smoothedData(maxIndices),"^","Color",[217 83 25]/255,...
    "MarkerFaceColor",[217 83 25]/255,"DisplayName","Local maxima")

% Plot local minima
plot(find(minIndices),smoothedData(minIndices),"v","Color",[237 177 32]/255,...
    "MarkerFaceColor",[237 177 32]/255,"DisplayName","Local minima")
title("Number of extrema: " + (nnz(maxIndices)+nnz(minIndices)))
hold off
legend
