Find and Remove Trends

Find and remove polynomial or periodic trends from data in the Live Editor

Description

The Find and Remove Trends task lets you interactively identify polynomial or periodic trends in data and return or remove them. The task automatically generates MATLAB® code for your live script. For more information about Live Editor tasks generally, see Add Interactive Tasks to a Live Script.

Using this task, you can:

• Identify a polynomial trend in data.

• Choose the degree of the polynomial trend to remove from data.

• Dynamically arrange breakpoints to define piecewise segments of the data.

• Specify continuity constraints.

• Visualize and return the computed trends and data with the trends removed.

• Identify long-term and periodic, seasonal, or oscillatory trends in data.

Related Functions

Find and Remove Trends generates code that uses the `detrend` and `trenddecomp` functions.

To add the Find and Remove Trends task to a live script in the MATLAB Editor:

• On the Live Editor tab, select Task > Find and Remove Trends.

• In a code block in the script, type a relevant keyword, such as `find`, `remove`, `detrend`, `trenddecomp`, `stl`, or `ssa`. Select `Find and Remove Trends` from the suggested command completions. Then, select the trend type. For some keywords, the task automatically updates one or more corresponding parameters.

Examples

expand all

Interactively identify and remove a linear trend in array data with the Find and Remove Trends task in the Live Editor.

Create a vector `x` containing some fluctuation. Create a plot to visualize the data.

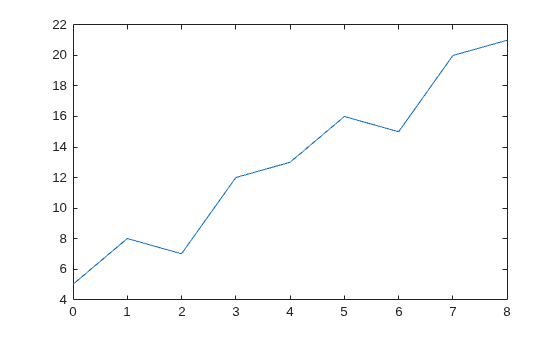

```t = 0:8; trend = 2*t+5; sig = [0 1 -2 1 0 1 -2 1 0]; data = sig + trend; plot(t,data)```

Add the Find and Remove Trends task to the live script. Because the data has a polynomial trend, choose the Polynomial trend type.

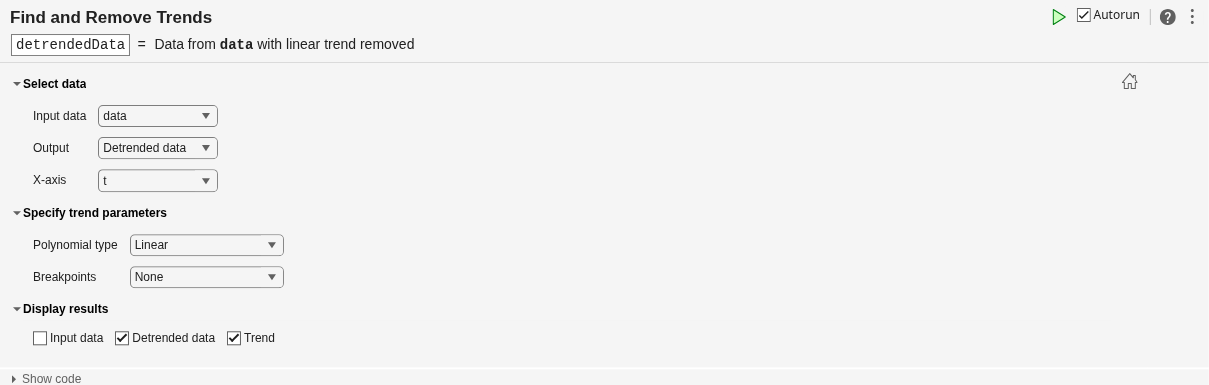

Remove the polynomial trend from the data. Select `data` as the input data and `Detrended data` as the output to return. Alternatively, you can use the Output field to return the trend. Select `t` as the x-axis values associated with the input data. Identify a linear trend by specifying the polynomial type as `Linear`.

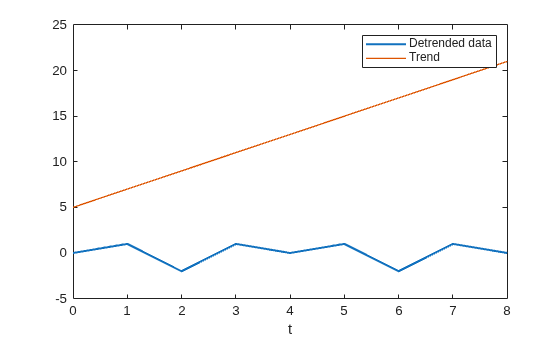

Display the resulting trend and the detrended data in a stacked plot.

``` ```

Interactively identify and remove a piecewise polynomial trend in array data using the Find and Remove Trends task in the Live Editor.

A polynomial trend is a trend that best describes fluctuating data. A polynomial trend is used when your data both increases and decreases in value, and the degree of the polynomial trend increases as the data fluctuates.

Consider an electrocardiogram (ECG) signal that shows a pattern not intrinsic to the data that must be removed. Load the signal `ecgnl` using the sample file `ecgSignals.mat` and plot the signal.

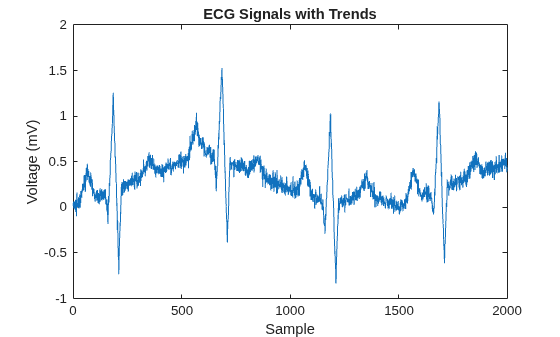

```load("ecgSignals.mat","ecgnl") plot(ecgnl) title("ECG Signals with Trends") xlabel("Sample") ylabel("Voltage (mV)")```

Then, eliminate the nonlinear trend. Add the Find and Remove Trends task to the live script. Because the data has a polynomial trend, choose the Polynomial trend type.

Operate on the signal by selecting `ecgnl` as the input data. Select `Detrended data` as the output. The default x-axis values are the sample numbers. Because the wander of the heart rhythm does not occur with consistent frequency, identify a piecewise trend by specifying a vector of breakpoints in the sample data. Alternatively, you can select the breakpoints from a plot.

`bp = [160 660 1160 1660];`

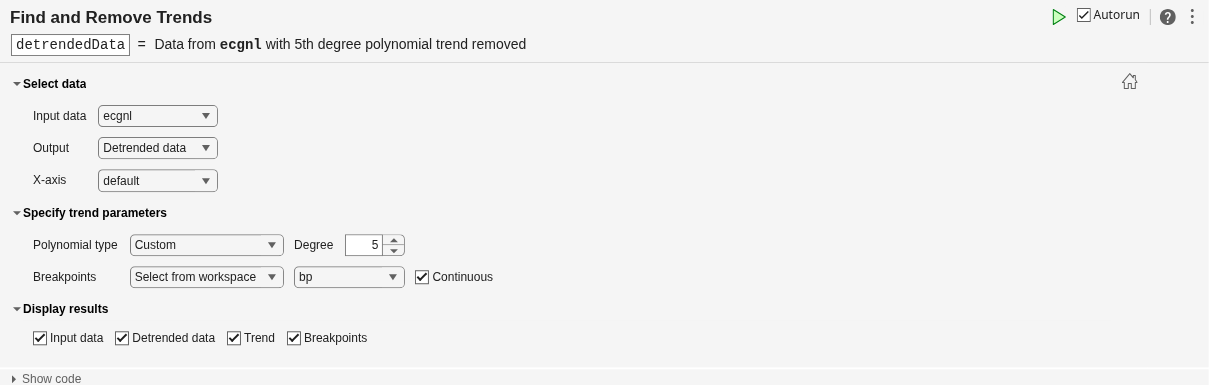

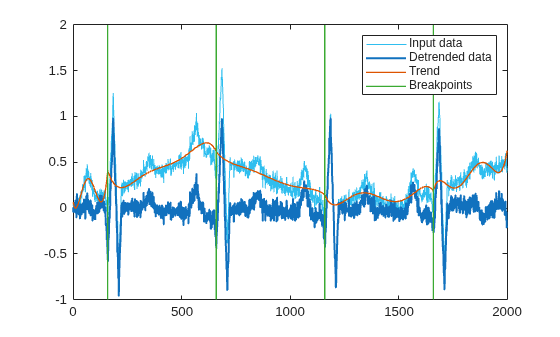

Then, choose a custom polynomial type and specify the polynomial degree as 5. The resulting visualization displays the input data, piecewise polynomial trend, and the data with the trend removed. The detrended data is returned in `detrendedData` and has the same size as `ecgnl`. Alternatively, to return the trend, use the Output field.

``` ```

Interactively decompose array data into its long-term trend, two periodic trends, and remainder using the seasonal trend decomposition using loess (STL) algorithm with the Find and Remove Trends task in the Live Editor.

Create a variable `data` that contains a long-term trend, two seasonal trends with different periods, and a noise component. Create a plot to visualize the data.

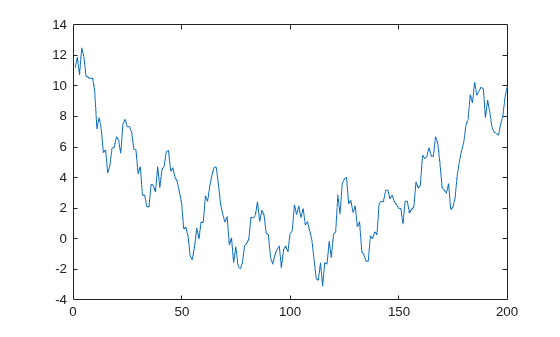

```t = (1:200)'; trend = 0.001*(t-100).^2; period1 = 20; period2 = 30; seasonal1 = 2*sin(2*pi*t/period1); seasonal2 = 0.75*sin(2*pi*t/period2); noise = 2*(rand(200,1) - 0.5); data = trend + seasonal1 + seasonal2 + noise; plot(data)```

Add the Find and Remove Trends task to the live script. Because the data has a recurring, periodic trend, choose the Periodic trend type.

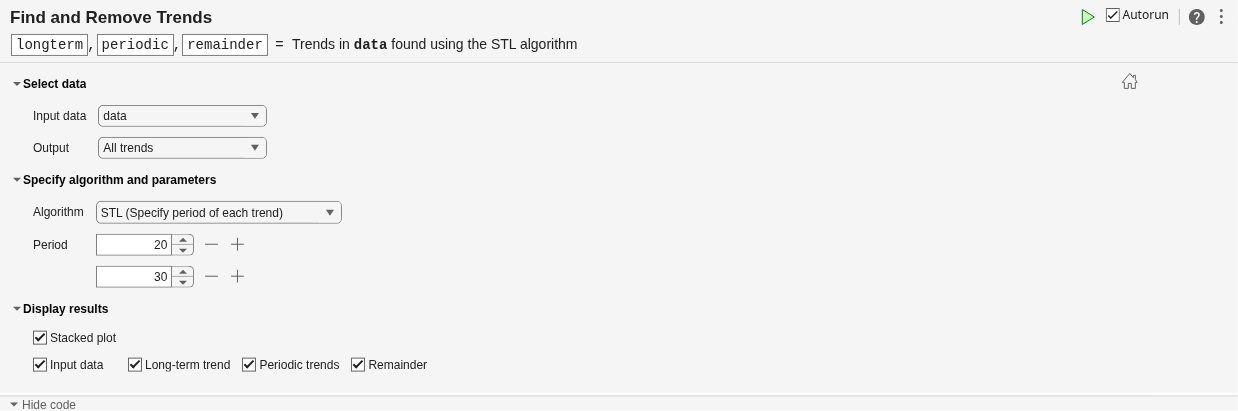

Decompose the data into its trend components by selecting `data` as the input data and `All trends` as the output to return. Because the periods of the seasonal trends in the data are known, choose the STL algorithm and specify the known period lengths as 20 and 30 data points.

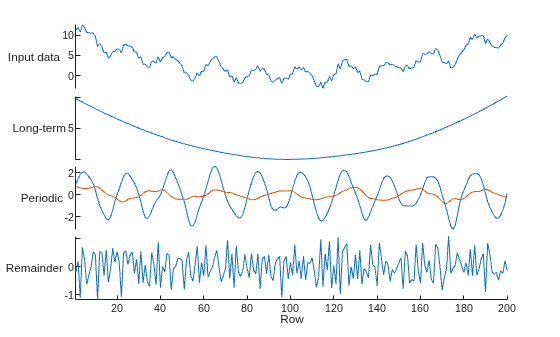

Display the input data and the resulting long-term trend, two periodic trends, and remainder in a stacked plot. The Live Editor task returns the identified trends in arrays `longterm` and `periodic`. Alternatively, to return the detrended data, use the Output field to specify which trend types to remove.

``` ```

Interactively identify and return periodic trends using the singular spectrum analysis (SSA) algorithm with the Find and Remove Trends task in the Live Editor.

Consider a timetable of monthly international airline passenger totals from 1949 to 1960. Load the timetable using the sample file `Data_Airline.mat` and plot the passenger data.

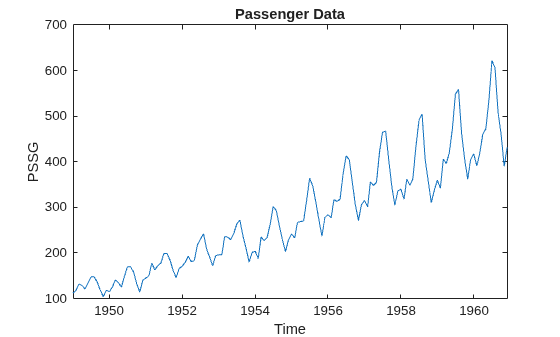

```load("Data_Airline.mat","DataTimeTable"); plot(DataTimeTable,"Time","PSSG") title("Passenger Data")```

Notice that the timetable is irregularly spaced. The Find and Remove Trends task requires that the input timetable is regularly spaced.

`isregular(DataTimeTable.Time)`
```ans = logical 0 ```

Make the timetable regular by resampling using the Retime Timetable task in the Live Editor. Interpolate the data onto a regular time vector with a time step of 30 days and return the resampled data in a timetable named `monthly`.

``` ```
```monthly=147×1 timetable Time PSSG ___________ ______ 01-Jan-1949 112 31-Jan-1949 117.81 02-Mar-1949 131.9 01-Apr-1949 129 01-May-1949 121 31-May-1949 134.55 30-Jun-1949 147.57 30-Jul-1949 148 29-Aug-1949 137.16 28-Sep-1949 120.7 28-Oct-1949 105.94 27-Nov-1949 116.13 27-Dec-1949 115.48 26-Jan-1950 123.87 25-Feb-1950 138.86 27-Mar-1950 135.97 ⋮ ```
`isregular(monthly.Time)`
```ans = logical 1 ```

The airline passenger data shows an increase in the seasonal variance over time. Because the Find and Remove Trends task analyzes the series using additive decomposition models, apply a log transformation to the data.

`monthly.PSSGLog = log(monthly.PSSG);`

Then, identify periodic trends in the passenger data by adding the Find and Remove Trends task to the live script. Because the data has a recurring, periodic trend, choose the Periodic trend type.

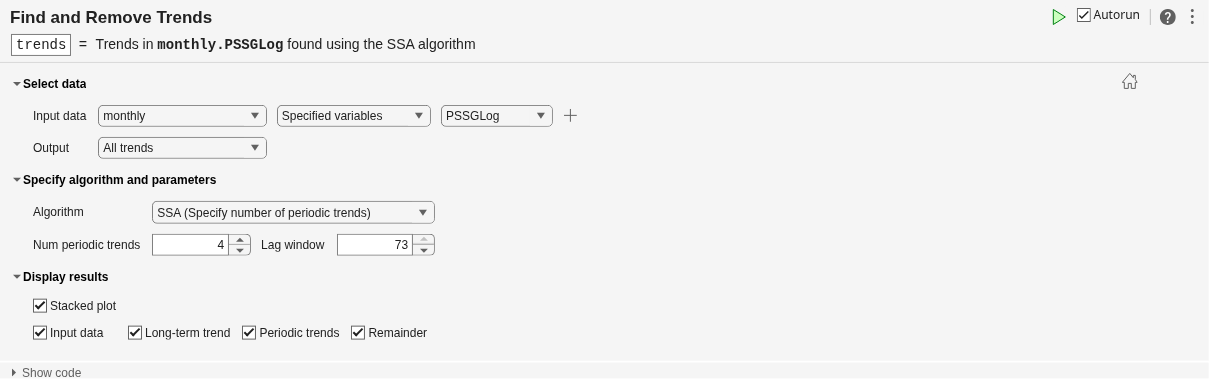

Operate on the passenger totals by specifying the input data as the `PSSGLog` variable of `monthly`. Because the periods of the seasonal trends in the data are unknown, choose the SSA algorithm. Increase the number of periodic trends until the baseline of the remainder is flat.

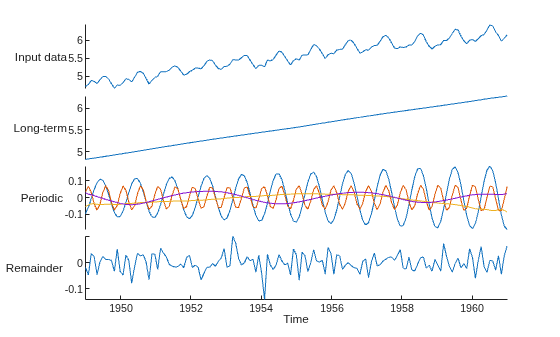

Display the input data and the resulting long-term trend, four periodic trends, and remainder in a stacked plot. The Live Editor task returns the identified trends in the array `trends`. Alternatively, to return the detrended data, use the Output field to specify which trend types to remove.

``` ```

Parameters

expand all

Polynomial Trends

This task operates on input data contained in a vector, matrix, multidimensional array, table, or timetable. The data can be of type `single` or `double`.

For table or timetable input data, this task operates on each table variable separately. To operate on all variables with type `single` or `double`, select `All supported variables`. To choose which `single` or `double` variables to operate on, select `Specified variables`.

Periodic Trends

This task operates on input data contained in a vector, table, or timetable. The data can be of type `single` or `double`. For timetable input data, the vector of row times must be regularly spaced.

For table or timetable input data, this task operates on each table variable separately. To operate on all variables with type `single` or `double`, select `All supported variables`. To choose which `single` or `double` variables to operate on, select `Specified variables`.

Tips

• If your data has seasonal variation that is proportional to the level of the time series, use a `log` transformation on the data before looking for periodic trends.
