Update figures and process callbacks
drawnow updates figures and processes any
pending callbacks. Use this command if you modify graphics objects
and want to see the updates on the screen immediately.
drawnow limitrate limits the number of updates to 20 frames per second.
If it has been fewer than 50 milliseconds since the last update, or if the
graphics renderer is busy with the previous change, then
drawnow discards the new updates. Use this command if you
are updating graphics objects in a loop and do not need to see every update on
the screen. Skipping updates can create faster animations. Pending callbacks are
processed, so you can interact with figures during animations.
drawnow nocallbacks defers callbacks, such as the
ButtonDownFcn callback, until the next full
drawnow command. Use this option if you want to prevent
callbacks from interrupting your code. Deferring callbacks temporarily disables
figure interactions, such as mouse clicks or resizing the figure. Deferring
callbacks does not affect animation speed.
drawnow limitrate nocallbacks limits the number of updates to 20 frames
per second and skips updates if the renderer is busy. This syntax also prevents
callbacks from interrupting your code, which temporarily disables figure
drawnow update skips updates if the renderer is busy and defers
callbacks. This syntax is not recommended. Use the
drawnow expose updates figures, but defers callbacks. This syntax is not
recommended. Use the
nocallbacks option instead.
Create Animation of Streaming Data
Create an animation of a line growing as it accumulates 2,000 data points. Use
drawnow to display the changes on the screen after each iteration through the loop.
h = animatedline; axis([0 4*pi -1 1]) x = linspace(0,4*pi,2000); for k = 1:length(x) y = sin(x(k)); addpoints(h,x(k),y); drawnow end

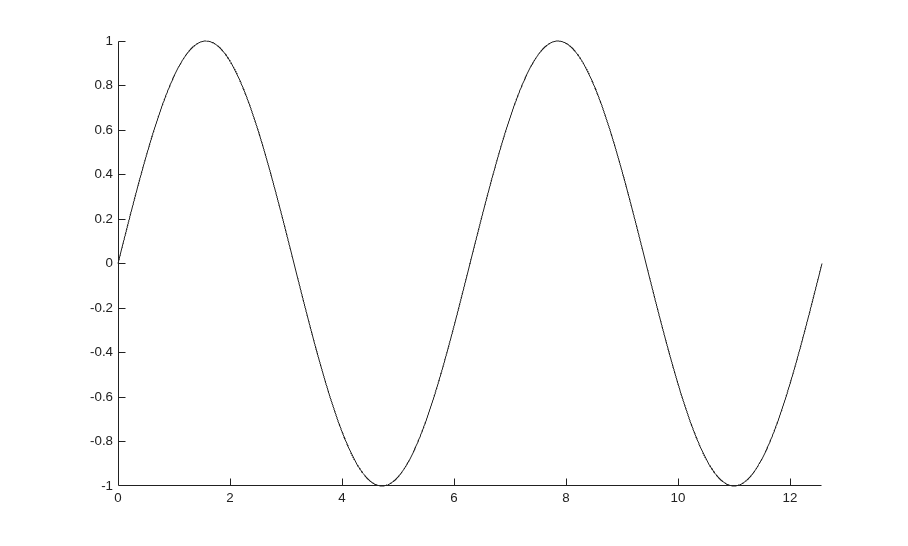

Skip Updates for Faster Animation
Create an animation of a line growing as it accumulates 10,000 points. Since there are 10,000 points, drawing each update on the screen is slow. Create a faster, smooth animation by limiting the number of updates using
drawnow limitrate. Then, display the final updates on the screen by calling
drawnow after the loop ends.
h = animatedline; axis([0 4*pi -1 1]) x = linspace(0,4*pi,10000); for k = 1:length(x) y = sin(x(k)); addpoints(h,x(k),y); drawnow limitrate end drawnow

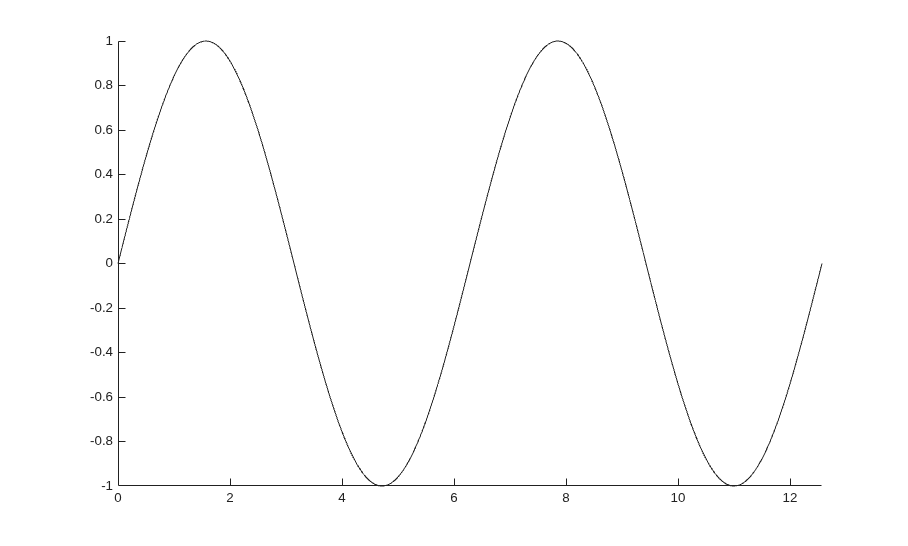

Precompute Data, Then Create Animation
Compute all the data before the animation loop.
h = animatedline; axis([0 4*pi -1 1]) x = linspace(0,4*pi,10000); y = sin(x); for k = 1:length(x) addpoints(h,x(k),y(k)); drawnow limitrate end drawnow
If you have long computations, precomputing the data can improve performance. Precomputing minimizes the computation time by letting the computation run without interruptions. Additionally, it helps ensure a smooth animation by focusing on only graphics code in the animation loop.
nocallbacksoption always adds interrupting callbacks to the queue. If you want to discard interrupting callbacks, then use the
Run code in the background using MATLAB®
backgroundPool or accelerate code with Parallel Computing Toolbox™
Introduced before R2006a
