intersect
Intersection of polyshape objects
Syntax
Description
[
also returns vertex mapping information from the vertices in
polyout,shapeID,vertexID] = intersect(poly1,poly2)polyout to the vertices in poly1 and
poly2. The intersect function only
supports this syntax when poly1 and poly2 are
scalar polyshape objects.
The shapeID elements identify whether the corresponding vertex
in polyout originated in poly1,
poly2, or was created from the intersection.
vertexID maps the vertices of polyout to
the vertices of poly1, poly2, or the
intersection.
[
returns the line segments of in,out] = intersect(poly1,lineseg)lineseg that are inside and outside
of poly1. The matrix lineseg has two columns.
The first column defines the x-coordinates of the line segments
and the second column defines the corresponding
y-coordinates.
intersect supports this syntax only when
poly1 is a scalar polyshape and
lineseg contains no self-intersections.
___ = intersect(___,
specifies options using one or more name-value arguments in addition to any of the
input argument combinations in previous syntaxes. You can use any of the output
argument combinations in previous syntaxes. For example, Name=Value)polyout =
intersect(poly1,poly2,Simplify=false) returns a
polyshape object whose vertices have not been modified
regardless of intersections or improper nesting.
Examples
Create and plot two polygons.
poly1 = polyshape([0 0 1 1],[1 0 0 1]);
poly2 = polyshape([0.75 1.25 1.25 0.75],[0.25 0.25 0.75 0.75]);

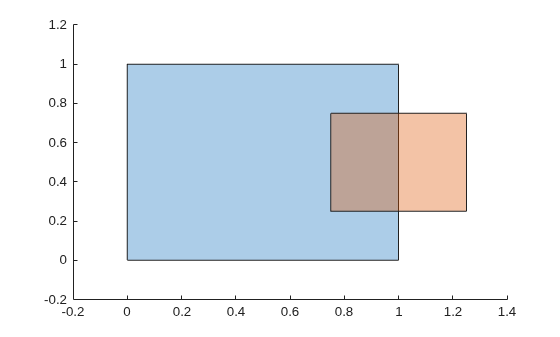

plot(poly1)
hold on
plot(poly2)
figure
Compute and plot the intersection of poly1 and poly2.
polyout = intersect(poly1,poly2)
polyout =
polyshape with properties:
Vertices: [4×2 double]
NumRegions: 1
NumHoles: 0

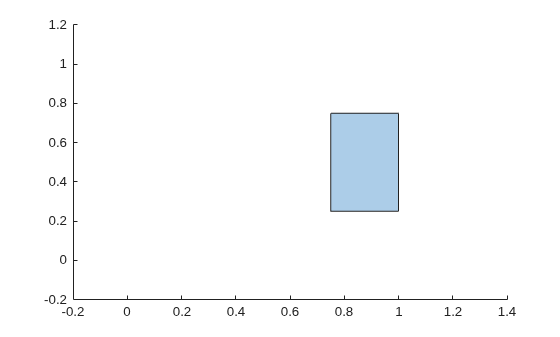

plot(polyout) xlim([-0.2 1.4]); ylim([-0.2 1.2]);

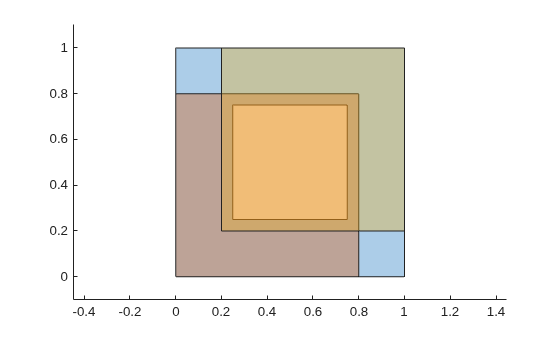

Create a vector containing two polygons.
polyarray1 = polyshape([0 0 1 1],[1 0 0 1]); polyarray2 = polyshape([0.75 1.25 1.25 0.75],[0.25 0.25 0.75 0.75]); polyvec = [polyarray1 polyarray2]
polyvec =
1×2 polyshape array with properties:
Vertices
NumRegions
NumHoles
plot(polyvec(1))
hold on
plot(polyvec(2))
figure

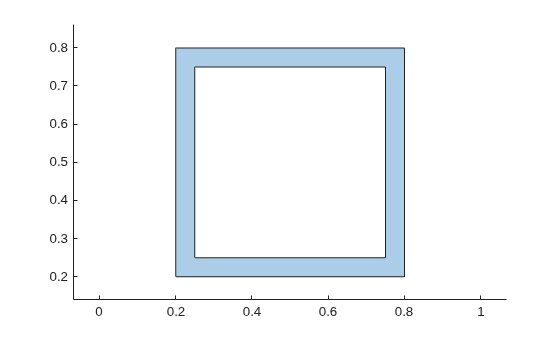

Compute the intersection of the elements of poly1.
polyout = intersect(polyvec)
polyout =
polyshape with properties:
Vertices: [4×2 double]
NumRegions: 1
NumHoles: 0
plot(polyout) xlim([-0.2 1.4]); ylim([-0.2 1.2]);
Create two polygons and compute their intersection. Display the vertex coordinates of the intersection and the corresponding vertex mapping information.
poly1 = polyshape([0 0 1 1],[1 0 0 1]); poly2 = polyshape([0.75 1.25 1.25 0.75],[0.25 0.25 0.75 0.75]); [polyout,shapeID,vertexID] = intersect(poly1,poly2); [polyout.Vertices shapeID vertexID]
ans = 4×4
0.7500 0.2500 2.0000 1.0000
0.7500 0.7500 2.0000 2.0000
1.0000 0.7500 0 0
1.0000 0.2500 0 0
The first two vertices of the intersection originated in poly2, since the corresponding values in shapeID are 2.These vertices are the first and second vertices in the property poly2.Vertices, respectively, since their corresponding values in vertexID are 1 and 2. The last two vertices of polyout were created from the intersection because the corresponding values in shapeID and vertexID are 0.
Create a rectangular polygon and a line segment.
poly1 = polyshape([0 0 1 1],[1 0 0 1]); lineseg = [0.5 0.5; 1.5 1.5];
Compute the intersection of the polygon with the line segment, and determine which sections of the line segment are inside or outside of the polygon.

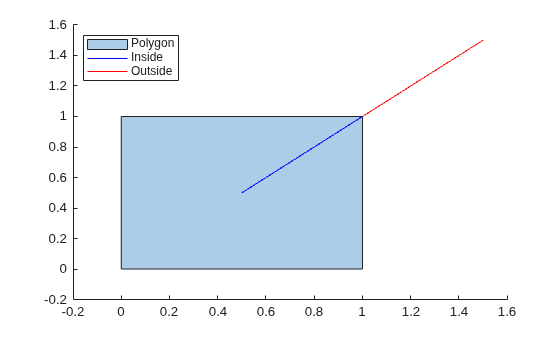

[in,out] = intersect(poly1,lineseg); plot(poly1) hold on plot(in(:,1),in(:,2),'b',out(:,1),out(:,2),'r') legend('Polygon','Inside','Outside','Location','NorthWest')
