Combine two geometries by adding one inside a cell of another

Since R2021a

## Description

example

g3 = addCell(g1,g2) creates nonempty cells inside g1 using all cells of g2. All cells of the geometry g2 must be contained inside one cell of the geometry g1. Ensure that the geometries do not have enclosed cavities and do not intersect one another.

The combined geometry contains cells from both geometries. The cells from g1 retain their original IDs, while the cells from g2 are numbered starting with N+1, where N is the number of cells in g1.

Note

After modifying a geometry, always call generateMesh to ensure a proper mesh association with the new geometry.

## Examples

collapse all

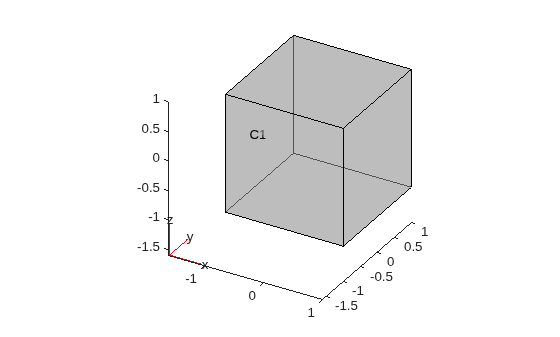

Create and plot a geometry.

g1 = multicuboid(2,2,2,"Zoffset",-1);
pdegplot(g1,"CellLabels","on","FaceAlpha",0.5)

Import and plot another geometry.

g2 = importGeometry("DampingMounts.stl");
pdegplot(g2,"CellLabels","on","FaceAlpha",0.5)

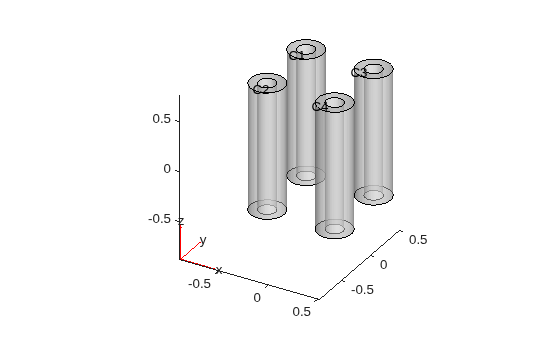

Scale and move the second geometry to fit entirely within the cube g1.

g2 = scale(g2,[1/1500 1/1500 1/100]);
g2 = translate(g2,[-0.5 -0.5 -0.5]);

Plot the result.

pdegplot(g2,"CellLabels","on","FaceAlpha",0.5)

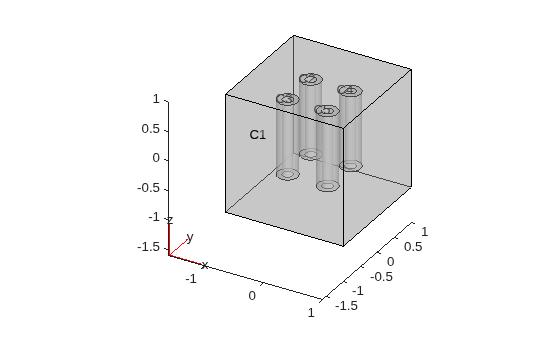

Combine the geometries and plot the result. The combined geometry g3 contains cells from both geometries. The cell from g1 keeps its ID, and the cells from g2 are now C2, C3, C4, and C5.

pdegplot(g3,"CellLabels","on","FaceAlpha",0.4)

## Input Arguments

collapse all

3-D geometry, specified as an fegeometry object or a DiscreteGeometry object.

3-D geometry, specified as an fegeometry object or a DiscreteGeometry object.

## Output Arguments

collapse all

Resulting 3-D geometry, returned as an fegeometry object or a DiscreteGeometry object. If both g1 and g2 are DiscreteGeometry objects, the resulting geometry g3 is also a DiscreteGeometry object. Otherwise, it is an fegeometry object.

## Version History

Introduced in R2021a
