surfacePlotterData

Data for surface plotter

Since R2022b

Syntax

plotterData = surfacePlotterData(manager)

plotData = surfacePlotterData(___,colorMap)

Description

plotterData = surfacePlotterData(manager) returns a data structure plotData that you can use as input to the plotSurface function for plotting surfaces managed by the SurfaceManager object manager.

plotData = surfacePlotterData(___,colorMap) specifies the color map for the plot data.

Examples

Plot Surface in Theater Plot in Radar Scenario

Create a radar scenario.

scenario = radarScenario;

Define the terrain and boundaries of two surfaces and add the two surfaces to the radar scenario.

terrain1 = randi(100,4,5);
terrain2 = randi(100,3,3);
boundary1 = [0 100;
    0 100-eps];
boundary2 = [0 100;
    100 200];
s1 = landSurface(scenario,Terrain=terrain1,Boundary=boundary1);
s2 = landSurface(scenario,Terrain=terrain2,Boundary=boundary2);

Obtain the plotter data by using the surfacePlotterData function.

plotterData = surfacePlotterData(scenario.SurfaceManager)

plotterData=1×2 struct array with fields:
    X
    Y
    Z
    C

Create a theaterPlot object and specify the axis limits of the plot.

theaterpplot = theaterPlot(XLimits=[0 100],YLimits=[-50 250],ZLimits=[-100 100]);

Create a surface plotter.

plotter = surfacePlotter(theaterpplot,DisplayName="Surfaces");

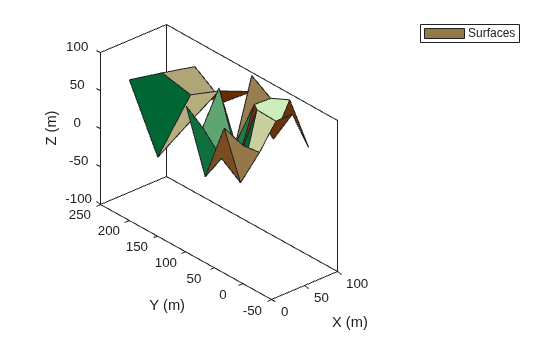

Plot surfaces in the theater plot. Change view angles for better visualization.

plotSurface(plotter,plotterData)
view(-41,29)

Input Arguments

manager — Surface manager

surface manager object

Surface manager, specified as a surface manager object.

colorMap — Color Map

three-column matrix of RGB triplets

Color map used for plotting surfaces, specified as a three-column matrix of RGB triplets. An RGB triplet is a three-element row vector whose elements specify the intensities of the red, green, and blue components of the color. The intensities can be double or single values in the range [0, 1], or they can be uint8 values in the range [0, 255]. For example, this matrix defines a colormap containing five colors:

map = [0.2 0.1 0.5
       0.1 0.5 0.8
       0.2 0.7 0.6
       0.8 0.7 0.3
       0.9 1   0];

Color	double or single RGB Triplet	uint8 RGB Triplet
yellow	[1 1 0]	[255 255 0]
magenta	[1 0 1]	[255 0 255]
cyan	[0 1 1]	[0 255 255]
red	[1 0 0]	[255 0 0]
green	[0 1 0]	[0 255 0]
blue	[0 0 1]	[0 0 255]
white	[1 1 1]	[255 255 255]
black	[0 0 0]	[0 0 0]

Output Arguments

plotterData — Plotter data

P-element array of structures

Plotter data, returned as a P-element array of structures, where P is the number of surfaces saved in the Surfaces property of the SurfaceManager object manager. Each structure has these fields:

Field Name	Description
X	Domain of the surface in the x-direction, returned as an M-element real-valued vector. M is the number of x-coordinates for defining the terrain of the surface.
Y	Domain of the surface in the y-direction, returned as an N-element real-valued vector. N is the number of y-coordinates for defining the terrain of the surface.
Z	Height values of the surface, returned as an N-by-M real-valued matrix. N is the number of elements in the Y field, and M is the number of elements in the X field.
C	Color for vertices in the terrain of the surface, returned as an N-by-M-by-3 matrix of RGB triplets. N is the number of elements in the Y field, and M is the number of elements in the X field. The plotSurface function determines the color of a surface patch based on the color of its first vertex.

Version History

Introduced in R2022b
