couplerBranchline

Create branch line coupler or quadrature hybrid

Description

Use the couplerBranchline object to create a branch line coupler or a quadrature hybrid. A branch line coupler or a quadrature hybrid divides the power between two ports with a phase difference of 90 degrees. This PCB component has four ports. By default, port 1 is the input port, port 2 is the through port, port 4 is the coupled port, and port 3 is the isolated port.

To analyze the behavioral model for the branchline coupler, set the Behavioral property in the sparameters to true or 1.

Creation

Description

example

coupler = couplerBranchline creates a branch line coupler. The default property values are for the frequency of 3 GHz.

coupler = couplerBranchline(Name=Value) sets Properties using one or more name-value arguments. For example, couplerBranchline(PortLineLength=0.0286) creates a branch line coupler of length 0.0286 meters. Properties not specified retain their default values.

Properties

expand all

Length of the input and the output line in meters, specified as a positive scalar.

Example: coupler = couplerBranchline(PortLineLength=0.0286)

Data Types: double

Width of the input and the output line in meters, specified as a positive scalar.

Example: coupler = couplerBranchline(PortLineWidth=0.0070)

Data Types: double

Length of the series arm in meters, specified as a positive scalar.

Example: coupler = couplerBranchline(SeriesArmLength=0.0286)

Data Types: double

Width of the series arm in meters, specified as a positive scalar.

Example: coupler = couplerBranchline(SeriesArmWidth=0.0096)

Data Types: double

Length of the shunt arm in meters, specified as a positive scalar.

Example: coupler = couplerBranchline(ShuntArmLength=0.0286)

Data Types: double

Width of the shunt arm in meters, specified as a positive scalar.

Example: coupler = couplerBranchline(ShuntArmWidth=0.0096)

Data Types: double

Height of the branch line coupler from the ground plane in meters, specified as a positive scalar.

In the case of a multilayer substrate, you can use the Height property to create a branch line coupler line where the two dielectrics interface.

Example: coupler = couplerBranchline(Height=0.0076)

Data Types: double

Width of the ground plane in meters, specified as a positive scalar.

Example: coupler = couplerBranchline(GroundPlaneWidth=0.046)

Example: double

Type of dielectric material used as a substrate, specified as a dielectric object.

Example: d = dielectric("FR4"); coupler = couplerBranchline(Substrate=d)

Data Types: string | char

Type of metal used in the conducting layers, specified as a metal object.

Example: m = metal("PEC"); coupler = couplerBranchline(Conductor=m)

Data Types: string | char

Object Functions

chargeCalculate and plot charge distribution
couplingCalculate coupling factor of coupler
currentCalculate and plot current distribution
designDesign branchline coupler around particular frequency
directivityCalculate directivity of coupler
feedCurrentCalculate current at feed port
getZ0Calculate characteristic impedance of transmission line
isolationCalculate isolation of coupler
layoutPlot all metal layers and board shape
meshChange and view mesh properties of metal or dielectric in PCB component
shapesExtract all metal layer shapes of PCB component
showDisplay PCB component structure or PCB shape
sparametersCalculate S-parameters for RF PCB objects

Examples

collapse all

Create and view a default branchline coupler.

coupler = couplerBranchline
coupler =
  couplerBranchline with properties:

      PortLineLength: 0.0186
       PortLineWidth: 0.0051
     SeriesArmLength: 0.0184
      SeriesArmWidth: 0.0083
      ShuntArmLength: 0.0186
       ShuntArmWidth: 0.0051
              Height: 0.0016
    GroundPlaneWidth: 0.0600
           Substrate: [1x1 dielectric]
           Conductor: [1x1 metal]

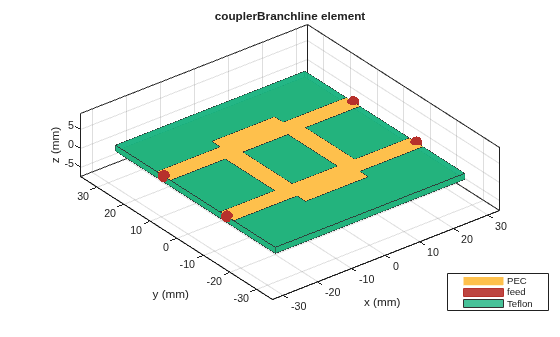

show(coupler)

Figure contains an axes object. The axes object with title couplerBranchline element contains 8 objects of type patch, surface. These objects represent PEC, feed, Teflon.

References

[1] Pozar, David M. Microwave Engineering. 4th ed. Hoboken, NJ: Wiley, 2012.

Version History

Introduced in R2021b
