couplerRatrace

Create equal-split rat-race coupler or 180-degree-ring hybrid

Description

Use the couplerRatrace object to create an equal-split rat-race coupler or a 180-degree-ring hybrid.

The rat-race coupler is used as a splitter with a phase shift. When given two inputs, the coupler can create sum and difference ports for added and subtracted power. It also acts as an interface between transmitters and receivers for integrating with an antenna and in building circuits with complex functionality like a comparator with sum and difference ports.

There are four ports and the circumference is 1.5 λ. The phase shift between the output ports is 180 degrees. When you apply an input at port 1, port 2 and port 4 are coupled ports, where the output has a phase difference of 180 degrees, and port 3 is the isolated port. When you apply an input at port 3, the output is split equally with same phase at port 2 and port 4.

To analyze the behavioral model for the rat-race coupler, set the Behavioral property in the sparameters to true or 1.

Creation

Description

example

coupler = couplerRatrace creates a rat-race coupler. The default property values are for a frequency of 3 GHz.

coupler = couplerRatrace(Name=Value) sets Properties using one or more name-value arguments. For example, couplerRatrace(PortLineLength=0.0286) creates a rat-race coupler with a port line length of 0.0286 meters. Properties not specified retain their default values.

Properties

expand all

Length of the input and the output line in meters, specified as a positive scalar.

Example: coupler = couplerRatrace(PortLineLength=0.0286)

Data Types: double

Width of the input and the output line in meters, specified as a positive scalar.

Example: coupler = couplerRatrace(PortLineWidth=0.0070)

Data Types: double

Width of the coupler line in meters, specified as a positive scalar. The default value is for a λ/4 line with an impedance of Zo/sqrt(2) ohms.

Example: coupler = couplerRatrace(CouplerLineWidth=0.0070)

Data Types: double

Length of the coupler line in meters, specified as a positive scalar. The default value is for a 1.5 λ line with an impedance of Zo/sqrt(2) ohms.

Example: coupler = couplerRatrace(Circumference=0.2303)

Data Types: double

Height of the rat-race coupler from the ground plane in meters, specified as a positive scalar.

In the case of a multilayer substrate, you can use the Height property to create a rat-race coupler where the two dielectrics interface.

Example: coupler = couplerRatrace(Height=0.0015)

Data Types: double

Type of dielectric material used as a substrate, specified as a dielectric object. The thickness of the default dielectric material Teflon is 0.0016 m or the same as the Height property.

Example: d = dielectric("FR4"); coupler = couplerRatrace(Substrate=d)

Data Types: string | char

Type of metal used in the conducting layers, specified as a metal object.

Example: m = metal("PEC"); coupler = couplerRatrace(Conductor=m)

Data Types: string | char

Object Functions

chargeCalculate and plot charge distribution
couplingCalculate coupling factor of coupler
currentCalculate and plot current distribution
designDesign rat-race coupler around specified frequency
directivityCalculate directivity of coupler
feedCurrentCalculate current at feed port
getZ0Calculate characteristic impedance of transmission line
isolationCalculate isolation of coupler
layoutPlot all metal layers and board shape
meshChange and view mesh properties of metal or dielectric in PCB component
shapesExtract all metal layer shapes of PCB component
showDisplay PCB component structure or PCB shape
sparametersCalculate S-parameters for RF PCB objects

Examples

collapse all

Create and view a default rat-race coupler.

ratrace = couplerRatrace
ratrace =
  couplerRatrace with properties:

      PortLineLength: 0.0186
       PortLineWidth: 0.0050
    CouplerLineWidth: 0.0030
       Circumference: 0.1110
              Height: 0.0016
           Substrate: [1x1 dielectric]
           Conductor: [1x1 metal]

show(ratrace)

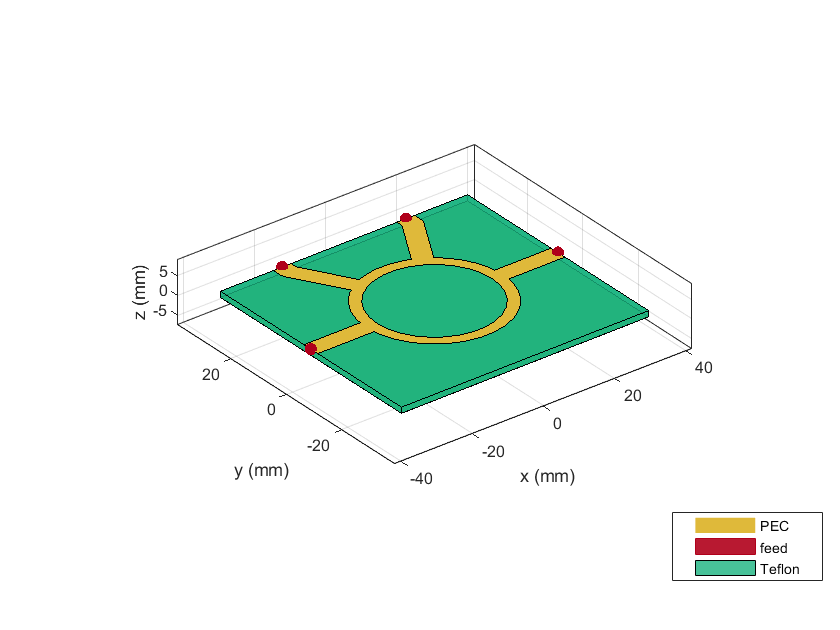

Figure contains an axes object. The axes object with title couplerRatrace element contains 8 objects of type patch, surface. These objects represent PEC, feed, Teflon.

Create a rat-race coupler with default properties.

coupler = couplerRatrace;

Set the excitation voltage and the phase angle at the ports of the coupler.

v = voltagePort(4)
v =
  voltagePort with properties:

         NumPorts: 4
      FeedVoltage: [1 0 0 0]
        FeedPhase: [0 0 0 0]
    PortImpedance: 50

v.FeedVoltage = [1 0 1 0]
v =
  voltagePort with properties:

         NumPorts: 4
      FeedVoltage: [1 0 1 0]
        FeedPhase: [0 0 0 0]
    PortImpedance: 50

v.FeedPhase = [90 0 270 0]
v =
  voltagePort with properties:

         NumPorts: 4
      FeedVoltage: [1 0 1 0]
        FeedPhase: [90 0 270 0]
    PortImpedance: 50

Calculate and plot the current on the coupler at 3 GHz.

figure
current(coupler,3e9,Excitation=v,Type='real',Direction='on')

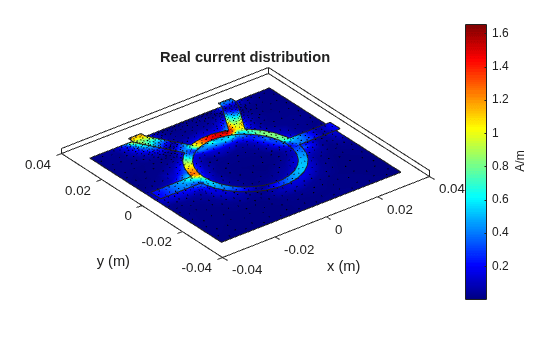

Figure contains an axes object. The axes object with title Real current distribution contains 5 objects of type patch, quiver.

References

[1] Pozar, David M. Microwave Engineering. 4th ed. Hoboken, NJ: Wiley, 2012.
