# centerOfMass

Center of mass position and Jacobian

## Syntax

``com = centerOfMass(robot)``
``com = centerOfMass(robot,configuration)``
``````[com,comJac] = centerOfMass(robot,configuration)``````

## Description

example

````com = centerOfMass(robot)` computes the center of mass position of the robot model at its home configuration, relative to the base frame.```
````com = centerOfMass(robot,configuration)` computes the center of mass position of the robot model at the specified joint configuration, relative to the base frame.```
``````[com,comJac] = centerOfMass(robot,configuration)``` also returns the center of mass Jacobian, which relates the center of mass velocity to the joint velocities.```

## Examples

collapse all

Load a KUKA LBR iiwa robot model from the Robotics System Toolbox™ `loadrobot`. This is specified as a `rigidBodyTree` object.

`lbr = loadrobot("kukaIiwa14")`
```lbr = rigidBodyTree with properties: NumBodies: 10 Bodies: {[1x1 rigidBody] [1x1 rigidBody] [1x1 rigidBody] [1x1 rigidBody] [1x1 rigidBody] [1x1 rigidBody] [1x1 rigidBody] [1x1 rigidBody] [1x1 rigidBody] [1x1 rigidBody]} Base: [1x1 rigidBody] BodyNames: {'iiwa_link_0' 'iiwa_link_1' 'iiwa_link_2' 'iiwa_link_3' 'iiwa_link_4' 'iiwa_link_5' 'iiwa_link_6' 'iiwa_link_7' 'iiwa_link_ee' 'iiwa_link_ee_kuka'} BaseName: 'world' Gravity: [0 0 0] DataFormat: 'struct' ```

Set the data format to "`row"`. For all dynamics calculations, the data format must be either "`row"` or "`column"`.

`lbr.DataFormat = "row";`

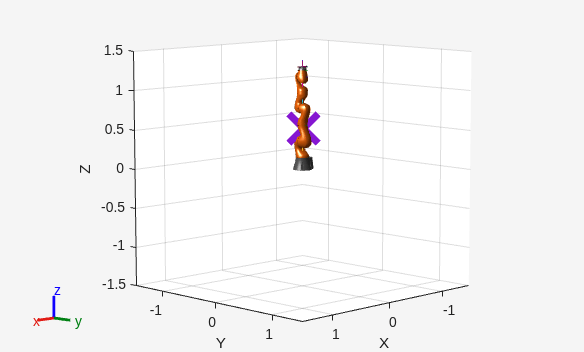

Compute the center of mass position and Jacobian at the home configuration of the robot.

```[comLocation,comJac] = centerOfMass(lbr); show(lbr); hold all plot3(comLocation(1),comLocation(2),comLocation(3),Marker="x",MarkerSize=30,LineWidth=5);```

## Input Arguments

collapse all

Robot model, specified as a `rigidBodyTree` object. To use the `centerOfMass` function, set the `DataFormat` property to either `'row'` or `'column'`.

Robot configuration, specified as a vector with positions for all nonfixed joints in the robot model. You can generate a configuration using `homeConfiguration(robot)`, `randomConfiguration(robot)`, or by specifying your own joint positions. To use the vector form of `configuration`, set the `DataFormat` property for the `robot` to either `'row'` or `'column'`.

## Output Arguments

collapse all

Center of mass location, returned as an `[x y z]` vector. The vector describes the location of the center of mass for the specified `configuration` relative to the body frame, in meters.

Center of mass Jacobian, returned as a 3-by-n matrix, where n is the robot velocity degrees of freedom.

## References

[1] Featherstone, Roy. Rigid Body Dynamics Algorithms. Springer US, 2008. DOI.org (Crossref), doi:10.1007/978-1-4899-7560-7.

## Version History

Introduced in R2017a
