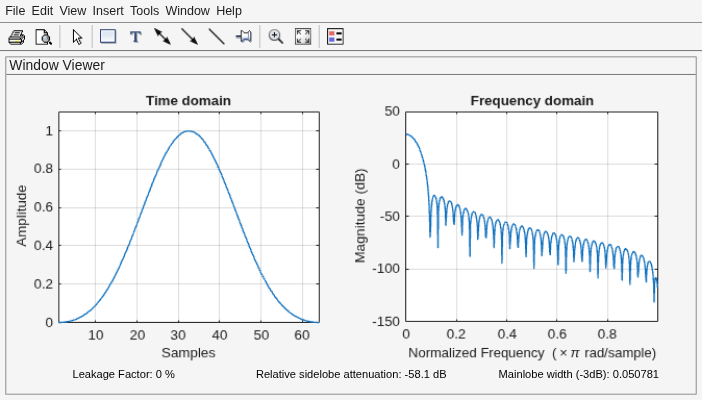

Create a 64-point Blackman window. Display the result using
L = 64; wvtool(blackman(L))
L — Window length
Window length, specified as a positive integer.
sflag — Window sampling
'symmetric' (default) |
Window sampling method, specified as:
'symmetric'— Use this option when using windows for filter design.
'periodic'— This option is useful for spectral analysis because it enables a windowed signal to have the perfect periodic extension implicit in the discrete Fourier transform. When
'periodic'is specified, the function computes a window of length
L+ 1 and returns the first
w — Blackman window
Blackman window, returned as a column vector.
The following equation defines the Blackman window of length N:
where M is N/2 when N is even and (N + 1)/2 when N is odd.
In the symmetric case, the second half of the Blackman window, M ≤ n ≤ N – 1, is obtained by reflecting the first half around the midpoint. The symmetric option is the preferred method when using a Blackman window in FIR filter design.
The periodic Blackman window is constructed by extending the desired window length by one sample to N + 1, constructing a symmetric window, and removing the last sample. The periodic version is the preferred method when using a Blackman window in spectral analysis because the discrete Fourier transform assumes periodic extension of the input vector.
 Oppenheim, Alan V., Ronald W. Schafer, and John R. Buck. Discrete-Time Signal Processing. Upper Saddle River, NJ: Prentice Hall, 1999, pp. 468–471.
