uitimescope

Display time-domain signals in app

Since R2024a

    Description

    s = uitimescope creates a time scope UI component in a new figure and returns the TimeScope object. MATLAB® calls the uifigure function to create the figure.

    s = uitimescope(parent) creates a time scope UI component in the specified parent container. The parent can be a figure created using the uifigure function or one of its child containers.

    example

    s = uitimescope(___,Name=Value) specifies TimeScope properties using one or more name-value arguments. Use this option with any of the input argument combinations in the previous syntaxes. For example, uitimescope(Title="My Plot") specifies the time scope title. For a list of properties, see TimeScope Properties.

    example

    Examples

    collapse all

    Create a time scope component in a UI figure.

    fig = uifigure;
    s = uitimescope(fig);

    Figure contains an object of type uitimescope.

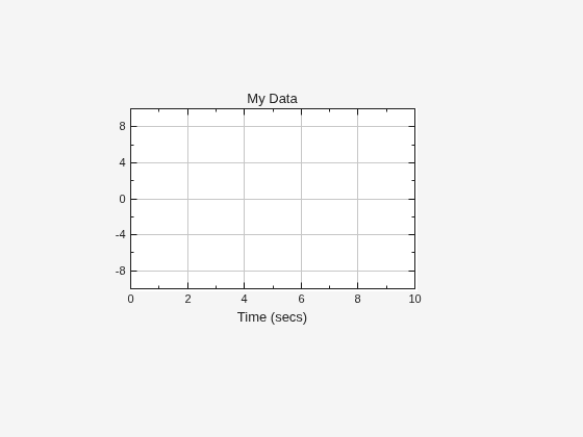

    Create a time scope component in a UI figure. Specify the scope title.

    fig = uifigure;
    s = uitimescope(fig,Title="My Data");

    Figure contains an object of type uitimescope.

    Query the length of the x-axis range using the XTimeSpan property.

    s.XTimeSpan
    ans =
    10

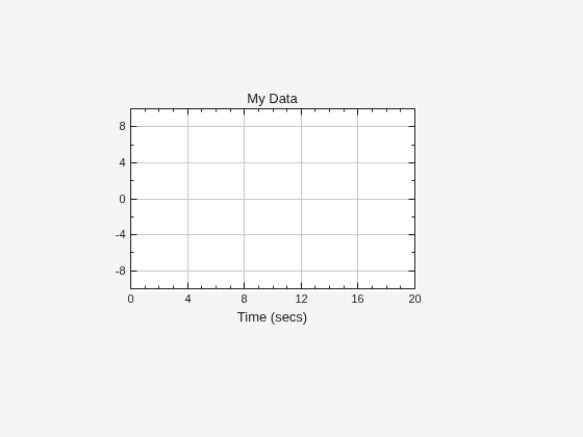

    Update the x-axis time span to show 20 seconds of data.

    s.XTimeSpan = 20;

    Figure contains an object of type uitimescope.

    Visualize signal data in an app while a simulation runs by connecting a logged signal in a Simulink model to a time scope in an app.

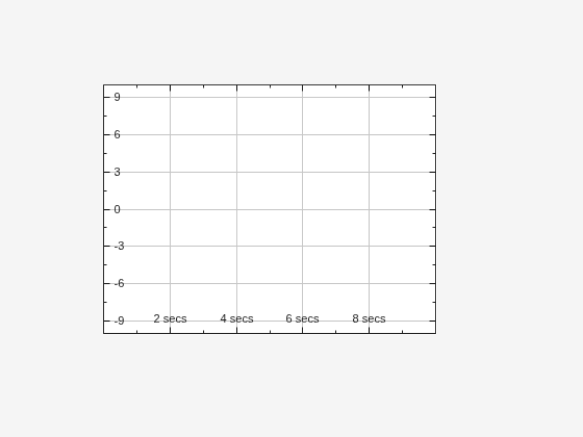

    First, create a time scope component in a UI figure.

    fig = uifigure;
    scope = uitimescope(fig);

    Figure contains an object of type uitimescope.

    Create a Simulation object that represents a simulation of the bouncingBall model.

    s = simulation("bouncingBall");

    Connect a logged signal in the model to the time scope component by creating a binding. Specify the binding source by using the collection of signals logged in the Simulation object along with the block path and port index of the specific signal to visualize. Specify the binding destination as the TimeScope object.

    sig = s.LoggedSignals;
    tindoors = s.ModelName + "/Second-Order  Integrator:1";
    bind(sig,tindoors,scope);

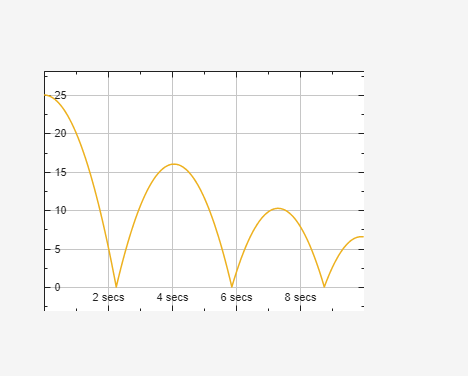

    Start the simulation. The time scope displays the signal data as the simulation runs.

    start(s)

    Time scope UI component with some plotted signal data

    Input Arguments

    collapse all

    Parent container, specified as a Figure object created using the uifigure or one of its child containers: a Tab, Panel, ButtonGroup, or GridLayout object. If you do not specify a parent container, MATLAB calls the uifigure function to create a new Figure object that serves as the parent container.

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: uitimescope(Title="My Plot")

    Note

    The properties listed here are a subset of the available properties. For the full list, see TimeScope Properties.

    Length of the x-axis range, in seconds, specified as a positive value. As new data displays in the time scope, the limits of the x-axis change to reflect the data. The value of XTimeSpan specifies how much data the time scope displays at any time.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Minimum and maximum y-axis limits, specified as a two-element vector of the form [min max], where max is greater than min.

    Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

    Type of plot, specified as 'line', 'stairs', or 'stem'.

    This table describes each of the plot types and when to use each type.

    ValueUseAppearance
    'line'Visualize continuous signals.

    Time scope with the 'line' plot type. Consecutive data points of the plotted signal are connected by straight lines.

    'stairs'Visualize discrete signals.

    Time scope with the 'stairs' plot type. Consecutive data points of the plotted signal are connected by horizontal and vertical lines.

    'stem'Visualize frequency of signal values.

    Time scope with the 'stem plot type. Consecutive data points of the plotted signal are represented as markers with vertical lines connecting them to the x-axis.

    Size and location, specified as a four-element vector of the form [left bottom width height]. This table describes each element of the vector.

    ElementDescription
    leftDistance from the inner left edge of the parent container to the outer left edge of the scope
    bottomDistance from the inner bottom edge of the parent container to the outer bottom edge of the scope
    widthDistance between the right and left outer edges of the scope
    heightDistance between the top and bottom outer edges of the scope

    All measurements are in pixel units.

    Version History

    Introduced in R2024a
