sldvtimer

Identify, change, and display timer optimizations

Syntax

status = sldvtimer

status = sldvtimer(value)

status = sldvtimer(sldvdata)

status = sldvtimer(sldvdata,display)

status = sldvtimer(model)

Description

status = sldvtimer returns a status of 1 if timer optimizations are enabled for Simulink^® Design Verifier™ test generation. Otherwise, sldvtimer returns a status of 0.

status = sldvtimer(value) enables or disables timer optimizations for Simulink Design Verifier test generation.

status = sldvtimer(sldvdata) indicates if timer optimizations are recorded in Simulink Design Verifier data file sldvdata. If timer optimizations are recorded, the function returns a status of 1. If timer optimizations are not recorded, the function returns a status of 0. If sldvdata does not have information about the timer optimizations, the function returns a status of -1.

status = sldvtimer(sldvdata,display) indicates if timer optimizations are recorded in Simulink Design Verifier data file sldvdata and identifies model items that are part of recognized timer patterns when display is true. If timer optimizations are recorded, the function returns a status of 1. If timer optimizations are not recorded, the function returns a status of 0. If sldvdata does not have information about timer optimizations, the function returns a status of -1.

status = sldvtimer(model) displays timer patterns in the model that you can optimize for Simulink Design Verifier test generation.

Examples

Optimize Model Timers

Using the sldvtimer function to optimize model timers, increase the number of test generation objectives met during Simulink Design Verifier Test Generation analysis.

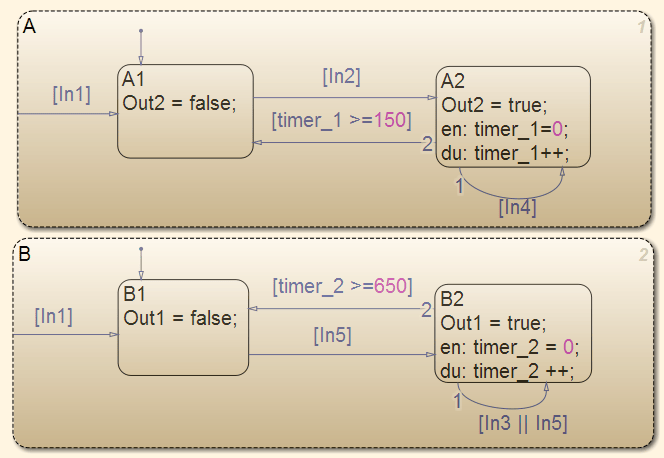

The example model has timers timer_1 and timer_2 in a Stateflow^® chart.

On the Design Verifier tab, in the Mode section, select Test Generation, then click Generate Tests.

• The Simulink Design Verifier log dialog box displays that:

  • Test generation exceeded time limit

  • 28 of 32 objectives satisfied

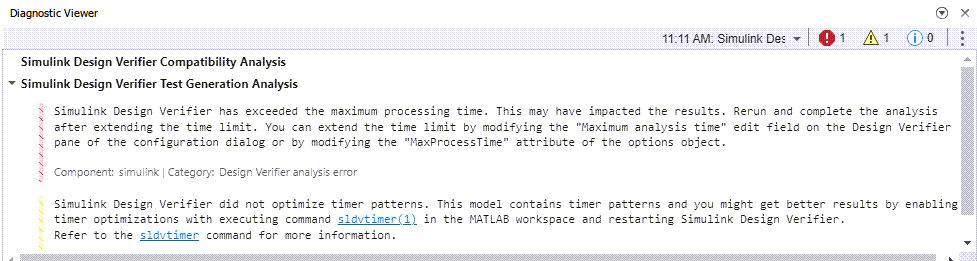

• The Simulink Design Verifier Errors information dialog box indicates that Test generation did not optimize timer patterns.



To enable the timer optimizations, in the MATLAB^® Command Window, enter:

sldvtimer(1)

To generate test cases, on the Design Verifier tab, in the Mode section, select Test Generation, then click Generate Tests.

The test generation analysis completes and the software generates the test cases.

Input Arguments

value — Enable timer optimizations

logical

Logical value to enable timer optimizations.

true to enable timer optimizations.

false (default) to disable timer optimizations.

sldvdata — Name of data file

character vector | string scalar

Name of the data file that contains the timer optimization data.

display — Identify model objects in timer patterns

logical

Logical value to identify model objects that are part of recognized timer patterns.

true to identify model objects that are part of recognized timer patterns.

false (default) not to identify model objects that are part of recognized timer patterns

model — Handel to a model

[] (default) | character vector | string scalar

Handle to a Simulink model

Output Arguments

status — Outcome of recorded timers

integer

Outcome of attempt to record timer optimization, which returns an integer value.

Logical Value Returned	Status of Timer Optimizations
1	Timer optimizations recorded.
0	Timer optimizations not recorded.
-1	sldvdata does not have information about timer optimizations.

Limitations

If relational boundary objectives are included for test case generation, sldvtimer can optimize fewer timers. For information on relational boundary objectives, see Relational Boundary.

Version History

Introduced in R2012a
