incrementalLearner

Convert kernel regression model to incremental learner

Syntax

``IncrementalMdl = incrementalLearner(Mdl)``
``IncrementalMdl = incrementalLearner(Mdl,Name=Value)``

Description

example

````IncrementalMdl = incrementalLearner(Mdl)` returns a Gaussian kernel regression model for incremental learning, `IncrementalMdl`, using the parameters and hyperparameters of the traditionally trained, Gaussian kernel regression model `Mdl`. Because its property values reflect the knowledge gained from `Mdl`, `IncrementalMdl` can predict responses given new observations, and it is warm, meaning that its predictive performance is tracked.```

example

````IncrementalMdl = incrementalLearner(Mdl,Name=Value)` uses additional options specified by one or more name-value arguments. Some options require you to train `IncrementalMdl` before its predictive performance is tracked. For example, `MetricsWarmupPeriod=50,MetricsWindowSize=100` specifies a preliminary incremental training period of 50 observations before performance metrics are tracked, and specifies processing 100 observations before updating the window performance metrics.```

Examples

collapse all

Train a kernel regression model by using `fitrkernel`, and then convert it to an incremental learner.

Load the 2015 NYC housing data set. For more details on the data, see NYC Open Data.

`load NYCHousing2015`

Extract the response variable `SALEPRICE` from the table. For numerical stability, scale `SALEPRICE` by `1e6`.

```Y = NYCHousing2015.SALEPRICE/1e6; NYCHousing2015.SALEPRICE = [];```

To reduce computational cost for this example, remove the `NEIGHBORHOOD` column, which contains a categorical variable with 254 categories.

`NYCHousing2015.NEIGHBORHOOD = [];`

Create dummy variable matrices from the other categorical predictors.

```catvars = ["BOROUGH","BUILDINGCLASSCATEGORY"]; dumvarstbl = varfun(@(x)dummyvar(categorical(x)),NYCHousing2015, ... InputVariables=catvars); dumvarmat = table2array(dumvarstbl); NYCHousing2015(:,catvars) = [];```

Treat all other numeric variables in the table as predictors of sales price. Concatenate the matrix of dummy variables to the rest of the predictor data.

```idxnum = varfun(@isnumeric,NYCHousing2015,OutputFormat="uniform"); X = [dumvarmat NYCHousing2015{:,idxnum}];```

Train Kernel Regression Model

Fit a kernel regression model to the entire data set.

`Mdl = fitrkernel(X,Y)`
```Mdl = RegressionKernel ResponseName: 'Y' Learner: 'svm' NumExpansionDimensions: 2048 KernelScale: 1 Lambda: 1.0935e-05 BoxConstraint: 1 Epsilon: 0.0549 Properties, Methods ```

`Mdl` is a `RegressionKernel` model object representing a traditionally trained kernel regression model.

Convert Trained Model

Convert the traditionally trained kernel regression model to a model for incremental learning.

`IncrementalMdl = incrementalLearner(Mdl)`
```IncrementalMdl = incrementalRegressionKernel IsWarm: 1 Metrics: [1x2 table] ResponseTransform: 'none' NumExpansionDimensions: 2048 KernelScale: 1 Properties, Methods ```

`IncrementalMdl` is an `incrementalRegressionKernel` model object prepared for incremental learning.

• The `incrementalLearner` function initializes the incremental learner by passing model parameters to it, along with other information `Mdl` extracted from the training data.

• `IncrementalMdl` is warm (`IsWarm` is `1`), which means that incremental learning functions can start tracking performance metrics.

• `incrementalRegressionKernel` trains the model using the adaptive scale-invariant solver, whereas `fitrkernel` trained `Mdl` using the Limited-memory Broyden-Fletcher-Goldfarb-Shanno (LBFGS) solver.

Predict Responses

An incremental learner created from converting a traditionally trained model can generate predictions without further processing.

Predict sales prices for all observations using both models.

```ttyfit = predict(Mdl,X); ilyfit = predict(IncrementalMdl,X); compareyfit = norm(ttyfit - ilyfit)```
```compareyfit = 0 ```

The difference between the fitted values generated by the models is 0.

Use a trained kernel regression model to initialize an incremental learner. Prepare the incremental learner by specifying a metrics warm-up period and a metrics window size.

Load the robot arm data set.

`load robotarm`

For details on the data set, enter `Description` at the command line.

Randomly partition the data into 5% and 95% sets: the first set for training a model traditionally, and the second set for incremental learning.

```n = numel(ytrain); rng(1) % For reproducibility cvp = cvpartition(n,Holdout=0.95); idxtt = training(cvp); idxil = test(cvp); % 5% set for traditional training Xtt = Xtrain(idxtt,:); Ytt = ytrain(idxtt); % 95% set for incremental learning Xil = Xtrain(idxil,:); Yil = ytrain(idxil);```

Fit a kernel regression model to the first set.

`TTMdl = fitrkernel(Xtt,Ytt);`

Convert the traditionally trained kernel regression model to a model for incremental learning. Specify the following:

• A performance metrics warm-up period of 2000 observations.

• A metrics window size of 500 observations.

• Use of epsilon insensitive loss, MSE, and mean absolute error (MAE) to measure the performance of the model. The software supports epsilon insensitive loss and MSE. Create an anonymous function that measures the absolute error of each new observation. Create a structure array containing the name `MeanAbsoluteError` and its corresponding function.

```maefcn = @(z,zfit)abs(z - zfit); maemetric = struct(MeanAbsoluteError=maefcn); IncrementalMdl = incrementalLearner(TTMdl,MetricsWarmupPeriod=2000,MetricsWindowSize=500, ... Metrics={"epsiloninsensitive","mse",maemetric});```

Fit the incremental model to the rest of the data by using the `updateMetricsAndFit` function. At each iteration:

• Simulate a data stream by processing 50 observations at a time.

• Overwrite the previous incremental model with a new one fitted to the incoming observations.

• Store the cumulative metrics, window metrics, and number of training observations to see how they evolve during incremental learning.

```% Preallocation nil = numel(Yil); numObsPerChunk = 50; nchunk = floor(nil/numObsPerChunk); ei = array2table(zeros(nchunk,2),VariableNames=["Cumulative","Window"]); mse = array2table(zeros(nchunk,2),VariableNames=["Cumulative","Window"]); mae = array2table(zeros(nchunk,2),VariableNames=["Cumulative","Window"]); numtrainobs = [IncrementalMdl.NumTrainingObservations; zeros(nchunk,1)]; % Incremental fitting for j = 1:nchunk ibegin = min(nil,numObsPerChunk*(j-1) + 1); iend = min(nil,numObsPerChunk*j); idx = ibegin:iend; IncrementalMdl = updateMetricsAndFit(IncrementalMdl,Xil(idx,:),Yil(idx)); ei{j,:} = IncrementalMdl.Metrics{"EpsilonInsensitiveLoss",:}; mse{j,:} = IncrementalMdl.Metrics{"MeanSquaredError",:}; mae{j,:} = IncrementalMdl.Metrics{"MeanAbsoluteError",:}; numtrainobs(j+1) = IncrementalMdl.NumTrainingObservations; end```

`IncrementalMdl` is an `incrementalRegressionKernel` model object trained on all the data in the stream. During incremental learning and after the model is warmed up, `updateMetricsAndFit` checks the performance of the model on the incoming observations, and then fits the model to those observations.

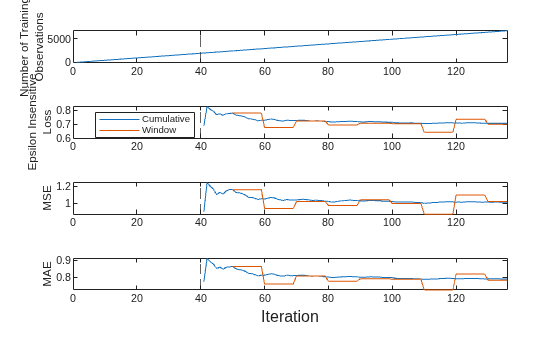

Plot a trace plot of the number of training observations and the performance metrics on separate tiles.

```t = tiledlayout(4,1); nexttile plot(numtrainobs) xlim([0 nchunk]) xline(IncrementalMdl.MetricsWarmupPeriod/numObsPerChunk,"--") ylabel(["Number of Training","Observations"]) nexttile plot(ei.Variables) xlim([0 nchunk]) ylabel(["Epsilon Insensitive","Loss"]) xline(IncrementalMdl.MetricsWarmupPeriod/numObsPerChunk,"--") legend(ei.Properties.VariableNames,Location="best") nexttile plot(mse.Variables) xlim([0 nchunk]) ylabel("MSE") xline(IncrementalMdl.MetricsWarmupPeriod/numObsPerChunk,"--") nexttile plot(mae.Variables) xlim([0 nchunk]) ylabel("MAE") xline(IncrementalMdl.MetricsWarmupPeriod/numObsPerChunk,"--") xlabel(t,"Iteration")```

The plot suggests that `updateMetricsAndFit` does the following:

• Fit the model during all incremental learning iterations.

• Compute the performance metrics after the metrics warm-up period only.

• Compute the cumulative metrics during each iteration.

• Compute the window metrics after processing 500 observations.

The default solver for `incrementalRegressionKernel` is the adaptive scale-invariant solver, which does not require hyperparameter tuning before you fit a model. However, if you specify either the standard stochastic gradient descent (SGD) or average SGD (ASGD) solver instead, you can also specify an estimation period, during which the incremental fitting functions tune the learning rate.

Load and shuffle the 2015 NYC housing data set. For more details on the data, see NYC Open Data.

```load NYCHousing2015 rng(1) % For reproducibility n = size(NYCHousing2015,1); shuffidx = randsample(n,n); NYCHousing2015 = NYCHousing2015(shuffidx,:);```

Extract the response variable `SALEPRICE` from the table. For numerical stability, scale `SALEPRICE` by `1e6`.

```Y = NYCHousing2015.SALEPRICE/1e6; NYCHousing2015.SALEPRICE = [];```

To reduce computational cost for this example, remove the `NEIGHBORHOOD` column, which contains a categorical variable with 254 categories.

`NYCHousing2015.NEIGHBORHOOD = [];`

Create dummy variable matrices from the categorical predictors.

```catvars = ["BOROUGH","BUILDINGCLASSCATEGORY"]; dumvarstbl = varfun(@(x)dummyvar(categorical(x)),NYCHousing2015, ... InputVariables=catvars); dumvarmat = table2array(dumvarstbl); NYCHousing2015(:,catvars) = [];```

Treat all other numeric variables in the table as predictors of sales price. Concatenate the matrix of dummy variables to the rest of the predictor data.

```idxnum = varfun(@isnumeric,NYCHousing2015,OutputFormat="uniform"); X = [dumvarmat NYCHousing2015{:,idxnum}];```

Randomly partition the data into 5% and 95% sets: the first set for training a model traditionally, and the second set for incremental learning.

```cvp = cvpartition(n,Holdout=0.95); idxtt = training(cvp); idxil = test(cvp); % 5% set for traditional training Xtt = X(idxtt,:); Ytt = Y(idxtt); % 95% set for incremental learning Xil = X(idxil,:); Yil = Y(idxil);```

Fit a kernel regression model to 5% of the data.

`Mdl = fitrkernel(Xtt,Ytt);`

Convert the traditionally trained kernel regression model to a model for incremental learning. Specify the standard SGD solver and an estimation period of `2e4` observations (the default is `1000` when a learning rate is required).

`IncrementalMdl = incrementalLearner(Mdl,Solver="sgd",EstimationPeriod=2e4);`

`IncrementalMdl` is an `incrementalRegressionKernel` model object configured for incremental learning.

Fit the incremental model to the rest of the data by using the `fit` function. At each iteration:

• Simulate a data stream by processing 10 observations at a time.

• Overwrite the previous incremental model with a new one fitted to the incoming observations.

• Store the initial learning rate and number of training observations to see how they evolve during training.

```% Preallocation nil = numel(Yil); numObsPerChunk = 10; nchunk = floor(nil/numObsPerChunk); learnrate = [zeros(nchunk,1)]; numtrainobs = [zeros(nchunk,1)]; % Incremental fitting for j = 1:nchunk ibegin = min(nil,numObsPerChunk*(j-1) + 1); iend = min(nil,numObsPerChunk*j); idx = ibegin:iend; IncrementalMdl = fit(IncrementalMdl,Xil(idx,:),Yil(idx)); learnrate(j) = IncrementalMdl.SolverOptions.LearnRate; numtrainobs(j) = IncrementalMdl.NumTrainingObservations; end```

`IncrementalMdl` is an `incrementalRegressionKernel` model object trained on all the data in the stream.

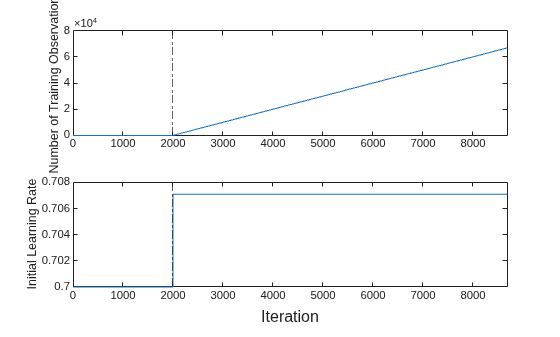

Plot a trace plot of the number of training observations and the initial learning rate on separate tiles.

```t = tiledlayout(2,1); nexttile plot(numtrainobs) xlim([0 nchunk]) xline(IncrementalMdl.EstimationPeriod/numObsPerChunk,"-."); ylabel("Number of Training Observations") nexttile plot(learnrate) xlim([0 nchunk]) ylabel("Initial Learning Rate") xline(IncrementalMdl.EstimationPeriod/numObsPerChunk,"-."); xlabel(t,"Iteration")```

The plot suggests that `fit` does not fit the model to the streaming data during the estimation period. The initial learning rate jumps from `0.7` to its autotuned value after the estimation period. During training, the software uses a learning rate that gradually decays from the initial value specified in the LearnRateSchedule property of `IncrementalMdl`.

Input Arguments

collapse all

Traditionally trained Gaussian kernel regression model, specified as a `RegressionKernel` model object returned by `fitrkernel`.

Note

Incremental learning functions support only numeric input predictor data. If `Mdl` was trained on categorical data, you must prepare an encoded version of the categorical data to use incremental learning functions. Use `dummyvar` to convert each categorical variable to a numeric matrix of dummy variables. Then, concatenate all dummy variable matrices and any other numeric predictors, in the same way that the training function encodes categorical data. For more details, see Dummy Variables.

Name-Value Arguments

Specify optional pairs of arguments as `Name1=Value1,...,NameN=ValueN`, where `Name` is the argument name and `Value` is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: `Solver="sgd",MetricsWindowSize=100` specifies the stochastic gradient descent solver for objective optimization, and specifies processing 100 observations before updating the window performance metrics.

General Options

collapse all

Objective function minimization technique, specified as a value in this table.

ValueDescriptionNotes
`"scale-invariant"`

• This algorithm is parameter free and can adapt to differences in predictor scales. Try this algorithm before using SGD or ASGD.

• To shuffle an incoming chunk of data before the `fit` function fits the model, set `Shuffle` to `true`.

`"sgd"`Stochastic gradient descent (SGD) [2][3]

• To train effectively with SGD, specify adequate values for hyperparameters using options listed in SGD and ASGD Solver Options.

• The `fit` function always shuffles an incoming chunk of data before fitting the model.

`"asgd"`Average stochastic gradient descent (ASGD) [4]

• To train effectively with ASGD, specify adequate values for hyperparameters using options listed in SGD and ASGD Solver Options.

• The `fit` function always shuffles an incoming chunk of data before fitting the model.

Example: `Solver="sgd"`

Data Types: `char` | `string`

Number of observations processed by the incremental model to estimate hyperparameters before training or tracking performance metrics, specified as a nonnegative integer.

Note

• If `Mdl` is prepared for incremental learning (all hyperparameters required for training are specified), `incrementalLearner` forces `EstimationPeriod` to `0`.

• If `Mdl` is not prepared for incremental learning, `incrementalLearner` sets `EstimationPeriod` to `1000`.

For more details, see Estimation Period.

Example: `EstimationPeriod=100`

Data Types: `single` | `double`

SGD and ASGD Solver Options

collapse all

Mini-batch size, specified as a positive integer. At each learning cycle during training, `incrementalLearner` uses `BatchSize` observations to compute the subgradient.

The number of observations in the last mini-batch (last learning cycle in each function call of `fit` or `updateMetricsAndFit`) can be smaller than `BatchSize`. For example, if you supply 25 observations to `fit` or `updateMetricsAndFit`, the function uses 10 observations for the first two learning cycles and 5 observations for the last learning cycle.

Example: `BatchSize=5`

Data Types: `single` | `double`

Ridge (L2) regularization term strength, specified as a nonnegative scalar.

Example: `Lambda=0.01`

Data Types: `single` | `double`

Initial learning rate, specified as `"auto"` or a positive scalar.

The learning rate controls the optimization step size by scaling the objective subgradient. `LearnRate` specifies an initial value for the learning rate, and `LearnRateSchedule` determines the learning rate for subsequent learning cycles.

When you specify `"auto"`:

• The initial learning rate is `0.7`.

• If `EstimationPeriod` > `0`, `fit` and `updateMetricsAndFit` change the rate to `1/sqrt(1+max(sum(X.^2,2)))` at the end of `EstimationPeriod`.

Example: `LearnRate=0.001`

Data Types: `single` | `double` | `char` | `string`

Learning rate schedule, specified as a value in this table, where `LearnRate` specifies the initial learning rate ɣ0.

ValueDescription
`"constant"`The learning rate is ɣ0 for all learning cycles.
`"decaying"`

The learning rate at learning cycle t is

`${\gamma }_{t}=\frac{{\gamma }_{0}}{{\left(1+\lambda {\gamma }_{0}t\right)}^{c}}.$`

• λ is the value of `Lambda`.

• If `Solver` is `"sgd"`, c = `1`.

• If `Solver` is `"asgd"`:

• c = `2/3` if `Learner` is `"leastsquares"`.

• c = `3/4` if `Learner` is `"svm"` [4].

Example: `LearnRateSchedule="constant"`

Data Types: `char` | `string`

collapse all

Flag for shuffling the observations at each iteration, specified as logical `1` (`true`) or `0` (`false`).

ValueDescription
logical `1` (`true`)The software shuffles the observations in an incoming chunk of data before the `fit` function fits the model. This action reduces bias induced by the sampling scheme.
logical `0` (`false`)The software processes the data in the order received.

Example: `Shuffle=false`

Data Types: `logical`

Performance Metrics Options

collapse all

Model performance metrics to track during incremental learning with `updateMetrics` or `updateMetricsAndFit`, specified as a built-in loss function name, string vector of names, function handle (`@metricName`), structure array of function handles, or cell vector of names, function handles, or structure arrays.

The following table lists the built-in loss function names and which learners, specified in `Mdl.Learner`, support them. You can specify more than one loss function by using a string vector.

NameDescriptionLearner Supporting Metric
`"epsiloninsensitive"`Epsilon insensitive loss`'svm'`
`"mse"`Weighted mean squared error`'svm'` and `'leastsquares'`

For more details on the built-in loss functions, see `loss`.

Example: `Metrics=["epsiloninsensitive","mse"]`

To specify a custom function that returns a performance metric, use function handle notation. The function must have this form:

`metric = customMetric(Y,YFit)`

• The output argument `metric` is an n-by-1 numeric vector, where each element is the loss of the corresponding observation in the data processed by the incremental learning functions during a learning cycle.

• You specify the function name (`customMetric`).

• `Y` is a length n numeric vector of observed responses, where n is the sample size.

• `YFit` is a length n numeric vector of corresponding predicted responses.

To specify multiple custom metrics and assign a custom name to each, use a structure array. To specify a combination of built-in and custom metrics, use a cell vector.

Example: `Metrics=struct(Metric1=@customMetric1,Metric2=@customMetric2)`

Example: `Metrics={@customMetric1,@customMetric2,"mse",struct(Metric3=@customMetric3)}`

`updateMetrics` and `updateMetricsAndFit` store specified metrics in a table in the property `IncrementalMdl.Metrics`. The data type of `Metrics` determines the row names of the table.

`Metrics` Value Data TypeDescription of `Metrics` Property Row NameExample
String or character vectorName of corresponding built-in metricRow name for `"epsiloninsensitive"` is `"EpsilonInsensitiveLoss"`
Structure arrayField nameRow name for `struct(Metric1=@customMetric1)` is `"Metric1"`
Function handle to function stored in a program fileName of functionRow name for `@customMetric` is `"customMetric"`
Anonymous function`CustomMetric_j`, where `j` is metric `j` in `Metrics`Row name for `@(Y,YFit)customMetric(Y,YFit)...` is `CustomMetric_1`

By default:

• `Metrics` is `"epsiloninsensitive"` if `Mdl.Learner` is `'svm'`.

• `Metrics` is `"mse"` if `Mdl.Learner` is `'leastsquares'`.

For more details on performance metrics options, see Performance Metrics.

Data Types: `char` | `string` | `struct` | `cell` | `function_handle`

Number of observations the incremental model must be fit to before it tracks performance metrics in its `Metrics` property, specified as a nonnegative integer. The incremental model is warm after incremental fitting functions fit (`EstimationPeriod` + `MetricsWarmupPeriod`) observations to the incremental model.

For more details on performance metrics options, see Performance Metrics.

Example: `MetricsWarmupPeriod=50`

Data Types: `single` | `double`

Number of observations to use to compute window performance metrics, specified as a positive integer.

For more details on performance metrics options, see Performance Metrics.

Example: `MetricsWindowSize=250`

Data Types: `single` | `double`

Output Arguments

collapse all

Gaussian kernel regression model for incremental learning, returned as an `incrementalRegressionKernel` model object. `IncrementalMdl` is also configured to generate predictions given new data (see `predict`).

The `incrementalLearner` function initializes `IncrementalMdl` for incremental learning using the model information in `Mdl`. The following table shows the `Mdl` properties that `incrementalLearner` passes to corresponding properties of `IncrementalMdl`. The function also passes other model information required to initialize `IncrementalMdl`, such as learned model coefficients and the random number stream.

PropertyDescription
`Epsilon`Half the width of the epsilon insensitive band, a nonnegative scalar. `incrementalLearner` passes this value only when `Mdl.Learner` is `'svm'`.
`KernelScale`Kernel scale parameter, a positive scalar
`Learner`Linear regression model type, a character vector
`NumExpansionDimensions`Number of dimensions of expanded space, a positive integer
`NumPredictors`Number of predictors, a positive integer
`ResponseTransform`Response transformation function, a function name or function handle

collapse all

Incremental Learning

Incremental learning, or online learning, is a branch of machine learning concerned with processing incoming data from a data stream, possibly given little to no knowledge of the distribution of the predictor variables, aspects of the prediction or objective function (including tuning parameter values), or whether the observations are labeled. Incremental learning differs from traditional machine learning, where enough labeled data is available to fit to a model, perform cross-validation to tune hyperparameters, and infer the predictor distribution.

Given incoming observations, an incremental learning model processes data in any of the following ways, but usually in this order:

• Predict labels.

• Measure the predictive performance.

• Check for structural breaks or drift in the model.

• Fit the model to the incoming observations.

For more details, see Incremental Learning Overview.

Adaptive Scale-Invariant Solver for Incremental Learning

The adaptive scale-invariant solver for incremental learning, introduced in [1], is a gradient-descent-based objective solver for training linear predictive models. The solver is hyperparameter free, insensitive to differences in predictor variable scales, and does not require prior knowledge of the distribution of the predictor variables. These characteristics make it well suited to incremental learning.

The incremental fitting functions `fit` and `updateMetricsAndFit` use the more aggressive ScInOL2 version of the algorithm.

Random Feature Expansion

Random feature expansion, such as Random Kitchen Sinks[1] or Fastfood[2], is a scheme to approximate Gaussian kernels of the kernel regression algorithm for big data in a computationally efficient way. Random feature expansion is more practical for big data applications that have large training sets, but can also be applied to smaller data sets that fit in memory.

After mapping the predictor data into a high-dimensional space, the kernel regression algorithm searches for an optimal function that deviates from each response data point (yi) by values no greater than the epsilon margin (ε).

Some regression problems cannot be described adequately using a linear model. In such cases, obtain a nonlinear regression model by replacing the dot product x1x2 with a nonlinear kernel function $G\left({x}_{1},{x}_{2}\right)=〈\phi \left({x}_{1}\right),\phi \left({x}_{2}\right)〉$, where xi is the ith observation (row vector) and φ(xi) is a transformation that maps xi to a high-dimensional space (called the “kernel trick”). However, evaluating G(x1,x2), the Gram matrix, for each pair of observations is computationally expensive for a large data set (large n).

The random feature expansion scheme finds a random transformation so that its dot product approximates the Gaussian kernel. That is,

`$G\left({x}_{1},{x}_{2}\right)=〈\phi \left({x}_{1}\right),\phi \left({x}_{2}\right)〉\approx T\left({x}_{1}\right)T\left({x}_{2}\right)\text{'},$`

where T(x) maps x in ${ℝ}^{p}$ to a high-dimensional space (${ℝ}^{m}$). The Random Kitchen Sinks[1] scheme uses the random transformation

`$T\left(x\right)={m}^{-1/2}\mathrm{exp}\left(iZx\text{'}\right)\text{'},$`

where $Z\in {ℝ}^{m×p}$ is a sample drawn from $N\left(0,{\sigma }^{-2}\right)$ and σ2 is a kernel scale. This scheme requires O(mp) computation and storage. The Fastfood[2] scheme introduces another random basis V instead of Z using Hadamard matrices combined with Gaussian scaling matrices. This random basis reduces computation cost to O(m`log`p) and reduces storage to O(m).

`incrementalRegressionKernel` uses the Fastfood scheme for random feature expansion, and uses linear regression to train a Gaussian kernel regression model. You can specify values for m and σ2 using the `NumExpansionDimensions` and `KernelScale` name-value arguments, respectively, when you create a traditionally trained model using `fitrkernel` or when you call `incrementalRegressionKernel` directly to create the model object.

Algorithms

collapse all

Estimation Period

During the estimation period, the incremental fitting functions `fit` and `updateMetricsAndFit` use the first incoming `EstimationPeriod` observations to estimate (tune) hyperparameters required for incremental training. Estimation occurs only when `EstimationPeriod` is positive. This table describes the hyperparameters and when they are estimated, or tuned.

HyperparameterModel PropertyUsageConditions
Learning rate`LearnRate` field of `SolverOptions`Adjust solver step size

The hyperparameter is estimated when both of these conditions apply:

Half the width of the epsilon insensitive band`Epsilon` Control number of support vectors

The software does not estimate `Epsilon` if you create an `incrementalRegressionKernel` model object by using `incrementalLearner`.

If you create an `incrementalRegressionKernel` model object by calling the `incrementalRegressionKernel` function, the software estimates `Epsilon` in some cases. For details, see Estimation Period on the `incrementalRegressionKernel` page.

During the estimation period, `fit` does not fit the model, and `updateMetricsAndFit` does not fit the model or update the performance metrics. At the end of the estimation period, the functions update the properties that store the hyperparameters.

Performance Metrics

• The `updateMetrics` and `updateMetricsAndFit` functions are incremental learning functions that track model performance metrics (`Metrics`) from new data only when the incremental model is warm (`IsWarm` property is `true`). An incremental model becomes warm after `fit` or `updateMetricsAndFit` fits the incremental model to `MetricsWarmupPeriod` observations, which is the metrics warm-up period.

If `EstimationPeriod` > 0, the `fit` and `updateMetricsAndFit` functions estimate hyperparameters before fitting the model to data. Therefore, the functions must process an additional `EstimationPeriod` observations before the model starts the metrics warm-up period.

• The `Metrics` property of the incremental model stores two forms of each performance metric as variables (columns) of a table, `Cumulative` and `Window`, with individual metrics in rows. When the incremental model is warm, `updateMetrics` and `updateMetricsAndFit` update the metrics at the following frequencies:

• `Cumulative` — The functions compute cumulative metrics since the start of model performance tracking. The functions update metrics every time you call the functions and base the calculation on the entire supplied data set.

• `Window` — The functions compute metrics based on all observations within a window determined by `MetricsWindowSize`, which also determines the frequency at which the software updates `Window` metrics. For example, if `MetricsWindowSize` is 20, the functions compute metrics based on the last 20 observations in the supplied data (`X((end – 20 + 1):end,:)` and `Y((end – 20 + 1):end)`).

Incremental functions that track performance metrics within a window use the following process:

1. Store a buffer of length `MetricsWindowSize` for each specified metric, and store a buffer of observation weights.

2. Populate elements of the metrics buffer with the model performance based on batches of incoming observations, and store corresponding observation weights in the weights buffer.

3. When the buffer is full, overwrite the `Window` field of the `Metrics` property with the weighted average performance in the metrics window. If the buffer overfills when the function processes a batch of observations, the latest incoming `MetricsWindowSize` observations enter the buffer, and the earliest observations are removed from the buffer. For example, suppose `MetricsWindowSize` is 20, the metrics buffer has 10 values from a previously processed batch, and 15 values are incoming. To compose the length 20 window, the functions use the measurements from the 15 incoming observations and the latest 5 measurements from the previous batch.

References

[1] Kempka, Michał, Wojciech Kotłowski, and Manfred K. Warmuth. "Adaptive Scale-Invariant Online Algorithms for Learning Linear Models." Preprint, submitted February 10, 2019. https://arxiv.org/abs/1902.07528.

[2] Langford, J., L. Li, and T. Zhang. “Sparse Online Learning Via Truncated Gradient.” J. Mach. Learn. Res., Vol. 10, 2009, pp. 777–801.

[3] Shalev-Shwartz, S., Y. Singer, and N. Srebro. “Pegasos: Primal Estimated Sub-Gradient Solver for SVM.” Proceedings of the 24th International Conference on Machine Learning, ICML ’07, 2007, pp. 807–814.

[4] Xu, Wei. “Towards Optimal One Pass Large Scale Learning with Averaged Stochastic Gradient Descent.” CoRR, abs/1107.2490, 2011.

[5] Rahimi, A., and B. Recht. “Random Features for Large-Scale Kernel Machines.” Advances in Neural Information Processing Systems. Vol. 20, 2008, pp. 1177–1184.

[6] Le, Q., T. Sarlós, and A. Smola. “Fastfood — Approximating Kernel Expansions in Loglinear Time.” Proceedings of the 30th International Conference on Machine Learning. Vol. 28, No. 3, 2013, pp. 244–252.

[7] Huang, P. S., H. Avron, T. N. Sainath, V. Sindhwani, and B. Ramabhadran. “Kernel methods match Deep Neural Networks on TIMIT.” 2014 IEEE International Conference on Acoustics, Speech and Signal Processing. 2014, pp. 205–209.

Version History

Introduced in R2022a
