jacobiCD
Jacobi CD elliptic function
Syntax
Description
jacobiCD(
returns the Jacobi CD Elliptic Function of
u
,m
)u
and m
. If u
or
m
is an array, then jacobiCD
acts
element-wise.
Examples
Calculate Jacobi CD Elliptic Function for Numeric Inputs
jacobiCD(2,1)
ans = 1
Call jacobiCD
on array inputs.
jacobiCD
acts element-wise when
u
or m
is an array.
jacobiCD([2 1 -3],[1 2 3])
ans = 1.0000 2.3829 -178.6290
Calculate Jacobi CD Elliptic Function for Symbolic Numbers
Convert numeric input to symbolic form using
sym
, and find the Jacobi CD elliptic function. For
symbolic input where u = 0
or m = 0
or
1
, jacobiCD
returns exact symbolic
output.
jacobiCD(sym(2),sym(1))
ans = 1
Show that for other values of u
or
m
, jacobiCD
returns an unevaluated
function call.
jacobiCD(sym(2),sym(3))
ans = jacobiCD(2, 3)
Find Jacobi CD Elliptic Function for Symbolic Variables or Expressions
For symbolic variables or expressions,
jacobiCD
returns the unevaluated function call.
syms x y f = jacobiCD(x,y)
f = jacobiCD(x, y)
Substitute values for the variables by using subs
,
and convert values to double by using double
.
f = subs(f, [x y], [3 5])
f = jacobiCD(3, 5)
fVal = double(f)
fVal = 1.0019
Calculate f
to higher precision using
vpa
.
fVal = vpa(f)
fVal = 1.0019475527333315357888731083364

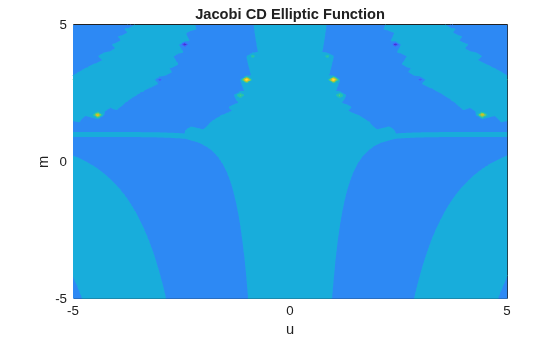

Plot Jacobi CD Elliptic Function
Plot the Jacobi CD elliptic function using fcontour
. Set u
on the x-axis and m
on the y-axis by using the symbolic function f
with the variable order (u,m)
. Fill plot contours by setting Fill
to on
.
syms f(u,m) f(u,m) = jacobiCD(u,m); fcontour(f,'Fill','on') title('Jacobi CD Elliptic Function') xlabel('u') ylabel('m')
Input Arguments
u
— Input
number | vector | matrix | multidimensional array | symbolic number | symbolic variable | symbolic vector | symbolic matrix | symbolic multidimensional array | symbolic function | symbolic expression
Input, specified as a number, vector, matrix, or multidimensional array, or a symbolic number, variable, vector, matrix, multidimensional array, function, or expression.
m
— Input
number | vector | matrix | multidimensional array | symbolic number | symbolic variable | symbolic vector | symbolic matrix | symbolic multidimensional array | symbolic function | symbolic expression
Input, specified as a number, vector, matrix, or multidimensional array, or a symbolic number, variable, vector, matrix, multidimensional array, function, or expression.
More About
Jacobi CD Elliptic Function
The Jacobi CD elliptic function is
cd(u,m) = cn(u,m)/dn(u,m)
where cn and dn are the respective Jacobi elliptic functions.
The Jacobi elliptic functions are meromorphic and doubly periodic in their first
argument with periods 4K(m) and 4iK'(m), where K is the complete elliptic integral of the first kind, implemented
as ellipticK
.
Version History
Introduced in R2017b
