Reconstruct 3-D scene using MapAnything model

Since R2026b

collapse all in page

    Syntax

    output = reconstruct(maObj)
    output = reconstruct(maObj,Name=Value)

    Description

    Add-On Required: This feature requires the Computer Vision Toolbox Model for MapAnything Network add-on.

    output = reconstruct(maObj) reconstructs a 3-D scene from multi-view images using the mapanything object maObj, and estimates the camera poses, intrinsic parameters, depth maps, and point clouds for the input images. For large image sequences, the function processes and automatically aligns overlapping blocks. The function supports GPU acceleration for faster processing.

    example

    output = reconstruct(maObj,Name=Value) specifies additional options using one or more name-value arguments. For example, BlockSize=50 specifies to process 50 images per block during reconstruction.

    Examples

    collapse all

    This example uses:

    Open Live Script

    Download and extract the tum_rgbd_data.zip file. This file includes an images subfolder that contains a sequence of indoor images from the TUM RGB-D data set [1].

    if ~exist("tum_rgbd_data.zip","file")
    websave("tum_rgbd_data.zip","https://ssd.mathworks.com/supportfiles/3DReconstruction/tum_rgbd_data.zip");
    unzip(fullfile("tum_rgbd_data.zip"), pwd);
end

    Create an image datastore by specifying the path to the folder containing the image files, and subsample every 5th frame to reduce processing time when you perform 3-D reconstruction.

    imds = imageDatastore("sfmTrainingDataTUMRGBD\images");
numFiles = numel(imds.Files);
imds = subset(imds,1:5:numFiles);

    Load the camera intrinsics and camera poses. Subsample the poses using the same indices as the images so that the number of poses matches the number of images in the datastore.

    camInfo = load(fullfile("sfmTrainingDataTUMRGBD","cameraInfo.mat"));
camIntrinsics = camInfo.intrinsics;
camPoses = camInfo.cameraPoses;
camPoses = transpose(camPoses(1:5:numFiles));

    Create a mapanything object using the image datastore, camera intrinsics, and camera poses, and reconstruct the 3-D scene from the images.

    maObj = mapanything(imds,Intrinsics=camIntrinsics,CameraPoses=camPoses);
maOutputs = reconstruct(maObj);
    Processing Individual blocks
---------------------------------------------
Processing Block 1/1

Processing point clouds
---------------------------------------------
Processing point cloud 21/21

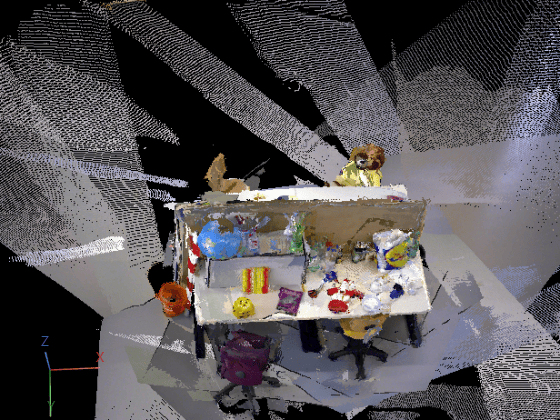

    Extract the generated point cloud. Then, visualize the point cloud by using the pcviewer (Point Cloud Toolbox) function, and set the vertical axis and vertical axis direction to match the coordinate system of the TUM RGB-D data set. Modify the view of the point cloud visualization to focus on a region of interest by specifying the low-level camera properties of the axes object.

    pcArray = readall(maOutputs.PointClouds);
pcMerged = pccat(pcArray);
ax = pcviewer(pcMerged);

    ax.CameraPosition = [-1.5185 -6.5178 -11.9106];
ax.CameraUpVector = [0.0520 -0.8878 0.4572];
ax.CameraViewAngle = 15;

    If you are using a GPU resource to run the model, you can release the GPU memory allocated to the model after processing to enable additional models to run on the GPU.

    releaseGPUMemory(maObj);

    References

    [1] Sturm, Jürgen, Nikolas Engelhard, Felix Endres, Wolfram Burgard, and Daniel Cremers. “A Benchmark for the Evaluation of RGB-D SLAM Systems.” 2012 IEEE/RSJ International Conference on Intelligent Robots and Systems, October 2012, 573–80. https://doi.org/10.1109/IROS.2012.6385773.

    Input Arguments

    collapse all

    MapAnything model, specified as a mapanything object.

    Name-Value Arguments

    collapse all

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: reconstruct(maObj,BlockSize=50) specifies to process 50 images per block during reconstruction.

    Number of images per block, specified as a positive integer. When the number of input images to the mapanything object maObj is greater than the value of the BlockSize argument, the function divides images into overlapping blocks during reconstruction. When the number of images is less than the value of BlockSize argument, the function processes all of the images in a single block. The value of this argument must be greater than the value of the OverlapLength argument. Decrease this value to reduce GPU memory and compute requirements at the cost of longer computation time. For best results, specify this value in the range 20 to 200 for better results depending on the availability of GPU memory.

    Number of overlapping images between blocks, specified as a positive integer. This value must be less than the value of the BlockSize argument. Increase this value to improve continuity across blocks at the cost of additional computation time. For best results, specify this value in the range 10 to 100 depending on the availability of GPU memory.

    Confidence threshold percentile, specified as a positive integer in the range 10 to 100. The function uses this value to filter low-confidence depth predictions. Decrease this value to retain more points at the cost of less reliable predictions.

    Remove edge artifacts, specified as a logical 0 (false) or 1 (true). Specify this argument as true to remove unreliable predictions at image edges, where depth estimation is less accurate, and suppress boundary artifacts in the reconstructed results.

    Data Types: logical

    Remove ambiguous region, specified as a logical 0 (false) or 1 (true). Specify this argument as true to remove geometrically ambiguous regions, such as sky, reflections, or low‑texture areas, to improve the reliability of 3‑D reconstructions.

    Data Types: logical

    Resize the output to match the size of the input image, specified as a logical 0 (false) or 1 (true). By default, the model automatically resizes the resolution of the output based on the aspect ratio of the input images. Specify this argument as true to resize the output depth maps and point clouds to the spatial resolution of the input images.

    Data Types: logical

    Hardware resource on which to run the model, specified as "auto", "gpu", or "cpu". The table shows the valid hardware resource values.

    Resource Action
    "auto" Use a GPU if it is available. Otherwise, use the CPU.
    "gpu" Use the GPU. To use a GPU, you must have Parallel Computing Toolbox™ and a CUDA® enabled NVIDIA® GPU. If a suitable GPU is not available, the function returns an error. For information about the supported compute capabilities, see GPU Computing Requirements (Parallel Computing Toolbox).
    "cpu" Use the CPU.

    Path to the folder in which to store the results, specified as a string scalar or a character vector. You must specify a path to an existing folder with write permission. The function creates two subfolders, DepthMaps and PointClouds, within the specified folder to store the estimated depth images and point clouds, respectively. If you do not specify this argument, the function returns the outputs in memory instead of writing them to disk. Saving the results to disk is recommended for reconstructions with more than 100 input images, to reduce memory usage.

    Display progress information on the command line, specified as a logical 0 (false) or 1 (true). To monitor the progress of the function, specify this argument as true.

    Output Arguments

    collapse all

    Reconstruction results estimated by the MapAnything model, returned as a structure with these fields.

    Field NameDescription
    Intrinsics Estimated camera intrinsic parameters, returned as a B-by-1 vector of cameraIntrinsics objects. B is the number of images in the image datastore specified to the mapanything object maObj. Each element contains the estimated camera intrinsic parameters for the corresponding input image.
    PosesEstimated camera poses, relative to the first image in the input datastore, in meters, returned as a B-by-1 vector of rigidtform3d objects. B is the number of images in the image datastore specified to the mapanything object maObj. Each element contains the estimated camera pose for the corresponding input image. The pose corresponding to the first image is always the identity transform.
    DepthMapsEstimated depth maps of the input images, returned as a datastore.
    PointCloudsEstimated point clouds of the input images in the world reference frame, returned as a datastore of pointCloud (Point Cloud Toolbox) objects.

    Data Types: struct

    Version History

    Introduced in R2026b
