Multiclass Object Detection Using YOLO v2 Deep Learning

This example shows how to perform multiclass object detection on a custom data set.

Overview

Deep learning is a powerful machine learning technique that you can use to train robust multiclass object detectors such as YOLO v2, YOLO v4, YOLOX, SSD, and Faster R-CNN. This example trains a YOLO v2 multiclass object detector using the trainYOLOv2ObjectDetector function. The trained object detector is able to detect and identify multiple indoor objects. For more information about training other multiclass object detectors such as YOLOX, YOLO v4, SSD, and Faster R-CNN, see Getting Started with Object Detection Using Deep Learning and Choose an Object Detector.

This example first shows you how to detect multiple objects in an image using a pretrained YOLO v2 object detector. Then, you can optionally download a data set and train YOLO v2 on a custom data set using transfer learning.

Load Pretrained Object Detector

Download and load a pretrained YOLO v2 object detector.

pretrainedURL = "https://www.mathworks.com/supportfiles/vision/data/yolov2IndoorObjectDetector23b.zip";
pretrainedFolder = fullfile(tempdir,"pretrainedNetwork");
pretrainedNetworkZip = fullfile(pretrainedFolder, "yolov2IndoorObjectDetector23b.zip");

if ~exist(pretrainedNetworkZip,"file")
    mkdir(pretrainedFolder);
    disp("Downloading pretrained network (6 MB)...");
    websave(pretrainedNetworkZip, pretrainedURL);
end

unzip(pretrainedNetworkZip, pretrainedFolder)

pretrainedNetwork = fullfile(pretrainedFolder, "yolov2IndoorObjectDetector.mat");
pretrained = load(pretrainedNetwork);
detector = pretrained.detector;

Detect Multiple Indoor Objects

Read a test image that contains objects of the target classes, run the object detector, and display an image annotated with the detection results.

I = imread('indoorTest.jpg');
[bbox,score,label]  = detect(detector, I);

annotatedImage = insertObjectAnnotation(I,"rectangle",bbox,label,LineWidth=4,FontSize=24);
figure
imshow(annotatedImage)

Load Data for Training

This example uses the Indoor Object Detection Data Set created by Bishwo Adhikari [1]. The data set consists of 2213 labeled images collected from indoor scenes and contains 7 classes - fire extinguisher, chair, clock, trash bin, screen, and printer. Each image contains one or more labeled instances of these classes. Check whether the data set is already downloaded and if it is not, use websave to download it.

dsURL = "https://zenodo.org/record/2654485/files/Indoor%20Object%20Detection%20Dataset.zip?download=1";
outputFolder = fullfile(tempdir,"indoorObjectDetection");
imagesZip = fullfile(outputFolder,"indoor.zip");

if ~exist(imagesZip,"file")
    mkdir(outputFolder)
    disp("Downloading 401 MB Indoor Objects Data Set images...");
    websave(imagesZip, dsURL);
    unzip(imagesZip, fullfile(outputFolder));
end

Create an imageDatastore to load the data.

datapath = fullfile(outputFolder, "Indoor Object Detection Data Set");
imds = imageDatastore(datapath, IncludeSubfolders=true, FileExtensions=".jpg");

Annotations and data set split have been provided in annotationsIndoor.mat. Load the annotations and the indices corresponding to the training, validation, and test sets. The split contains 2207 images in total, instead of 2213 images, as 6 images have no labels associated with them. Store the indices of images containing labels in the cleanIdx variable.

data = load("annotationsIndoor.mat");
bbStore = data.BBstore;
trainingIdx = data.trainingIdx;
validationIdx = data.validationIdx;
testIdx = data.testIdx;
cleanIdx = data.idxs;

% Remove the 6 images with no labels.
imds = subset(imds,cleanIdx);
bbStore = subset(bbStore,cleanIdx);

Analyze Training Data

Analyze the distribution of object class labels and sizes to understand the data better. This analysis is critical because it helps determine how to prepare the training data and how to configure an object detector for this specific data set.

Analyze Class Distribution

Measure distribution of bounding box class labels in the data set using the countEachLabel function.

tbl = countEachLabel(bbStore)
tbl=7×3 table
         Label          Count    ImageCount
    ________________    _____    __________

    exit                 545        504
    fireextinguisher    1684        818
    chair               1662        850
    clock                280        277
    trashbin             228        170
    screen               115         94
    printer               81         81

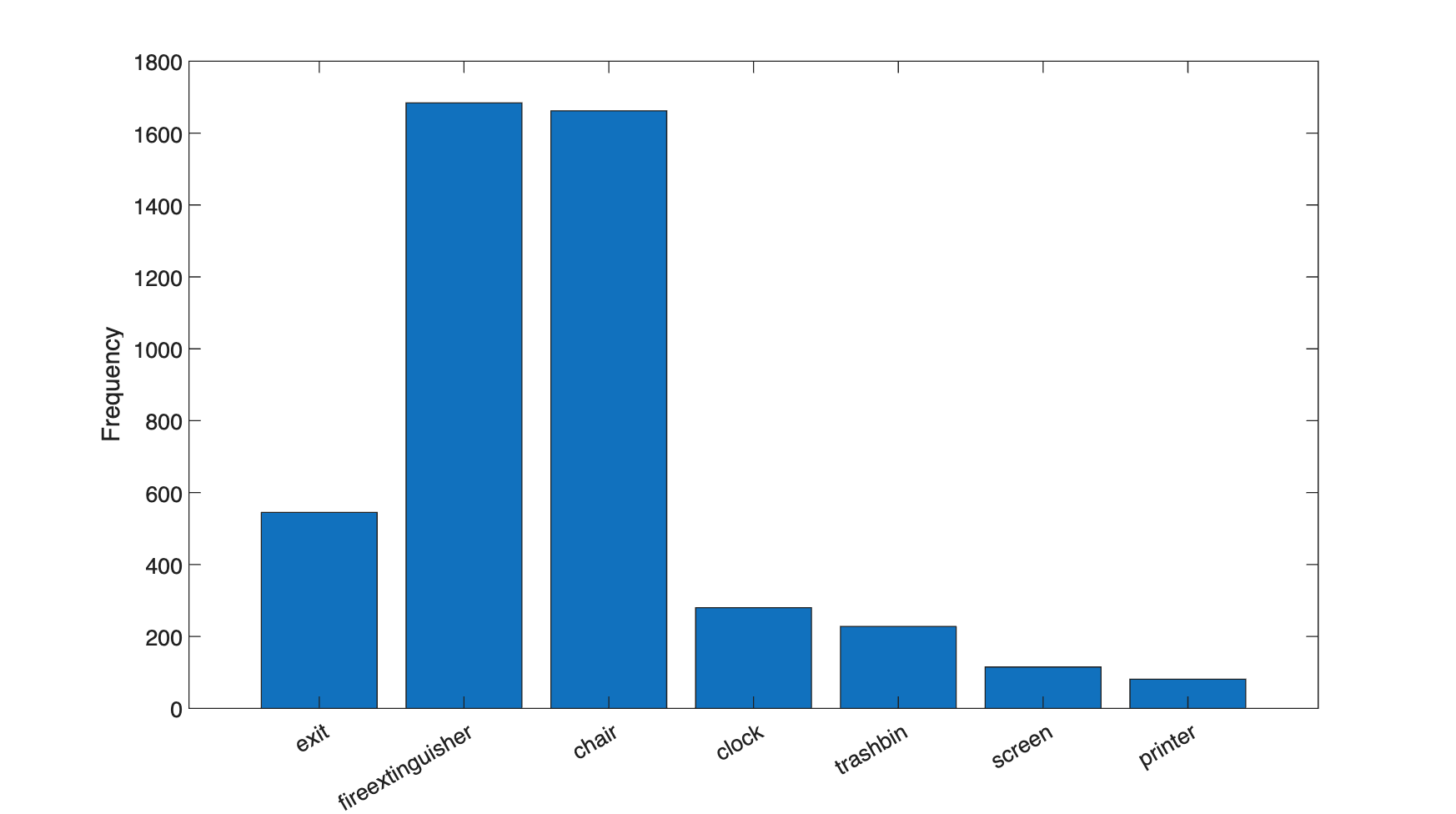

Visualize the counts by class.

bar(tbl.Label,tbl.Count)
ylabel("Frequency")

The classes in this data set are unbalanced. If not handled correctly, this imbalance can be detrimental to the learning process because the learning is biased in favor of the dominant classes. To address the imbalance, use one or more of these complementary techniques: add more data, oversample the underrepresented classes, modify the loss function, apply data augmentation. Each of these approaches require empirical analysis to determine the optimal solution. You will apply data augmentation in a later section.

Analyze Object Sizes and Choose Object Detector

Read all the bounding boxes and labels within the data set and calculate the diagonal length of the bounding box.

data = readall(bbStore);
bboxes = vertcat(data{:,1});
labels = vertcat(data{:,2});
diagonalLength = hypot(bboxes(:,3),bboxes(:,4));

Group object sizes by class.

G = findgroups(labels);
groupedDiagonalLength = splitapply(@(x){x},diagonalLength,G);

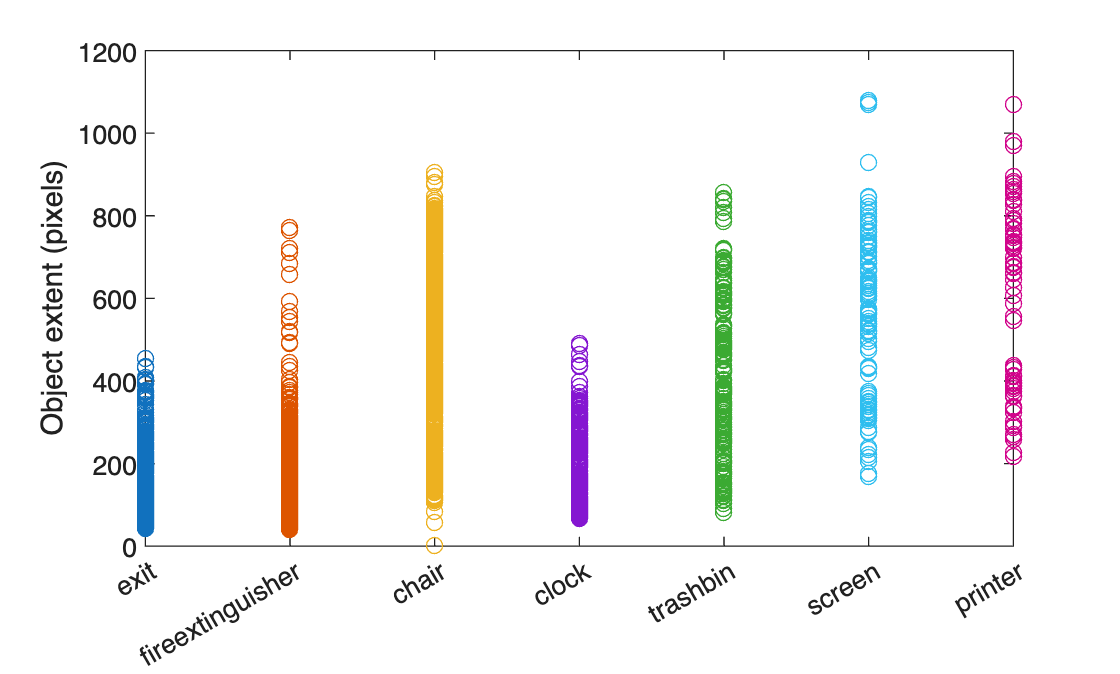

Visualize the distribution of object lengths for each class.

figure
classes = tbl.Label;
numClasses = numel(classes);
for i = 1:numClasses
    len = groupedDiagonalLength{i};
    x = repelem(i,numel(len),1);
    plot(x,len,"o");
    hold on
end
hold off
ylabel("Object extent (pixels)")

xticks(1:numClasses)
xticklabels(classes)

This visualization highlights the important data set attributes that help you determine which type of object detector to configure:

  1. The object size variance within each class

  2. The object size variance across classes

In this data set, the there is a good amount of overlap between the size ranges across classes. In addition, the size variation within each class is not very large. This means that one multiclass detector can be trained to handle a range of object sizes. If the size ranges do not overlap or if the range of object sizes is more than 10 times apart, then training multiple detectors for different size ranges is more practical.

You can determine which object detector to train based on the size variance. When size variance within each class is small, use a single-scale object detector such as YOLO v2. If there is large variance within each class, choose a multi-scale object detector such as YOLO v4 or SSD. Since the object sizes in this data set are within the same order of magnitude, use YOLO v2 to start. Although advanced multi-scale detectors may perform better, training may consume more time and resources compared to YOLO v2. Use more advanced detectors when simpler solutions do not meet your performance requirements.

Use the size distribution information to select the training image size, which is typically fixed to enable batch processing during training. The training image size dictates how large the batch size can be, based on the resource constraints of your training environment such as GPU memory. Process larger batches of data to improve throughput and reduce training time, especially when using a GPU. However, the training image size may impact the resolution of objects if the original data is drastically resized to a smaller size.

In the following section, configure a YOLO v2 object detector using the size analysis information for this data set.

Define YOLO v2 Object Detector Architecture

Configure a YOLO v2 object detector using the following steps:

  1. Choose a pretrained detector for transfer learning.

  2. Choose a training image size.

  3. Select which network features to use for predicting object locations and classes.

  4. Estimate anchor boxes from the preprocessed data used to train the object detector.

Select a pretrained Tiny YOLO v2 detector for transfer learning. Tiny YOLO v2 is a lightweight network trained on COCO [2], a large object detection data set. Transfer learning from a pretrained object detector reduces the time it takes to train compared to training a network from scratch. The other pretrained detector is the larger Darknet-19 YOLO v2 pretrained detector. Consider starting with simpler networks to establish a performance baseline before experimenting with larger networks. Using Tiny or Darknet-19 YOLO v2 pretrained detectors requires the Computer Vision Toolbox™ Model for YOLO v2 Object Detection.

pretrainedDetector = yolov2ObjectDetector("tiny-yolov2-coco");

Next, choose the size of the training images for YOLO v2. When choosing the training image size, consider the following size parameters:

  1. The distribution of object sizes and the impact resizing the image will have on the object sizes.

  2. The computational resources required to batch process data at the selected size.

  3. The minimum input size required by the network.

Determine the input size of the pretrained Tiny YOLO v2 network.

pretrainedDetector.Network.Layers(1).InputSize

The size of the images within the Indoor Object Detection Data Set is [720 1024 3]. Based on the object analysis done in the previous section, the smallest objects are approximately 20x20 pixels.

To maintain a balance between accuracy and computational cost of running the example, specify a size of [720 720 3]. This size ensures that resizing the image down will not drastically effect the spatial resolution of objects in this data set. If you adapt this example for your own data set, you must change the training image size based on your data. Determining the optimal input size requires empirical analysis.

inputSize = [720 720 3];

Use transform to apply a preprocessing function that will resize images and the bounding boxes. In addition, it also sanitizes the bounding boxes to convert them to a valid shape.

preprocessedData = transform(ds,@(data)resizeImageAndLabel(data, inputSize));

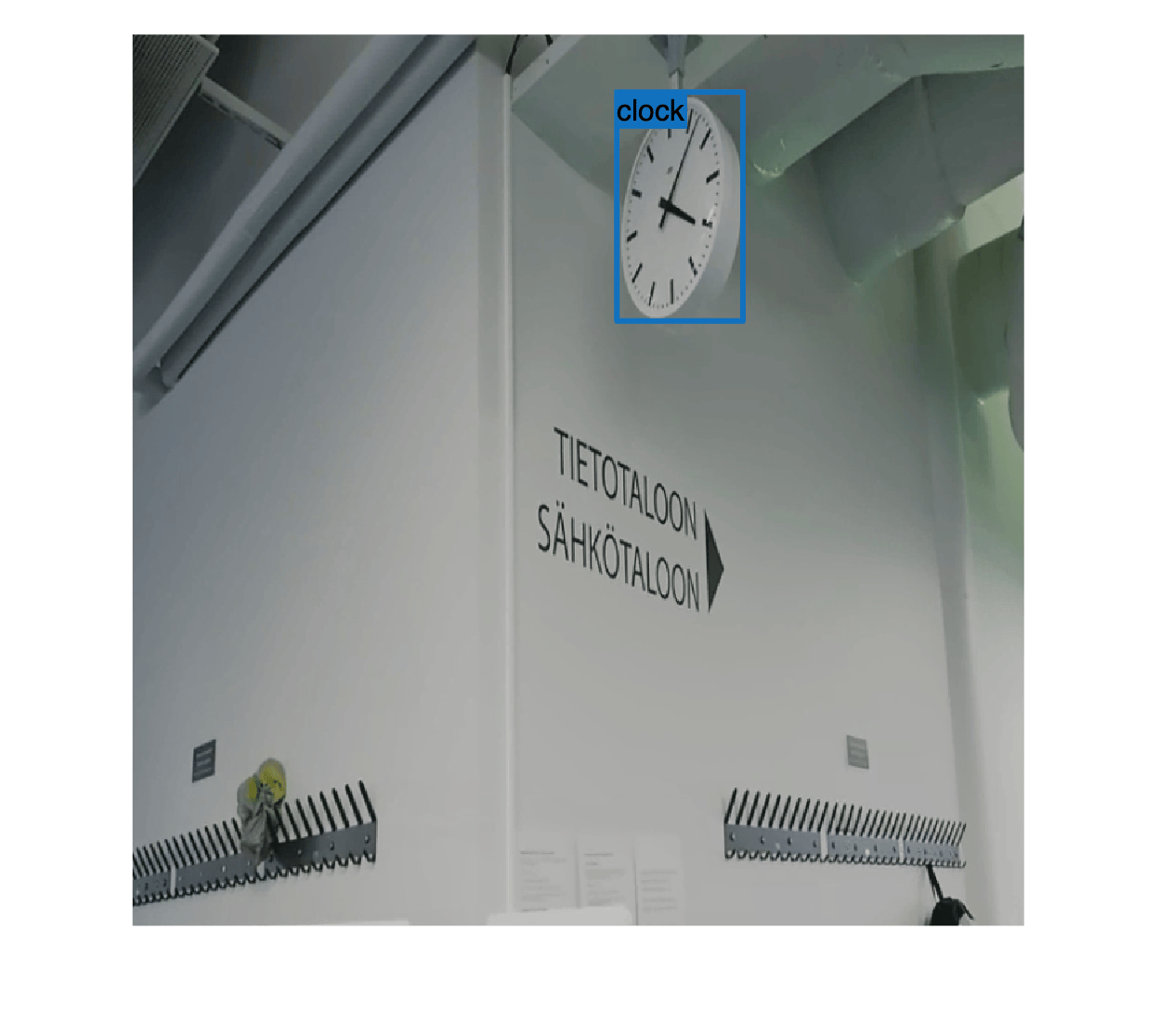

Display one of the preprocessed images and box labels to verify that the objects in the resized images still have visible features.

data = preview(preprocessedData);
I = data{1};
bbox = data{2};
label = data{3};
imshow(I)
showShape("rectangle", bbox, Label=label)

YOLO v2 is a single-scale detector because it uses features extracted from one network layer to predict the location and class of objects in the image. The feature extraction layer is an important hyperparameter for deep learning based object detectors. When selecting the feature extraction layer, choose a layer that outputs features at a spatial resolution that is suitable for the range of object sizes in the data set.

Most networks used in object detection spatially downsample features by powers of two as the data flows through the network. For example, starting at a given input size, networks will have layers that produce feature maps that are downsampled spatially by 4x, 8x, 16x, and 32x. If object sizes in the data set are small (for example, less than 10x10 pixels), feature maps which are downsampled by 16x and 32x may not have sufficient spatial resolution to locate the objects precisely. Conversely, if the objects are large, feature maps downsampled by 4x or 8x may not encode enough global context for larger objects.

For this data set, select the layer named "layer_relu_5" - its output feature maps are downsampled by 16x. This amount of downsampling is a good trade-off between spatial resolution and the strength of the extracted features, as features extracted further down the network encode stronger image features at the cost of spatial resolution.

featureLayer = "leaky_relu_5";

You can use analyzeNetwork to visualize the Tiny YOLO v2 network and determine the name of the layer that outputs features downsampled by 16x.

Next, use estimateAnchorBoxes to estimate anchor boxes from the training data. You must estimate anchor boxes from the preprocessed data to get an estimate based on the selected training image size. Use the procedure defined in Estimate Anchor Boxes From Training Data to determine the number of anchor boxes suitable for this data set. Based on this procedure, using 5 anchor boxes is a good trade-off between computational cost and accuracy. As with any other hyperparameter, the number of anchor boxes should be optimized using empirical analysis.

numAnchors = 5;
aboxes = estimateAnchorBoxes(preprocessedData, numAnchors);

Finally, configure YOLO v2 for transfer learning on 7 classes with the selected training image size, and estimated anchor boxes.

numClasses = 7;
pretrainedNet = pretrainedDetector.Network;
lgraph = yolov2Layers(inputSize, numClasses, aboxes, pretrainedNet, featureLayer);

You can visualize the network using analyzeNetwork or DeepNetworkDesigner from the Deep Learning Toolbox™.

Prepare Training Data

Initialize the random number generator with a seed of 0 using rng, and shuffle the data set for reproducibility using the shuffle function.

rng(0);
preprocessedData = shuffle(preprocessedData);

Split the data set into training, test, and validation subsets using the subset function.

dsTrain = subset(preprocessedData,trainingIdx);
dsVal = subset(preprocessedData,validationIdx);
dsTest = subset(preprocessedData,testIdx);

Data Augmentation

Use data augmentation to improve network accuracy by randomly transforming the original data during training. During data augmentation, you add more variety to the training data without increasing the number of labeled training samples. Use transform to augment the training data in the following steps:

  • Randomly flip the image and associated box labels horizontally.

  • Randomly scale the image and associated box labels.

  • Jitter image color.

augmentedTrainingData = transform(dsTrain, @augmentData);

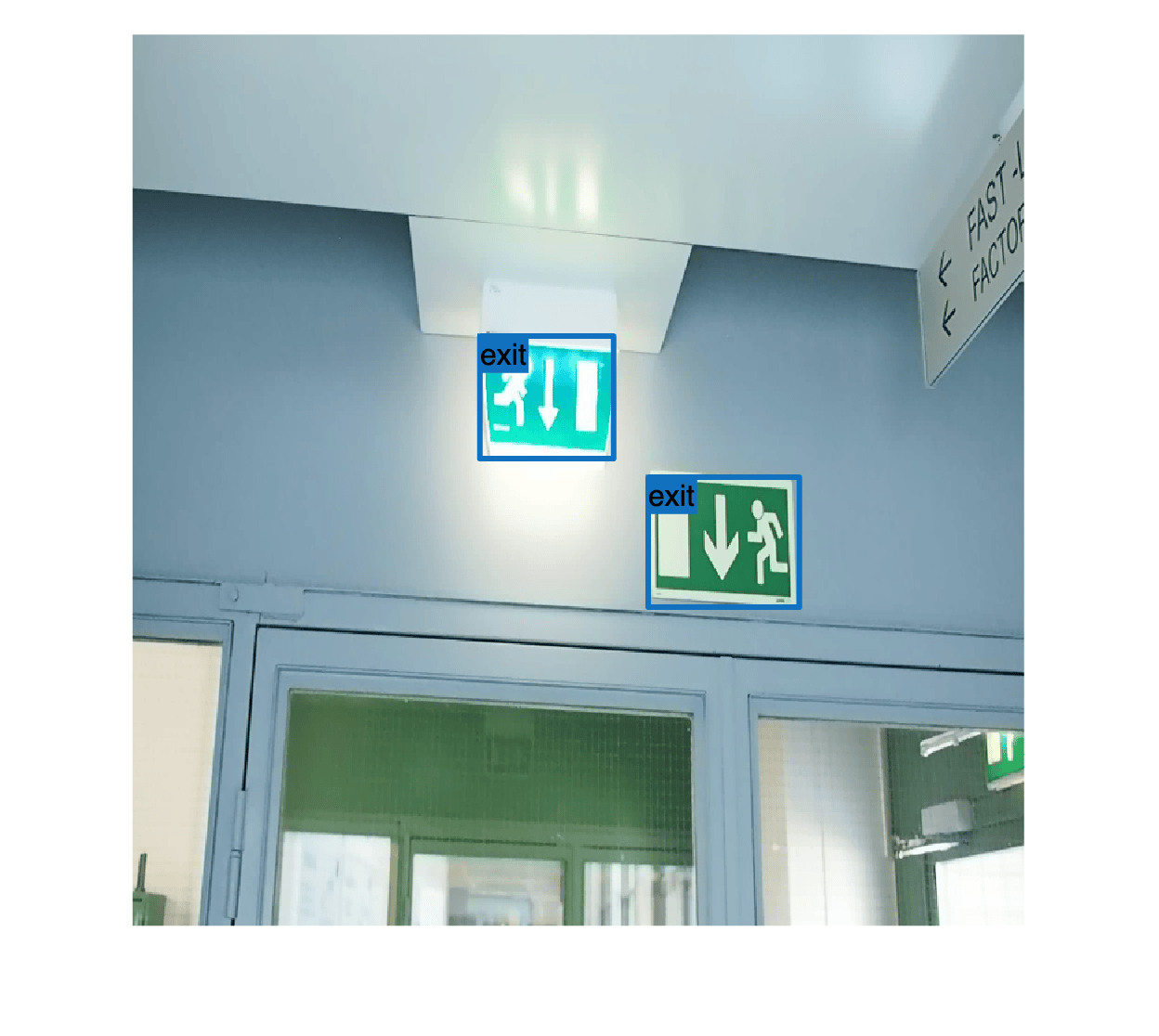

Display one of the training images and box labels.

data = read(augmentedTrainingData);
I = data{1};
bbox = data{2};
label = data{3};
imshow(I)
showShape("rectangle", bbox, Label=label)

Train YOLOv2 Object Detector

Use trainingOptions to specify network training options.

opts = trainingOptions("rmsprop",...
        InitialLearnRate=0.001,...
        MiniBatchSize=8,...
        MaxEpochs=10,...
        LearnRateSchedule="piecewise",...
        LearnRateDropPeriod=5,...
        VerboseFrequency=30, ...
        L2Regularization=0.001,...
        ValidationData=dsVal, ...
        ValidationFrequency=50, ...
        OutputNetwork="best-validation-loss");

These training options were selected using Experiment Manager. For more information on using Experiment Manager for hyperparameter tuning, see Train Object Detectors in Experiment Manager.

If doTraining is set to true, use the trainYOLOv2ObjectDetector function to train YOLO v2 object detector.

doTraining = false;
if doTraining
    [detector, info] = trainYOLOv2ObjectDetector(augmentedTrainingData,lgraph, opts);
end

This example was verified on an NVIDIA™ GeForce RTX 3090 Ti GPU with 24 GB of memory. Training this network took approximately 45 minutes using this GPU. Training time varies depending on the hardware you use. If your GPU has less memory, you may run out of memory. If this happens, lower the MiniBatchSize using the trainingOptions function.

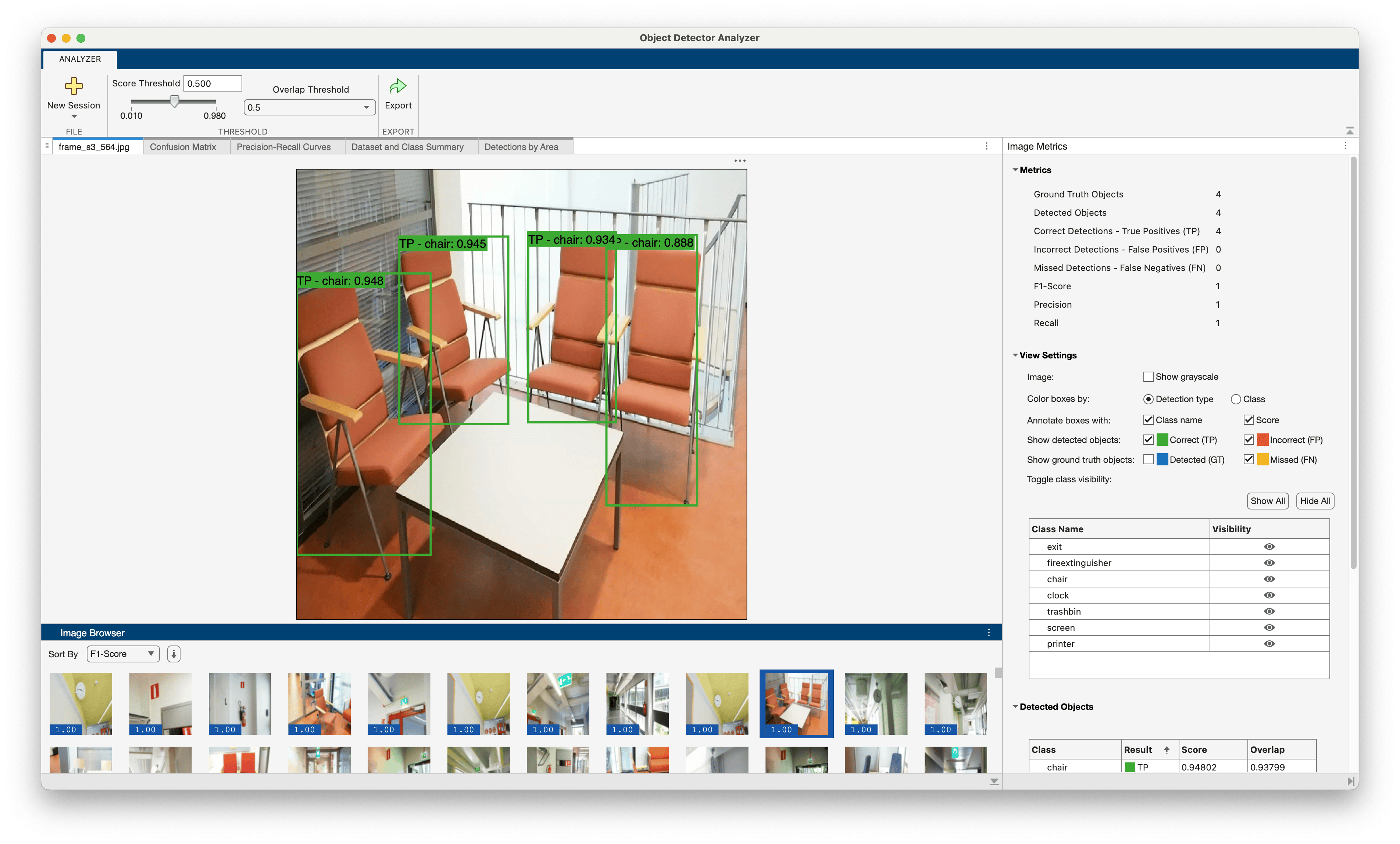

Evaluate Object Detector

Evaluate the trained object detector on test images to measure the performance. Computer Vision Toolbox™ provides an object detector evaluation function (evaluateObjectDetection) to measure common metrics such as average precision and log-average miss rate. For this example, use the average precision (AP) metric to evaluate performance. The average precision provides a single number that incorporates the ability of the detector to make correct classifications (precision) and the ability of the detector to find all relevant objects (recall).

Run the detector on the test data set. Set the detection threshold to a low value to detect as many objects as possible. This helps you evaluate the detector precision across the full range of recall values.

detectionThreshold = 0.01;
results = detect(detector,dsTest, MiniBatchSize=8, Threshold=detectionThreshold);

Calculate object detection metrics on the test set results with evaluateObjectDetection, which evaluates the detector at one or more intersection-over-union (IoU) thresholds. The IoU threshold defines the amount of overlap required between a predicted bounding box and a ground truth bounding box for the predicted bounding box to count as a true positive.

iouThresholds = [0.5 0.75 0.9];
metrics = evaluateObjectDetection(results, dsTest, iouThresholds);

List the overall class metrics and inspect the mean average precision (mAP) to see how well the detector is performing.

metrics.ClassMetrics
ans=7×5 table
                        NumObjects      mAP           AP            Precision             Recall
                        __________    _______    ____________    ________________    ________________

    chair                  168        0.60842    {3×1 double}    {3×13754 double}    {3×13754 double}
    clock                   23          0.551    {3×1 double}    {3×2744  double}    {3×2744  double}
    exit                    52        0.55121    {3×1 double}    {3×3149  double}    {3×3149  double}
    fireextinguisher       165         0.5417    {3×1 double}    {3×4787  double}    {3×4787  double}
    printer                  7        0.14627    {3×1 double}    {3×4588  double}    {3×4588  double}
    screen                   4        0.08631    {3×1 double}    {3×10175 double}    {3×10175 double}
    trashbin                17        0.26921    {3×1 double}    {3×7881  double}    {3×7881  double}

Visualize the average precision values across all IoU thresholds with a bar plot.

figure
classAP = metrics.ClassMetrics{:,"AP"}';
classAP = [classAP{:}];
bar(classAP')
xticklabels(metrics.ClassNames)
ylabel("AP")
legend(string(iouThresholds) + " IoU")

The plot reveals that the detector did poorly on 3 classes (printer, screen, and trash bin) which had fewer samples compared to the other classes. Detector performance also degraded at higher IoU thresholds. Based on these results, the next step to improve performance is to address the class imbalance problem identified in the Analyze Class Distribution section. To address class imbalance, add more images that contain the underrepresented classes or replicate images with these classes and use data augmentation. These enhancements require additional experiments and are beyond the scope of this example.

Object Size Impact on Detector Performance

Investigate the impact of object size on detector performance using the metricsByArea function, which computes detector metrics for specific object size ranges. You can define the object size range based on a predefined set of size ranges for your application, or use the estimated anchor boxes as in this example. The anchor box estimation method automatically clusters the object sizes and provides a data-centric set of size ranges.

Extract the anchor boxes from the detector, calculate their areas, and sort the areas.

areas = prod(detector.AnchorBoxes,2);
areas = sort(areas);

Define area range limits using the calculated areas. The upper limit for the last range is set to 3 times the size of the largest area, which is sufficient for the objects in this data set.

lowerLimit = [0;areas];
upperLimit = [areas; 3*areas(end)];
areaRanges = [lowerLimit upperLimit]

Evaluate the object detection metrics across the defined size ranges for the "chair" class using the metricsByArea function.

classes = string(detector.ClassNames);
areaMetrics = metricsByArea(metrics,areaRanges,ClassName=classes(3))
areaMetrics=6×6 table
           AreaRange            NumObjects      mAP           AP            Precision           Recall
    ________________________    __________    _______    ____________    _______________    _______________

             0          2774         0              0    {3×1 double}    {3×152  double}    {3×152  double}
          2774          9177        19        0.51195    {3×1 double}    {3×578  double}    {3×578  double}
          9177         15916        11        0.21218    {3×1 double}    {3×2404 double}    {3×2404 double}
         15916         47799        43        0.72803    {3×1 double}    {3×6028 double}    {3×6028 double}
         47799    1.2472e+05        74        0.62831    {3×1 double}    {3×4174 double}    {3×4174 double}
    1.2472e+05    3.7415e+05        21        0.60897    {3×1 double}    {3×423  double}    {3×423  double}

The NumObjects column shows how many objects in the test data set fall within the area range. Although the detector performed well on the "chair" class overall, there is a size range where the detector has a lower average precision compared to the other size ranges. The range where the detector does not perform well has only 11 samples. To improve the performance in this size range, add more samples of this size or use data augmentation to create more samples across the set of size ranges.

You can repeat this procedure for the other classes to gain deeper insight into how to further improve detector performance.

Compute Precision and Recall Metrics

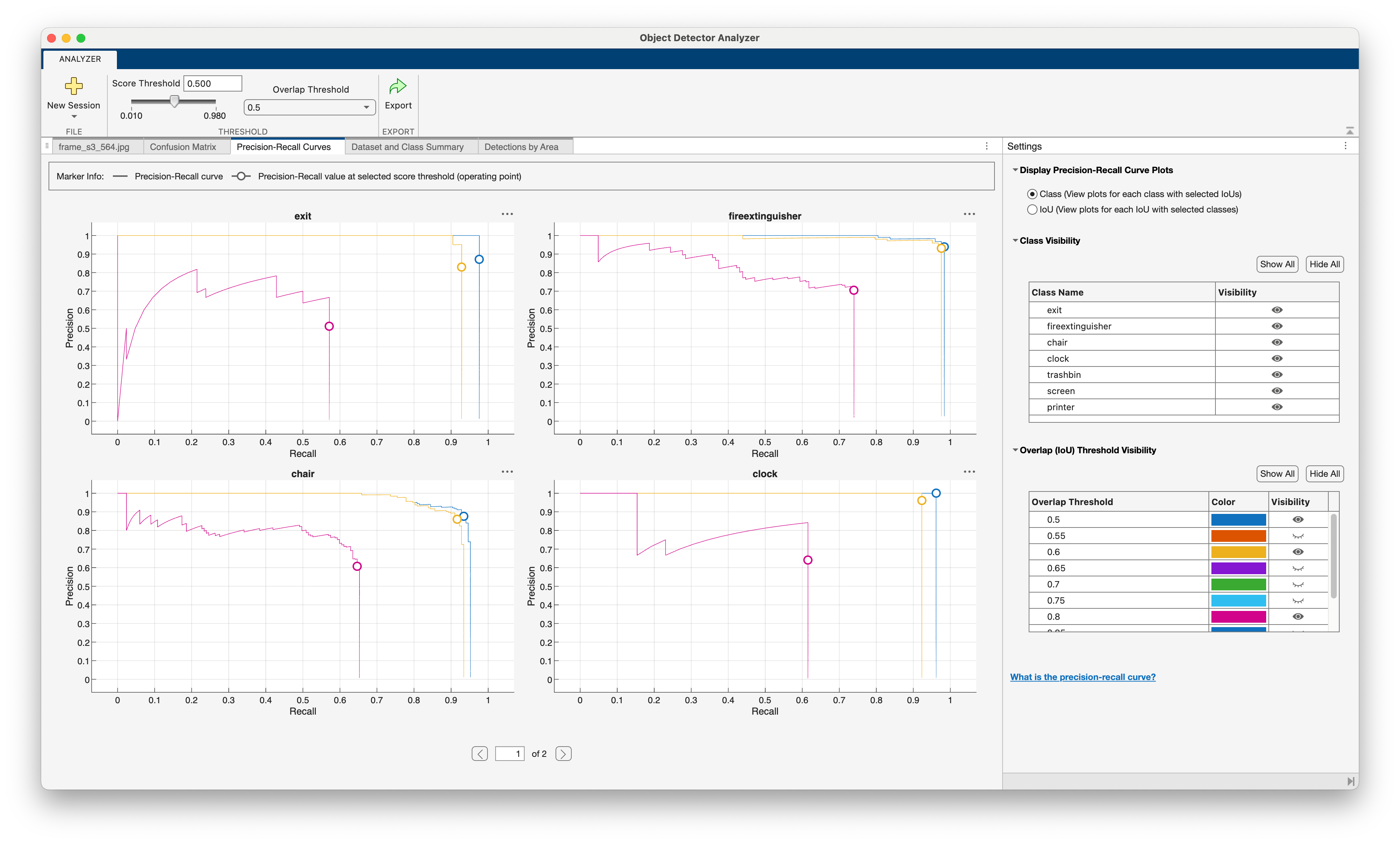

Finally, plot the precision/recall (PR) curve and the detection confidence scores side-by-side. The precision/recall curve highlights how precise a detector is at varying levels of recall for each class. By plotting the detector scores next to the PR curve, you can choose a detection threshold to achieve a desired precision and recall for your application.

Choose a class, extract the precision and recall metrics for that class, and then plot the precision and recall curves.

class = classes(3);

% Extract precision and recall values.
precision = metrics.ClassMetrics{class,"Precision"};
recall = metrics.ClassMetrics{class,"Recall"};

% Plot precision/recall curves.
figure
tiledlayout(1,2)
nexttile
plot(recall{:}',precision{:}')
ylim([0 1])
xlim([0 1])
grid on
xlabel("Recall")
ylabel("Precision")
title(class + " Precision/Recall ")
legend(string(iouThresholds) + " IoU",Location="south")

Extract all the labels and scores from the test set detection results and sort the scores corresponding to the selected class. This method reorders the scores to match the order used while computing precision/recall values, and enables to visualize precision/recall and scores results side-by-side.

allLabels = vertcat(results{:,3}{:});
allScores = vertcat(results{:,2}{:});

classScores = allScores(allLabels == class);
classScores = [1;sort(classScores,'descend')];

Visualize the scores next to the precision/recall curves for the "chair" class.

nexttile
plot(recall{1,:}',classScores)
ylim([0 1])
xlim([0 1])
ylabel("Score")
xlabel("Recall")
grid on
title(class + " Detection Scores")

As the figure shows, the detection threshold lets you trade-off precision for recall. Choose a threshold that gives you the precision/recall characteristics best suited for your application. For example, at an IoU threshold of 0.5, enable a precision of 0.9 at a recall level of 0.9 for the "chair" class by setting the detection threshold to 0.4. Before choosing a final detection threshold, analyze the precision/recall curves for all the classes because the precision/recall characteristics may be different for each class.

Deployment

Once the detector is trained and evaluated, you may optionally generate code and deploy the yolov2ObjectDetector using GPU Coder™. See Code Generation for Object Detection by Using YOLO v2 (GPU Coder) example for more details.

Summary

This example shows how to train and evaluate a multiclass object detector. When adapting this example to your own data, carefully assess the object class and size distribution in your data set. Your data may require using different hyperparameters or a different object detector such as YOLO v4 or YOLOX for optimal results.

Supporting Functions

function B = augmentData(A)
% Apply random horizontal flipping, and random X/Y scaling. Boxes that get
% scaled outside the bounds are clipped if the overlap is above 0.25. Also,
% jitter image color.
B = cell(size(A));

I = A{1};
sz = size(I);
if numel(sz)==3 && sz(3) == 3
    I = jitterColorHSV(I,...
        Contrast=0.2,...
        Hue=0,...
        Saturation=0.1,...
        Brightness=0.2);
end

% Randomly flip and scale image.
tform = randomAffine2d(XReflection=true, Scale=[1 1.1]);
rout = affineOutputView(sz, tform, BoundsStyle="CenterOutput");
B{1} = imwarp(I, tform, OutputView=rout);

% Sanitize boxes, if needed. This helper function is attached as a
% supporting file. Open the example in MATLAB to open this function.
A{2} = helperSanitizeBoxes(A{2});

% Apply same transform to boxes.
[B{2},indices] = bboxwarp(A{2}, tform, rout, OverlapThreshold=0.25);
B{3} = A{3}(indices);

% Return original data only when all boxes are removed by warping.
if isempty(indices)
    B = A;
end
end
function data = resizeImageAndLabel(data,targetSize)
% Resize the images and scale the corresponding bounding boxes.

    scale = (targetSize(1:2))./size(data{1},[1 2]);
    data{1} = imresize(data{1},targetSize(1:2));
    data{2} = bboxresize(data{2},scale);

    data{2} = floor(data{2});
    imageSize = targetSize(1:2);
    boxes = data{2};
    % Set boxes with negative values to have value 1.
    boxes(boxes<=0) = 1;

    % Validate if bounding box in within image boundary.
    boxes(:,3) = min(boxes(:,3),imageSize(2) - boxes(:,1)-1);
    boxes(:,4) = min(boxes(:,4),imageSize(1) - boxes(:,2)-1);

    data{2} = boxes;

end

References

[1] Adhikari, Bishwo; Peltomaki, Jukka; Huttunen, Heikki. (2019). Indoor Object Detection Dataset [Data set]. 7th European Workshop on Visual Information Processing 2018 (EUVIP), Tampere, Finland.

[2] Lin, Tsung-Yi, Michael Maire, Serge Belongie, Lubomir Bourdev, Ross Girshick, James Hays, Pietro Perona, Deva Ramanan, C. Lawrence Zitnick, and Piotr Dollár. “Microsoft COCO: Common Objects in Context,” May 1, 2014. https://arxiv.org/abs/1405.0312v3.

See Also

| | |
