Best-localized Daubechies scaling filter

Since R2022b



    scalf = blscalf(wname) returns the best-localized Daubechies scaling filter corresponding to wname.


    collapse all

    Obtain the scaling filter corresponding to the best-localized Daubechies wavelet with 10 vanishing moments. Confirm the sum of the filter coefficients nearly equals 2 and the L2 norm of the filter nearly equals 1.

    scalf = blscalf("bl10");
    ans = -2.2204e-16
    ans = 1.0000

    Use orthfilt to obtain the scaling and wavelet filters corresponding to the wavelet.

    [LoD,HiD,LoR,HiR] = orthfilt(scalf);

    Confirm the filters form an orthonormal perfect reconstruction wavelet filter bank.

    [tf,checks] = isorthwfb(LoD)
    tf = logical
    checks=7×3 table
                                              Pass-Fail    Maximum Error    Test Tolerance
                                              _________    _____________    ______________
        Equal-length filters                    pass                 0                 0
        Even-length filters                     pass                 0                 0
        Unit-norm filters                       pass        1.7665e-10        1.4901e-08
        Filter sums                             pass        7.2923e-15        1.4901e-08
        Even and odd downsampled sums           pass        3.7748e-15        1.4901e-08
        Zero autocorrelation at even lags       pass        7.3088e-11        1.4901e-08
        Zero crosscorrelation at even lags      pass        1.3089e-17        1.4901e-08

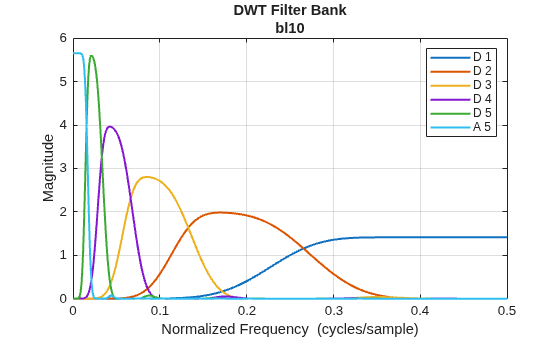

    Create a discrete wavelet transform filter bank using the wavelet. Plot the frequency responses of the wavelet filters and the final resolution scaling filter for the default signal length.

    fb = dwtfilterbank(Wavelet="bl10");

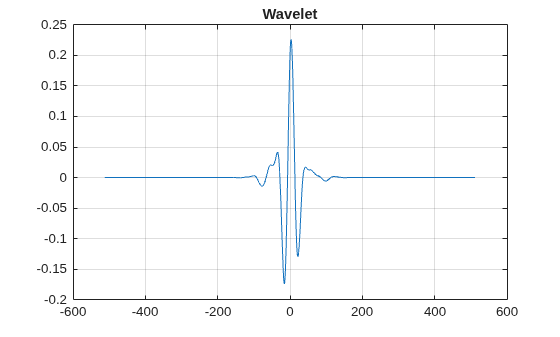

    Plot the wavelet at the coarsest scale.

    [psi,t] = wavelets(fb);
    grid on

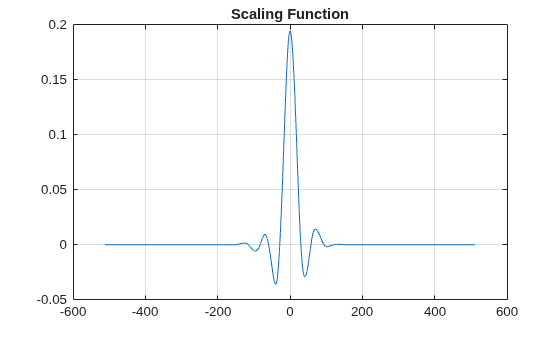

    Plot the scaling function at the coarsest scale.

    [phi,t] = scalingfunctions(fb);
    grid on
    title("Scaling Function")

    Input Arguments

    collapse all

    Best-localized Daubechies wavelet, specified as one of these:

    • "bl7" — Best-localized Daubechies wavelet with seven vanishing moments

    • "bl9" — Best-localized Daubechies wavelet with nine vanishing moments

    • "bl10" — Best-localized Daubechies wavelet with 10 vanishing moments

    Output Arguments

    collapse all

    Scaling filter corresponding to wname, returned as a vector. scalf should be used in conjunction with orthfilt to obtain scaling and wavelet filters with the proper normalization. The scaling filters agree exactly with Doroslovački [1]. The sum of filter coefficients is nearly √2 and the L2 norm is nearly 1.0.

    Data Types: double


    [1] Doroslovački, M.L. “On the Least Asymmetric Wavelets.” IEEE Transactions on Signal Processing 46, no. 4 (April 1998): 1125–30.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.

    Version History

    Introduced in R2022b
