# orthfilt

Orthogonal wavelet filters

## Description

example

[Lo_D,Hi_D,Lo_R,Hi_R] = orthfilt(W) computes the four filters associated with the scaling filter W corresponding to a wavelet.

The four filters the function computes are decomposition lowpass filter Lo_D, decomposition highpass filter Hi_D, reconstruction lowpass filter Lo_R, and reconstruction highpass filter Hi_R.

For more information on how the function computes the filters, see Algorithms.

## Examples

collapse all

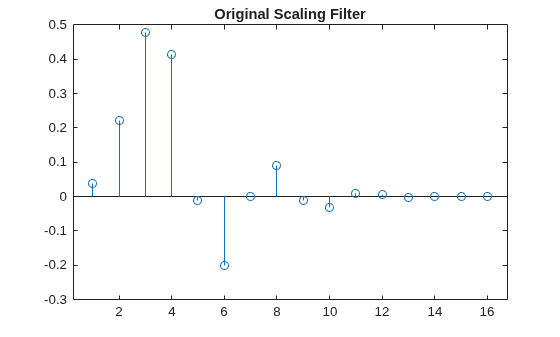

Create a scaling filter associated with the Daubechies wavelet specified by 'db8'.

W = dbwavf('db8');
stem(W);
title('Original scaling filter');

Compute the four filters associated with the scaling filter.

[Lo_D,Hi_D,Lo_R,Hi_R] = orthfilt(W);

Plot the decomposition lowpass filter.

stem(Lo_D);
title('Decomposition lowpass filter');

Plot the decomposition highpass filter.

stem(Hi_D);
title('Decomposition highpass filter');

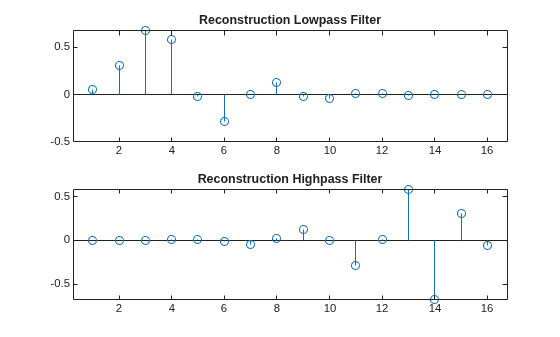

Plot the reconstruction lowpass filter.

stem(Lo_R);
title('Reconstruction lowpass filter');

Plot the reconstruction highpass filter.

stem(Hi_R);
title('Reconstruction highpass filter');

Check for orthonormality in the decomposition filters..

df = [Lo_D;Hi_D];
rf = [Lo_R;Hi_R];
id = df*df'
id = 2×2

1.0000   -0.0000
-0.0000    1.0000

Check for orthonormality in the reconstruction filters..

id2 = rf*rf'
id2 = 2×2

1.0000    0.0000
0.0000    1.0000

Check for orthogonality by dyadic translation.

df = [Lo_D 0 0;Hi_D 0 0];
dft = [0 0 Lo_D; 0 0 Hi_D];
zer = df*dft'
zer = 2×2
10-12 ×

-0.1895    0.0000
0.0000   -0.1895

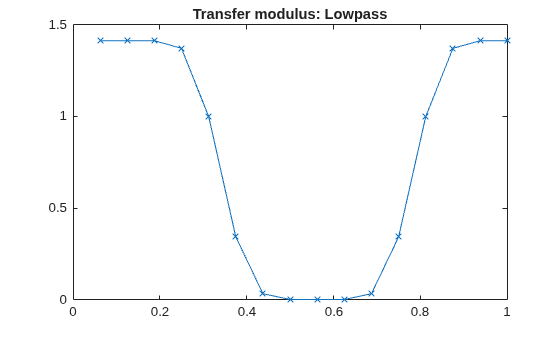

Plot the low-frequency transfer modulus.

fftld = fft(Lo_D);
freq = [1:length(Lo_D)]/length(Lo_D);
plot(freq,abs(fftld));
title('Transfer modulus: low-pass');

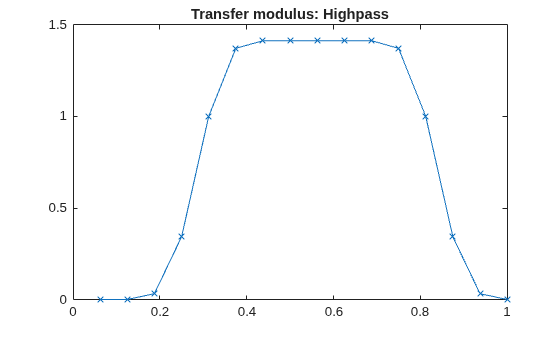

Plot the high-frequency transfer modulus.

ffthd = fft(Hi_D);
plot(freq,abs(ffthd));
title('Transfer modulus: high-pass')

## Input Arguments

collapse all

Scaling filter corresponding to a wavelet, specified as a real-valued vector.

## Output Arguments

collapse all

Decomposition lowpass filter associated with the scaling filter W, returned as a real-valued vector.

Decomposition highpass filter associated with the scaling filter W, returned as a real-valued vector.

Reconstruction lowpass filter associated with the scaling filter W, returned as a real-valued vector.

Reconstruction highpass filter associated with the scaling filter W, returned as a real-valued vector.

## Algorithms

For an orthogonal wavelet in the multiresolution framework, start with the scaling function ϕ and the wavelet function ψ. One of the fundamental relations is the twin-scale relation:

$\frac{1}{2}\varphi \left(\frac{x}{2}\right)=\sum _{n\in Z}{w}_{n}\varphi \left(x-n\right)$

All the filters used in the dwt and idwtfunctions are intimately related to the sequence ${\left({w}_{n}\right)}_{n\in Z}$. if ϕ is compactly supported, the sequence (wn) is finite and can be viewed as an FIR filter. The scaling filter W is a lowpass FIR filter of length 2N, with the sum 1, and with the norm of 1/√2."

For example, for a db3 scaling filter,

w = dbwavf('db3')
w = 0.2352 0.5706 0.3252 -0.0955 -0.0604 0.0249

sum(w)
= 1.000
norm(w)
= 0.7071

Define four FIR filters from filter W of length 2N and norm 1.

Filters

Low-Pass

High-Pass

Decomposition

Lo_DHi_D

Reconstruction

Lo_RHi_R

The function computes the four filters using the following scheme.

The algorithm defines qmf is such that Hi_R and Lo_R are quadrature mirror filters (that is Hi_R(k) = (-1)kLo_R(2N + 1 - k), for k = 1, 2, Ä, 2N) and wrev such that it flips the filter coefficients. Therefore, Hi_D and Lo_D are also quadrature mirror filters.

## References

[1] Daubechies, I. (1992). Ten lectures on wavelets. CBMS-NSF conference series in applied mathematics, SIAM Ed. pp. 117–119, 137, 152.
