Simscape Fluids


Simscape Fluids

Model and simulate fluid systems

Fluid Power

Model actuation systems in construction equipment, production machinery, and aerospace applications. Evaluate thermal effects and design control algorithms.

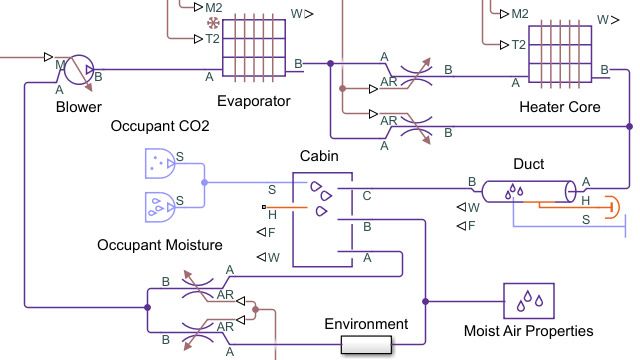

Heating and Cooling

Model thermal management systems for batteries, vehicles, buildings, and other applications. Evaluate system architecture and refine component-level requirements.

Fluid Transportation

Model fluid transportation in fuel tanks, supply networks, lubrication assemblies, and other systems. Automate tests under expected and abnormal operating conditions.

Predictive Maintenance

Minimize losses, equipment downtime, and costs by creating algorithms that predict component failure. Model failed components, such as leaking seals or blocked orifices.

Virtual Testing

Verify system behavior under conditions that cannot be easily tested with hardware prototypes. Run sets of tests in parallel on a multicore workstation or a cluster.

Model Deployment

Convert your Simscape model to C code to test control algorithms. Run HIL tests on dSPACE®, Speedgoat, OPAL-RT, and other real-time systems before performing physical tests.

Simscape Platform

Test integration of electrical, thermal, mechanical, hydraulic, and pneumatic systems in a single environment. Identify integration issues and optimize system-level performance.

MATLAB and Simulink

Use MATLAB to automate tasks such as model assembly, testing, and post-processing. Use Simulink to integrate control algorithms and hardware design in a single environment.

From Research To Production

Simscape models help you refine requirements, design control systems, test embedded controllers, and support in-service operation as a digital twin.

Simscape Product Family

The Simscape product family provides models and solver technology for simulating physical systems. Model electrical, mechanical, fluid, and other physical systems by assembling components into a schematic.


Model and simulate multidomain physical systems

Simscape Electrical

Model and simulate electronic, mechatronic, and electrical power systems

Simscape Battery

Design and simulate battery and energy storage systems

Simscape Fluids

Model and simulate fluid systems

Simscape Driveline

Model and simulate rotational and translational mechanical systems

Simscape Multibody

Model and simulate multibody mechanical systems

“It was technically impossible for us to build a full-scale hydraulic system model to run in real time without Simulink, Simscape, and Simulink Real-Time. Our simulator enables us to test new concepts for construction equipment, tune parameters, reduce lead times, and minimize issues in the field.”

Jae Yong Lee, Volvo Construction Equipment
