Modeling a Vehicle Powertrain

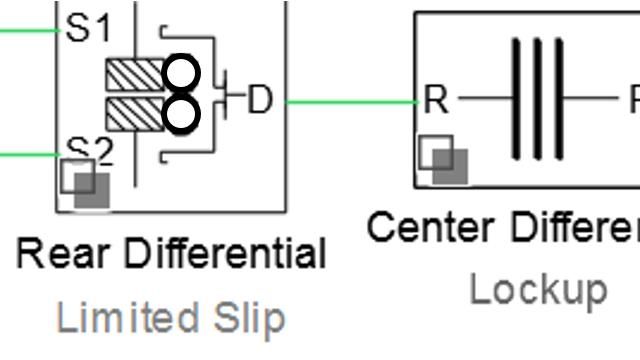

Simscape Driveline™ is used to model a vehicle powertrain. The model includes an engine, torque converter, gears, tires, and longitudinal vehicle dynamics. The model is created by assembling the components into a physical schematic using Simscape™ physical connections. Simulation results are displayed in the Simscape Results Explorer.
