antenna.Polygon

Create polygon on X-Y plane

Description

Use the antenna.Polygon object to create a polygonal board shape centered at the origin and on the X-Y plane. You can use antenna.Polygon to create single-layer or multilayered antennas using pcbStack.

Creation

Description

polygon = antenna.Polygon creates a polygonal board shape centered at the origin and on the X-Y plane.

example

polygon = antenna.Polygon(Name,Value) sets properties using one or more name-value pair. For example, polygon = antenna.Polygon('Name','mypolygonboard') creates a polygon board shape of the name 'mypolygonboard'. Enclose each property name in quotes.

Properties

expand all

Name of the polygon board shape, specified a character vector or string.

Example: 'Name','Polygon1'

Example: polygon.Name = 'Polygon1'

Data Types: char | string

Cartesian coordinates of polygon vertices, specified as a N-by-3 vector with each element measured in meters, N being the number of points.

Example: 'Vertices',[-1 0 0;-0.5 0.2 0;0 0 0]

Example: polygon.Vertices = [-1 0 0;-0.5 0.2 0;0 0 0]

Data Types: double

Object Functions

addBoolean unite operation on two shapes
areaCalculate area of shape in sq.m
subtractBoolean subtraction operation on two shapes
intersectBoolean intersection operation on two shapes
rotateRotate shape about axis and angle
rotateXRotate shape about X-axis and angle
rotateYRotate shape about Y-axis and angle
rotateZRotate shape about Z-axis and angle
translateMove shape to new location
showDisplay antenna or array structure; Display shape as filled patch
meshMesh properties of metal or dielectric antenna or array structure

Examples

collapse all

Create a polygon using antenna.Polygon with vertices at [-1 0 0;-0.5 0.2 0;0 0 0] and view it.

p = antenna.Polygon('Vertices', [-1 0 0;-0.5 0.2 0;0 0 0])
p =
  Polygon with properties:

        Name: 'mypolygon'
    Vertices: [3x3 double]

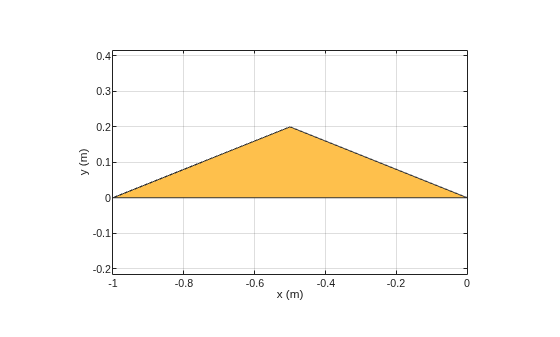

show(p)
axis equal

Mesh the polygon and view it.

mesh(p,0.2)

Move the polygon to a new location on the X-Y plane.

translate(p,[2,1,0])
axis equal

Introduced in R2017a
