antenna.Rectangle

Create rectangle centered at origin on X-Y plane

Description

Use the antenna.Rectangle object to create a rectangle centered at the origin and on the X-Y plane. You can use antenna.Polygon to create single-layer or multi-layered antennas using pcbStack.

Creation

Description

example

rect = antenna.Rectangle creates a rectangle centered at the origin and on the X-Y plane.

example

rect = antenna.Rectangle(Name,Value) sets properties using one or more name-value pair. For example, rectangle = antenna.Rectangle('Length',0.2) creates a rectangle of length 0.2 m. Enclose each property name in quotes.

Properties

expand all

Name of rectangle, specified a character vector.

Example: 'Name','Rect1'

Example: rectangle.Name = 'Rect1'

Data Types: char | string

Cartesian coordinates of center of rectangle, specified a 2-element vector with each element measured in meters.

Example: 'Center',[0.006 0.006]

Example: rectangle.Center = [0.006 0.006]

Data Types: double

Rectangle length, specified a scalar in meters.

Example: 'Length',2

Example: rectangle.Length = 2

Data Types: double

Rectangle width, specified a scalar in meters.

Example: 'Width',4

Example: rectangle.Width = 4

Data Types: double

Number of discretization points per side, specified a scalar.

Example: 'NumPoints',16

Example: rectangle.NumPoints = 16

Data Types: double

Object Functions

addBoolean unite operation on two shapes
areaCalculate area of shape in sq.m
subtractBoolean subtraction operation on two shapes
intersectBoolean intersection operation on two shapes
rotateRotate shape about axis and angle
rotateXRotate shape about X-axis and angle
rotateYRotate shape about Y-axis and angle
rotateZRotate shape about Z-axis and angle
translateMove shape to new location
showDisplay antenna or array structure; Display shape as filled patch
meshMesh properties of metal or dielectric antenna or array structure

Examples

collapse all

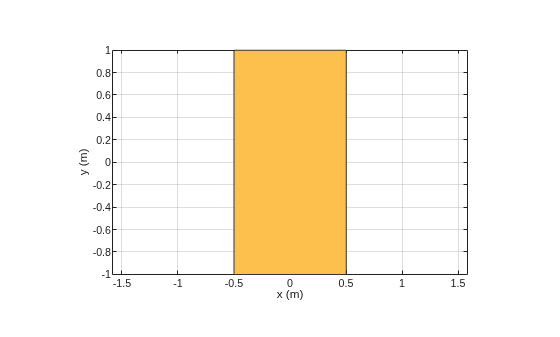

Create a rectangle shape using antenna.Rectangle and view it.

r1 = antenna.Rectangle
r1 =
  Rectangle with properties:

         Name: 'myrectangle'
       Center: [0 0]
       Length: 1
        Width: 2
    NumPoints: 2

show(r1)

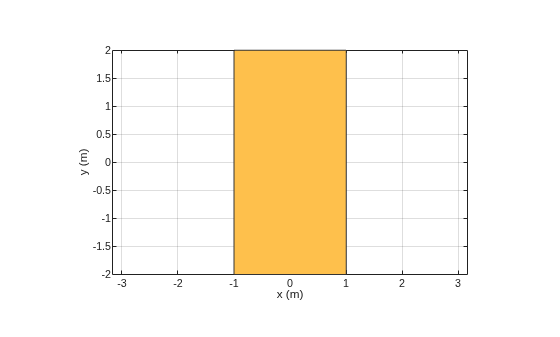

Create and view a rectangle with a length of 2 m and a width of 4 m.

r2 = antenna.Rectangle('Length',2,'Width',4);
show(r2)
axis equal

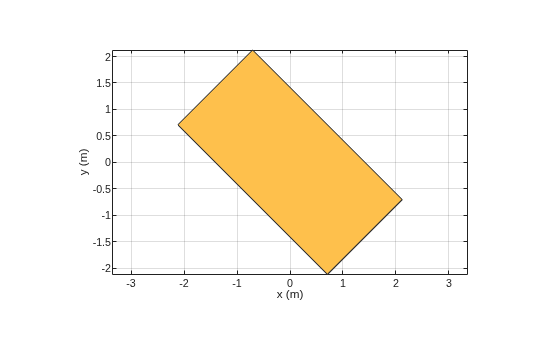

Rotate the rectangle.

rotateZ(r2,45);
show(r2)

Create a rectangle with a length of 0.15 m, and a width of 0.15 m.

r  = antenna.Rectangle('Length',0.15,'Width',0.15);

Create a second rectangle with a length of 0.05 m, and a width of 0.05 m. Set the center of the second rectangle at half the length of the first rectangle r.

n = antenna.Rectangle('Center',[0.075,0],'Length',0.05,'Width',0.05);

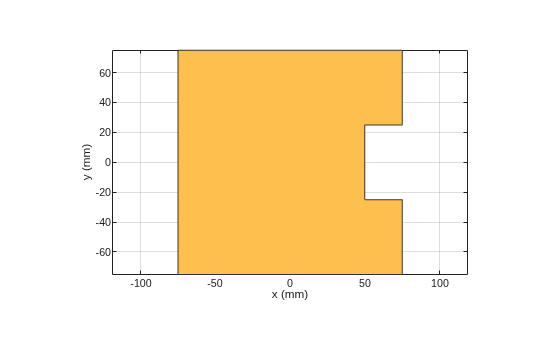

Create and view a notched rectangle by subtracting n from r.

rn  = r-n;
show(rn)

Calculate the area of the notched rectangle.

area(rn)
ans = 0.0212

Introduced in R2017a
