# optimize

## Syntax

## Description

optimizes the antenna or the array at the specified frequency using the specified objective
function and the antenna or array properties and their bounds.`optimizedelement`

= optimize(`element`

,`frequency`

,`objectivefunction`

,`propertynames`

,`bounds`

)

optimizes the antenna or the array using additional name value pairs.`optimizedelement`

= optimize(___,`Name=Value`

)

## Examples

### Maximize Gain of Dipole Antenna

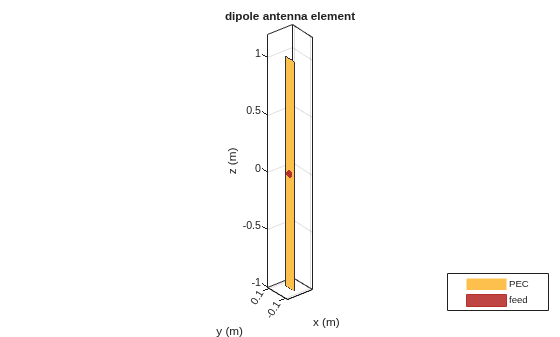

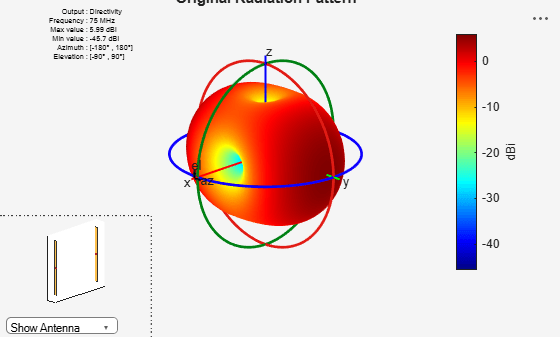

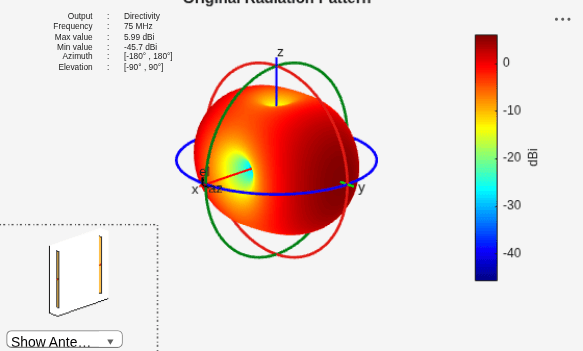

Create and view a default dipole antenna.

ant = dipole; show(ant)

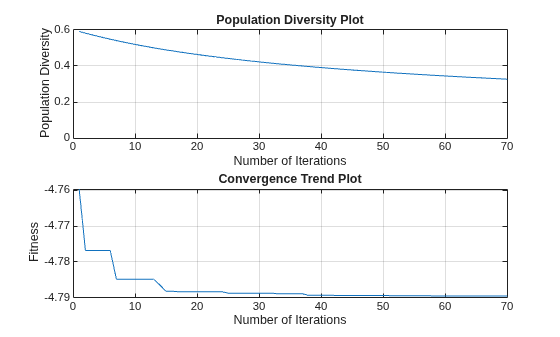

Maximize the gain of the antenna by changing the antenna length from 3 m to 7 m and the width from 0.11 m to 0.13 m.

Optimize the antenna at a frequency of 75 MHz.

optAnt = optimize(ant,75e6,"maximizeGain", ... {'Length','Width'}, {3 0.11; 7 0.13})

optAnt = dipole with properties: Length: 4.7970 Width: 0.1102 FeedOffset: 0 Conductor: [1x1 metal] Tilt: 0 TiltAxis: [1 0 0] Load: [1x1 lumpedElement]

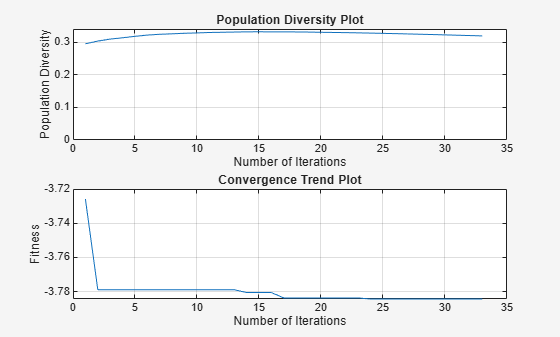

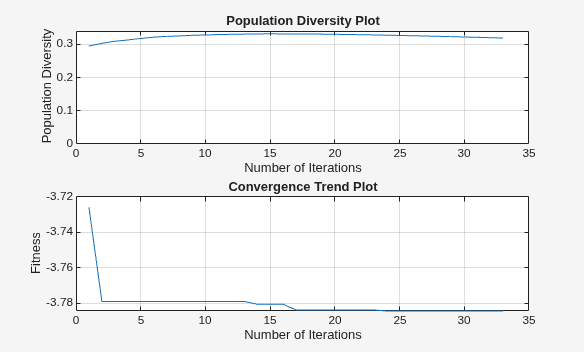

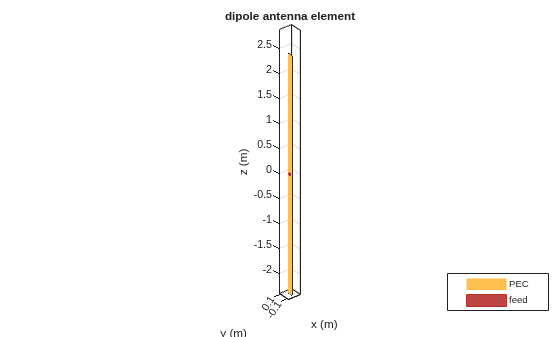

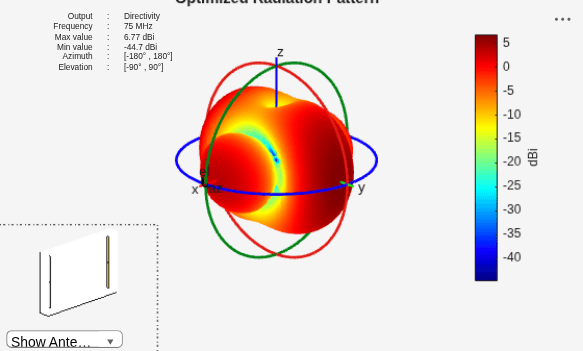

show(optAnt)

### Optimize E-Notch Microstrip Patch Antenna for Gain with Geometric Constraints

This example shows how to optimize an E-Notch microstrip patch antenna for gain with constraints on its geometry.

**Create E-Notch Microstrip Patch Antenna**

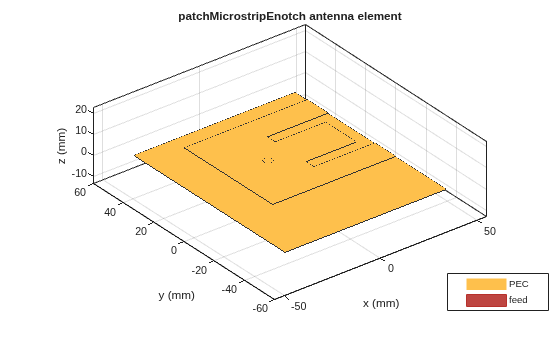

Create an E-Notch microstrip patch antenna operating at 2GHz and vary its center arm notch length and width.

```
% Create E-notch microstrip antenna
ant = design(patchMicrostripEnotch,2e9);
ant.CenterArmNotchLength = 0.0073;
ant.CenterArmNotchWidth = 0.0144;
```

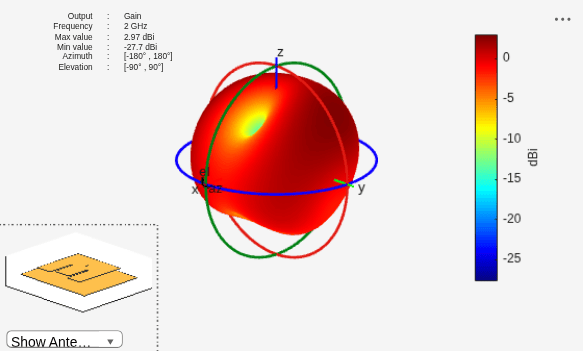

Plot its radiation pattern and check the maximum gain value.

% Check the gain figure pattern(ant,2e9,Type="gain")

**Optimize E-Notch Microstrip Patch Antenna for Gain**

Define the design variables, and their lower and upper bounds.

designVariables = {'CenterArmNotchLength','NotchLength','Width','CenterArmNotchWidth','NotchWidth'}; XVmin = [0.001, 0.03, 0.03, 0.01, 0.001]; XVmax = [0.02, 0.06, 0.07, 0.03, 0.009];

**Add geometric constraints**

Prepare coefficients in the form of a matrix with reference to below linear inequalities:

$$5*\mathrm{CenterArmNotchLength}<\mathrm{NotchLength}$$

$$\mathrm{CenterArmNotchWidth}+(2*\mathrm{Notchwidth})<\mathrm{Width}$$

Rewrite the inequalities 1 & 2 in the form of $\mathrm{ax}+\mathrm{by}+\mathrm{cz}\le 0$

$$5*\mathrm{CenterArmNotchLength}-\mathrm{NotchLength}<0$$

$$\mathrm{CenterArmNotchWidth}+(2*\mathrm{Notchwidth})-\mathrm{Width}<0$$

Convert these inequalities to a matrix of form $\mathrm{AX}<=b$, where $\mathit{A}$ is coefficient matrix and $\mathit{b}$ is constant matrix. Write the coefficients as per the order of design variables.

```
A = [5,-1,0,0,0;...
0,0,-1,1,2];
b = [0;0];
```

Define a structure to contain both the coefficient and constant matrices.

constraintsStructure.A = A; constraintsStructure.b = b;

**Optimize E-Notch microstrip patch antenna and check its gain**

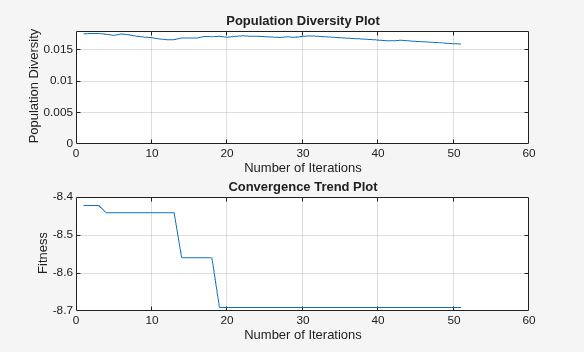

Run the optimization on E-Notch microstrip patch antenna leveraging these constraints. Visualize the optimized design and plot the radiation pattern.

`optAnt = optimize(ant, 2e9, "maximizeGain", designVariables, {XVmin;XVmax}, Iterations=50, GeometricConstraints=constraintsStructure);`

figure show(optAnt)

```
figure

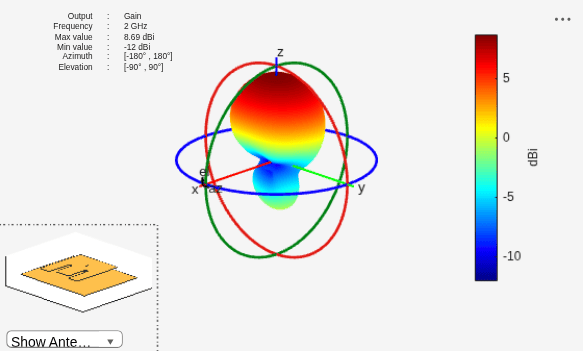

pattern(optAnt,2e9,Type="gain")
```

## Input Arguments

`element`

— Antenna or array to optimize

antenna object | array object | `customAntenna`

object

Antenna or array to optimize, specified as an antenna object from the antenna catalog, array object from the
array
catalog, or `customAntenna`

object.

**Note**

To optimize `pcbStack`

antenna, use PCB Antenna
Designer app.

**Example: **`dipole`

**Example: **`linearArray(Element=dipole)`

**Example: **`customAntenna(Shape=shape.Rectangle)`

`frequency`

— Frequency to optimize antenna or array

positive scalar

Operating frequency of the antenna or array to optimize, specified as a positive scalar in Hertz.

**Example: **`70e6`

**Data Types: **`double`

`objectivefunction`

— Objective of antenna or array optimization

`"maximizeGain"`

| `"fronttoBackLobeRatio"`

| `"maximizeBandwidth"`

| `"minimizeBandwidth"`

| `"maximizeSLL"`

| `"minimizeArea"`

| custom objective function | anonymous function handle

Objective of antenna or array optimization, specified as a string from one of the following:

`maximizeGain`

— Maximize the gain of the given antenna or array element`fronttoBackRatio`

— Increase the front-lobe-to-back-lobe ratio of the antenna or array element`maximizeBandwidth`

— Maximize the operation bandwidth of the antenna or array element. Use this objective function for optimizing antennas or arrays for wideband applications.`minimizeBandwidth`

— Minimize the operation bandwidth of the antenna or array element. Use this objective function for optimizing antennas or arrays for narrowband applications.`maximizeSLL`

— Maximize the ratio between the front lobe and the first side lobes of the antenna or array pattern.`minimizeArea`

— Minimizes the maximum area occupied by the antenna or the array element. If the dimension of the element in the array is smaller than the aperture, the objective function minimizes the array aperture.Custom objective function — Optimizes the antenna or array as per the user defined objective function.

Anonymous function handle — Optimizes the antenna or array for the objectives defined using the anonymous function handle.

**Data Types: **`string`

`propertynames`

— Properties of antenna or array

cell array of character vectors

Properties of the antenna or array object to optimize, specified as a cell array of character vectors. The property names are selected as the design variables in optimization.

**Example: **`{'Length','Width'}`

**Data Types: **`cell`

`bounds`

— Lower and upper bounds of design variables

two-row cell array

Lower and upper bounds of design variables, specified as a two-row cell array.

**Example: **`{3 0.11; 7 0.13}`

**Data Types: **`double`

### Name-Value Arguments

Specify optional pairs of arguments as
`Name1=Value1,...,NameN=ValueN`

, where `Name`

is
the argument name and `Value`

is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.

**Example: **`Constraints={'Area<0.03'}`

*
Before R2021a, use commas to separate each name and value, and enclose*
`Name`

*in quotes.*

**Example: **`'Constraints',{'Area<0.03'}`

`Constraints`

— Optimization constraints

cell array of strings or character vectors

Antenna or array optimization constraints, specified as a cell array of strings or character vectors. Each character vector or string must be of the form: (analysis function) (inequality sign) (value). You can specify any of the following analysis functions:

`Area`

in meter square`Volume`

in meter cube`S11`

in dB`Gain`

in dBi`F/B`

in dBi`SLL`

in dBi

The inequality signs `'<'`

or `'>'`

and the
values specifies the analysis function limits. For example, ```
'Area <
0.03'
```

indicates that the area of the optimizing antenna must be less than
0.03 square meter.

**Example: **`{'Area<0.03'}`

**Data Types: **`char`

| `string`

`Weights`

— Weight or penalty of each constraint function

vector of positive integers in the range (1,100)

Weight or penalty of each constraint function, specified as a vector of positive integers in the range (1,100). If the penalty is set to high, a higher priority is given to the constraint function in case of multiple constraint optimization. All constraint functions are weighted equally by default.

**Example: **`8`

**Data Types: **`double`

`FrequencyRange`

— Range of frequencies for vector frequency analysis

vector of positive numbers

Range of frequencies for vector frequency analysis like S-parameters, specified as a vector of positive numbers with each element unit in Hertz.

The default frequency range is obtained from the center frequency considering a bandwidth of less than 10 percent.

**Example: **`linspace(1e9,2e9,10)`

**Data Types: **`double`

`ReferenceImpedance`

— Reference impedance of optimizing antenna or array

`50`

(default) | scalar

Reference impedance of antenna or array being optimized, specified as a scalar in ohms.

**Example: **`75`

**Data Types: **`double`

`MainLobeDirection`

— Azimuth and elevation of main lobe

`[0,90]`

(default) | two-element vector

Azimuth and elevation of main lobe of antenna or array being optimized, specified as a two-element vector with each element unit in degrees. The first element represents azimuth and the second element represents elevation.

**Example: **`[20 30]`

**Data Types: **`double`

`Iterations`

— Number of iterations to run optimizer

`200`

(default) | positive scalar

Number of iterations to run the optimizer after you build the model, specified as a positive scalar.

**Example: **`40`

**Data Types: **`double`

`UseParallel`

— Use Parallel Computing Toolbox™ during optimization

`false`

(default) | `true`

Use Parallel Computing Toolbox during optimization, specified as either `true`

or
`false`

. Use the `canUseGPU`

function to check if dedicated GPU is available for computations and Parallel Computing Toolbox is installed and ready for use.

**Example: **`true`

**Data Types: **`logical`

`EnableCoupling`

— Option to enable mutual coupling of elements in arrays during optimization

`true`

(default) | `false`

Option to enable mutual coupling of elements in an array during optimization,
specified as a logical `true`

to enable or `false`

to disable. By default, this option is enabled.

**Example: **`false`

**Data Types: **`logical`

`EnableLog`

— Option to print iteration number and value of convergence on command line

`false`

(default) | `true`

Option to print iteration number and value of convergence on the command line,
specified as a logical `true`

to enable or `false`

to disable. By default, this option is disabled.

**Example: **`true`

**Data Types: **`logical`

`GeometricConstraints`

— Geometric constraints

structure

Geometric constraints for optimization, specified as a structure of coefficient matrix and constant vector.

Specify linear inequality constraints in the *A* matrix and
*b* vector.

*A*is a real*M*-by-*N*matrix where*M*is the number of inequalities, and*N*is the number of design variables.*A*holds the design variable coefficients of the inequalities.*b*is a real*M*-element column vector and holds the constants of inequalities corresponding to the coefficients in*A*.

For example, consider an optimization problem consisting of 5 design variables as follows:

designVariables = {'CenterArmNotchLength','NotchLength','Width',... 'CenterArmNotchWidth','NotchWidth'};

5*

*CenterArmNotchLength*-*NotchLength*< 0*CenterArmNotchWidth*+ 2**Notchwidth*-*Width*< 0

Define the *A* and *b* as
follows:

A = [5,-1,0,0,0;... 0,0,-1,1,2]; b = [0;0];

Specify linear equality constraints in the *Aeq* matrix and
*beq* vector.

*Aeq*is an*Me*-by-*N*matrix, where*Me*is the number of equalities, and*N*is the number of design variables.*Aeq*holds the design variable coefficients of the equalities.*beq*is a real*Me*-element column vector and holds the constants of equalities corresponding to the coefficients in*Aeq*.

Specify non-linear inequality constraints in the *nlcon* matrix
and *nrlv* vector.

*nlcon*is a function handle that defines nonlinear constraints. It stores the design variables.*nrlv*is a 1-by-*N*vector of`0`

and`1`

.*N*is the number of design variables in*nlcon*. Each index in*nrlv*corresponds to a design variable in*nlcon*in that sequence. Specify`1`

at an index in*nrlv*to convey the`optimize`

function that the corresponding design variable is relevant for optimization. Specify`0`

at an index in*nrlv*to convey the`optimize`

function that the corresponding design variable is not relevant for optimization.

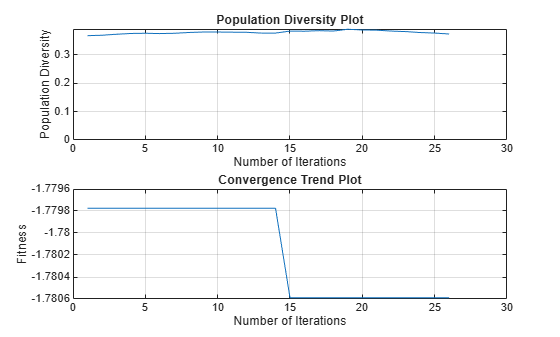

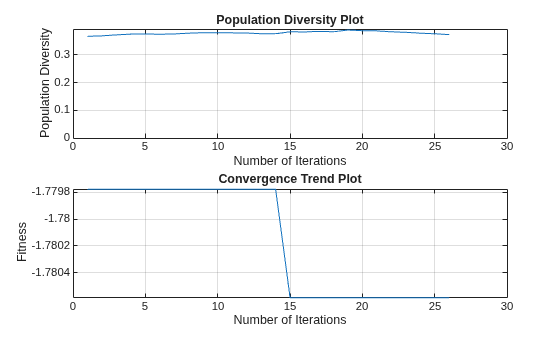

For example, to maximize the gain of a dipole antenna operating at 75 MHz with constraints on its length and width, use this code:

optAnt = optimize(dipole, 75e6, "maximizeGain", {"Length", "Width"},... {opt.lb; opt.ub}, Iterations=150, GeomConstraints=opt); opt = struct with fields: A: [100×2 double] b: [100×1 double] Aeq: [-1 5] beq: 0 nlcon: @btw nrlv: [1 1]

For additional information on linear and nonlinear equalities and nonlinear
inequalities, see the `fmincon`

(Optimization Toolbox) function documentation.

**Example: **```
A=[5,-1,0,0,0; 0,0,-1,1,2]; b=[0;0]; structure.A=A;
structure.b=b;
```

**Example: **```
Aeq=[-1 5]; beq=0; structure.Aeq=Aeq;
structure.beq=beq;
```

**Example: **```
nlcon=@btw; nrlv=[1 1]; structure.nlcon=nlcon;
structure.nrlv=nrlv;
```

**Data Types: **`struct`

`UseAlgorithm`

— Algorithm to use for antenna or array optimization

`"SADEA"`

(default) | `"TR-SADEA"`

Algorithm to use for antenna or array optimization, specified as a string. By
default, the `optimize`

function uses SADEA algorithm. Use TR-SADEA
for applications where the evaluation of the objective function is computationally
expensive. For more information, see optimization
algorithms.

**Example: **`UseAlgorithm="TR-SADEA"`

**Data Types: **`string`

## Output Arguments

`optimizedelement`

— Optimized antenna or array element

antenna object | array object | `customAntenna`

object

Optimized antenna or array element, returned as an antenna, array, or
`customAntenna`

object.

## Version History

**Introduced in R2020b**

### R2024b: New features

The `optimize`

function has added three new features:

**Support for custom geometric constraints defined using linear equalities and nonlinear inequalities**

You can now use custom geometric constraints defined by linear equalities and
nonlinear inequalities for antenna or array optimization. Define the custom geometric
constraints in the `GeometricConstraints`

property of the
`optimize`

function using the `opt`

structure that
contains the coefficients of linear inequalities (A, b) and equalities (Aeq, beq) and
nonlinear inequalities (nlcon, nrlv).

**Optimize antennas and arrays using Training Cost Reduced SADEA (TR-SADEA) algorithm**

Optimize large antennas and arrays using the TR-SADEA algorithm in the
`optimize`

function. Set the new `UseAlgorithm`

argument in the `optimize`

function to `"TR-SADEA"`

to
use TR-SADEA algorithm for your optimization task. To use this feature, you need a license
for Statistics and Machine Learning Toolbox™ in addition to
Antenna Toolbox™.

**Support for anonymous function handle in optimization**

You can now use an anonymous function handle to define antenna or array optimization
objectives in the `optimize`

function.

### R2024a: Use custom objective function and geometric constraints for optimization

Specify a custom objective function to define antenna or array optimization objectives.

Use custom geometric constraints defined by linear inequalities of design variables for antenna or array optimization. Specify custom geometric constraints in the new

`GeometricConstraints`

name-value argument.

## See Also

`canUseGPU`

| `fmincon`

(Optimization Toolbox)

### Topics

- SADEA Optimization of Six-Element Yagi-Uda Antenna using Custom Objective Function
- Direct Search Based Optimization of Six-Element Yagi-Uda Antenna
- Surrogate Based Optimization Design of Six-Element Yagi-Uda Antenna
- Optimization of Antenna Array Elements Using Antenna Array Designer App
- Maximizing Gain and Improving Impedance Bandwidth of E-Patch Antenna
- Antenna and Array Optimization Algorithms

## MATLAB Command

You clicked a link that corresponds to this MATLAB command:

Run the command by entering it in the MATLAB Command Window. Web browsers do not support MATLAB commands.

Select a Web Site

Choose a web site to get translated content where available and see local events and offers. Based on your location, we recommend that you select: .

You can also select a web site from the following list:

## How to Get Best Site Performance

Select the China site (in Chinese or English) for best site performance. Other MathWorks country sites are not optimized for visits from your location.

### Americas

- América Latina (Español)
- Canada (English)
- United States (English)

### Europe

- Belgium (English)
- Denmark (English)
- Deutschland (Deutsch)
- España (Español)
- Finland (English)
- France (Français)
- Ireland (English)
- Italia (Italiano)
- Luxembourg (English)

- Netherlands (English)
- Norway (English)
- Österreich (Deutsch)
- Portugal (English)
- Sweden (English)
- Switzerland
- United Kingdom (English)
