forward

Compute deep learning network output for training

Since R2019b

Syntax

Y = forward(net,X)

Y = forward(net,X1,...,XM)

[Y1,...,YN] = forward(___)

[Y1,...,YK] = forward(___,'Outputs',layerNames)

[___] = forward(___,'Acceleration',acceleration)

[___,state] = forward(___)

[___,state,pruningActivations] = forward(___)

Description

Some deep learning layers behave differently during training and inference (prediction). For example, during training, dropout layers randomly set input elements to zero to help prevent overfitting, but during inference, dropout layers do not change the input.

To compute network outputs for training, use the forward function. To compute network outputs for inference, use the predict function.

Y = forward(net,X) returns the network output Y during training given the input data X.

Y = forward(net,X1,...,XM) returns the network output Y during training given the M inputs X1, ...,XM and the network net that has M inputs and a single output.

[Y1,...,YN] = forward(___) returns the N outputs Y1, …, YN during training for networks that have N outputs using any of the previous syntaxes.

[Y1,...,YK] = forward(___,'Outputs',layerNames) returns the outputs Y1, …, YK during training for the specified layers using any of the previous syntaxes.

[___] = forward(___,'Acceleration',acceleration) also specifies performance optimization to use during training, in addition to the input arguments in previous syntaxes.

[___,state] = forward(___) also returns the updated network state.

[___,state,pruningActivations] = forward(___) also returns a cell array of activations of the pruning layers. This syntax is applicable only if net is a TaylorPrunableNetwork object.

To prune a deep neural network, you require the Deep Learning Toolbox™ Model Quantization Library support package. This support package is a free add-on that you can download using the Add-On Explorer. Alternatively, see Deep Learning Toolbox Model Quantization Library.

Examples

Train Network Using Custom Training Loop

This example shows how to train a network that classifies handwritten digits with a custom learning rate schedule.

You can train most types of neural networks using the trainNetwork and trainingOptions functions. If the trainingOptions function does not provide the options you need (for example, a custom learning rate schedule), then you can define your own custom training loop using dlarray and dlnetwork objects for automatic differentiation. For an example showing how to retrain a pretrained deep learning network using the trainNetwork function, see Transfer Learning Using Pretrained Network.

Training a deep neural network is an optimization task. By considering a neural network as a function $$f(X;\theta )$$, where $$X$$ is the network input, and $$\theta$$ is the set of learnable parameters, you can optimize $$\theta$$ so that it minimizes some loss value based on the training data. For example, optimize the learnable parameters $$\theta$$ such that for a given inputs $$X$$ with a corresponding targets $$T$$, they minimize the error between the predictions $$Y=f(X;\theta )$$ and $$T$$.

The loss function used depends on the type of task. For example:

• For classification tasks, you can minimize the cross entropy error between the predictions and targets.

• For regression tasks, you can minimize the mean squared error between the predictions and targets.

You can optimize the objective using gradient descent: minimize the loss $$L$$ by iteratively updating the learnable parameters $$\theta$$ by taking steps towards the minimum using the gradients of the loss with respect to the learnable parameters. Gradient descent algorithms typically update the learnable parameters by using a variant of an update step of the form $${\theta }_{t+1}={\theta }_t-\rho \nabla L$$, where $$t$$ is the iteration number, $$\rho$$ is the learning rate, and $$\nabla L$$ denotes the gradients (the derivatives of the loss with respect to the learnable parameters).

This example trains a network to classify handwritten digits with the time-based decay learning rate schedule: for each iteration, the solver uses the learning rate given by ${\rho }_{\mathit{t}}=\frac{{\rho }_0}{1+\mathit{k}\mathit{t}}$, where t is the iteration number, $${\rho }_0$$ is the initial learning rate, and k is the decay.

Load Training Data

Load the digits data as an image datastore using the imageDatastore function and specify the folder containing the image data.

dataFolder = fullfile(toolboxdir("nnet"),"nndemos","nndatasets","DigitDataset");

imds = imageDatastore(dataFolder, ...
    IncludeSubfolders=true, ....
    LabelSource="foldernames");

Partition the data into training and validation sets. Set aside 10% of the data for validation using the splitEachLabel function.

[imdsTrain,imdsValidation] = splitEachLabel(imds,0.9,"randomize");

The network used in this example requires input images of size 28-by-28-by-1. To automatically resize the training images, use an augmented image datastore. Specify additional augmentation operations to perform on the training images: randomly translate the images up to 5 pixels in the horizontal and vertical axes. Data augmentation helps prevent the network from overfitting and memorizing the exact details of the training images.

inputSize = [28 28 1];
pixelRange = [-5 5];

imageAugmenter = imageDataAugmenter( ...
    RandXTranslation=pixelRange, ...
    RandYTranslation=pixelRange);

augimdsTrain = augmentedImageDatastore(inputSize(1:2),imdsTrain,DataAugmentation=imageAugmenter);

To automatically resize the validation images without performing further data augmentation, use an augmented image datastore without specifying any additional preprocessing operations.

augimdsValidation = augmentedImageDatastore(inputSize(1:2),imdsValidation);

Determine the number of classes in the training data.

classes = categories(imdsTrain.Labels);
numClasses = numel(classes);

Define Network

Define the network for image classification.

• For image input, specify an image input layer with input size matching the training data.

• Do not normalize the image input, set the Normalization option of the input layer to "none".

• Specify three convolution-batchnorm-ReLU blocks.

• Pad the input to the convolution layers such that the output has the same size by setting the Padding option to "same".

• For the first convolution layer specify 20 filters of size 5. For the remaining convolution layers specify 20 filters of size 3.

• For classification, specify a fully connected layer with size matching the number of classes

• To map the output to probabilities, include a softmax layer.

When training a network using a custom training loop, do not include an output layer.

layers = [
    imageInputLayer(inputSize,Normalization="none")
    convolution2dLayer(5,20,Padding="same")
    batchNormalizationLayer
    reluLayer
    convolution2dLayer(3,20,Padding="same")
    batchNormalizationLayer
    reluLayer
    convolution2dLayer(3,20,Padding="same")
    batchNormalizationLayer
    reluLayer
    fullyConnectedLayer(numClasses)
    softmaxLayer];

Create a dlnetwork object from the layer array.

net = dlnetwork(layers)

net =
  dlnetwork with properties:

         Layers: [12×1 nnet.cnn.layer.Layer]
    Connections: [11×2 table]
     Learnables: [14×3 table]
          State: [6×3 table]
     InputNames: {'imageinput'}
    OutputNames: {'softmax'}
    Initialized: 1

  View summary with summary.

Define Model Loss Function

Training a deep neural network is an optimization task. By considering a neural network as a function $$f(X;\theta )$$, where $$X$$ is the network input, and $$\theta$$ is the set of learnable parameters, you can optimize $$\theta$$ so that it minimizes some loss value based on the training data. For example, optimize the learnable parameters $$\theta$$ such that for a given inputs $$X$$ with a corresponding targets $$T$$, they minimize the error between the predictions $$Y=f(X;\theta )$$ and $$T$$.

Create the function modelLoss, listed in the Model Loss Function section of the example, that takes as input the dlnetwork object, a mini-batch of input data with corresponding targets, and returns the loss, the gradients of the loss with respect to the learnable parameters, and the network state.

Specify Training Options

Train for ten epochs with a mini-batch size of 128.

numEpochs = 10;
miniBatchSize = 128;

Specify the options for SGDM optimization. Specify an initial learn rate of 0.01 with a decay of 0.01, and momentum 0.9.

initialLearnRate = 0.01;
decay = 0.01;
momentum = 0.9;

Train Model

Create a minibatchqueue object that processes and manages mini-batches of images during training. For each mini-batch:

• Use the custom mini-batch preprocessing function preprocessMiniBatch (defined at the end of this example) to convert the labels to one-hot encoded variables.

• Format the image data with the dimension labels "SSCB" (spatial, spatial, channel, batch). By default, the minibatchqueue object converts the data to dlarray objects with underlying type single. Do not format the class labels.

• Train on a GPU if one is available. By default, the minibatchqueue object converts each output to a gpuArray if a GPU is available. Using a GPU requires Parallel Computing Toolbox™ and a supported GPU device. For information on supported devices, see GPU Computing Requirements (Parallel Computing Toolbox).

mbq = minibatchqueue(augimdsTrain,...
    MiniBatchSize=miniBatchSize,...
    MiniBatchFcn=@preprocessMiniBatch,...
    MiniBatchFormat=["SSCB" ""]);

Initialize the velocity parameter for the SGDM solver.

velocity = [];

Calculate the total number of iterations for the training progress monitor.

numObservationsTrain = numel(imdsTrain.Files);
numIterationsPerEpoch = ceil(numObservationsTrain / miniBatchSize);
numIterations = numEpochs * numIterationsPerEpoch;

Initialize the TrainingProgressMonitor object. Because the timer starts when you create the monitor object, make sure that you create the object close to the training loop.

monitor = trainingProgressMonitor(Metrics="Loss",Info=["Epoch","LearnRate"],XLabel="Iteration");

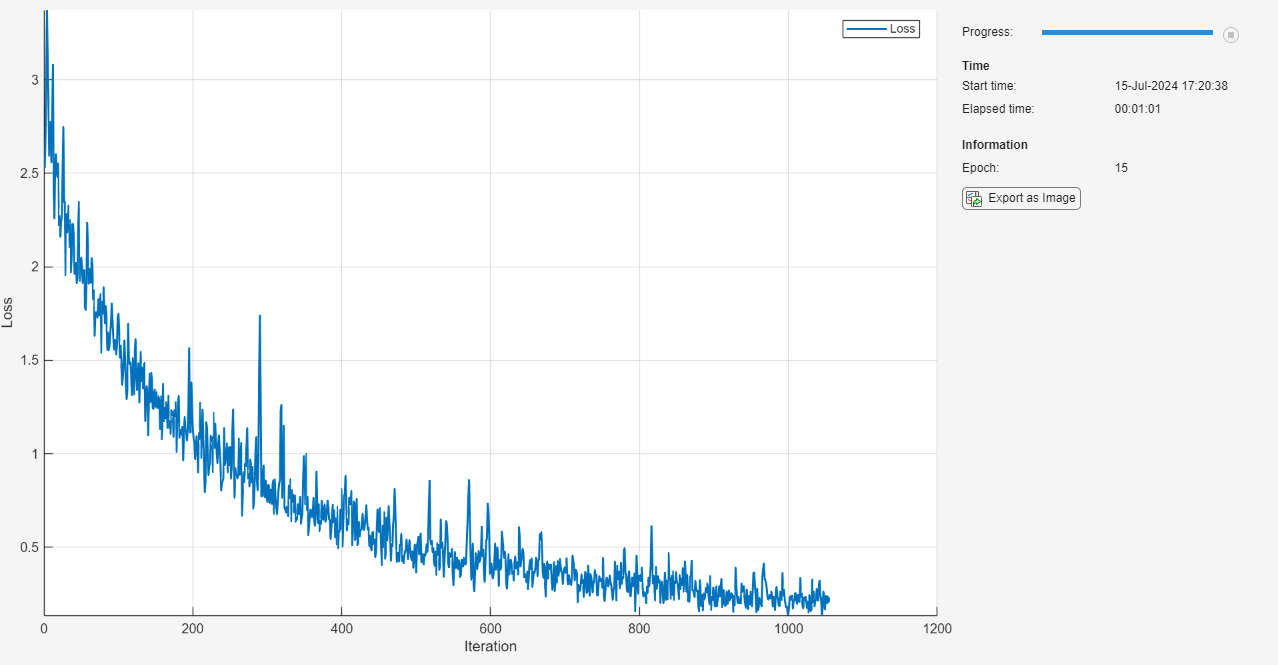

Train the network using a custom training loop. For each epoch, shuffle the data and loop over mini-batches of data. For each mini-batch:

• Evaluate the model loss, gradients, and state using the dlfeval and modelLoss functions and update the network state.

• Determine the learning rate for the time-based decay learning rate schedule.

• Update the network parameters using the sgdmupdate function.

• Update the loss, learn rate, and epoch values in the training progress monitor.

• Stop if the Stop property is true. The Stop property value of the TrainingProgressMonitor object changes to true when you click the Stop button.

epoch = 0;
iteration = 0;

% Loop over epochs.
while epoch < numEpochs && ~monitor.Stop

    epoch = epoch + 1;

    % Shuffle data.
    shuffle(mbq);

    % Loop over mini-batches.
    while hasdata(mbq) && ~monitor.Stop

        iteration = iteration + 1;

        % Read mini-batch of data.
        [X,T] = next(mbq);

        % Evaluate the model gradients, state, and loss using dlfeval and the
        % modelLoss function and update the network state.
        [loss,gradients,state] = dlfeval(@modelLoss,net,X,T);
        net.State = state;

        % Determine learning rate for time-based decay learning rate schedule.
        learnRate = initialLearnRate/(1 + decay*iteration);

        % Update the network parameters using the SGDM optimizer.
        [net,velocity] = sgdmupdate(net,gradients,velocity,learnRate,momentum);

        % Update the training progress monitor.
        recordMetrics(monitor,iteration,Loss=loss);
        updateInfo(monitor,Epoch=epoch,LearnRate=learnRate);
        monitor.Progress = 100 * iteration/numIterations;
    end
end

Test Model

Test the classification accuracy of the model by comparing the predictions on the validation set with the true labels.

After training, making predictions on new data does not require the labels. Create minibatchqueue object containing only the predictors of the test data:

• To ignore the labels for testing, set the number of outputs of the mini-batch queue to 1.

• Specify the same mini-batch size used for training.

• Preprocess the predictors using the preprocessMiniBatchPredictors function, listed at the end of the example.

• For the single output of the datastore, specify the mini-batch format "SSCB" (spatial, spatial, channel, batch).

numOutputs = 1;

mbqTest = minibatchqueue(augimdsValidation,numOutputs, ...
    MiniBatchSize=miniBatchSize, ...
    MiniBatchFcn=@preprocessMiniBatchPredictors, ...
    MiniBatchFormat="SSCB");

Loop over the mini-batches and classify the images using modelPredictions function, listed at the end of the example.

YTest = modelPredictions(net,mbqTest,classes);

Evaluate the classification accuracy.

TTest = imdsValidation.Labels;
accuracy = mean(TTest == YTest)

accuracy = 0.9750

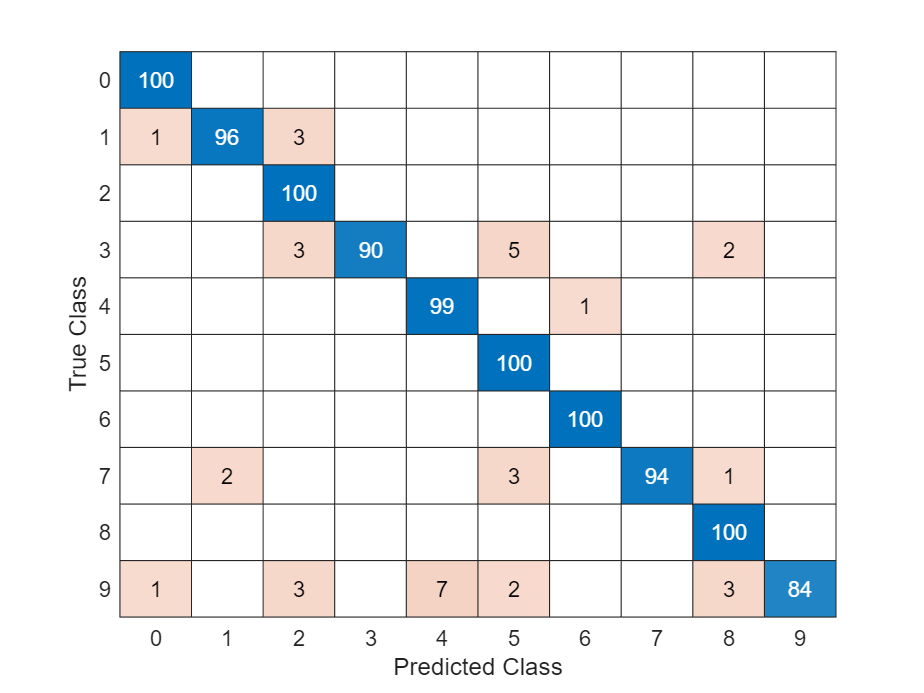

Visualize the predictions in a confusion chart.

figure
confusionchart(TTest,YTest)

Large values on the diagonal indicate accurate predictions for the corresponding class. Large values on the off-diagonal indicate strong confusion between the corresponding classes.

Supporting Functions

Model Loss Function

The modelLoss function takes a dlnetwork object net, a mini-batch of input data X with corresponding targets T and returns the loss, the gradients of the loss with respect to the learnable parameters in net, and the network state. To compute the gradients automatically, use the dlgradient function.

function [loss,gradients,state] = modelLoss(net,X,T)

% Forward data through network.
[Y,state] = forward(net,X);

% Calculate cross-entropy loss.
loss = crossentropy(Y,T);

% Calculate gradients of loss with respect to learnable parameters.
gradients = dlgradient(loss,net.Learnables);

end

Model Predictions Function

The modelPredictions function takes a dlnetwork object net, a minibatchqueue of input data mbq, and the network classes, and computes the model predictions by iterating over all data in the minibatchqueue object. The function uses the onehotdecode function to find the predicted class with the highest score.

function Y = modelPredictions(net,mbq,classes)

Y = [];

% Loop over mini-batches.
while hasdata(mbq)
    X = next(mbq);

    % Make prediction.
    scores = predict(net,X);

    % Decode labels and append to output.
    labels = onehotdecode(scores,classes,1)';
    Y = [Y; labels];
end

end

Mini Batch Preprocessing Function

The preprocessMiniBatch function preprocesses a mini-batch of predictors and labels using the following steps:

1. Preprocess the images using the preprocessMiniBatchPredictors function.

2. Extract the label data from the incoming cell array and concatenate into a categorical array along the second dimension.

3. One-hot encode the categorical labels into numeric arrays. Encoding into the first dimension produces an encoded array that matches the shape of the network output.

function [X,T] = preprocessMiniBatch(dataX,dataT)

% Preprocess predictors.
X = preprocessMiniBatchPredictors(dataX);

% Extract label data from cell and concatenate.
T = cat(2,dataT{1:end});

% One-hot encode labels.
T = onehotencode(T,1);

end

Mini-Batch Predictors Preprocessing Function

The preprocessMiniBatchPredictors function preprocesses a mini-batch of predictors by extracting the image data from the input cell array and concatenate into a numeric array. For grayscale input, concatenating over the fourth dimension adds a third dimension to each image, to use as a singleton channel dimension.

function X = preprocessMiniBatchPredictors(dataX)

% Concatenate.
X = cat(4,dataX{1:end});

end

Input Arguments

net — Network for custom training loops or custom pruning loops

dlnetwork object | TaylorPrunableNetwork object

This argument can represent either of these:

• Network for custom training loops, specified as a dlnetwork object.

• Network for custom pruning loops, specified as a TaylorPrunableNetwork object.

To prune a deep neural network, you require the Deep Learning Toolbox Model Quantization Library support package. This support package is a free add-on that you can download using the Add-On Explorer. Alternatively, see Deep Learning Toolbox Model Quantization Library.

X — Input data

formatted dlarray

Input data, specified as a formatted dlarray. For more information about dlarray formats, see the fmt input argument of dlarray.

layerNames — Layers to extract outputs from

string array | cell array of character vectors

Layers to extract outputs from, specified as a string array or a cell array of character vectors containing the layer names.

• If layerNames(i) corresponds to a layer with a single output, then layerNames(i) is the name of the layer.

• If layerNames(i) corresponds to a layer with multiple outputs, then layerNames(i) is the layer name followed by the character "/" and the name of the layer output: 'layerName/outputName'.

acceleration — Performance optimization

'auto' (default) | 'none'

Performance optimization, specified as one of the following:

• 'auto' — Automatically apply a number of optimizations suitable for the input network and hardware resources.

• 'none' — Disable all acceleration.

The default option is 'auto'.

Using the 'auto' acceleration option can offer performance benefits, but at the expense of an increased initial run time. Subsequent calls with compatible parameters are faster. Use performance optimization when you plan to call the function multiple times using different input data with the same size and shape.

Output Arguments

Y — Output data

formatted dlarray

Output data, returned as a formatted dlarray. For more information about dlarray formats, see the fmt input argument of dlarray.

state — Updated network state

table

Updated network state, returned as a table.

The network state is a table with three columns:

• Layer – Layer name, specified as a string scalar.

• Parameter – State parameter name, specified as a string scalar.

• Value – Value of state parameter, specified as a dlarray object.

Layer states contain information calculated during the layer operation to be retained for use in subsequent forward passes of the layer. For example, the cell state and hidden state of LSTM layers, or running statistics in batch normalization layers.

For recurrent layers, such as LSTM layers, with the HasStateInputs property set to 1 (true), the state table does not contain entries for the states of that layer.

Update the state of a dlnetwork using the State property.

pruningActivations — Activations of the pruning layers

cell array containing dlarray objects

Cell array of activations of the pruning layers, if the input network is a TaylorPrunableNetwork object.

Extended Capabilities

GPU Arrays

Accelerate code by running on a graphics processing unit (GPU) using Parallel Computing Toolbox™.

Usage notes and limitations:

• This function runs on the GPU if either or both of the following conditions are met:

  • Any of the values of the network learnable parameters inside net.Learnables.Value are dlarray objects with underlying data of type gpuArray

  • The input argument X is a dlarray with underlying data of type gpuArray

For more information, see Run MATLAB Functions on a GPU (Parallel Computing Toolbox).

Version History

Introduced in R2019b

R2021a: forward returns state values as dlarray objects

For dlnetwork objects, the state output argument returned by the forward function is a table containing the state parameter names and values for each layer in the network.

Starting in R2021a, the state values are dlarray objects. This change enables better support when using AcceleratedFunction objects. To accelerate deep learning functions that have frequently changing input values, for example, an input containing the network state, the frequently changing values must be specified as dlarray objects.

In previous versions, the state values are numeric arrays.

In most cases, you will not need to update your code. If you have code that requires the state values to be numeric arrays, then to reproduce the previous behavior, extract the data from the state values manually using the extractdata function with the dlupdate function.

state = dlupdate(@extractdata,net.State);
