Binary File Reader
Read data from binary files
Libraries:
DSP System Toolbox /
Sources
Description
The Binary File Reader block reads multichannel signal data from a binary file. The block reads the header that precedes the data. The File header parameter specifies the structure of the header. You can specify the type, size, and complexity of the data through the block parameters. You can also export the header to the base workspace by clicking on the Export header to base workspace button.
The first time you read the file, the reader reads the header, followed by the data. On subsequent calls, the reader reads the remaining data. Once the end of the file is reached, the reader returns zeros of the specified data type, size, and complexity. The reader can read signal data from a binary file that is not created by the Binary File Writer block.
Examples

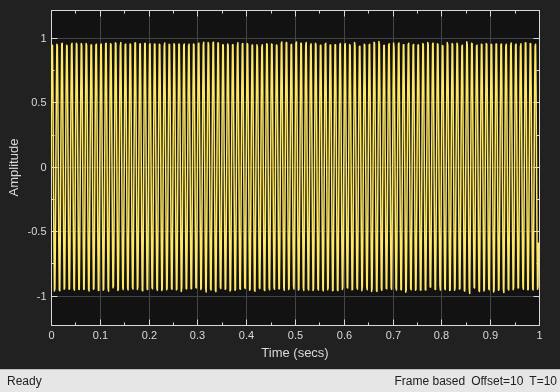

Write and Read Binary Files in Simulink
Write data to a binary file and read the same data in Simulink®.
Write and Read Matrix Data from Binary Files in Simulink
Write matrix data to a binary file. Read the data as a real matrix and a complex matrix.
Write and Read Fixed-Point Data from Binary Files in Simulink
Write and read fixed-point data from a binary file.
Write and Read Character Data from Binary Files in Simulink
Write and read character data from a binary file.
Change the Endianness of the Data in Simulink
Change the endianness of the data in simulink.
Ports
Output
data — Binary file data
column vector | row vector | matrix
The reader block reads the binary data from the file specified in the File name parameter. The data output from the block has dimensions Samples per frame-by-Number of channels. The block can read floating-point data and integer data. The input data can be real or complex. When the data is complex, the block reads the data as interleaved real and imaginary components. The reader assumes the default endianness of the host machine.
This port is unnamed until you select the Output end-of-file indicator parameter.
Data Types: single
| double
| int8
| int16
| int32
| int64
| uint8
| uint16
| uint32
| uint64
Complex Number Support: Yes
EOF — End-of-file indicator
boolean scalar
When the block reaches the end of the file, the port outputs a
1
. Otherwise, the port outputs a
0
.
This port is unnamed until you select the Output end-of-file indicator parameter.
Data Types: Boolean
Parameters
File name — Name of the file
'Untitled.bin'
(default) | character vector
Name of the file from which the block reads the data. If the file is not on the MATLAB® path, then specify the full path for the file.
File header — Size of the header
struct([])
(default) | structure
The structure specifies the prototype of the file header, that is, the
size of the header and the data type of the field values. The structure can
have an arbitrary number of fields. Each field of the structure must be a
real matrix of a built-in type. For example, if File
header is set to
struct('field1',1:10,'field2',single(1))
, the block
assumes that the header is formed by 10 real double-precision values
followed by 1 single-precision value. If the file contains no header, you
can set this parameter to an empty structure,
struct([])
.
Export header to base workspace — Retrieve the header
button
To retrieve the file header, click Export header to base workspace. The block exports the file header to the base workspace.
Storage data type — Storage class of data in file
'double'
(default) | 'single'
| 'int8'
| 'int16'
| 'int32'
| 'int64'
| 'uint8'
| 'uint16'
| 'uint32'
| 'uint64'
Storage class of data in file, specified as a character vector. This parameter defines the data type of the matrix the block outputs.
Samples per frame — Number of samples per output frame
1024
(default) | positive integer
Samples per frame specifies the number of rows of the output matrix that the block outputs. The output matrix has dimensions Samples per frame-by-Number of channels. Once the end of the file is reached, the block returns zeros of the specified data type, size, and complexity.
Data is complex — Specify data complexity
off (default) | on
When you select this parameter, the reader treats the data as complex
data. The block reads the data as interleaved real and imaginary components.
Configure the block to read the data as a 2-by-2 matrix. The block reads
[1 5 2 6 3 7 4 8]
as [1 2; 3 4]+1j*[5 6; 7
8]
. When you do not select this parameter, the block reads the
data as [1 5; 2 6]
.
Number of channels — Number of channels
1
(default) | positive integer
Number of channels specifies the number of columns of the output matrix that the block outputs. This parameter defines the number of consecutive interleaved data samples stored in the file for each time instant. The size of the data is Samples per frame-by-Number of channels. Once the end of the file is reached, if the output matrix is not full, the block fills the matrix with zeros to make it a full-sized matrix.
Output end-of-file indicator — End-of-file indicator
off (default) | on
When you select this parameter, an additional output port named
EOF appears on the block. When the block reaches
the end of the file, the port outputs a 1
. Otherwise, the
port outputs a 0
.
Sample time (s) — Sample time
1 (default) | nonnegative scalar
Sample time (s) controls the sample time at the output port of the block. This value represents 1/Fs, where Fs is the sampling rate of the signal data. The Simulink sample time at the output port is Samples per frame × Sample time (s).
Simulate using — Type of simulation to run
Interpreted execution
(default) | Code generation
Specify the type of simulation to run. You can set this parameter to:
Interpreted execution
–– Simulate model using the MATLAB interpreter. This option shortens startup time.Code generation
–– Simulate model using generated C code. The first time you run a simulation, Simulink generates C code for the block. The C code is reused for subsequent simulations as long as the model does not change. This option requires additional startup time but provides faster subsequent simulations.
Block Characteristics
Data Types |
|
Direct Feedthrough |
|
Multidimensional Signals |
|
Variable-Size Signals |
|
Zero-Crossing Detection |
|
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Version History
Introduced in R2016bR2024a: Change in the default value of Simulate using parameter
The default value of the Simulate using parameter is now
Interpreted execution
. With this change, the block uses the
MATLAB interpreter for simulation by default.
