# estimate

Fit vector autoregression (VAR) model to data

## Syntax

``EstMdl = estimate(Mdl,Y)``
``EstMdl = estimate(Mdl,Y,Name,Value)``
``````[EstMdl,EstSE] = estimate(___)``````
``````[EstMdl,EstSE,logL,E] = estimate(___)``````

## Description

example

``EstMdl = estimate(Mdl,Y)` returns a fully specified VAR(p) model. This model stores the estimated parameter values resulting from fitting the VAR(p) model `Mdl` to the observed multivariate response series `Y` using maximum likelihood.`

example

````EstMdl = estimate(Mdl,Y,Name,Value)` uses additional options specified by one or more name-value pair arguments. For example, you can specify presample responses or exogenous predictor data.```

example

``````[EstMdl,EstSE] = estimate(___)``` returns the estimated, asymptotic standard errors of the estimated parameters using any of the input arguments in the previous syntaxes.```

example

``````[EstMdl,EstSE,logL,E] = estimate(___)``` returns the optimized loglikelihood objective function value (`logL`) and the multivariate residuals (`E`).```

## Examples

collapse all

Fit a VAR(4) model to the consumer price index (CPI) and unemployment rate data.

Load the `Data_USEconModel` data set.

`load Data_USEconModel`

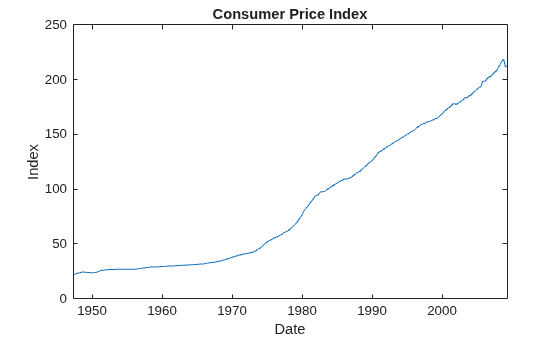

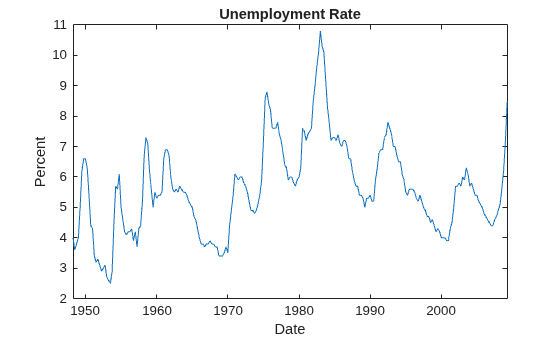

Plot the two series on separate plots.

```figure; plot(DataTable.Time,DataTable.CPIAUCSL); title('Consumer Price Index'); ylabel('Index'); xlabel('Date');``` ```figure; plot(DataTable.Time,DataTable.UNRATE); title('Unemployment Rate'); ylabel('Percent'); xlabel('Date');``` Stabilize the CPI by converting it to a series of growth rates. Synchronize the two series by removing the first observation from the unemployment rate series.

```rcpi = price2ret(DataTable.CPIAUCSL); unrate = DataTable.UNRATE(2:end);```

Create a default VAR(4) model using the shorthand syntax.

`Mdl = varm(2,4)`
```Mdl = varm with properties: Description: "2-Dimensional VAR(4) Model" SeriesNames: "Y1" "Y2" NumSeries: 2 P: 4 Constant: [2×1 vector of NaNs] AR: {2×2 matrices of NaNs} at lags [1 2 3 ... and 1 more] Trend: [2×1 vector of zeros] Beta: [2×0 matrix] Covariance: [2×2 matrix of NaNs] ```

`Mdl` is a `varm` model object. All properties containing `NaN` values correspond to parameters to be estimated given data.

Estimate the model using the entire data set.

`EstMdl = estimate(Mdl,[rcpi unrate])`
```EstMdl = varm with properties: Description: "AR-Stationary 2-Dimensional VAR(4) Model" SeriesNames: "Y1" "Y2" NumSeries: 2 P: 4 Constant: [0.00171639 0.316255]' AR: {2×2 matrices} at lags [1 2 3 ... and 1 more] Trend: [2×1 vector of zeros] Beta: [2×0 matrix] Covariance: [2×2 matrix] ```

`EstMdl` is an estimated `varm` model object. It is fully specified because all parameters have known values. The description indicates that the autoregressive polynomial is stationary.

Display summary statistics from the estimation.

`summarize(EstMdl)`
``` AR-Stationary 2-Dimensional VAR(4) Model Effective Sample Size: 241 Number of Estimated Parameters: 18 LogLikelihood: 811.361 AIC: -1586.72 BIC: -1524 Value StandardError TStatistic PValue ___________ _____________ __________ __________ Constant(1) 0.0017164 0.0015988 1.0735 0.28303 Constant(2) 0.31626 0.091961 3.439 0.0005838 AR{1}(1,1) 0.30899 0.063356 4.877 1.0772e-06 AR{1}(2,1) -4.4834 3.6441 -1.2303 0.21857 AR{1}(1,2) -0.0031796 0.0011306 -2.8122 0.004921 AR{1}(2,2) 1.3433 0.065032 20.656 8.546e-95 AR{2}(1,1) 0.22433 0.069631 3.2217 0.0012741 AR{2}(2,1) 7.1896 4.005 1.7951 0.072631 AR{2}(1,2) 0.0012375 0.0018631 0.6642 0.50656 AR{2}(2,2) -0.26817 0.10716 -2.5025 0.012331 AR{3}(1,1) 0.35333 0.068287 5.1742 2.2887e-07 AR{3}(2,1) 1.487 3.9277 0.37858 0.705 AR{3}(1,2) 0.0028594 0.0018621 1.5355 0.12465 AR{3}(2,2) -0.22709 0.1071 -2.1202 0.033986 AR{4}(1,1) -0.047563 0.069026 -0.68906 0.49079 AR{4}(2,1) 8.6379 3.9702 2.1757 0.029579 AR{4}(1,2) -0.00096323 0.0011142 -0.86448 0.38733 AR{4}(2,2) 0.076725 0.064088 1.1972 0.23123 Innovations Covariance Matrix: 0.0000 -0.0002 -0.0002 0.1167 Innovations Correlation Matrix: 1.0000 -0.0925 -0.0925 1.0000 ```

Fit a VAR(4) model to the consumer price index (CPI) and unemployment rate data. The estimation sample starts at Q1 of 1980.

Load the `Data_USEconModel` data set.

`load Data_USEconModel`

Stabilize the CPI by converting it to a series of growth rates. Synchronize the two series by removing the first observation from the unemployment rate series.

```rcpi = price2ret(DataTable.CPIAUCSL); unrate = DataTable.UNRATE(2:end);```

Identify the index corresponding to the start of the estimation sample.

`estIdx = DataTable.Time(2:end) > '1979-12-31';`

Create a default VAR(4) model using the shorthand syntax.

`Mdl = varm(2,4);`

Estimate the model using the estimation sample. Specify all observations before the estimation sample as presample data. Display a full estimation summary.

```Y0 = [rcpi(~estIdx) unrate(~estIdx)]; EstMdl = estimate(Mdl,[rcpi(estIdx) unrate(estIdx)],'Y0',Y0,'Display',"full");```
``` AR-Stationary 2-Dimensional VAR(4) Model Effective Sample Size: 117 Number of Estimated Parameters: 18 LogLikelihood: 419.837 AIC: -803.674 BIC: -753.955 Value StandardError TStatistic PValue __________ _____________ __________ __________ Constant(1) 0.003564 0.0024697 1.4431 0.14898 Constant(2) 0.29922 0.11882 2.5182 0.011795 AR{1}(1,1) 0.022379 0.092458 0.24204 0.80875 AR{1}(2,1) -2.6318 4.4484 -0.59163 0.5541 AR{1}(1,2) -0.0082357 0.0020373 -4.0425 5.2884e-05 AR{1}(2,2) 1.2567 0.09802 12.82 1.2601e-37 AR{2}(1,1) 0.20954 0.10182 2.0581 0.039584 AR{2}(2,1) 10.106 4.8987 2.063 0.039117 AR{2}(1,2) 0.0058667 0.003194 1.8368 0.066236 AR{2}(2,2) -0.14226 0.15367 -0.92571 0.35459 AR{3}(1,1) 0.56095 0.098691 5.6839 1.3167e-08 AR{3}(2,1) 0.44406 4.7483 0.093518 0.92549 AR{3}(1,2) 0.0049062 0.003227 1.5204 0.12841 AR{3}(2,2) -0.040037 0.15526 -0.25787 0.7965 AR{4}(1,1) 0.046125 0.11163 0.41321 0.67945 AR{4}(2,1) 6.758 5.3707 1.2583 0.20827 AR{4}(1,2) -0.0030032 0.002018 -1.4882 0.1367 AR{4}(2,2) -0.14412 0.097094 -1.4843 0.13773 Innovations Covariance Matrix: 0.0000 -0.0003 -0.0003 0.0790 Innovations Correlation Matrix: 1.0000 -0.1686 -0.1686 1.0000 ```

Because the VAR model degree p is 4, `estimate` uses only the last four observations in `Y0` as a presample.

Estimate a VAR(4) model of consumer price index (CPI), the unemployment rate, and real gross domestic product (GDP). Include a linear regression component containing the current quarter and the last four quarters of government consumption expenditures and investment (GCE).

Load the `Data_USEconModel` data set. Compute the real GDP.

```load Data_USEconModel DataTable.RGDP = DataTable.GDP./DataTable.GDPDEF*100;```

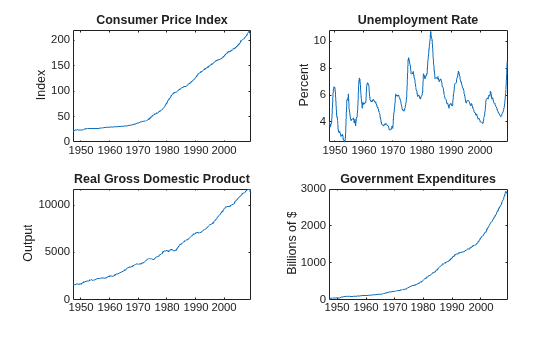

Plot all variables on separate plots.

```figure; subplot(2,2,1) plot(DataTable.Time,DataTable.CPIAUCSL); ylabel('Index'); title('Consumer Price Index'); subplot(2,2,2) plot(DataTable.Time,DataTable.UNRATE); ylabel('Percent'); title('Unemployment Rate'); subplot(2,2,3) plot(DataTable.Time,DataTable.RGDP); ylabel('Output'); title('Real Gross Domestic Product') subplot(2,2,4) plot(DataTable.Time,DataTable.GCE); ylabel('Billions of \$'); title('Government Expenditures')``` Stabilize the CPI, GDP, and GCE series by converting each to a series of growth rates. Synchronize the unemployment rate series with the others by removing its first observation.

```inputVariables = {'CPIAUCSL' 'RGDP' 'GCE'}; Data = varfun(@price2ret,DataTable,'InputVariables',inputVariables); Data.Properties.VariableNames = inputVariables; Data.UNRATE = DataTable.UNRATE(2:end);```

Expand the GCE rate series to a matrix that includes its current value and up through four lagged values. Remove the `GCE` variable from `Data`.

```rgcelag4 = lagmatrix(Data.GCE,0:4); Data.GCE = [];```

Create a default VAR(4) model using the shorthand syntax. You do not have to specify the regression component when creating the model.

`Mdl = varm(3,4);`

Estimate the model using the entire sample. Specify the GCE rate matrix as data for the regression component. Extract standard errors and the loglikelihood value.

`[EstMdl,EstSE,logL] = estimate(Mdl,Data.Variables,'X',rgcelag4);`

Display the regression coefficient matrix.

`EstMdl.Beta`
```ans = 3×5 0.0777 -0.0892 -0.0685 -0.0181 0.0330 0.1450 -0.0304 0.0579 -0.0559 0.0185 -2.8138 -0.1636 0.3905 1.1799 -2.3328 ```

`EstMdl.Beta` is a 3-by-5 matrix. Rows correspond to response series, and columns correspond to predictors.

Display the matrix of standard errors corresponding to the coefficient estimates.

`EstSE.Beta`
```ans = 3×5 0.0250 0.0272 0.0275 0.0274 0.0243 0.0368 0.0401 0.0405 0.0403 0.0358 1.4552 1.5841 1.6028 1.5918 1.4145 ```

`EstSE.Beta` is commensurate with `EstMdl.Beta`.

Display the loglikelihood value.

`logL`
```logL = 1.7056e+03 ```

## Input Arguments

collapse all

VAR model containing unknown parameter values, specified as a `varm` model object returned by `varm`.

`NaN`-valued elements in properties indicate unknown, estimable parameters. Specified elements indicate equality constraints on parameters in model estimation. The innovations covariance matrix `Mdl.Covariance` cannot contain a mix of `NaN` values and real numbers; you must fully specify the covariance or it must be completely unknown (`NaN(Mdl.NumSeries)`).

Observed multivariate response series to which `estimate` fits the model, specified as a `numobs`-by-`numseries` numeric matrix.

`numobs` is the sample size. `numseries` is the number of response variables (`Mdl.NumSeries`).

Rows correspond to observations, and the last row contains the latest observation.

Columns correspond to individual response variables.

`Y` represents the continuation of the presample response series in `Y0`.

Data Types: `double`

### Name-Value Pair Arguments

Specify optional comma-separated pairs of `Name,Value` arguments. `Name` is the argument name and `Value` is the corresponding value. `Name` must appear inside quotes. You can specify several name and value pair arguments in any order as `Name1,Value1,...,NameN,ValueN`.

Example: `'Y0',Y0,'X',X` uses the matrix `Y0` as presample responses required for estimation and includes a linear regression component composed of the predictor data in `X`.

Presample responses to initiate the model estimation, specified as the comma-separated pair consisting of `'Y0'` and a `numpreobs`-by-`numseries` numeric matrix.

`numpreobs` is the number of presample observations.

Rows correspond to presample observations, and the last row contains the latest observation. `Y0` must have at least `Mdl.P` rows. If you supply more rows than necessary, `estimate` uses the latest `Mdl.P` observations only.

Columns must correspond to the response series in `Y`.

By default, `estimate` uses `Y(1:Mdl.P,:)` as presample observations, and then fits the model to `Y((Mdl.P + 1):end,:)`. This action reduces the effective sample size.

Data Types: `double`

Predictor data for the regression component in the model, specified as the comma-separated pair consisting of `'X'` and a numeric matrix containing `numpreds` columns.

`numpreds` is the number of predictor variables.

Rows correspond to observations, and the last row contains the latest observation. `estimate` does not use the regression component in the presample period. `X` must have at least as many observations as are used after the presample period.

• If you specify `Y0`, then `X` must have at least `numobs` rows (see `Y`).

• Otherwise, `X` must have at least `numobs``Mdl.P` observations to account for the presample removal.

In either case, if you supply more rows than necessary, `estimate` uses the latest observations only.

Columns correspond to individual predictor variables. All predictor variables are present in the regression component of each response equation.

By default, `estimate` excludes the regression component, regardless of its presence in `Mdl`.

Data Types: `double`

Estimation information display type, specified as the comma-separated pair consisting of `'Display'` and a value in this table.

ValueDescription
`"off"``estimate` does not display estimation information at the command line.
`"table"``estimate` displays a table of estimation information. Rows correspond to parameters, and columns correspond to estimates, standard errors, t statistics, and p values.
`"full"`In addition to a table of summary statistics, `estimate` displays the estimated innovations covariance and correlation matrices, loglikelihood value, Akaike Information Criterion (AIC), Bayesian Information Criterion (BIC), and other estimation information.

Example: `'Display',"full"`

Data Types: `string` | `char`

Maximum number of solver iterations allowed, specified as the comma-separated pair consisting of `'MaxIterations'` and a positive numeric scalar.

`estimate` dispatches `MaxIterations` to `mvregress`.

Data Types: `double`

Note

`NaN` values in `Y`, `Y0`, and `X` indicate missing values. `estimate` removes missing values from the data by list-wise deletion.

• For the presample, `estimate` removes any row containing at least one `NaN`.

• For the estimation sample, `estimate` removes any row of the concatenated data matrix `[Y X]` containing at least one `NaN`.

This type of data reduction reduces the effective sample size.

## Output Arguments

collapse all

Estimated VAR(p) model, returned as a `varm` model object. `EstMdl` is a fully specified `varm` model.

`estimate` uses `mvregress` to implement multivariate normal, maximum likelihood estimation. For more details, see Estimation of Multivariate Regression Models.

Estimated, asymptotic standard errors of the estimated parameters, returned as a structure array containing the fields in this table.

FieldDescription
`Constant`Standard errors of model constants corresponding to the estimates in `EstMdl.Constant`, a `numseries`-by-1 numeric vector
`AR`Standard errors of the autoregressive coefficients corresponding to estimates in `EstMdl.AR`, a cell vector with elements corresponding to `EstMdl.AR`
`Beta`Standard errors of regression coefficients corresponding to the estimates in `EstMdl.Beta`, a `numseries`-by-`numpreds` numeric matrix
`Trend`Standard errors of linear time trends corresponding to the estimates in `EstMdl.Trend`, a `numseries`-by-1 numeric vector

If `estimate` applies equality constraints during estimation by fixing any parameters to a value, then corresponding standard errors of those parameters are `0`.

`estimate` extracts all standard errors from the inverse of the expected Fisher information matrix returned by `mvregress` (see Standard Errors).

Optimized loglikelihood objective function value, returned as a numeric scalar.

Multivariate residuals from the fitted model, returned as a numeric matrix containing `numseries` columns.

• If you specify `Y0`, then `E` has `numobs` rows (see `Y`).

• Otherwise, `E` has `numobs``Mdl.P` rows to account for the presample removal.

 Hamilton, James D. Time Series Analysis. Princeton, NJ: Princeton University Press, 1994.

 Johansen, S. Likelihood-Based Inference in Cointegrated Vector Autoregressive Models. Oxford: Oxford University Press, 1995.

 Juselius, K. The Cointegrated VAR Model. Oxford: Oxford University Press, 2006.

 Lütkepohl, H. New Introduction to Multiple Time Series Analysis. Berlin: Springer, 2005.
