Guidelines for HDL Code Generation Using Stateflow Charts

These guidelines illustrate the recommended settings when using Stateflow® charts in your model. The Stateflow Chart block is available in the Stateflow block library. By using Stateflow charts, you can model delays in your Simulink® model.

Each guideline has a severity level that indicates the level of compliance requirements. To learn more, see HDL Modeling Guidelines Severity Levels.

Choose State Machine Type based on HDL Implementation Requirements

Guideline ID

2.9.1

Severity

Strongly Recommended

Description

HDL Coder™ supports code generation for Mealy and Moore Stateflow charts. Do not use MATLAB Function blocks to model either Mealy or Moore state machines.

To specify whether you want a Mealy or Moore state machine, in the Chart (Stateflow) properties, specify the State Machine Type. Do not use Classic because it affects readability of the generated HDL code. Choose the State Machine Type depending on how you want the Stateflow semantics to map to a hardware implementation. See Hardware Realization of Stateflow Semantics.

When you use Mealy charts, the outputs depend on the current state and inputs. By using Mealy charts, you can more easily define state transitions which makes these charts more flexible to use. The generated HDL code from Mealy charts may be less readable.

For Moore charts, the outputs depend only on the current state. The generated HDL code from Moore charts is more readable. Moore charts restrict flexibility in defining state transitions.

Specify Block Configuration Settings of Stateflow Chart

Guideline ID

2.9.2

Severity

Strongly Recommended

Description

When you use Stateflow Chart (Stateflow) blocks in your model for HDL code generation, use these recommended settings:

  • For Action Language, use MATLAB

  • For Update method, use Discrete or Inherited. Do not use Continuous.

Moore Chart

  • If you disable Initialize Outputs Every Time Chart Wakes Up, the generated HDL code includes additional registers for the state machine output values.

  • Disable Support Variable-Size Arrays

Mealy Chart

  • If you disable Initialize Outputs Every Time Chart Wakes Up, the generated HDL code includes additional registers for the state machine output values.

  • Disable Enable Super Step Semantics

  • Disable Support Variable-Size Arrays

To make sure that these settings are specified for the Stateflow Chart, you can run the check Check for Stateflow chart settings.

Insert Unconditional Transition State for Else Statement in HDL Code

Guideline ID

2.9.3

Severity

Recommended

Description

When you use Stateflow® charts for HDL code generation, insert unconditional states in the chart. The HDL code generated for such a chart contains an else branch with the if statement. The presence of an else branch prevents the third-party tool from inferring a latch when you deploy the HDL code. For example, open the model hdlcoder_chart_ifnelsecond.

open_system('hdlcoder_chart_ifnelsecond')
set_param('hdlcoder_chart_ifnelsecond', 'SimulationCommand', 'Update')
open_system('hdlcoder_chart_ifnelsecond/dut_chart')

The model contains two Stateflow Moore Charts. The chart onlyif_chart implements a simple condition that outputs out1 based on in1.

open_system('hdlcoder_chart_ifnelsecond/dut_chart/onlyif_chart')

The Chart block ifnelse_chart is the same as onlyif_chart and has an unconditional transition state.

open_system('hdlcoder_chart_ifnelsecond/dut_chart/ifnelse_chart')

To generate HDL code for the DUT, run this command:

makehdl('hdlcoder_chart_ifnelsecond/dut_chart')

The HDL code generated for the onlyif_chart does not contain an else condition. Do not deploy this code to a target device because synthesis tools might infer a latch.

The HDL code generated for the ifnelse_chart contains an else statement for the unconditional transition state. This code is recommended for deployment to the target FPGA device.

Data Type Settings and Casting in Stateflow Chart for HDL Code Generation

Guideline ID

2.9.4

Severity

Informative

Description

When you do not explicitly specify the data type of state and output variables in a Stateflow Chart that has MATLAB as the Action Language, the data type becomes double. If variables that have different data types are assigned to these Chart variables, a data type mismatch can occur, which can lead to simulation errors.

To avoid simulation errors, explicitly initialize the data type of the Chart variables by using fi objects, or specify their data type in Model Explorer. When performing assignments to variables of different types, you can perform data type conversion and initialization by using fi objects.

When you want to change the fi data type, you must specify the word lengths and fraction lengths for the types. For frequent data type conversions, you can instead cast the type to fi data types by using subscript(:). In this case, you can replace data type conversions with cast by subscript(:) in the Model Explorer. The value of the substitution source is then type-converted to that of the substitution target variable.

Note: For assignments to intermediate variables, you do not have to cast the data type.

For an example that shows the different data type initialization methods, open the model hdlcoder_chart_datatype_casting.

open_system('hdlcoder_chart_datatype_casting')
set_param('hdlcoder_chart_datatype_casting', 'SimulationCommand', 'Update')

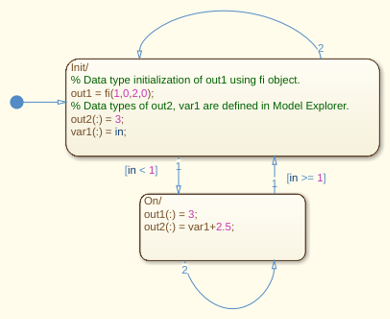

The DUT subsystem contains a Moore chart that shows how the output variables out1 and out2 and an internal variable var1 are defined. out1 type is explicitly specified by using a fi object, and out2 and var1 types are defined in the Model Explorer.

open_system('hdlcoder_chart_datatype_casting/DUT/Chart')

To generate HDL code for the DUT subsystem, run the makehdl function.

makehdl('hdlcoder_chart_datatype_casting/DUT')

Using Absolute Time Temporal Logic in Stateflow Charts

Guideline ID

2.9.5

Severity

Mandatory

Description

When you use absolute time temporal logic in your Stateflow Chart (Stateflow) blocks in your model for HDL code generation, use these settings.

For the sample rate of the chart:

  • If you use seconds (sec), then the sample time must be an integer 65535 or lower, or a decimal between 65.535 and 0.001 with no more than three decimal places.

  • If you use milliseconds (msec), the sample time must be a decimal between 65.535 and 0.001 with no more than three decimal places, or a decimal between 0.065535 and 0.000001 with no more than six decimal places.

  • If you use microseconds (usec), the sample time must be a decimal between 0.065535 and 0.000001 with no more than six decimal places, or a decimal between 0.000065535 and 0.000000001 with no more than nine decimal places.

  • If the sample time is an integer below 2^16, then use 'sec'.

  • If 1000 * sample time is an integer below 2^16, then use 'sec' or 'msec'.

  • If 1000000 * sample time is an integer below 2^16, then use 'msec' or 'usec'.

  • If 1000000000 * sample time is an integer below 2^16, then use 'usec'.
