Triangulation in 2-D or 3-D


Use triangulation to create an in-memory representation of any 2-D or 3-D triangulation data that is in matrix format, such as the matrix output from the delaunay function or other software tools. When your data is represented using triangulation, you can perform topological and geometric queries, which you can use to develop geometric algorithms. For example, you can find the triangles or tetrahedra attached to a vertex, those that share an edge, their circumcenters, and other features.


To create a triangulation object, use the triangulation function with input arguments that define the triangulation's points and connectivity.



TR = triangulation(T,P) creates a 2-D or 3-D triangulation representation using the triangulation connectivity list T and the points in matrix P.

TR = triangulation(T,x,y) creates a 2-D triangulation representation with the point coordinates specified as column vectors x and y.

TR = triangulation(T,x,y,z) creates a 3-D triangulation representation with the point coordinates specified as column vectors x, y, and z.

Input Arguments

expand all

Triangulation connectivity list, specified as an m-by-n matrix, where m is the number of triangles or tetrahedra, and n is the number of vertices per triangle or tetrahedron. Each row of T contains the vertex IDs that define a triangle or tetrahedron. The vertex IDs are the row numbers of the input points. The ID of a triangle or tetrahedron in the triangulation is the corresponding row number in T.

Points, specified as a matrix whose columns are the x-coordinates, y-coordinates, and (possibly) z-coordinates of the triangulation points. The row numbers of P are the vertex IDs in the triangulation.

x-coordinates of triangulation points, specified as a column vector.

y-coordinates of triangulation points, specified as a column vector.

z-coordinates of triangulation points, specified as a column vector.


expand all

Triangulation points, represented as a matrix with the following characteristics:

  • Each row in TR.Points contains the coordinates of a vertex.

  • Each row number of TR.Points is a vertex ID.

Triangulation connectivity list, represented as a matrix with the following characteristics:

  • Each element in TR.ConnectivityList is a vertex ID.

  • Each row represents a triangle or tetrahedron in the triangulation.

  • Each row number of TR.ConnectivityList is a triangle or tetrahedron ID.

Object Functions

barycentricToCartesianConvert coordinates from barycentric to Cartesian
cartesianToBarycentricConvert coordinates from Cartesian to barycentric
circumcenterCircumcenter of triangle or tetrahedron
edgeAttachmentsTriangles or tetrahedra attached to specified edge
edgesTriangulation edges
faceNormalTriangulation unit normal vectors
featureEdgesSharp edges of surface triangulation
freeBoundaryFree boundary facets
incenterIncenter of triangulation elements
isConnectedTest if two vertices are connected by an edge
nearestNeighborVertex closest to specified point
neighborsTriangle or tetrahedron neighbors
pointLocationTriangle or tetrahedron enclosing point
sizeSize of triangulation connectivity list
vertexAttachmentsTriangles or tetrahedra attached to vertex
vertexNormalTriangulation vertex normal


collapse all

Define and plot the points in a 2-D triangulation.

P = [ 2.5    8.0
      6.5    8.0
      2.5    5.0
      6.5    5.0
      1.0    6.5
      8.0    6.5];

Define the triangulation connectivity list.

T = [5  3  1;
     3  2  1;
     3  4  2;
     4  6  2];

Create and plot the triangulation representation.

TR = triangulation(T,P)
TR =
  triangulation with properties:

              Points: [6x2 double]
    ConnectivityList: [4x3 double]

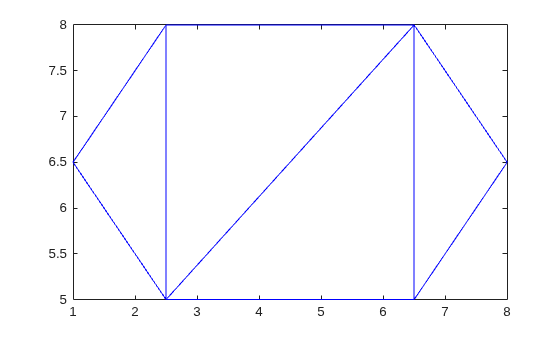

Figure contains an axes object. The axes object contains an object of type line.

Examine the coordinates of the vertices of the first triangle.

ans = 3×2

    1.0000    6.5000
    2.5000    5.0000
    2.5000    8.0000

Extended Capabilities

Version History

Introduced in R2013a
