ringAnnular

Create annular ring on X-Y plane

Since R2021b

Description

Use the ringAnnular object to create an annular ring on the X-Y plane.

Creation

Syntax

ring = ringAnnular

ring = ringAnnular(Name=Value)

Description

ring = ringAnnular creates an annular ring on the X-Y plane.

ring = ringAnnular(Name=Value) sets Properties using one or more name-value arguments. For example, ringAnnular(Center=[1 1]) creates an annular ring shape centered at [1 1]. Properties not specified retain their default values.

Properties

Name — Name of annular ring

'myringAnnular' (default) | character vector | string scalar

Name of the annular ring, specified as a character vector or string scalar.

Example: ring = ringAnnular(Name='ringannular1')

Data Types: char | string

Center — Center of annular ring

[0 0] (default) | two-element vector

Center of the annular ring in Cartesian coordinates, specified as a two-element vector.

Example: ring = ringAnnular(Center=[1 1])

Data Types: double

InnerRadius — Inner radius of annular ring

0.0050 (default) | positive scalar

Inner radius of the annular ring, specified as a positive scalar in meters.

Example: ring = ringAnnular(InnerRadius=0.006)

Data Types: double

Width — Width of annular ring

0.0020 (default) | positive scalar

Width of the annular ring, specified as a positive scalar in meters.

Example: ring = ringAnnular(Width=3)

Data Types: double

Object Functions

add	Boolean unite operation on two RF PCB shapes
and	Shape1 & Shape2 for RF PCB shapes
area	Calculate area of RF PCB shape in square meters
intersect	Boolean intersection operation on two RF PCB shapes
mesh	Change and view mesh properties of metal or dielectric in PCB component
minus	Shape1 - Shape2 for RF PCB shapes
mirrorX	Mirror shape along X-axis
mirrorY	Mirror shape along Y-axis
plus	Shape1 + Shape2 for RF PCB shapes
rotate	Rotate RF PCB shape about defined axis
rotateX	Rotate RF PCB shape about x-axis
rotateY	Rotate RF PCB shape about y-axis and angle
rotateZ	Rotate RF PCB shape about z-axis
subtract	Boolean subtraction operation on two RF PCB shapes
scale	Change size of RF PCB shape by fixed amount
show	Display PCB component structure or PCB shape
translate	Move RF PCB shape to new location

Examples

Create Default Annular Ring Shape

Create an annular ring shape with default properties.

ring = ringAnnular

ring =
  ringAnnular with properties:

           Name: 'myringAnnular'
         Center: [0 0]
          Width: 0.0020
    InnerRadius: 0.0050

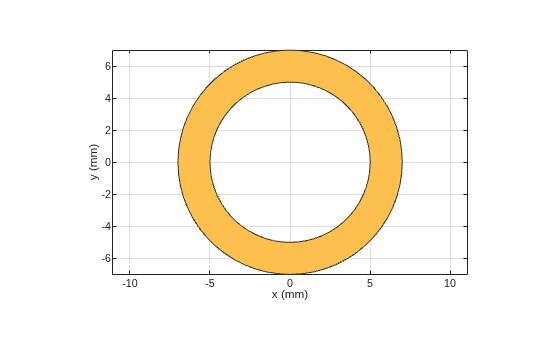

View the shape.

show(ring)

Mesh Annular Ring Shape

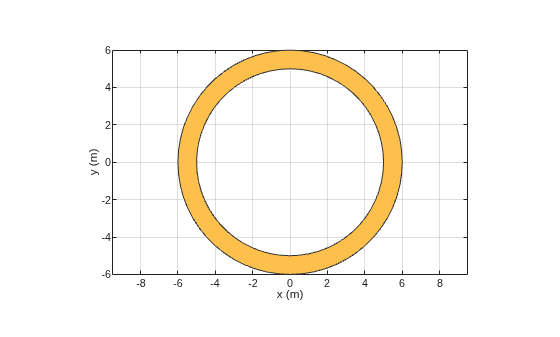

Create an annular ring shape of inner radius 5 m and width 1 m.

ring = ringAnnular(InnerRadius=5,Width=1);
show(ring)

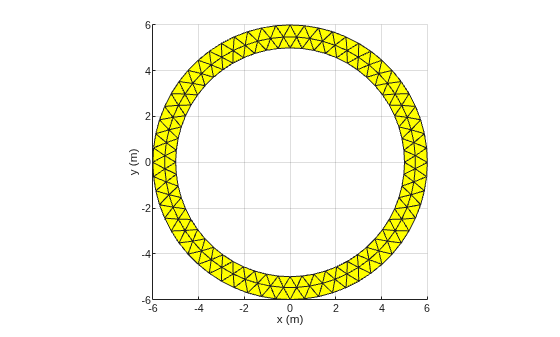

Mesh the ring at a maximum edge length of 1 m.

mesh(ring,MaxEdgeLength=1)

Version History

Introduced in R2021b
