Create rectangular trace
traceRectangular object to create a rectangular trace
centered at the origin on the X-Y plane.
trace = traceRectangular creates a rectangular trace centered
at the origin and on the X-Y plane.
Name — Name of rectangular trace
'mytraceRectangular' (default) | character vector | string scalar
Name of the rectangular trace, specified as a character vector or a string scalar.
trace = traceRectangular(Name="rectangletrace1")
Center — Center of rectangular trace
[0 0] (default) | two-element vector
Center of the rectangular trace in Cartesian coordinates, specified as a two-element vector.
trace = traceRectangular(Center=[1 1])
Length — Length of rectangle
0.0200 (default) | positive scalar
Length of the rectangle in meters, specified as a positive scalar.
trace = traceRectangular(Length=0.0500)
Width — Width of rectangle
0.0050 (default) | positive scalar
Width of the rectangle in meters, specified as a positive scalar.
trace = traceRectangular(Width=0.015)
|Boolean unite operation on two RF PCB shapes|
|Shape1 & Shape2 for RF PCB shapes|
|Calculate area of RF PCB shape in square meters|
|Boolean intersection operation on two RF PCB shapes|
|Change and view mesh properties of metal or dielectric in PCB component|
|Shape1 - Shape2 for RF PCB shapes|
|Shape1 + Shape2 for RF PCB shapes|
|Rotate RF PCB shape about defined axis|
|Rotate RF PCB shape about x-axis|
|Rotate RF PCB shape about y-axis and angle|
|Rotate RF PCB shape about z-axis|
|Boolean subtraction operation on two RF PCB shapes|
|Change size of RF PCB shape by fixed amount|
|Display PCB component structure or PCB shape|
|Move RF PCB shape to new location|
Create Default Rectangular Trace
Create a rectangular trace with default properties.
trace = traceRectangular
trace = traceRectangular with properties: Name: 'mytraceRectangular' Center: [0 0] Length: 0.0200 Width: 0.0050

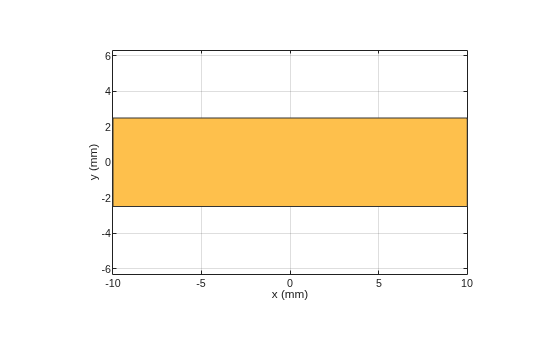

View the trace.
Mesh Rectangular Trace
Create a 2 cm-by-2 cm rectangular trace.
trace = traceRectangular(Length=0.02,Width=0.02);
Rotate the trace by 45 degrees about the z-axis.
trace = rotateZ(trace,45);

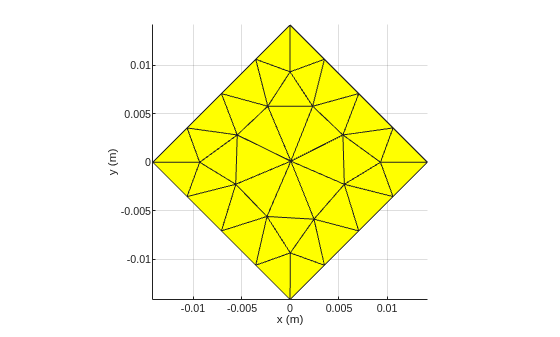

Mesh the trace at a maximum edge length of 5 mm.
