# bilinear

Bilinear transformation method for analog-to-digital filter conversion

## Syntax

## Description

## Examples

### Bandpass IIR Filter Design Using Chebyshev Type I Analog Filter

Design the prototype for a 10th-order Chebyshev type I bandpass filter with 3 dB of ripple in the passband. Convert it to state-space form.

[z,p,k] = cheb1ap(10,3); [A,B,C,D] = zp2ss(z,p,k);

Create an analog filter with sample rate ${\mathit{f}}_{\mathit{s}}=2\text{\hspace{0.17em}}\mathrm{kHz}$, prewarped band edges ${\mathit{u}}_{1}\text{\hspace{0.17em}}$and ${\mathit{u}}_{2}$ in rad/s, bandwidth ${\mathit{B}}_{\mathit{w}}={\mathit{u}}_{2}-{\mathit{u}}_{1}$ and center frequency ${\mathit{W}}_{\mathit{o}}=\sqrt{{\mathit{u}}_{1}{\mathit{u}}_{2}}$ for use with `lp2bp`

. Specify the passband edge frequencies as 100 Hz and 500 Hz.

Fs = 2e3; u1 = 2*Fs*tan(100*(2*pi/Fs)/2); u2 = 2*Fs*tan(500*(2*pi/Fs)/2); Bw = u2 - u1; Wo = sqrt(u1*u2); [At,Bt,Ct,Dt] = lp2bp(A,B,C,D,Wo,Bw); [b,a] = ss2tf(At,Bt,Ct,Dt);

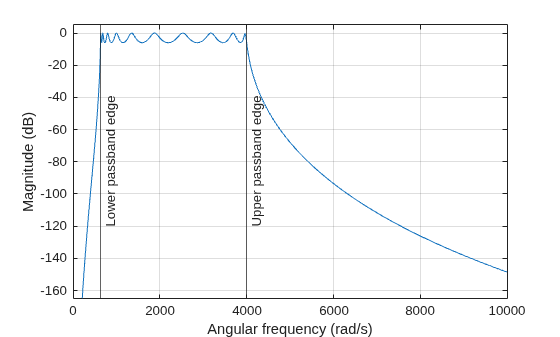

Calculate the frequency response of the analog filter using `freqs`

. Plot the magnitude response and the prewarped frequency band edges.

[h,w] = freqs(b,a); plot(w,mag2db(abs(h))) hold on ylim([-165 5]) [U1,U2] = meshgrid([u1 u2],ylim); plot(U1,U2) legend('Magnitude response','Lower Passband Edge','Upper Passband Edge') hold off xlabel('Angular Frequency (rad/s)') ylabel('Magnitude (dB)') grid

Use `bilinear`

to create a digital bandpass filter with sample rate ${\mathit{f}}_{\mathit{s}}$ and lower band edge 100 Hz. Convert the digital filter from state-space form to transfer function form using `ss2tf`

.

[Ad,Bd,Cd,Dd] = bilinear(At,Bt,Ct,Dt,Fs); [bz,az] = ss2tf(Ad,Bd,Cd,Dd);

Use `fvtool`

to plot the magnitude response of the digital filter.

`fvtool(bz,az,'Fs',Fs)`

### Discrete-Time Representation of an Elliptic Filter

Design a 6th-order elliptic analog lowpass filter with 3 dB of ripple in the passband and a stopband 90 dB down. Set cutoff frequency ${\mathit{f}}_{\mathit{c}}=20\text{\hspace{0.17em}}\mathrm{Hz}$ and sample rate ${\mathit{f}}_{\mathit{s}}=200\text{\hspace{0.17em}}\mathrm{Hz}$.

```
clear
Fc = 20;
Fs = 200;
[z,p,k] = ellip(6,3,90,2*pi*Fc,'s');
[num,den] = zp2tf(z,p,k);
```

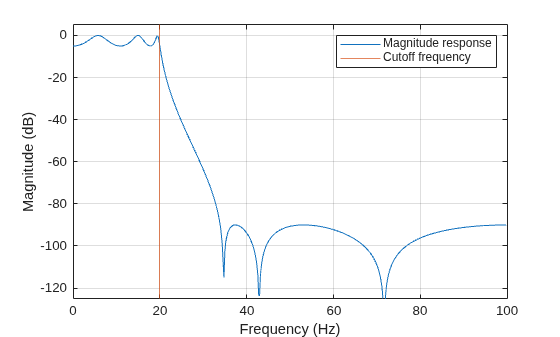

Calculate the magnitude response of the analog elliptic filter. Visualize the analog filter.

[h,w] = freqs(num,den); plot(w/(2*pi),mag2db(abs(h))) hold on xlim([0 50]) [l1,l2] = meshgrid(Fc,[-120 0]); plot(l1,l2) grid legend('Magnitude response','Passband Edge') xlabel('Frequency (Hz)') ylabel('Magnitude (dB)')

Use `bilinear`

to transform it to a discrete-time IIR filter. Set the match frequency as ${\mathit{f}}_{\mathit{p}}=20\text{\hspace{0.17em}}\mathrm{Hz}$.

[numd,dend] = bilinear(num,den,Fs,20);

Visualize the filter using `fvtool`

.

`fvtool(numd,dend,'Fs',Fs) `

## Input Arguments

`z`

— Zeros

column vector

Zeros of the *s*-domain transfer function, specified as a column
vector.

`p`

— Poles

column vector

Poles of the *s*-domain transfer function, specified as a column
vector.

`k`

— Gain

scalar

Gain of the *s*-domain transfer function, specified as a
scalar.

`fs`

— Sample rate

positive scalar

Sample rate, specified as a positive scalar.

`num`

— Numerator coefficients

row vector

Numerator coefficients of the analog transfer function, specified as a row vector.

`den`

— Denominator coefficients

row vector

Denominator coefficients of the analog transfer function, specified as a row vector.

`A`

— State matrix

matrix

State matrix in the *s*-domain, specified as a matrix. If the
system has *p* inputs and *q* outputs and is described
by *n* state variables, then `A`

is
*n*-by-*n*.

**Data Types: **`single`

| `double`

`B`

— Input-to-state matrix

matrix

Input-to-state matrix in the *s*-domain, specified as a matrix. If
the system has *p* inputs and *q* outputs and is
described by *n* state variables, then `B`

is
*n*-by-*p*.

**Data Types: **`single`

| `double`

`C`

— State-to-output matrix

matrix

State-to-output matrix in the *s*-domain, specified as a matrix. If
the system has *p* inputs and *q* outputs and is
described by *n* state variables, then `C`

is
*q*-by-*n*.

**Data Types: **`single`

| `double`

`D`

— Feedthrough matrix

matrix

Feedthrough matrix in the *s*-domain, specified as a matrix. If the
system has *p* inputs and *q* outputs and is described
by *n* state variables, then `D`

is
*q*-by-*p*.

**Data Types: **`single`

| `double`

`fp`

— match frequency

positive scalar

Match frequency, specified as a positive scalar.

## Output Arguments

`zd`

— Zeros

column vector

Zeros of the *z*-domain transfer function, specified as a column
vector.

`pd`

— Poles

column vector

Poles of the *z*-domain transfer function, specified as a column
vector.

`kd`

— Gain

scalar

Gain of the *z*-domain transfer function, specified as a
scalar.

`numd`

— Numerator coefficients

row vector

Numerator coefficients of the digital transfer function, specified as a row vector.

`dend`

— Denominator coefficients

row vector

Denominator coefficients of the digital transfer function, specified as a row vector.

`Ad`

— State matrix

matrix

State matrix in the *z*-domain, returned as a matrix. If the system
is described by *n* state variables, then `Ad`

is
*n*-by-*n*.

**Data Types: **`single`

| `double`

`Bd`

— Input-to-state matrix

matrix

Input-to-state matrix in the *z*-domain, returned as a matrix. If
the system is described by *n* state variables, then
`Bd`

is *n*-by-1.

**Data Types: **`single`

| `double`

`Cd`

— State-to-output matrix

matrix

State-to-output matrix in the *z*-domain, returned as a matrix. If
the system has *q* outputs and is described by *n*
state variables, then `Cd`

is
*q*-by-*n*.

**Data Types: **`single`

| `double`

`Dd`

— Feedthrough matrix

matrix

Feedthrough matrix in the *z*-domain, returned as a matrix. If the
system has *q* outputs, then `Dd`

is
*q*-by-1.

**Data Types: **`single`

| `double`

## Diagnostics

`bilinear`

requires that the numerator order be no greater than the
denominator order. If this is not the case, `bilinear`

displays

Numerator cannot be higher order than denominator.

For `bilinear`

to distinguish between the zero-pole-gain and transfer
function linear system formats, the first two input parameters must be vectors with the same
orientation in these cases. If this is not the case, `bilinear`

displays

First two arguments must have the same orientation.

## Algorithms

The *bilinear transformation* is a mathematical mapping of variables.
In digital filtering, it is a standard method of mapping the *s* or analog
plane into the *z* or digital plane. It transforms analog filters, designed
using classical filter design techniques, into their discrete equivalents.

The bilinear transformation maps the *s*-plane into the
*z*-plane by

$${H(z)=H(s)|}_{s=2{f}_{s}\frac{z-1}{z+1}}.$$

This transformation maps the *j*Ω axis (from Ω = –∞
to +∞) repeatedly around the unit circle
(*e ^{jw}*, from

*ω*= –π to π) by

$$\omega =2{\mathrm{tan}}^{-1}\left(\frac{\Omega}{2{f}_{s}}\right).$$

`bilinear`

can accept an optional parameter `Fp`

that
specifies prewarping. `fp`

, in hertz, indicates a “match”
frequency, that is, a frequency for which the frequency responses before and after mapping
match exactly. In prewarped mode, the bilinear transformation maps the
*s*-plane into the *z*-plane with

$${H(z)=H(s)|}_{s=\frac{2\pi {f}_{p}}{\mathrm{tan}\left(\pi \frac{{f}_{p}}{{f}_{s}}\right)}\frac{z-1}{z+1}}.$$

With the prewarping option, `bilinear`

maps the *j*Ω
axis (from Ω = –∞ to +∞) repeatedly around the unit circle
(*e ^{jω}*, from

*ω*= –

*π*to

*π*) by

$$\omega =2{\mathrm{tan}}^{-1}\left(\frac{\Omega \mathrm{tan}\left(\pi \frac{{f}_{p}}{{f}_{s}}\right)}{2\pi {f}_{p}}\right).$$

In prewarped mode, `bilinear`

matches the frequency
2*πf*_{p} (in radians per second) in the
*s*-plane to the normalized frequency
2*πf*_{p}/*f*_{s}
(in radians per second) in the *z*-plane.

The `bilinear`

function works with three different linear system
representations: zero-pole-gain, transfer function, and state-space form.

`bilinear`

uses one of two algorithms depending on the format of the
input linear system you supply. One algorithm works on the zero-pole-gain format and the other
on the state-space format. For transfer function representations, `bilinear`

converts to state-space form, performs the transformation, and converts the resulting
state-space system back to transfer function form.

### Zero-Pole-Gain Algorithm

For a system in zero-pole-gain form, `bilinear`

performs four
steps:

If

`fp`

is present, it prewarps:fp = 2*pi*fp; fs = fp/tan(fp/fs/2)

otherwise,

`fs = 2*fs`

.It strips any zeros at ±∞ using

z = z(finite(z));

It transforms the zeros, poles, and gain using

pd = (1+p/fs)./(1-p/fs); % Do bilinear transformation zd = (1+z/fs)./(1-z/fs); kd = real(k*prod(fs-z)./prod(fs-p));

It adds extra zeros at -1 so the resulting system has equivalent numerator and denominator order.

### State-Space Algorithm

An analog system in state space form is given by

$$\begin{array}{l}\dot{x}=Ax+Bu\\ y=Cx+Du\end{array}$$

. This system is converted to the discrete form using state-space equations as follows:

$$\begin{array}{l}x[n+1]={A}_{d}x[n]+{B}_{d}u[n],\\ y[n]\text{}={C}_{d}x[n]+{D}_{d}u[n].\end{array}$$

To convert an analog system in state-space form,
`bilinear`

performs two steps:

If

`fp`

is present, let$$\lambda =\frac{\pi {f}_{p}}{\mathrm{tan}(\pi {f}_{p}/{f}_{s})}.$$

If

`fp`

is not present, let λ=*fs*.Compute

`Ad`

,`Bd`

,`Cd`

, and`Dd`

in terms of`A`

,`B`

,`C`

, and`D`

using$$\begin{array}{l}{A}_{d}={(}^{I}(I+A{\scriptscriptstyle \frac{1}{2\lambda}}),\\ {B}_{d}={\scriptscriptstyle \frac{1}{\sqrt{\lambda}}}{(}^{I}B,\\ {C}_{d}={\scriptscriptstyle \frac{1}{\sqrt{\lambda}}}C{(}^{I},\\ {D}_{d}={\scriptscriptstyle \frac{1}{2\lambda}}C{(}^{I}B+D.\end{array}$$

### Transfer Function

For a system in transfer function form, `bilinear`

converts an
*s*-domain transfer function given by `num`

and
`den`

to a discrete equivalent. Row vectors `num`

and
`den`

specify the coefficients of the numerator and denominator,
respectively, in descending powers of *s*. Let
*B*(*s*) be the numerator polynomial and
*A*(*s*) be the denominator polynomial. The transfer
function is:

$$\frac{B(s)}{A(s)}=\frac{B(1){s}^{n}+\cdots +B(n)s+B(n+1)}{A(1){s}^{m}+\cdots +A(m)s+A(m+1)}$$

`fs`

is the sample rate in hertz. `bilinear`

returns
the discrete equivalent in row vectors `numd`

and `dend`

in descending powers of *z* (ascending powers
of *z*^{–1}). `fp`

is the
optional match frequency, in hertz, for prewarping.

## References

[1] Oppenheim, Alan V., Ronald W.
Schafer, and John R. Buck. *Discrete-Time Signal Processing*. Upper
Saddle River, NJ: Prentice Hall, 1999.

[2] Parks, Thomas W., and C. Sidney
Burrus. *Digital Filter Design*. New York: John Wiley & Sons,
1987.

## Extended Capabilities

### C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

**Introduced before R2006a**
