blackmanharris

Minimum four-term Blackman-Harris window

Syntax

w = blackmanharris(L)

w = blackmanharris(L,sflag)

w = blackmanharris(___,typeName)

Description

w = blackmanharris(L) returns an L-point symmetric four-term Blackman-Harris window.

w = blackmanharris(L,sflag) returns a Blackman-Harris window using the window sampling method specified by sflag.

w = blackmanharris(___,typeName) specifies the option to return the window w with single or double precision.

Examples

Blackman-Harris Window

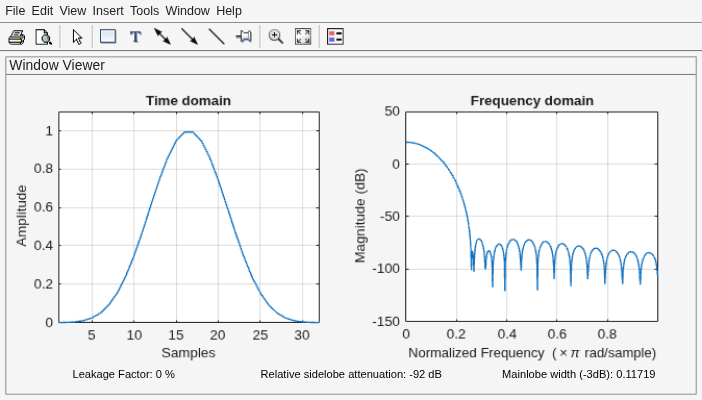

Create a 32-point symmetric Blackman-Harris window. Display the result using wvtool.

L = 32;
wvtool(blackmanharris(L))

Input Arguments

L — Window length

positive integer

Window length, specified as a positive integer.

Note

If you specify L as noninteger, the function rounds it to the nearest integer value.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

sflag — Window sampling

"symmetric" (default) | "periodic"

Window sampling method, specified as:

• "symmetric" — Use this option when using windows for filter design.

• "periodic" — This option is useful for spectral analysis because it enables a windowed signal to have the perfect periodic extension implicit in the discrete Fourier transform. When 'periodic' is specified, the function computes a window of length L + 1 and returns the first L points.

Data Types: char | string

typeName — Output data type

"double" (default) | "single"

Since R2024b

Output data type (class), specified as one of these:

• "double" — Use this option to return a double-precision output w.

• "single" — Use this option to return a single-precision output w.

Data Types: char | string

Output Arguments

w — Blackman-Harris window

column vector

Blackman-Harris window, returned as a column vector.

Algorithms

The equation for the symmetric four-term Blackman-Harris window of length N is

$$w(n)=a_0-a_1\cos \left(\frac{2\pi n}{N-1}\right)+a_2\cos \left(\frac{4\pi n}{N-1}\right)-a_3\cos \left(\frac{6\pi n}{N-1}\right),0\le n\le N-1$$

The equation for the periodic four-term Blackman-Harris window of length N is

$$w(n)=a_0-a_1\cos \frac{2\pi n}{N}+a_2\cos \frac{4\pi n}{N}-a_3\cos \frac{6\pi n}{N},0\le n\le N-1$$

The periodic window is N-periodic.

Coefficient	Value
a0	0.35875
a1	0.48829
a2	0.14128
a3	0.01168

References

[1] harris, fredric j. “On the Use of Windows for Harmonic Analysis with the Discrete Fourier Transform.” Proceedings of the IEEE^®. Vol. 66, January 1978, pp. 51–83.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Version History

Introduced before R2006a

R2024b: Generate Single-Precision Outputs

The blackmanharris function supports single-precision outputs.
