Simulink.SimulationData.createStructOfTimeseries
Create structure of timeseries data to load as simulation input
for bus
Syntax
Description
tsStruct = Simulink.SimulationData.createStructOfTimeseries(busObj,tsStructIn)Simulink.Bus object, busObj, and data specified by the
structure of timeseries objects,
tsStructIn.
When the names in the input structure do not match the names specified by the bus object, the function renames the fields in the output structure to match the bus object specification. When other attributes such as data type and complexity do not match, the function returns an error.
You can use this syntax to create a simulation input that fully or partially specifies
the data for a bus. You can also use this syntax to rename the structure elements to match
the names in the Simulink.Bus object.
tsStruct = Simulink.SimulationData.createStructOfTimeseries(busObj,tsCellArray)timeseries objects with attributes that match
those specified by the Simulink.Bus object, busObj,
and data specified by the cell array of timeseries objects,
tsCellArray.
When the names in the input structure do not match the names specified by the bus object, the function renames the fields in the output structure to match the bus object specification. When other attributes such as data type and complexity do not match, the function returns an error.
You can use this syntax to create simulation input that fully or partially specifies the
data for a bus using a flat list of timeseries objects. The function maps
the timeseries objects to the hierarchy specified by the
Simulink.Bus object using a depth-first search.
tsStructArray = Simulink.SimulationData.createStructOfTimeseries(busObj,tsCellArray,dims)timeseries structures where the attributes of each
structure match those defined by the Simulink.Bus object,
busObj with the data specified by the cell array of
timeseries objects, tsCellArray. The input
dims specifies the dimensions of the array.
tsStruct = Simulink.SimulationData.createStructOfTimeseries(tsArray)timeseries objects from the bus data stored in the
Simulink.TSArray object,
tsArray. In versions before R2016a, signal logging creates
Simulink.TsArray objects to store logged bus data. Use this syntax when
you want to use bus data logged in a release before R2016a using
ModelDataLogs format as simulation input.
Examples
You can use the Simulink.Simulationdata.createStructOfTimeseries function to create structures of timeseries objects to use as simulation input for bus signals. This example shows you how to create a structure of timeseries to load into a model using timeseries data logged from a different simulation.
Create a Structure of Timeseries
Open the ex_log_structtimeseries model.
mdl = "ex_log_structtimeseries";
open_system(mdl)

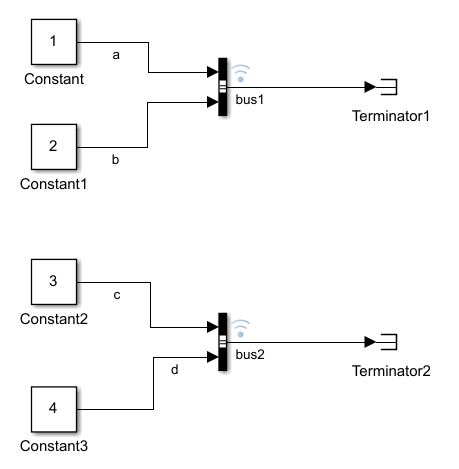

The model uses Constant blocks and Bus Creator blocks to build two buses, bus1 and bus2, with signals a, b, c, and d. The model uses signal logging to log the bus data. Create bus data by simulating the model.
out = sim(mdl);
View the data in the logging variable logsout. Signal logging creates a Simulink.SimulationData.Dataset object with Simulink.SimulationData.Signal objects as elements.
logsout = out.logsout
logsout =
Simulink.SimulationData.Dataset 'logsout' with 2 elements
Name BlockPath
____ ____________________________________
1 [1x1 Signal] bus1 ex_log_structtimeseries/Bus Creator
2 [1x1 Signal] bus2 ex_log_structtimeseries/Bus Creator1
- Use braces { } to access, modify, or add elements using index.
You can use the get function to select the Simulink.SimulationData.Signal object for bus2. The bus data is in the Values property of the Simulink.SimulationData.Signal object. The data representing bus2 is logged in a structure containing timeseries objects named c and d.
logsout.get(2).Values
ans = struct with fields:
c: [1×1 timeseries]
d: [1×1 timeseries]
Loading Model Configuration
Open the ex_load_structtimeseries model, which uses the logged simulation data as input.
mdl2 = "ex_load_structtimeseries";
open_system(mdl2)

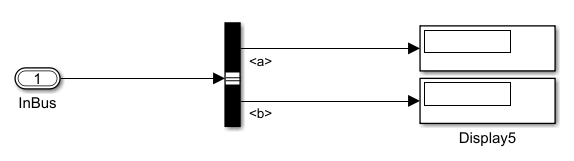

The model uses the InBus Inport block to load input bus data. A Bus Selector block chooses signals from the bus to display on Display blocks.

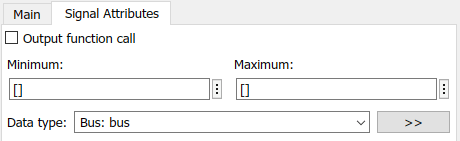

Double-click the InBus block and check its Data type on the Signal Attributes tab of the dialog box. The data type is specified by a Simulink.Bus object called bus.
Close the dialog box and open the Model Explorer. On the Callbacks tab, you can see the model uses its PreLoadFcn to define the Simulink.Bus object that defines the data type for the Inport block.
Open the Configuration Parameters and view the specification for the Input parameter on the Data Import/Export pane. The model uses the variable inputBus for its Input.
Create Simulation Input from the Structure of timeseries Data
To load the data logged for bus1, you only need to assign the structure data to the Input variable for the model.
inputBus = logsout.get(1).Values
inputBus = struct with fields:
a: [1×1 timeseries]
b: [1×1 timeseries]
When you simulate the model, the Display blocks show the values 1 and 2 logged in bus1 and loaded into the model.
To load the data logged for bus2, you need to use the Simulink.Bus object that defines the Inport block data type and Simulink.SimulationData.createStructOfTimeseries to create a structure of timeseries with names specified by the Simulink.Bus object.
inputBus = Simulink.SimulationData.createStructOfTimeseries("bus",... logsout.get(2).Values)
inputBus = struct with fields:
a: [1×1 timeseries]
b: [1×1 timeseries]
When you simulate the model, the Display blocks show the values 3 and 4 logged in bus2 and loaded into the model.
This example shows how to use the Simulink.SimulationData.createStructOfTimeseries function to create partially specified simulation input for a bus. This example logs data from ex_log_structtimeseries and then loads that data into ex_load_structtimeseries.
Create timeseries Data
First, open and simulate the ex_log_structtimeseries model. The model logs two bus signals, bus1 and bus2, created using Constant blocks and Bus Creator blocks. Access the logsout Dataset in the Simulink.SimulationOutput object, out.
mdl = "ex_log_structtimeseries";
open_system(mdl)
out = sim(mdl);
logsout = out.logsout;
You can use a structure of timeseries data or a cell array of timeseries data to partially specify simulation input for a bus.
Partially Specify Bus Data with a Structure of timeseries Data
Open the model ex_load_structtimeseries that will load some of the data you logged in the previous section.
mdl2 = "ex_load_structtimeseries"mdl2 = "ex_load_structtimeseries"
open_system(mdl2)
Use the get function to access the structure of timeseries data logged for bus1.
bus1 = logsout.get(1).Values;
Then, replace the b data with [].
bus1.b = [];
The ex_load_structtimeseries model uses the variable inputBus as its Input. The Simulink.Bus object, bus, that defines the data type for the Inport block is defined in the PreLoadFcn callback for the ex_load_structtimeseries model. Because the signal names in bus1 match the Simulink.Bus object specification for the Inport block in the ex_load_structtimeseries model, you can use the logged structure without modification. To load the data for bus1, assign bus1 to the variable inputBus.
inputBus = bus1;
Simulate the model. The Display blocks show the logged value 1 for a and 0 for b. The simulation uses ground values when you do not specify data for the signal.
loadOut = sim(mdl2);
Now, load the data logged for bus2. The signal names in bus2 do not match the Simulink.Bus object specification for the Inport block in the ex_load_structtimeseries model. Modify the data in the structure to partially specify input data for the bus. Then, use the Simulink.SimulationData.createStructOfTimeseries function to change the names in the structure to match the bus specification.
bus2 = logsout.get(2).Values;
bus2.d = [];
inputBus = bus2;
inputBus = Simulink.SimulationData.createStructOfTimeseries("bus",inputBus);Simulate the model. The Display blocks show the logged value 3 for a and 0 for b.
loadOut = sim(mdl2);
Partially Specify Bus Data with a Cell Array of Timeseries Data
When you have timeseries data, you can use Simulink.SimulationData.createStructOfTimeseries to partially specify simulation input for a bus using a cell array of the timeseries data. Load the timeseries data for signal d in bus2 as part of a partial bus specification for the Inport block in the ex_load_structtimeseries model. The PreLoadFcn callback for the ex_load_structtimeseries model defines the Simulink.Bus object, bus, that defines the data type for the Inport block.
d = logsout.get(2).Values.d; inputBus = Simulink.SimulationData.createStructOfTimeseries("bus",... {d,[]});
Simulate the model. The Display block for signal a in the ex_load_structtimeseries model shows the data logged in signal d from the ex_log_structtimeseries model. The Display block for signal b shows 0.
loadOut = sim(mdl2);
This example shows how to use the Simulink.SimulationData.createStructOfTimeseries function to generate simulation input for an array of buses. You create timeseries data by simulating one model. Then, you create an input structure using the logged data to load into an array of buses in another model.
Create timeseries Data
To start, open the ex_log_structtimeseries model.
mdl = "ex_log_structtimeseries";
open_system(mdl)
The model creates two buses, bus1 and bus2, using Constant blocks and Bus Creator blocks. The signals are named a, b, c, and d. Create logged bus data by simulating the model.
out = sim(mdl);
The output out contains a Simulink.SimulationData.Dataset object, logsout, with the logged data. You can access the bus1 and bus2 signals using the get function. The data for each signal is in the Simulink.SimulationData.Signal object Values parameter. You can access the bus elements using a dot followed by the signal name. bus1 is the first signal in the Dataset object and contains signals a and b. bus2 contains signals c and d.
logsout = out.logsout; a = logsout.get(1).Values.a; b = logsout.get(1).Values.b; c = logsout.get(2).Values.c; d = logsout.get(2).Values.d;
Loading Model Configuration
Open the model ex_structtimeseries_aob, which uses an array of buses as input.
mdl2 = "ex_load_structtimeseries_aob";
open_system(mdl2)
The model uses the InAoB Inport block to load simulation input. Selector blocks select a bus from the array of buses, and Bus Selector blocks select signals to show in the Display blocks.
Double-click the InAoB block and look at the Signal Attributes pane of the dialog. The Data type for the block is set to Bus with the type defined by the Simulink.Bus object, bus. The Port dimensions parameter is set to [2 1].
You can see the definition for the Simulink.Bus object, bus, in the Callbacks tab in the Model Explorer. This model uses the PreLoadFcn to define the bus object.
Open the Model Configuration Parameters and look at the Input parameter. The model uses the variable inputAoB as input.
Create Array of Buses Simulation Input
Use Simulink.SimulationData.createStructOfTimeseries and the data logged in the first section to create a structure to load as simulation input for the array of buses. Specify the dimensions as [2 1] to match the dimensions of the InAoB block.
inputAoB = Simulink.SimulationData.createStructOfTimeseries("bus",... {a,b,c,d},[2 1]);
When you simulate the model, the Display blocks show the data for signals a, b, c, and d logged from the ex_log_structtimeseries model. The array of buses contains two buses with signals a and b. Simulink.SimulationData.createStructOfTimeseries renamed signals c and d to match the Simulink.Bus specification used by the array of buses.
inputAoB(2)
ans = struct with fields:
a: [1×1 timeseries]
b: [1×1 timeseries]
Simulate the model. The display blocks show the logged values.
aob_out = sim(mdl2);
In releases before R2016a, when you log simulation data using
ModelDataLogs format, bus data is stored as a
Simulink.TSArray object. You cannot log data using
ModelDataLogs format using a release after R2016a. In this example,
the logged data, logsout, was logged in
ModelDataLogs format using a release before R2016a. The variable
logsout contains data for a single bus,
bus1.
logsout
logsout = Simulink.ModelDataLogs (log_modeldatalogs): Name Elements Simulink Class bus1 2 TsArray
To load the logged data as simulation input for a bus, create a structure of
timeseries objects from the data in bus1.
struct_of_ts = ...
Simulink.SimulationData.createStructOfTimeseries(logsout.bus1)struct_of_ts =
const1_sig: [1x1 timeseries]
const2_sig: [1x1 timeseries]Input Arguments
Output Arguments
Version History
Introduced in R2013a
