predict

Predict responses for new observations from ECOC incremental learning classification model

    Description

    example

    label = predict(Mdl,X) returns the predicted responses (or labels) label of the observations in the predictor data X from the multiclass error-correcting output codes (ECOC) classification model for incremental learning Mdl.

    example

    label = predict(Mdl,X,Name=Value) specifies additional options using one or more name-value arguments. For example, specify ObservationsIn=columns to indicate that observations in the predictor data are oriented along the columns of X.

    example

    [label,NegLoss,PBScore] = predict(___) uses any of the input argument combinations in the previous syntaxes and additionally returns:

    • An array of negated average binary losses (NegLoss). For each observation in X, predict assigns the label of the class yielding the largest negated average binary loss (or, equivalently, the smallest average binary loss).

    • An array of positive-class scores (PBScore) for the observations classified by each binary learner.

    Examples

    collapse all

    Create an incremental learning model by converting a traditionally trained ECOC model, and predict class labels using both models.

    Load the human activity data set.

    load humanactivity

    For details on the data set, enter Description at the command line.

    Fit a multiclass ECOC classification model to the entire data set.

    Mdl = fitcecoc(feat,actid);

    Mdl is a ClassificationECOC model object representing a traditionally trained ECOC classification model.

    Convert the traditionally trained ECOC classification model to a model for incremental learning.

    IncrementalMdl = incrementalLearner(Mdl)
    IncrementalMdl =
      incrementalClassificationECOC

                IsWarm: 1
               Metrics: [1x2 table]
            ClassNames: [1 2 3 4 5]
        ScoreTransform: 'none'
        BinaryLearners: {10x1 cell}
            CodingName: 'onevsone'
              Decoding: 'lossweighted'


      Properties, Methods



    IncrementalMdl is an incrementalClassificationECOC model object prepared for incremental learning.

    The incrementalLearner function initializes the incremental learner by passing the coding design and model parameters for binary learners to it, along with other information Mdl extracts from the training data. IncrementalMdl is warm (IsWarm is 1), which means that incremental learning functions can track performance metrics and make predictions.

    An incremental learner created from converting a traditionally trained model can generate predictions without further processing.

    Predict class labels for all observations using both models.

    ttlabels = predict(Mdl,feat);
    illables = predict(IncrementalMdl,feat);
    isequal(ttlabels,illables)
    ans = logical
       1



    Both models predict the same labels for each observation.

    Prepare an incremental ECOC model for predict by fitting the model to a chunk of observations. Compute negated average binary losses for streaming data by using the predict function, and evaluate the model performance using the area under the receiver operating characteristic (ROC) curve, or AUC.

    Load the human activity data set. Randomly shuffle the data.

    load humanactivity
    n = numel(actid);
    rng(10) % For reproducibility
    idx = randsample(n,n);
    X = feat(idx,:);
    Y = actid(idx);

    For details on the data set, enter Description at the command line.

    Create an ECOC model for incremental learning. Specify the class names. Prepare the model for predict by fitting the model to the first 10 observations.

    Mdl = incrementalClassificationECOC(ClassNames=unique(Y));
    initobs = 10;
    Mdl = fit(Mdl,X(1:initobs,:),Y(1:initobs));

    Mdl is an incrementalClassificationECOC model. All its properties are read-only. The model is configured to generate predictions.

    Simulate a data stream, and perform the following actions on each incoming chunk of 100 observations.

    1. Call predict to compute negated average binary losses for each observation in the incoming chunk of data. Specify to use the "lossbased" decoding scheme.

    2. Call rocmetrics to compute the AUC using the negated average binary losses, and store the AUC value, averaged over all classes. This AUC is an incremental measure of how well the model predicts the activities on average.

    3. Call fit to fit the model to the incoming chunk. Overwrite the previous incremental model with a new one fitted to the incoming observations.

    numObsPerChunk = 100;
    nchunk = floor((n - initobs)/numObsPerChunk);
    auc = zeros(nchunk,1);

    % Incremental learning
    for j = 1:nchunk
        ibegin = min(n,numObsPerChunk*(j-1) + 1 + initobs);
        iend   = min(n,numObsPerChunk*j + initobs);
        idx = ibegin:iend;
        [~,NegLoss] = predict(Mdl,X(idx,:),Decoding="lossbased");
        mdlROC = rocmetrics(Y(idx),NegLoss,Mdl.ClassNames);
        [~,~,~,auc(j)] = average(mdlROC,"micro");
        Mdl = fit(Mdl,X(idx,:),Y(idx));
    end

    Mdl is an incrementalClassificationECOC model object trained on all the data in the stream.

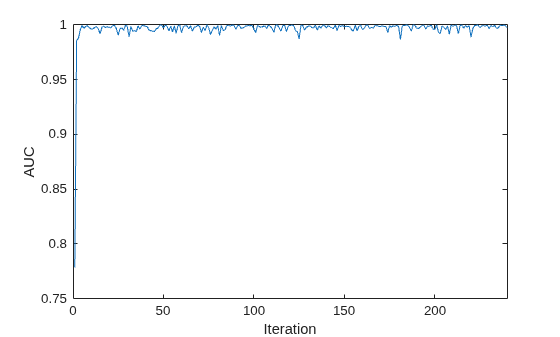

    Plot the AUC values for each incoming chunk of data.

    plot(auc)
    xlim([0 nchunk])
    ylabel("AUC")
    xlabel("Iteration")

    Figure contains an axes object. The axes object contains an object of type line.

    The plot suggests that the classifier predicts the activities well during incremental learning.

    Input Arguments

    collapse all

    ECOC classification model for incremental learning, specified as an incrementalClassificationECOC model object. You can create Mdl by calling incrementalClassificationECOC directly, or by converting a supported, traditionally trained machine learning model using the incrementalLearner function.

    You must configure Mdl to predict labels for a batch of observations.

    • If Mdl is a converted, traditionally trained model, you can predict labels without any modifications.

    • Otherwise, you must fit Mdl to data using fit or updateMetricsAndFit.

    Batch of predictor data, specified as a floating-point matrix of n observations and Mdl.NumPredictors predictor variables. The value of the ObservationsIn name-value argument determines the orientation of the variables and observations. The default ObservationsIn value is "rows", which indicates that observations in the predictor data are oriented along the rows of X.

    Note

    predict supports only floating-point input predictor data. If your input data includes categorical data, you must prepare an encoded version of the categorical data. Use dummyvar to convert each categorical variable to a numeric matrix of dummy variables. Then, concatenate all dummy variable matrices and any other numeric predictors. For more details, see Dummy Variables.

    Data Types: single | double

    Name-Value Arguments

    Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

    Example: BinaryLoss="quadratic",Decoding="lossbased" specifies the quadratic binary learner loss function and the loss-based decoding scheme for aggregating the binary losses.

    Binary learner loss function, specified as a built-in loss function name or function handle.

    • This table describes the built-in functions, where yj is the class label for a particular binary learner (in the set {–1,1,0}), sj is the score for observation j, and g(yj,sj) is the binary loss formula.

      ValueDescriptionScore Domaing(yj,sj)
      "binodeviance"Binomial deviance(–∞,∞)log[1 + exp(–2yjsj)]/[2log(2)]
      "exponential"Exponential(–∞,∞)exp(–yjsj)/2
      "hamming"Hamming[0,1] or (–∞,∞)[1 – sign(yjsj)]/2
      "hinge"Hinge(–∞,∞)max(0,1 – yjsj)/2
      "linear"Linear(–∞,∞)(1 – yjsj)/2
      "logit"Logistic(–∞,∞)log[1 + exp(–yjsj)]/[2log(2)]
      "quadratic"Quadratic[0,1][1 – yj(2sj – 1)]2/2

      The software normalizes binary losses so that the loss is 0.5 when yj = 0. Also, the software calculates the mean binary loss for each class.

    • For a custom binary loss function, for example customFunction, specify its function handle BinaryLoss=@customFunction.

      customFunction has this form:

      bLoss = customFunction(M,s)

      • M is the K-by-B coding matrix stored in Mdl.CodingMatrix.

      • s is the 1-by-B row vector of classification scores.

      • bLoss is the classification loss. This scalar aggregates the binary losses for every learner in a particular class. For example, you can use the mean binary loss to aggregate the loss over the learners for each class.

      • K is the number of classes.

      • B is the number of binary learners.

      For an example of a custom binary loss function, see Predict Test-Sample Labels of ECOC Model Using Custom Binary Loss Function. This example is for a traditionally trained model. You can define a custom loss function for incremental learning as shown in the example.

    For more information, see Binary Loss.

    Data Types: char | string | function_handle

    Decoding scheme, specified as "lossweighted" or "lossbased".

    The decoding scheme of an ECOC model specifies how the software aggregates the binary losses and determines the predicted class for each observation. The software supports two decoding schemes:

    • "lossweighted" — The predicted class of an observation corresponds to the class that produces the minimum sum of the binary losses over binary learners.

    • "lossbased" — The predicted class of an observation corresponds to the class that produces the minimum average of the binary losses over binary learners.

    For more information, see Binary Loss.

    Example: Decoding="lossbased"

    Data Types: char | string

    Predictor data observation dimension, specified as "rows" or "columns".

    Example: ObservationsIn="columns"

    Data Types: char | string

    Output Arguments

    collapse all

    Predicted responses (labels), returned as a categorical or character array; floating-point, logical, or string vector; or cell array of character vectors with n rows. n is the number of observations in X, and label(j) is the predicted response for observation j.

    label has the same data type as the class names stored in Mdl.ClassNames. (The software treats string arrays as cell arrays of character vectors.)

    Negated average binary losses, returned as an n-by-K numeric matrix. n is the number of observations in X, and K is the number of distinct classes in the training data (numel(Mdl.ClassNames)).

    NegLoss(i,k) is the negated average binary loss for classifying observation i into the kth class.

    • If Decoding is 'lossbased', then NegLoss(i,k) is the negated sum of the binary losses divided by the total number of binary learners.

    • If Decoding is 'lossweighted', then NegLoss(i,k) is the negated sum of the binary losses divided by the number of binary learners for the kth class.

    For more details, see Binary Loss.

    Positive-class scores for each binary learner, returned as an n-by-B numeric matrix. n is the number of observations in X, and B is the number of binary learners (numel(Mdl.BinaryLearners)).

    More About

    collapse all

    Binary Loss

    The binary loss is a function of the class and classification score that determines how well a binary learner classifies an observation into the class.

    Suppose the following:

    • mkj is element (k,j) of the coding design matrix M—that is, the code corresponding to class k of binary learner j. M is a K-by-B matrix, where K is the number of classes, and B is the number of binary learners.

    • sj is the score of binary learner j for an observation.

    • g is the binary loss function.

    • k^ is the predicted class for the observation.

    The decoding scheme of an ECOC model specifies how the software aggregates the binary losses and determines the predicted class for each observation. The software supports two decoding schemes:

    • Loss-based decoding [2] (Decoding is 'lossbased') — The predicted class of an observation corresponds to the class that produces the minimum average of the binary losses over all binary learners.

      k^=argmink1Bj=1B|mkj|g(mkj,sj).

    • Loss-weighted decoding [3] (Decoding is 'lossweighted') — The predicted class of an observation corresponds to the class that produces the minimum average of the binary losses over the binary learners for the corresponding class.

      k^=argminkj=1B|mkj|g(mkj,sj)j=1B|mkj|.

      The denominator corresponds to the number of binary learners for class k. [1] suggests that loss-weighted decoding improves classification accuracy by keeping loss values for all classes in the same dynamic range.

    The predict, resubPredict, and kfoldPredict functions return the negated value of the objective function of argmin as the second output argument (NegLoss) for each observation and class.

    This table summarizes the supported binary loss functions, where yj is a class label for a particular binary learner (in the set {–1,1,0}), sj is the score for observation j, and g(yj,sj) is the binary loss function.

    ValueDescriptionScore Domaing(yj,sj)
    "binodeviance"Binomial deviance(–∞,∞)log[1 + exp(–2yjsj)]/[2log(2)]
    "exponential"Exponential(–∞,∞)exp(–yjsj)/2
    "hamming"Hamming[0,1] or (–∞,∞)[1 – sign(yjsj)]/2
    "hinge"Hinge(–∞,∞)max(0,1 – yjsj)/2
    "linear"Linear(–∞,∞)(1 – yjsj)/2
    "logit"Logistic(–∞,∞)log[1 + exp(–yjsj)]/[2log(2)]
    "quadratic"Quadratic[0,1][1 – yj(2sj – 1)]2/2

    The software normalizes binary losses so that the loss is 0.5 when yj = 0, and aggregates using the average of the binary learners.

    Do not confuse the binary loss with the overall classification loss (specified by the LossFun name-value argument of the loss and predict object functions), which measures how well an ECOC classifier performs as a whole.

    Algorithms

    collapse all

    Observation Weights

    If the prior class probability distribution is known (in other words, the prior distribution is not empirical), predict normalizes observation weights to sum to the prior class probabilities in the respective classes. This action implies that the default observation weights are the respective prior class probabilities.

    If the prior class probability distribution is empirical, the software normalizes the specified observation weights to sum to 1 each time you call predict.

    References

    [1] Allwein, E., R. Schapire, and Y. Singer. “Reducing multiclass to binary: A unifying approach for margin classifiers.” Journal of Machine Learning Research. Vol. 1, 2000, pp. 113–141.

    [2] Escalera, S., O. Pujol, and P. Radeva. “Separability of ternary codes for sparse designs of error-correcting output codes.” Pattern Recog. Lett., Vol. 30, Issue 3, 2009, pp. 285–297.

    [3] Escalera, S., O. Pujol, and P. Radeva. “On the decoding process in ternary error-correcting output codes.” IEEE Transactions on Pattern Analysis and Machine Intelligence. Vol. 32, Issue 7, 2010, pp. 120–134.

    Version History

    Introduced in R2022a
