isanomaly
Find anomalies in data using one-class support vector machine (SVM) for incremental learning
Since R2023b
Syntax
Description
finds anomalies in the table tf
= isanomaly(Mdl
,Tbl
)Tbl
using the incrementalOneClassSVM
object Mdl
and returns the logical
array tf
, whose elements are true
when an anomaly is
detected in the corresponding row of Tbl
. You must use this syntax if
you create Mdl
by passing a table to incrementalOneClassSVM
or the incrementalLearner
function of OneClassSVM
.
specifies the threshold for the anomaly score using any of the input argument combinations
in the previous syntaxes. tf
= isanomaly(___,ScoreThreshold=scoreThreshold
)isanomaly
detects observations with scores
above scoreThreshold
as anomalies.
Examples
Incrementally Train One-Class SVM Model on Shingled Data
Train a one-class SVM model on a simulated noisy periodic shingled time series containing no anomalies by using ocsvm
. Convert the trained model to an incremental learner object, and incrementally fit the time series and detect anomalies.
Create Simulated Data Stream
Create a simulated data stream of observations representing a noisy sinusoid signal.
rng(0,"twister"); % For reproducibility period = 100; n = 5001+period; sigma = 0.04; a = linspace(1,n,n)'; b = sin(2*pi*(a-1)/period)+sigma*randn(n,1);

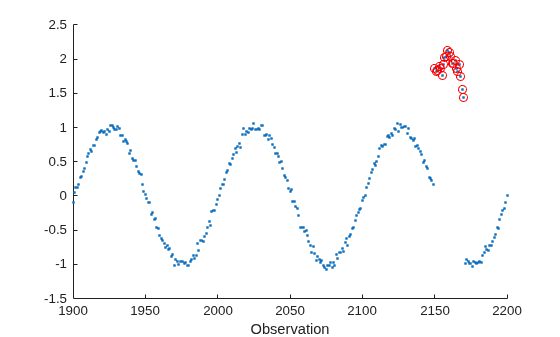

Introduce an anomalous region into the data stream. Plot the data stream portion which contains the anomalous region, and circle the anomalous data points.
c = 2*(sin(2*pi*(a-35)/period)+sigma*randn(n,1));
b(2150:2170) = c(2150:2170); scatter(a,b,".") xlim([1900,2200]) xlabel("Observation") hold on scatter(a(2150:2170),b(2150:2170),"r") hold off
Convert the single-featured data set b
into a multi-featured data set by shingling [1] with a shingle size equal to the period of the signal. The th shingled observation is a vector of features with values , , ..., , where is the shingle size.
X = []; shingleSize = period; for i = 1:n-shingleSize X = [X;b(i:i+shingleSize-1)']; end
Train Model and Perform Incremental Anomaly Detection
Fit a one-class SVM model to the first 1000 shingled observations, specifying a contamination fraction of zero. Convert it to an incrementalOneClassSVM
model object.
Mdl = ocsvm(X(1:1000,:),ContaminationFraction=0); IncrementalMdl = incrementalLearner(Mdl);
To simulate a data stream, process the full shingled data set in chunks of 100 observations at a time. At each iteration:
Process 100 observations.
Calculate scores and detect anomalies using the
isanomaly
function.Store
anomIdx
, the indices of shingled observations marked as anomalies.If the chunk contains fewer than three anomalies, fit and update the previous incremental model.
n = numel(X(:,1)); numObsPerChunk = 100; nchunk = floor(n/numObsPerChunk); anomIdx = []; allscores = []; % Incremental fitting rng(0,"twister"); % For reproducibility for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; [isanom,scores] = isanomaly(IncrementalMdl,X(idx,:)); allscores = [allscores;scores]; anomIdx = [anomIdx;find(isanom)+ibegin-1]; if (sum(isanom) < 3) IncrementalMdl = fit(IncrementalMdl,X(idx,:)); end end
Analyze Incremental Model During Training

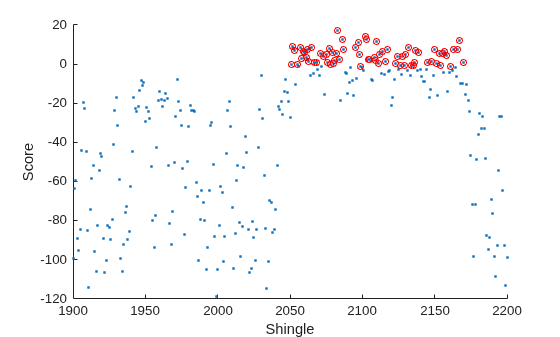

At each iteration, the software calculates a score value for each observation in the data chunk. A negative score value with large magnitude indicates a normal observation, and a large positive value indicates an anomaly. Plot the anomaly score for the observations in the vicinity of the anomaly. Circle the scores of shingles that the software returns as anomalous.
figure scatter(a(1:5000),allscores,".") hold on scatter(a(anomIdx),allscores(anomIdx),20,"or") xlim([1900,2200]) xlabel("Shingle") ylabel("Score") hold off
Because the introduced anomalous region begins at observation 2150, and the shingle size is 100, shingle 2051 is the first one to show a high anomaly score. Some shingles between 2050 and 2170 have scores lying just below the anomaly score threshold due to the noise in the sinusoidal signal. The shingle size affects the performance of the model by defining how many subsequent consecutive data points in the original time series the software uses to calculate the anomaly score for each shingle.

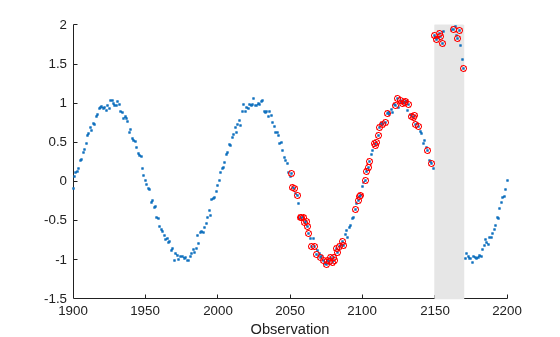

Plot the unshingled data and highlight the introduced anomalous region. Circle the observation number of the first element in each shingle that the software returned as anomalous.
figure xlim([1900,2200]) ylim([-1.5 2]) rectangle(Position=[2150 -1.5 20 3.5],FaceColor=[0.9 0.9 0.9], ... EdgeColor=[0.9 0.9 0.9]) hold on scatter(a,b,".") scatter(a(anomIdx),b(anomIdx),20,"or") xlabel("Observation") hold off
Perform Incremental Anomaly Detection Using a Score Threshold Buffer
Perform incremental anomaly detection using a score threshold buffer on a simulated noisy periodic shingled time series containing anomalies.
Create Simulated Data Stream
Create a simulated data stream of observations representing a noisy sinusoid signal.
rng(0,"twister"); % For reproducibility period = 100; n = 5000; sigma = 0.18; a = linspace(1,n,n)'; X1 = sin(2*pi*a/period)+sigma*randn(n,1); X2 = sin(2*pi*a/period/3)+sigma*randn(n,1);
Introduce an anomalous region into the data stream.
c = 5*sin(2*pi*(a-35)/period+sigma*randn(n,1)); X1(4051:4070) = c(4051:4070); X2(4051:4070) = c(4051:4070); X = [X1 X2];
Create Incremental One-Class SVM Model
Create an incrementalOneClassSVM
model object. Specify a score warm-up period of 1000 observations.
scoreWarmupPeriod = 1000; IncrementalMdl = incrementalOneClassSVM(ScoreWarmupPeriod=scoreWarmupPeriod);
Fit Incremental Model and Detect Anomalies
To simulate a data stream, process the full data set in chunks of 100 observations at a time. At each iteration:
Process 100 observations.
If the incremental model is warm, calculate scores and detect anomalies using the
isanomaly
function.Store
allscores
, the scores of the observations.Store
anomIdx
, the indices of observations detected as anomalies.If the chunk contains fewer than three anomalies, fit and update the previous incremental model.
numObsPerChunk = 100; nchunk = floor(n/numObsPerChunk); anomIdx = []; allscores = []; isanom = []; % Incremental fitting for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; if (IncrementalMdl.IsWarm) [isanom,scores] = isanomaly(IncrementalMdl,X(idx,:)); allscores = [allscores;scores]; anomIdx = [anomIdx;find(isanom)+ibegin-1]; end if (sum(isanom) < 3) IncrementalMdl = fit(IncrementalMdl,X(idx,:)); end end

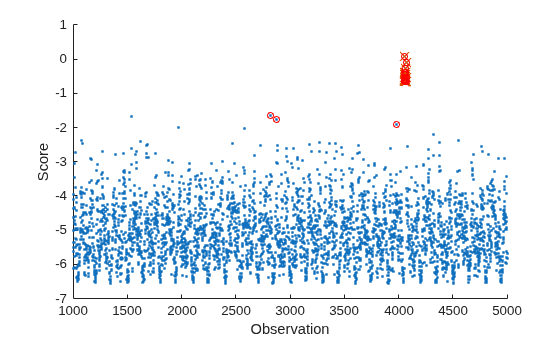

Plot the scores for observations after the warm-up period. Circle the detected anomalies and indicate the introduced anomalous observations with an x
marker.
scatter(a(scoreWarmupPeriod+1:end),allscores(1:end),".") xlabel("Observation") ylabel("Score") hold on scatter(a(4051:4070), ... allscores(4051-scoreWarmupPeriod:4070-scoreWarmupPeriod),90,"x") scatter(a(anomIdx),allscores(anomIdx-scoreWarmupPeriod),20,"or") hold off
The software detects all of the observations in the introduced anomalous region as anomalies. However, the software also detects several other observations as anomalies due to the noisy sinusoid signal.
Detect Anomalies Using a Score Threshold Buffer
Repeat the incremental anomaly detection procedure with a new incremental one-class SVM model. Specify a score warm-up period of 1000 observations. Only observations with scores above ScoreThreshold
+ thresholdBuffer
are detected as anomalies. Specify thresholdBuffer
= 1.
thresholdBuffer = 1; scoreWarmupPeriod = 1000; IncrementalMdl = incrementalOneClassSVM(ScoreWarmupPeriod=scoreWarmupPeriod); numObsPerChunk = 100; nchunk = floor(n/numObsPerChunk); anomIdx = []; allscores = []; isanom = []; % Incremental fitting for j = 1:nchunk ibegin = min(n,numObsPerChunk*(j-1) + 1); iend = min(n,numObsPerChunk*j); idx = ibegin:iend; if (IncrementalMdl.IsWarm) [isanom,scores] = isanomaly(IncrementalMdl,X(idx,:), ... ScoreThreshold=IncrementalMdl.ScoreThreshold+thresholdBuffer); allscores = [allscores;scores]; anomIdx = [anomIdx;find(isanom)+ibegin-1]; end if (sum(isanom) < 3) IncrementalMdl = fit(IncrementalMdl,X(idx,:)); end end

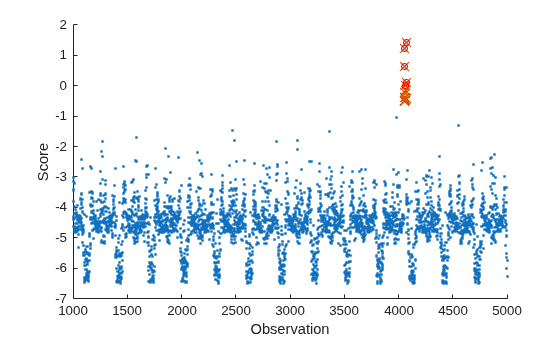

Plot the scores for observations after the warm-up period. The scores are different from those in the previous model due to the stochastic behavior of the one-class SVM training algorithm, which incorporates random feature expansion. Circle the detected anomalies and indicate the introduced anomalous observations with an x
marker.
scatter(a(scoreWarmupPeriod+1:end),allscores(1:end),".") xlabel("Observation") ylabel("Score") hold on scatter(a(4051:4070), ... allscores(4051-scoreWarmupPeriod:4070-scoreWarmupPeriod),90,"x") scatter(a(anomIdx),allscores(anomIdx-scoreWarmupPeriod),20,"or") hold off
The software detects only the observations in the introduced anomalous region as anomalies.
Input Arguments
Mdl
— Trained one-class SVM model
incrementalOneClassSVM
object
Trained one-class SVM model, specified as an incrementalOneClassSVM
model object.
Tbl
— Predictor data
table
Predictor data, specified as a table. Each row of Tbl
corresponds to one observation, and each column corresponds to one predictor variable.
Multicolumn variables and cell arrays other than cell arrays of character vectors are
not allowed.
If you train Mdl
using a table, then you must provide predictor
data by using Tbl
, not X
. All predictor
variables in Tbl
must have the same variable names and data types
as those in the training data. However, the column order in Tbl
does not need to correspond to the column order of the training data.
Note
Incremental learning functions support only numeric input predictor data. You
must prepare an encoded version of categorical data to use incremental learning
functions. Use dummyvar
to convert each categorical
variable to a dummy variable. For more details, see Dummy Variables.
Data Types: table
X
— Predictor data
numeric matrix
Predictor data, specified as a numeric matrix. Each row of X
corresponds to one observation, and each column corresponds to one predictor
variable.
If you train Mdl
using a matrix, then you must provide
predictor data by using X
, not Tbl
. The
variables that make up the columns of X
must have the same order as
the columns in the training data.
Note
Incremental learning functions support only numeric input predictor data. You
must prepare an encoded version of categorical data to use incremental learning
functions. Use dummyvar
to convert each categorical
variable to a numeric matrix of dummy variables. Then, concatenate all dummy variable
matrices and any other numeric predictors, in the same way that the training function
encodes categorical data. For more details, see Dummy Variables.
Data Types: single
| double
scoreThreshold
— Threshold for anomaly score
Mdl.ScoreThreshold
(default) | numeric scalar in the range (–Inf,Inf)
Threshold for the anomaly score, specified as a numeric scalar in the range
(–Inf,Inf)
. isanomaly
detects observations
with scores above the threshold as anomalies.
The default value is the ScoreThreshold
property value of Mdl
.
Example: ScoreThreshold=0.5
Data Types: single
| double
Output Arguments
tf
— Anomaly indicators
logical column vector
Anomaly indicators, returned as a logical column vector. An element of tf
is true
when the observation in the corresponding row of Tbl
or X
is an anomaly, and false
otherwise. tf
has the same length as Tbl
or X
.
isanomaly
detects observations with scores
above the threshold
(the ScoreThreshold
value) as anomalies.
Note
isanomaly
assigns the anomaly indicator of
false
(logical 0) to observations with at least one missing
value.
scores
— Anomaly scores
numeric column vector
Anomaly scores, returned as a numeric column vector whose values are in the range
(–Inf,Inf)
. scores
has the same length as
Tbl
or X
, and each element of
scores
contains an anomaly score for the observation in the
corresponding row of Tbl
or X
. A negative
score value with large magnitude indicates a normal observation, and a large positive
value indicates an anomaly.
Note
isanomaly
assigns the anomaly score of
NaN
to observations with at least one missing value.
References
[1] Guha, Sudipto, N. Mishra, G. Roy, and O. Schrijvers. "Robust Random Cut Forest Based Anomaly Detection on Streams," Proceedings of The 33rd International Conference on Machine Learning 48 (June 2016): 2712–21.
[2] Bartos, Matthew D., A. Mullapudi, and S. C. Troutman. "rrcf: Implementation of the Robust Random Cut Forest Algorithm for Anomaly Detection on Streams." Journal of Open Source Software 4, no. 35 (2019): 1336.
Version History
Introduced in R2023b
