incrementalLearner

Convert one-class SVM model to incremental learner

Since R2023b

Syntax

IncrementalMdl = incrementalLearner(Mdl)

IncrementalMdl = incrementalLearner(Mdl,Name=Value)

Description

IncrementalMdl = incrementalLearner(Mdl) returns an incremental one-class support vector machine (SVM) model IncrementalMdl for anomaly detection, initialized using the parameters provided in the one-class SVM model Mdl. Because its property values reflect the knowledge gained from Mdl, IncrementalMdl can detect anomalies given new observations, and it is warm, meaning that the incremental fit function can return scores and detect anomalies.

IncrementalMdl = incrementalLearner(Mdl,Name=Value) uses additional options specified by one or more name-value arguments. Some options require that IncrementalMdl is prepared for incremental learning before fit updates the score threshold for anomaly detection. For example, Solver="sgd",EstimationPeriod=500 specifies to use the stochastic gradient descent solver, and to process 500 observations to estimate model hyperparameters prior to training.

Examples

Convert Traditionally Trained Model to Incremental Learner

Train a one-class SVM model by using ocsvm, convert it to an incremental learner model, fit the incremental model to streaming data, and detect anomalies. Transfer training options from traditional to incremental learning.

Load Data

Load the 1994 census data stored in census1994.mat. The data set consists of demographic data from the US Census Bureau.

load census1994.mat

The fit function of incrementalOneClassSVM does not support categorical predictors and does not use observations with missing values. Remove missing values in the data to reduce memory consumption and speed up training.

adultdata = rmmissing(adultdata);
adulttest = rmmissing(adulttest);

Remove the categorical predictors from the data.

Xtrain = removevars(adultdata,["workClass","education","marital_status", ...
    "occupation","relationship","race","sex","native_country","salary"]);
Xstream = removevars(adulttest,["workClass","education","marital_status", ...
    "occupation","relationship","race","sex","native_country","salary"]);

Train One-Class SVM Model

Fit a one-class SVM model to the training data. Specify a random stream for reproducibility, and an anomaly contamination fraction of 0.001. Set KernelScale to "auto" so that the software selects an appropriate kernel scale parameter using a heuristic procedure.

rng(0,"twister"); % For reproducibility
TTMdl = ocsvm(Xtrain, KernelScale="auto",ContaminationFraction=0.001, ...
    RandomStream=RandStream("mlfg6331_64"))

TTMdl =
  OneClassSVM

    CategoricalPredictors: []
    ContaminationFraction: 1.0000e-03
           ScoreThreshold: -0.0678
           PredictorNames: {'age'  'fnlwgt'  'education_num'  'capital_gain'  'capital_loss'  'hours_per_week'}
              KernelScale: 9.3699e+04
                   Lambda: 0.1632

TTMdl is a OneClassSVM model object representing a traditionally trained one-class SVM model.

Convert Trained Model

Convert the traditionally trained one-class SVM model to a one-class SVM model for incremental learning.

IncrementalMdl = incrementalLearner(TTMdl);

IncrementalMdl is an incrementalOneClassSVM model object that is ready for incremental learning and anomaly detection.

Fit Incremental Model and Detect Anomalies

Perform incremental learning on the Xstream data by using the fit function. To simulate a data stream, fit the model in chunks of 100 observations at a time. At each iteration:

• Process 100 observations.

• Overwrite the previous incremental model with a new one fitted to the incoming observations.

• Store medianscore, the median score value of the data chunk, to see how it evolves during incremental learning.

• Store threshold, the score threshold value for anomalies, to see how it evolves during incremental learning.

• Store numAnom, the number of detected anomalies in the chunk, to see how it evolves during incremental learning.

n = numel(Xstream(:,1));
numObsPerChunk = 100;
nchunk = floor(n/numObsPerChunk);
medianscore = zeros(nchunk,1);
threshold = zeros(nchunk,1);
numAnom = zeros(nchunk,1);

% Incremental fitting
rng("default"); % For reproducibility
for j = 1:nchunk
    ibegin = min(n,numObsPerChunk*(j-1) + 1);
    iend = min(n,numObsPerChunk*j);
    idx = ibegin:iend;
    [IncrementalMdl,tf,scores] = fit(IncrementalMdl,Xstream(idx,:));
    medianscore(j) = median(scores);
    numAnom(j) = sum(tf);
    threshold(j) = IncrementalMdl.ScoreThreshold;
end

Analyze Incremental Model During Training

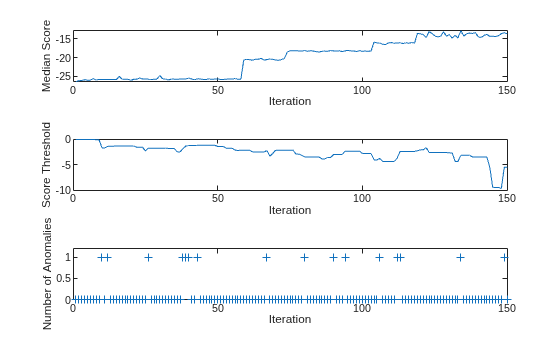

To see how the median score, score threshold, and number of detected anomalies per chunk evolve during training, plot them on separate tiles.

tiledlayout(3,1);
nexttile
plot(medianscore)
ylabel("Median Score")
xlabel("Iteration")
xlim([0 nchunk])
nexttile
plot(threshold)
ylabel("Score Threshold")
xlabel("Iteration")
xlim([0 nchunk])
nexttile
plot(numAnom,"+")
ylabel("Number of Anomalies")
xlabel("Iteration")
xlim([0 nchunk])
ylim([0 max(numAnom)+0.2])

totalAnomalies=sum(numAnom)

totalAnomalies = 16

anomfrac= totalAnomalies/n

anomfrac = 0.0011

The median score remains relatively constant at $$-$$26 for the first 58 iterations, after which it begins to rise. After 9 iterations, the score threshold begins to steadily drop from its initial value of 0. The software detects 16 anomalies in the Xstream data, yielding a total contamination fraction of 0.0011. You can suppress the output of scores and anomalies returned by fit during the initial iterations of incremental learning, when the model is still approaching a steady state, by specifying ScoreWarmupPeriod > 0 when you create IncrementalMdl using incrementalLearner.

Specify SGD Solver and Standardize Data

Train a one-class SVM model by using ocsvm, and convert it to an incremental learner model that uses the stochastic gradient descent solver. Fit the incremental learner model to streaming data, and detect anomalies. Transfer training options from traditional to incremental learning.

Load Data

Load the 1994 census data stored in census1994.mat. The data set consists of demographic data from the US Census Bureau.

load census1994.mat

The fit function of incrementalOneClassSVM does not support categorical predictors and does not use observations with missing values. Remove missing values in the data to reduce memory consumption and speed up training.

adultdata = rmmissing(adultdata);
adulttest = rmmissing(adulttest);

Remove the categorical predictors.

Xtrain = removevars(adultdata,["workClass","education","marital_status", ...
    "occupation","relationship","race","sex","native_country","salary"]);
Xstream = removevars(adulttest,["workClass","education","marital_status", ...
    "occupation","relationship","race","sex","native_country","salary"]);

Train One-Class SVM Model

Fit a one-class SVM model to the training data. Specify a random stream for reproducibility, and an anomaly contamination fraction of 0.001. Set KernelScale to "auto" so that the software selects an appropriate kernel scale parameter using a heuristic procedure.

rng(0,"twister"); % For reproducibility
TTMdl = ocsvm(Xtrain,ContaminationFraction=0.001, ...
    KernelScale="auto",RandomStream=RandStream("mlfg6331_64"), ...
    StandardizeData=true)

TTMdl =
  OneClassSVM

    CategoricalPredictors: []
    ContaminationFraction: 1.0000e-03
           ScoreThreshold: 0.1013
           PredictorNames: {'age'  'fnlwgt'  'education_num'  'capital_gain'  'capital_loss'  'hours_per_week'}
              KernelScale: 2.6954
                   Lambda: 0.1600

TTMdl is a OneClassSVM model object representing a traditionally trained one-class SVM model.

Convert Trained Model

Convert the traditionally trained one-class SVM model to a one-class SVM model for incremental learning. Specify the standard SGD solver and an estimation period of 5000 observations (the default is 1000 when a learning rate is required).

IncrementalMdl = incrementalLearner(TTMdl,Solver="sgd", ...
    EstimationPeriod=5000);
details(IncrementalMdl)

  incrementalOneClassSVM with properties:

                KernelScale: 2.6954
                     Lambda: 0.1600
     NumExpansionDimensions: 256
              SolverOptions: [1x1 struct]
                     Solver: 'sgd'
                 FittedLoss: 'hinge'
                         Mu: [38.4379 1.8979e+05 10.1213 1.0920e+03 88.3725 40.9312]
                      Sigma: [13.1347 1.0565e+05 2.5500 7.4063e+03 404.2984 11.9800]
           EstimationPeriod: 5000
                     IsWarm: 0
      ContaminationFraction: 1.0000e-03
    NumTrainingObservations: 0
              NumPredictors: 6
             ScoreThreshold: 0.1021
          ScoreWarmupPeriod: 0
             PredictorNames: {'age'  'fnlwgt'  'education_num'  'capital_gain'  'capital_loss'  'hours_per_week'}
            ScoreWindowSize: 1000

IncrementalMdl is an incrementalOneClassSVM model object that is ready for incremental learning and anomaly detection.

Fit Incremental Model and Detect Anomalies

Perform incremental learning on the Xstream data by using the fit function. To simulate a data stream, fit the model in chunks of 100 observations at a time. At each iteration:

• Process 100 observations.

• Overwrite the previous incremental model with a new one fitted to the incoming observations.

• Store medianscore, the median score value of the data chunk, to see how it evolves during incremental learning.

• Store threshold, the score threshold value for anomalies, to see how it evolves during incremental learning.

• Store numAnom, the number of detected anomalies in the chunk, to see how it evolves during incremental learning.

n = numel(Xstream(:,1));
numObsPerChunk = 100;
nchunk = floor(n/numObsPerChunk);
medianscore = zeros(nchunk,1);
threshold = zeros(nchunk,1);
numAnom = zeros(nchunk,1);

% Incremental fitting
for j = 1:nchunk
    ibegin = min(n,numObsPerChunk*(j-1) + 1);
    iend = min(n,numObsPerChunk*j);
    idx = ibegin:iend;
    [IncrementalMdl,tf,scores] = fit(IncrementalMdl,Xstream(idx,:));
    medianscore(j) = median(scores);
    numAnom(j) = sum(tf);
    threshold(j) = IncrementalMdl.ScoreThreshold;
end

Analyze Incremental Model During Training

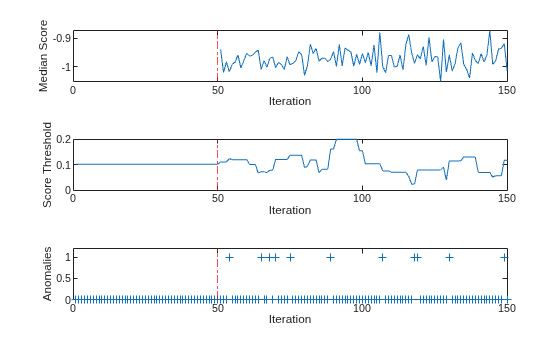

To see how the median score, score threshold, and number of detected anomalies per chunk evolve during training, plot them on separate tiles.

tiledlayout(3,1);
nexttile
plot(medianscore)
ylabel("Median Score")
xlabel("Iteration")
xline(IncrementalMdl.EstimationPeriod/numObsPerChunk,"r-.")
xlim([0 nchunk])
nexttile
plot(threshold)
ylabel("Score Threshold")
xlabel("Iteration")
xline(IncrementalMdl.EstimationPeriod/numObsPerChunk,"r-.")
xlim([0 nchunk])
nexttile
plot(numAnom,"+")
ylabel("Anomalies")
xlabel("Iteration")
xline(IncrementalMdl.EstimationPeriod/numObsPerChunk,"r-.")
xlim([0 nchunk])
ylim([0 max(numAnom)+0.2])

totalanomalies=sum(numAnom)

totalanomalies = 11

anomfrac= totalanomalies/(n-IncrementalMdl.EstimationPeriod)

anomfrac = 0.0011

During the estimation period, fit estimates the learning rate using the observations, and does not fit the model or update the score threshold. After the estimation period, fit updates the model and returns the observation scores and the indices of observations with scores above the score threshold value as anomalies. A negative score value with large magnitude indicates a normal observation, and a large positive value indicates an anomaly. The median score fluctuates between approximately $$-$$1 and $$-$$0.9. The score threshold fluctuates between 0.02 and 0.2. The software detects 11 anomalies in the Xstream data after the estimation period, yielding a total contamination fraction of 0.0011.

Input Arguments

Mdl — Traditionally trained one-class SVM model for anomaly detection

OneClassSVM model object

Traditionally trained one-class SVM model for anomaly detection, specified as a OneClassSVM model object returned by ocsvm.

Note

Incremental learning functions support only numeric input predictor data. If Mdl was trained on categorical data, you must prepare an encoded version of the categorical data to use incremental learning functions. Use dummyvar to convert each categorical variable to a numeric matrix of dummy variables. Then, concatenate all dummy variable matrices and any other numeric predictors, in the same way that the training function encodes categorical data. For more details, see Dummy Variables.

Name-Value Arguments

Specify optional pairs of arguments as Name1=Value1,...,NameN=ValueN, where Name is the argument name and Value is the corresponding value. Name-value arguments must appear after other arguments, but the order of the pairs does not matter.

Example: Solver="scale-invariant",ScoreWarmupPeriod=500 specifies the adaptive scale-invariant solver for objective optimization, and specifies processing 500 observations before the incremental fit function returns scores and detects anomalies.

General Options

EstimationPeriod — Number of observations processed to estimate hyperparameters

nonnegative integer

Number of observations processed by the incremental learner to estimate hyperparameters prior to training, specified as a nonnegative integer.

• When processing observations during the estimation period, the software ignores observations that contain at least one missing value.

• If Mdl is prepared for incremental learning (all hyperparameters required for training are specified), incrementalLearner forces EstimationPeriod to 0.

• If Mdl is not prepared for incremental learning, incrementalLearner sets EstimationPeriod to 1000 and estimates the unknown hyperparameters.

For more details, see Estimation Period.

Example: EstimationPeriod=500

Data Types: single | double

Solver — Objective function minimization technique

"scale-invariant" (default) | "sgd" | "asgd"

This property is read-only.

Objective function minimization technique, specified as a value in this table.

Value	Description	Notes
"scale-invariant"	Adaptive scale-invariant solver for incremental learning [1]	This algorithm is parameter free and can adapt to differences in predictor scales. Try this algorithm before using SGD or ASGD. To shuffle an incoming chunk of data before the fit function fits the model, set Shuffle to true.
"sgd"	Stochastic gradient descent (SGD) [3][2]	To train effectively with SGD, standardize the data and specify adequate values for hyperparameters using options listed in SGD and ASGD Solver Options. The fit function always shuffles an incoming chunk of data before fitting the model.
"asgd"	Average stochastic gradient descent (ASGD) [4]	To train effectively with ASGD, standardize the data and specify adequate values for hyperparameters using options listed in SGD and ASGD Solver Options. The fit function always shuffles an incoming chunk of data before fitting the model.

Data Types: char | string

SGD and ASGD Solver Options

BatchSize — Mini-batch size

10 (default) | positive integer

Mini-batch size for the stochastic solvers, specified as a positive integer. This argument is not valid when Solver is "scale-invariant".

At each learning cycle during training, incrementalLearner uses BatchSize observations to compute the subgradient. The number of observations for the last mini-batch (last learning cycle in each function call of fit) can be smaller than BatchSize. For example, if you specify BatchSize = 10 and supply 25 observations to fit, the function uses 10 observations for the first two learning cycles and uses 5 observations for the last learning cycle.

Example: BatchSize=5

Data Types: single | double

LearnRate — Initial learning rate

"auto" (default) | positive scalar

Initial learning rate, specified as "auto" or a positive scalar. This argument is not valid when Solver is "scale-invariant".

The learning rate controls the optimization step size by scaling the objective subgradient. LearnRate specifies an initial value for the learning rate, and LearnRateSchedule determines the learning rate for subsequent learning cycles.

When you specify "auto":

• The initial learning rate is 0.7.

• If EstimationPeriod > 0, fit changes the rate to 1/sqrt(1+max(sum(X.^2,2))) at the end of EstimationPeriod, where X is the predictor data collected during the estimation period.

Example: LearnRate=0.1

Data Types: single | double | char | string

LearnRateSchedule — Learning rate schedule

"decaying" (default) | "constant"

Learning rate schedule, specified as "decaying" or "constant", where LearnRate specifies the initial learning rate ɣ₀.

Value	Description
"constant"	The learning rate is ɣ0 for all learning cycles.
"decaying"	The learning rate at learning cycle t is $${\gamma }_t=\frac{{\gamma }_0}{{\left(1+\lambda {\gamma }_{0}t\right)}^c}.$$ λ is the value of Lambda. If Solver is "sgd", then c = 1. If Solver is "asgd", then c = 0.75 [4].

Example: LearnRateSchedule="constant"

Data Types: char | string

Adaptive Scale-Invariant Solver Options

Shuffle — Flag for shuffling observations

true or 1 (default) | false or 0

This property is read-only.

Flag for shuffling the observations at each iteration, specified as a value in this table.

Value	Description
1 (true)	The software shuffles the observations in an incoming chunk of data before the fit function fits the model. This action reduces bias induced by the sampling scheme.
0 (false)	The software processes the data in the order received.

This option is valid only when Solver is "scale-invariant". When Solver is "sgd" or "asgd", the software always shuffles the observations in an incoming chunk of data before processing the data.

Example: Shuffle=false

Data Types: logical

Anomaly Score Options

ScoreWarmupPeriod — Warm-up period before score output and anomaly detection

0 (default) | nonnegative integer

Warm-up period before score output and anomaly detection (outside the estimation period, if EstimationPeriod > 0), specified as a nonnegative integer. The ScoreWarmupPeriod value is the number of observations to which the incremental model must be fit before the incremental fit function returns scores and detects anomalies.

Note

When processing observations during the score warm-up period, the software ignores observations that contain at least one missing value.

Data Types: single | double

ScoreWindowSize — Running window size used to estimate threshold

1000 (default) | positive integer

Running window size used to estimate the score threshold (ScoreThreshold), specified as a positive integer. The default ScoreWindowSize value is 1000.

If ScoreWindowSize is greater than the number of observations in the training data, the software determines ScoreThreshold by subsampling from the training data. Otherwise, ScoreThreshold is set to Mdl.ScoreThreshold.

Example: ScoreWindowSize=100

Data Types: single | double

Output Arguments

IncrementalMdl — One-class SVM model for incremental anomaly detection

incrementalOneClassSVM model object

One-class SVM model for incremental anomaly detection, returned as an incrementalOneClassSVM model object.

To initialize IncrementalMdl for incremental anomaly detection, incrementalLearner passes the values of the following properties of Mdl to the corresponding properties of IncrementalMdl.

Property	Description
ContaminationFraction	Fraction of anomalies in the training data, a numeric scalar in the range [0,1]
KernelScale	Kernel scale parameter, a positive scalar
Lambda	Ridge (L2) regularization term strength, a nonnegative scalar. incrementalLearner sets IncrementalMdl.Lambda to NaN if Solver is "scale-invariant".
Mu	Predictor means of the training data, a numeric vector
NumExpansionDimensions	Number of dimensions of the expanded space, a positive integer
PredictorNames	Predictor variable names, a cell array of character vectors
ScoreThreshold	Threshold score for anomalies in the training data, a numeric scalar in the range (–Inf,Inf). If ScoreWindowSize is greater than the number of observations used to train Mdl, then incrementalLearner approximates ScoreThreshold by subsampling from the training data. Otherwise, incrementalLearner passes Mdl.ScoreThreshold to IncrementalMdl.ScoreThreshold.
Sigma	Predictor standard deviations of the training data, a numeric vector

More About

Incremental Learning for Anomaly Detection

Incremental learning, or online learning, is a branch of machine learning concerned with processing incoming data from a data stream, possibly given little to no knowledge of the distribution of the predictor variables, aspects of the prediction or objective function (including tuning parameter values), or whether the observations contain anomalies. Incremental learning differs from traditional machine learning, where enough data is available to fit to a model, perform cross-validation to tune hyperparameters, and infer the predictor distribution.

Anomaly detection is used to identify unexpected events and departures from normal behavior. In situations where the full data set is not immediately available, or new data is arriving, you can use incremental learning for anomaly detection to incrementally train a model so it adjusts to the characteristics of the incoming data.

Given incoming observations, an incremental learning model for anomaly detection does the following:

• Computes anomaly scores

• Updates the anomaly score threshold

• Detects data points above the score threshold as anomalies

• Fits the model to the incoming observations

For more information, see Incremental Anomaly Detection with MATLAB.

Adaptive Scale-Invariant Solver for Incremental Learning

The adaptive scale-invariant solver for incremental learning, introduced in [1], is a gradient-descent-based objective solver for training linear predictive models. The solver is hyperparameter free, insensitive to differences in predictor variable scales, and does not require prior knowledge of the distribution of the predictor variables. These characteristics make it well suited to incremental learning.

The standard SGD and ASGD solvers are sensitive to differing scales among the predictor variables, resulting in models that can perform poorly. To achieve better accuracy using SGD and ASGD, you can standardize the predictor data, and tune the regularization and learning rate parameters. For traditional machine learning, enough data is available to enable hyperparameter tuning by cross-validation and predictor standardization. However, for incremental learning, enough data might not be available (for example, observations might be available only one at a time) and the distribution of the predictors might be unknown. These characteristics make parameter tuning and predictor standardization difficult or impossible to do during incremental learning.

The incremental fitting function for anomaly detection fit uses the more conservative ScInOL1 version of the algorithm.

Algorithms

Estimation Period

During the estimation period, the incremental fitting function fit uses the first incoming EstimationPeriod observations to estimate (tune) hyperparameters required for incremental training. Estimation occurs only when EstimationPeriod is positive. This table describes the hyperparameters and when they are estimated, or tuned.

Hyperparameter	Model Property	Usage	Conditions
Predictor means and standard deviations	Mu and Sigma	Standardize predictor data	The hyperparameters are estimated when both of these conditions apply: The incremental fitting function is configured to standardize predictor data (see Standardize Data). Mdl.Mu and Mdl.Sigma are empty arrays [].
Learning rate	LearnRate	Adjust the solver step size	The hyperparameter is estimated when both of these conditions apply: The solver is SGD or ASGD (see Solver). You do not specify the LearnRate name-value argument as a positive scalar.
Kernel scale parameter	KernelScale	Set a kernel scale parameter value for random feature expansion	The hyperparameter is estimated when you set KernelScale to "auto".

During the estimation period, fit does not fit the model. At the end of the estimation period, the function updates the properties that store the hyperparameters.

Standardize Data

If incremental learning functions are configured to standardize predictor variables, they do so using the means and standard deviations stored in the Mu and Sigma properties of the incremental learning model IncrementalMdl.

• If you standardize the predictor data when you train the input model Mdl by using ocsvm, the following conditions apply:

  • incrementalLearner passes the means in Mdl.Mu and standard deviations in Mdl.Sigma to the corresponding incremental learning model properties.

  • Incremental learning functions always standardize the predictor data.

• When the incremental fitting function estimates predictor means and standard deviations, the function computes weighted means and weighted standard deviations using the estimation period observations. Specifically, the function standardizes predictor j (x_j) using

  $$x_j^{\ast }=\frac{x_j-{\mu }_j^{\ast }}{{\sigma }_j^{\ast }}.$$

  where

  • x_j is predictor j, and x_jk is observation k of predictor j in the estimation period.

  • $${\mu }_j^{\ast }=\frac{1}{{\displaystyle \sum _k{w}_k^{\ast }}}{\displaystyle \sum _k{w}_k^{\ast }{x}_{jk}}.$$

  • $${\left({\sigma }_j^{\ast }\right)}^2=\frac{1}{{\displaystyle \sum _k{w}_k^{\ast }}}{\displaystyle \sum _k{w}_k^{\ast }{\left(x_{jk}-{\mu }_j^{\ast }\right)}^2}.$$

  • $$w_j^{\ast }=\frac{w_j}{{\displaystyle \sum _{\forall j\in \text{Class }k}{w}_j}}{p}_k,$$ where

    • p_k is the prior probability of class k (Prior property of the incremental model).

    • w_j is observation weight j.

References

[1] Kempka, Michał, Wojciech Kotłowski, and Manfred K. Warmuth. "Adaptive Scale-Invariant Online Algorithms for Learning Linear Models." Preprint, submitted February 10, 2019. https://arxiv.org/abs/1902.07528.

[2] Langford, J., L. Li, and T. Zhang. “Sparse Online Learning Via Truncated Gradient.” J. Mach. Learn. Res., Vol. 10, 2009, pp. 777–801.

[3] Shalev-Shwartz, S., Y. Singer, and N. Srebro. “Pegasos: Primal Estimated Sub-Gradient Solver for SVM.” Proceedings of the 24th International Conference on Machine Learning, ICML ’07, 2007, pp. 807–814.

[4] Xu, Wei. “Towards Optimal One Pass Large Scale Learning with Averaged Stochastic Gradient Descent.” CoRR, abs/1107.2490, 2011.

Version History

Introduced in R2023b
