triangulateMultiview

3-D locations of world points matched across multiple images

Syntax

worldPoints = triangulateMultiview(pointTracks,cameraPoses,intrinsics)

[worldPoints,reprojectionErrors] = triangulateMultiview(___)

[worldPoints,reprojectionErrors,validIndex] = triangulateMultiview(___)

Description

worldPoints = triangulateMultiview(pointTracks,cameraPoses,intrinsics) returns the locations of 3-D world points that correspond to points matched across multiple images taken with calibrated cameras. pointTracks specifies an array of matched points. cameraPoses and intrinsics specify camera pose information and intrinsics, respectively. The function does not account for lens distortion.

[worldPoints,reprojectionErrors] = triangulateMultiview(___) additionally returns the mean reprojection error for each 3-D world point using all input arguments in the prior syntax.

[worldPoints,reprojectionErrors,validIndex] = triangulateMultiview(___) additionally returns the indices of valid and invalid world points. Valid points are located in front of the cameras.

Examples

Reconstruct Scene from Multiple Views

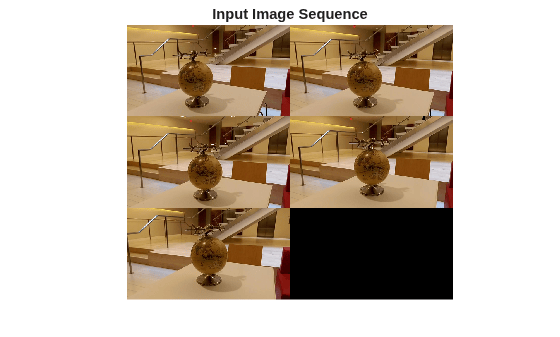

Load images in the workspace.

imageDir = fullfile(toolboxdir("vision"),"visiondata","structureFromMotion");
imds = imageDatastore(imageDir);

Load precomputed camera parameters.

data = load(fullfile(imageDir,"cameraParams.mat"));

Get camera intrinsic parameters.

intrinsics = data.cameraParams.Intrinsics;

Compute features for the first image.

I = im2gray(readimage(imds,1));
I = undistortImage(I,intrinsics);
pointsPrev = detectSURFFeatures(I);
[featuresPrev,pointsPrev] = extractFeatures(I,pointsPrev);

Load camera poses.

poseData = load("sfmCameraPoses.mat");
absPoses = poseData.absPoses;

Create an imageviewset object.

vSet = imageviewset;
vSet = addView(vSet,1,absPoses(1),Points=pointsPrev);

Compute features and matches for the rest of the images.

for i = 2:numel(imds.Files)
  I = im2gray(readimage(imds,i));
  I = undistortImage(I,intrinsics);
  points = detectSURFFeatures(I);
  [features,points] = extractFeatures(I,points);
  vSet = addView(vSet,i,absPoses(i),Points=points);
  pairsIdx = matchFeatures(featuresPrev,features,MatchThreshold=5);
  vSet = addConnection(vSet,i-1,i,Matches=pairsIdx);
  featuresPrev = features;
end

Find point tracks.

tracks = findTracks(vSet);

Get camera poses.

cameraPoses = poses(vSet);

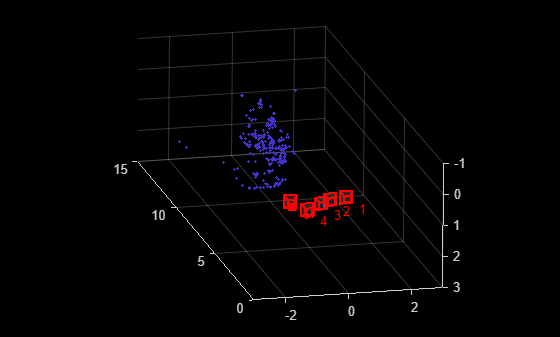

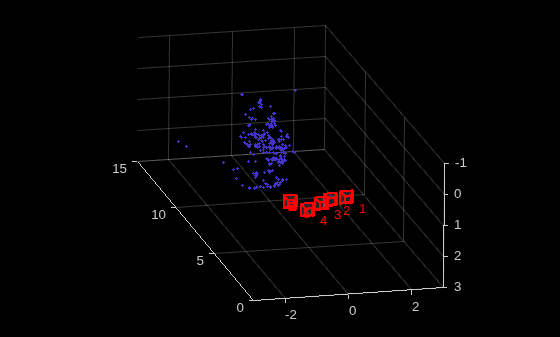

Find 3-D world points.

[xyzPoints,errors] = triangulateMultiview(tracks,cameraPoses,intrinsics);
z = xyzPoints(:,3);
idx = errors < 5 & z > 0 & z < 20;
pcshow(xyzPoints(idx, :),AxesVisibility="on",VerticalAxis="y",VerticalAxisDir="down",MarkerSize=30);
hold on
plotCamera(cameraPoses, Size=0.2);
hold off

Input Arguments

pointTracks — Matched points across multiple images

N-element array of pointTrack objects

Matched points across multiple images, specified as an N-element array of pointTrack objects. Each element contains two or more points that match across multiple images.

cameraPoses — Camera pose information

two-column table

Camera pose information, specified as a two-column table. You can obtain cameraPoses from an imageviewset object by using the poses object function.

Column	Description
ViewID	View identifier in the pointTrack object, specified as an integer.
AbsolutePose	Absolute pose of the view, specified as a rigidtform3d object.

intrinsics — Camera intrinsics

cameraIntrinsics object | M-element vector of cameraIntrinsics objects

Camera intrinsics, specified as a cameraIntrinsics object or an M-element vector of cameraIntrinsics objects. M is the number of camera poses. When all images are captured by the same camera, specify one cameraIntrinsics object. When images are captured by different cameras, specify a vector.

Output Arguments

worldPoints — 3-D world points

N-by-3 matrix

3-D world points, returned as an N-by-3 matrix. Each row represents one 3-D world point and is of the form [x, y, z]. N is the number of 3-D world points.

Data Types: single | double

reprojectionErrors — Reprojection errors

N-element vector

Reprojection errors, returned as an N-element vector. To calculate reprojection errors, first the function projects each world point back into each image. Then, in each image, the function calculates the distance between the detected and the reprojected point. Each element of the reprojectionErrors output is the average reprojection error for the corresponding world point in the worldPoints output.

validIndex — Validity of world points

M-by-1 logical vector

Validity of world points, returned as an M-by-1 logical vector. Valid points, denoted as a logical 1 (true), are located in front of the cameras. Invalid points, denoted as logical 0 (false), are located behind the cameras.

The validity of a world point with respect to the position of a camera is determined by projecting the world point onto the image using the camera matrix and homogeneous coordinates. The world point is valid if the resulting scale factor is positive.

Tips

Before detecting the points, correct the images for lens distortion by using by using the undistortImage function. Alternatively, you can directly undistort the points by using the undistortPoints function.

References

[1] Hartley, Richard, and Andrew Zisserman. Multiple View Geometry in Computer Vision. 2nd ed. Cambridge, UK ; New York: Cambridge University Press, 2003.

Version History

Introduced in R2016a

R2022b: Supports premultiply geometric transformation convention

Starting in R2022b, most Computer Vision Toolbox™ functions create and perform geometric transformations using the premultiply convention. Accordingly, you can now specify the AbsolutePose field of the cameraPoses argument as a rigidtform3d object, which uses the premultiply convention. You can continue to estimate the camera poses using the poses object function of the imageviewset object, which has been updated to support the premultiply convention.

Although you can still specify AbsolutePose as a rigid3d object, this object is not recommended because it uses the postmultiply convention. You can streamline your geometric transformation workflows by switching to the premultiply geometric transformation convention. For more information, see Migrate Geometric Transformations to Premultiply Convention.

You can no longer specify cameraPoses as a three-column table with fields ViewID, Orientation, and Location. This table format is not supported because there is not enough information to determine whether the 3-by-3 rotation matrix in the Orientation field is intended for the premultiply or postmultiply convention.
