hanscalf

Han real orthogonal scaling filters with sum and linear-phase moments

Since R2022b

    Description

    example

    scalf = hanscalf(wname) returns the Han real-valued orthogonal scaling filter corresponding to wname.

    Examples

    collapse all

    Obtain the scaling filter corresponding to the Han real orthogonal wavelet with five sum rules and five linear-phase moments.

    scalf = hanscalf("han5.5");

    Use orthfilt to obtain the scaling and wavelet filters corresponding to the wavelet.

    [LoD,HiD,LoR,HiR] = orthfilt(scalf);

    Confirm the filters form an orthonormal perfect reconstruction wavelet filter bank.

    [tf,checks] = isorthwfb(LoD)
    tf = logical
       1


    checks=7×3 table
                                              Pass-Fail    Maximum Error    Test Tolerance
                                              _________    _____________    ______________

        Equal-length filters                    pass                 0                 0
        Even-length filters                     pass                 0                 0
        Unit-norm filters                       pass        1.2146e-13        1.4901e-08
        Filter sums                             pass        2.1645e-13        1.4901e-08
        Even and odd downsampled sums           pass        1.0836e-13        1.4901e-08
        Zero autocorrelation at even lags       pass        1.2484e-13        1.4901e-08
        Zero crosscorrelation at even lags      pass        2.1922e-17        1.4901e-08



    Create two discrete wavelet transform filter banks, one using the Han wavelet, and the other using the Haar wavelet. Specify a single level of decomposition for both filter banks. Plot the one-sided magnitude frequency responses of both filter banks. The Han wavelet has a larger frequency separation between the wavelet and scaling filters than the Haar wavelet.

    fbHan = dwtfilterbank(Wavelet="han5.5",Level=1);
    fbHaar = dwtfilterbank(Wavelet="haar",Level=1);
    freqz(fbHan)

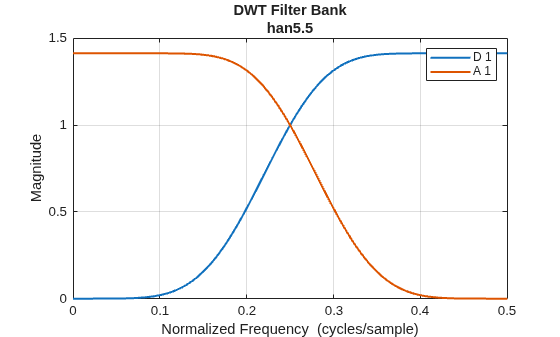

    Figure contains an axes object. The axes object with title DWT Filter Bank han5.5, xlabel Normalized Frequency (cycles/sample), ylabel Magnitude contains 2 objects of type line. These objects represent D 1, A 1.

    figure
    freqz(fbHaar)

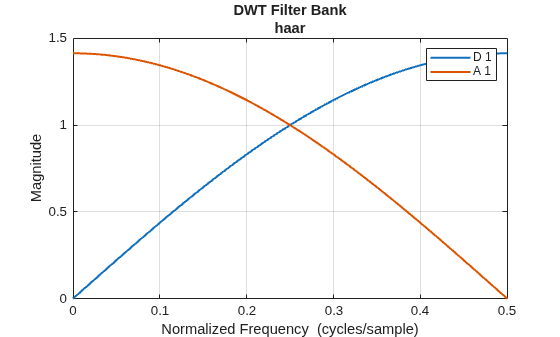

    Figure contains an axes object. The axes object with title DWT Filter Bank haar, xlabel Normalized Frequency (cycles/sample), ylabel Magnitude contains 2 objects of type line. These objects represent D 1, A 1.

    Input Arguments

    collapse all

    Han scaling filter, specified as "hanSR.LP", where SR is the number of sum rules, and LP is the number of linear-phase moments. wname can be "han2.3", "han3.3", "han4.5", or "han5.5". For information on the filter properties, see Han Real Orthogonal Scaling Filters.

    Output Arguments

    collapse all

    Scaling filter corresponding to wname, returned as a vector. scalf should be used in conjunction with orthfilt to obtain scaling and wavelet filters with the proper normalization.

    Data Types: double

    More About

    collapse all

    Han Real Orthogonal Scaling Filters

    Han filters are characterized by their order of sum rules, linear-phase moments, and phase. This table lists the filter specifications for the valid values of wname.

    wnameOrder of Sum RulesNumber of Linear-Phase MomentsNormalized Variance of Filter Impulse ResponseFrequency Separation Between Scaling and Wavelet FilterLength
    "han2.3" 230.4650.81566
    "han2.3"230.4260.85408
    "han4.5"450.4880.856310
    "han5.5"550.5300.886714

    Frequency separation is a number between 0 and 1, where 0 indicates the filters are perfectly matched and 1 indicates they are perfectly separated in frequency. As a point of reference, the Haar ("db1") wavelet filter has the smallest normalized variance of all wavelet filters with 0.25 and poorest frequency separation with 0.666. An example of a scaling and wavelet filter pair with a relatively large frequency separation is the Fejér-Korovkin ("fk22") 22-coefficient filter with a value of 0.9522.

    References

    [1] Han, Bin. “Wavelet Filter Banks.” In Framelets and Wavelets: Algorithms, Analysis, and Applications, 92–98. Applied and Numerical Harmonic Analysis. Cham, Switzerland: Birkhäuser, 2017. https://doi.org/10.1007/978-3-319-68530-4_2.

    Extended Capabilities

    C/C++ Code Generation
    Generate C and C++ code using MATLAB® Coder™.
