Digilent Analog Discovery Support from MATLAB

Low-cost hardware development platform for analog circuit design using Data Acquisition Toolbox

Capabilities and Features

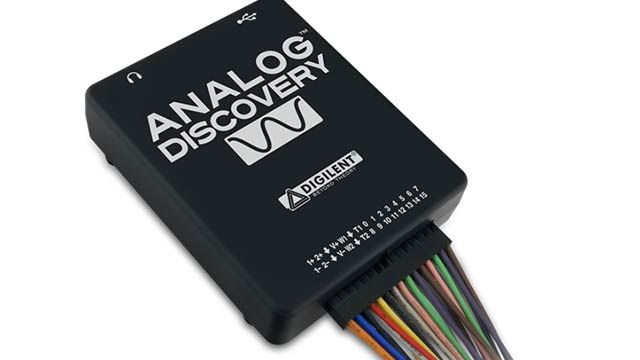

MATLAB supports the Digilent Analog Discovery™ design kit, a low-cost, portable USB DAQ device. The kit enables project-based learning for analog circuit design. For professors and course instructors, the kit comes with downloadable teaching materials, reference designs, and lab projects.

Data Acquisition Toolbox Support Package for Digilent Analog Discovery hardware lets you perform the following tasks in MATLAB:

  • Read data from the two oscilloscope channels (analog input)
  • Control and generate data from the two waveform generators (analog output)
  • Configure the sampling rate of the Analog Discovery device
  • Find and display Digilent Analog Discovery device settings

Note: The support package does not support the use of Simulink Data Acquisition blocks for Digilent Analog Discovery hardware.

Supported Hardware

Hardware Model MATLAB Releases Supported
Analog Discovery (LEGACY) R2013a - Current
Analog Discovery 2 R2018a - Current

Platform and Release Support

See the hardware support package system requirements table for current and prior version, release, and platform availability.

This support package is available for R2013a and later releases. For earlier releases, view prior release support.
