What Is DVB-S2?

Digital Video Broadcasting Satellite Second Generation (DVB-S2) is a physical layer standard to support high-data-rate satellite communications in space. It provides specifications for framing structure, channel coding, modulation systems, and spectrum efficiency. DVB-S2 is a significant upgrade to the first-generation Digital Video Broadcasting Satellite (DVB-S) standard. The DVB-S2 standard can support a wide range of applications, including:

  • Newsgathering from remote locations
  • HDTV broadcast services
  • Internet access
  • Cellular backhauling
  • Government and defense networks

Some DVB-S2 characteristics that enable high throughput are:

  • Forward error correction based on low-density parity check (LDPC) codes concatenated with Bose, Chaudhuri, and Hocquenghem (BCH) codes
  • Adaptive coding and modulation (ACM) based on channel conditions
  • 28 combinations of modulation and code rates (MODCODs)
  • Signal constellations optimized for linear and nonlinear channels
  • Variable bandwidth spectrum shaping that maximizes spectrum efficiency

MATLAB® has tools for simulating, analyzing, and testing satellite communications systems and links that comply with DVB-S2.

Using Modeling and Simulation to Design DVB-S2 Systems

Figure 1 shows the components that must be modeled and simulated to design a DVB-S2 system. Signals representing a DVB-S2 transmitter are created by waveform generator. RF impairments typical of satellite communications channels are represented by mathematical models such as Additive White Gaussian Noise (AWGN), carrier frequency offset (CFO), and sample clock offset (SCO). The models allow engineers to explore design tradeoffs and test ideas in their DVB-S2 receiver designs. MATLAB provides functions and apps that implement these capabilities.

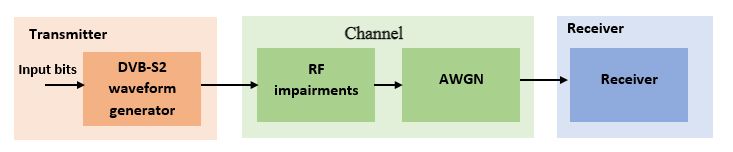

Block diagram showing high-level transceiver architecture for a DVB-S2 signal, with a waveform generator, a channel that includes RF impairments, and a receiver that corrects those impairments.

Figure 1. Modeling and simulation components for designing a DVB-S2 receiver in MATLAB. The transmitter is modeled with waveform generation, and the channel is modeled as RF impairments along with AWGN.

DVB-S2 Waveform Generation

DVB-S2 waveform generation is required to design, test, and refine a DVB-S2 receiver. DVB-S2 waveforms can be generated in MATLAB using dvbs2WaveformGenerator. Major elements of DVB-S2 waveforms that adhere to the ETSI EN 302 307-1 V1.4.1 standard include the following.

  • Input stream format:
    1. Transport stream — Fixed packet length for MPEG payload delivery
    2. Generic stream — Variable packet length for multiprotocol encapsulation (IPv4, IPv6, MPEG, etc.)
  • Modulation type and code rate: Determined by MODCOD per Table 12 of ETSI EN 302 307-1 V1.4.1
  • Roll-off factor:
    1. Supported roll-off factors are 0.2, 0.25, and 0.35
    2. Symbol rate calculated as \(B\)/(\(1\)+\(R\)), where \(B\) is the channel bandwidth, and \(R\) is the transmit filter roll-off factor
  • Pilot symbols: Optionally added at the transmitter for carrier recovery at the receiver

RF Impairments in a Typical DVB-S2 Signal

DVB-S2 links suffer from several significant RF impairments, such as weather events, low-quality oscillators, thermal noise, and Doppler shift due to satellite velocity. The following RF impairments associated with DVB-S2 satellite links can be generated in MATLAB:

  • Phase noise: Describes oscillator stability in the frequency domain
  • CFO:
    1. With low-Earth orbit satellites, CFO can be as high as 20% of the symbol rate, as shown in Figure 2
    2. comm.PhaseFrequencyOffset can be used to simulate CFO
  • SCO: Caused by misalignment of transmitter and receiver sampling clocks
  • AWGN: awgn can be used to generate thermal noise

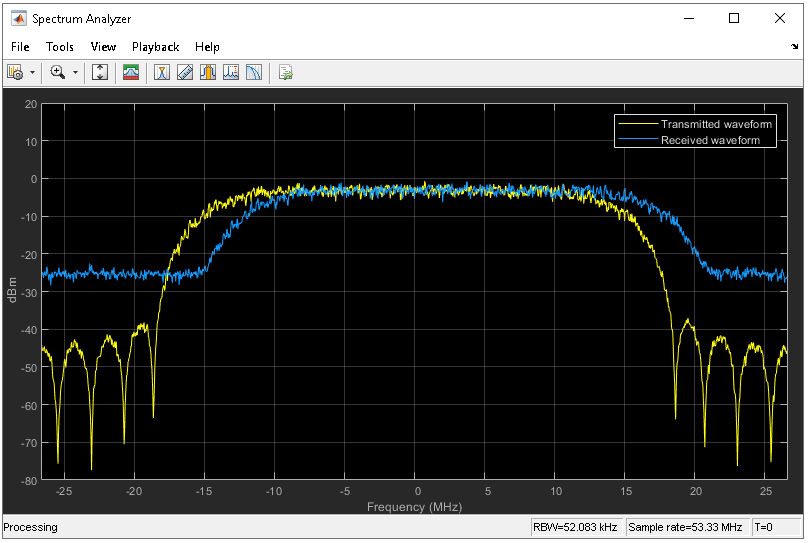

MATLAB spectrum analyzer plot showing transmitted and received DVB-S2 signals. Frequency in MHz is on the x-axis and power in dBm is on the y-axis. The received signal shows significant carrier frequency offset.

Figure 2. Plot of transmitted and received DVB-S2 spectra in MATLAB using Spectrum Analyzer, where the received signal is affected by significant CFO.

DVB-S2 Receiver Design

Because of the large CFO in DVB-S2 links, receiver algorithms include separate coarse and fine frequency impairment correction blocks. The Coarse Frequency block is applied even before matched filtering so that the matched filter filters only noise and not the desired signal. A more detailed description of receiver design can be found in the example End-to-End DVB-S2 Simulation. Figure 3 shows a typical dataflow for a DVB-S2 receiver.

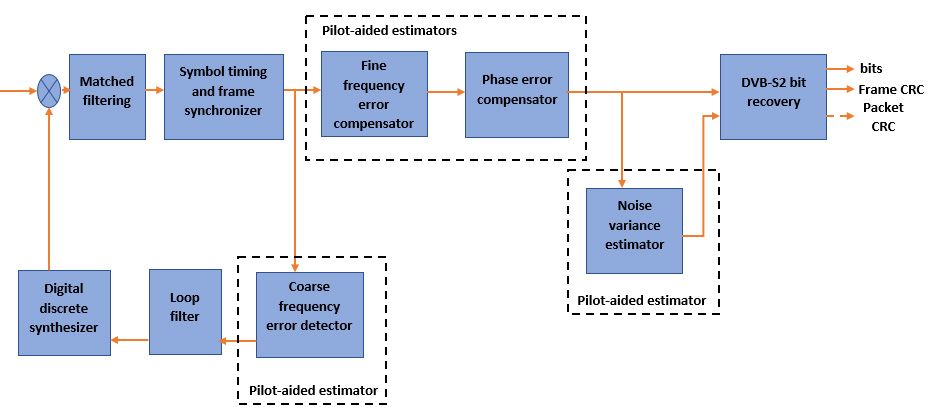

Block diagram of a DVB-S2 receiver in MATLAB, with multiple synchronization loops.

Figure 3. Typical dataflow for a DVB-S2 receiver in MATLAB.

Figure 4 shows a DVB-S2 constellation diagram of received and synchronized data for 32APSK (amplitude phase shift keying) in MATLAB. Four additional points between the two outermost rings are QPSK pilot symbols, encircled in red. This constellation is captured with Es/No at 20 dB, a 3 MHz CFO, 5 ppm SCO, and a 36 MHz bandwidth.

DVB-S2 received constellation and synchronized constellation plot diagrams showing 32APSK payload data and QPSK pilot data, which is circled in red for emphasis. On both plots, in-phase amplitude is on the x-axis and quadrature amplitude is on the y-axis.

Figure 4. DVB-S2 constellation plot diagram of received data (left) and synchronized data (right) for 32APSK in MATLAB using the  scatterplot function.

DVB-S2X — An Extension to DVB-S2

The Digital Video Broadcasting Satellite Second Generation Extended (DVB-S2X) standard enhances the support provided for core DVB-S2 applications and improves overall efficiency of communication through satellite links. The DVB-S2X standard supports these additional features:

  • More granularity of modulation and code rates, supporting 116 MODCODs
  • Smaller filter roll-off options for better bandwidth utilization
  • Higher order modulation schemes (64APSK, 128APSK, 256APSK)
  • More scrambling options for critical co-channel interference scenarios due to high-data-rate requirements, many TV channels, and other neighboring services
  • Very low signal-to-noise ratio (VL-SNR) mode for mobile applications

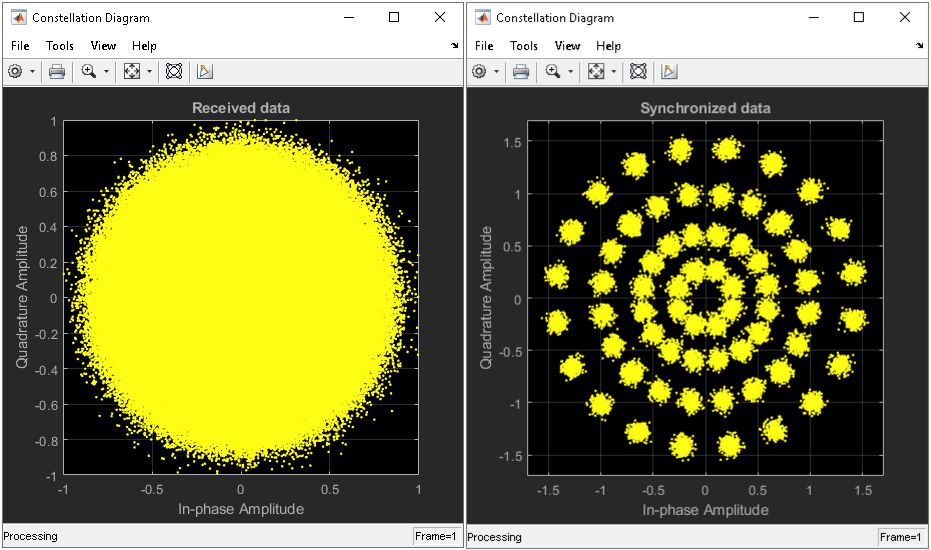

Figure 5 shows a DVB-S2X constellation diagram of received and synchronized data for 64APSK in MATLAB. The constellation is captured with Es/No at 25 dB, a 2 MHz CFO, 2 ppm SCO, and a 36 MHz bandwidth.

DVB-S2X received constellation and synchronized constellation plots showing 64APSK payload data. On both, in-phase amplitude is on the x-axis and quadrature amplitude is on the y-axis.

Figure 5. DVB-S2X constellation plot diagram of received data (left) and synchronized data (right) for 64APSK in MATLAB using the scatterplot function.

The dvbs2xWaveformGenerator implements a DVB-S2X waveform generation compliant with ETSI EN 302 307-2. You can find more information on DVB-S2X in the example End-to-End DVB-S2X Simulation. DVB-S2X receiver and transmitter designs follow the same workflows as discussed earlier for DVB-S2.

Why Are DVB-S2 and DVB-S2X Important?

  • DVB-S2 and DVB-S2X were established for use in modern applications such as high-quality video broadcasting and satellite internet
  • DVB-S2 and DVB-S2X have capitalized on recent hardware improvements and offer high-spectrum efficiency
  • DVB-S2 has been widely adopted since its advent in 2005 and is likely to remain relevant for many years with the additional features in DVB-S2X


MATLAB and Satellite Communications Toolbox include functionalities to design and test DVB-S2 and DVB-S2X waveforms and their receivers. You can use MATLAB to:

  • Generate DVB-S2 and DVB-S2X standard waveforms
  • Add RF impairments to the transmitted DVB-S2 and DVB-S2X signals
  • Design optimal receivers for DVB-S2 and DVB-S2X
  • Design, test, and perform end-to-end link-level simulation of DVB-S2 and DVB-S2X systems
  • Generate portable C/C++ source code using MATLAB Coder™ to speed up processing and incorporate algorithms designed in MATLAB into legacy C/C++ code for deployment
