bilstmLayer

Bidirectional long short-term memory (BiLSTM) layer for recurrent neural network (RNN)

Description

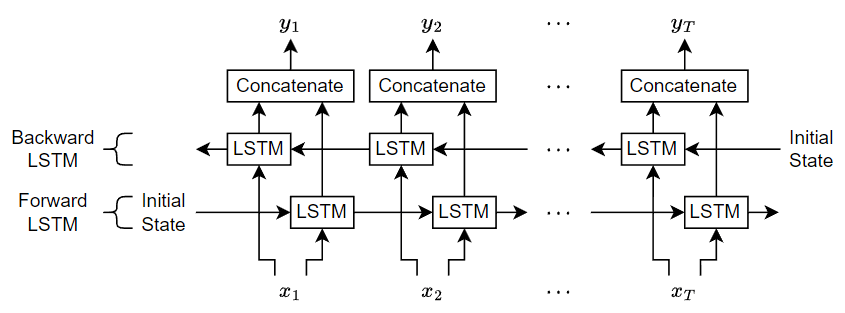

A bidirectional LSTM (BiLSTM) layer is an RNN layer that learns bidirectional long-term dependencies between time steps of time-series or sequence data. These dependencies can be useful when you want the RNN to learn from the complete time series at each time step.

Creation

Syntax

layer = bilstmLayer(numHiddenUnits)

layer = bilstmLayer(numHiddenUnits,Name,Value)

Description

layer = bilstmLayer(numHiddenUnits) creates a bidirectional LSTM layer and sets the NumHiddenUnits property.

layer = bilstmLayer(numHiddenUnits,Name,Value) sets additional OutputMode, Activations, State, Parameters and Initialization, Learning Rate and Regularization, and Name properties using one or more name-value pair arguments. You can specify multiple name-value pair arguments. Enclose each property name in quotes.

Properties

BiLSTM

NumHiddenUnits — Number of hidden units

positive integer

Number of hidden units (also known as the hidden size), specified as a positive integer.

The number of hidden units corresponds to the amount of information that the layer remembers between time steps (the hidden state). The hidden state can contain information from all the previous time steps, regardless of the sequence length. If the number of hidden units is too large, then the layer can overfit to the training data.

The hidden state does not limit the number of time steps that the layer processes in an iteration. To split your sequences into smaller sequences for when you use the trainnet and trainNetwork functions, use the SequenceLength training option.

The layer outputs data with NumHiddenUnits channels.

To set this property, use the corresponding name-value argument when you create the BiLSTMLayer object. After you create a BiLSTMLayer object, this property is read-only.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

OutputMode — Output mode

"sequence" (default) | "last"

Output mode, specified as one of these values:

• "sequence" — Output the complete sequence.

• "last" — Output the last time step of the sequence.

The BiLSTMLayer object stores this property as a character vector.

To set this property, use the corresponding name-value argument when you create the BiLSTMLayer object. After you create a BiLSTMLayer object, this property is read-only.

HasStateInputs — Flag for state inputs to layer

0 (false) (default) | 1 (true)

This property is read-only.

Flag for state inputs to the layer, specified as 0 (false) or 1 (true).

If the HasStateInputs property is 0 (false), then the layer has one input with the name "in", which corresponds to the input data. In this case, the layer uses the HiddenState and CellState properties for the layer operation.

If the HasStateInputs property is 1 (true), then the layer has three inputs with the names "in", "hidden", and "cell", which correspond to the input data, hidden state, and cell state, respectively. In this case, the layer uses the values passed to these inputs for the layer operation. If HasStateInputs is 1 (true), then the HiddenState and CellState properties must be empty.

HasStateOutputs — Flag for state outputs from layer

0 (false) (default) | 1 (true)

This property is read-only.

Flag for state outputs from the layer, specified as 0 (false) or 1 (true).

If the HasStateOutputs property is 0 (false), then the layer has one output with the name "out", which corresponds to the output data.

If the HasStateOutputs property is 1 (true), then the layer has three outputs with the names "out", "hidden", and "cell", which correspond to the output data, hidden state, and cell state, respectively. In this case, the layer also outputs the state values that it computes.

InputSize — Input size

"auto" (default) | positive integer

This property is read-only.

Input size, specified as a positive integer or "auto". If InputSize is "auto", then the software automatically assigns the input size at training time.

If InputSize is "auto", then the BiLSTMLayer object stores this property as a character vector.

Data Types: double | char | string

Activations

StateActivationFunction — Activation function to update cell and hidden state

"tanh" (default) | "softsign"

This property is read-only.

Activation function to update the cell and hidden state, specified as one of these values:

• "tanh" — Use the hyperbolic tangent function (tanh).

• "softsign" — Use the softsign function $$\text{softsign}(x)=\frac{x}{1+\left|x\right|}$$.

The layer uses this option as the function $${\sigma }_c$$ in the calculations to update the cell and hidden state. For more information on how an LSTM layer uses activation functions, see Long Short-Term Memory Layer.

The BiLSTMLayer object stores this property as a character vector.

GateActivationFunction — Activation function to apply to gates

"sigmoid" (default) | "hard-sigmoid"

Activation function to apply to the gates, specified as one of these values:

• "sigmoid" — Use the sigmoid function, $$\sigma (x)={(1+e^{-x})}^{-1}$$.

• "hard-sigmoid" — Use the hard sigmoid function,

  $$\sigma (x)=\{\begin{array}{cc}\begin{array}{l}0\hfill \\ 0.2x+0.5\hfill \\ 1\hfill \end{array}& \begin{array}{l}\text{if }x<-2.5\hfill \\ \text{if}-2.5\le x\le 2.5\hfill \\ \text{if }x>2.5\hfill \end{array}\end{array}.$$

The layer uses this option as the function $${\sigma }_g$$ in the calculations for the layer gates.

The BiLSTMLayer object stores this property as a character vector.

To set this property, use the corresponding name-value argument when you create the BiLSTMLayer object. After you create a BiLSTMLayer object, this property is read-only.

State

CellState — Cell state

numeric vector

Cell state to use in the layer operation, specified as a 2*NumHiddenUnits-by-1 numeric vector. This value corresponds to the initial cell state when data is passed to the layer.

After setting this property manually, calls to the resetState function set the cell state to this value.

If HasStateInputs is true, then the CellState property must be empty.

Data Types: single | double

HiddenState — Hidden state

numeric vector

Hidden state to use in the layer operation, specified as a 2*NumHiddenUnits-by-1 numeric vector. This value corresponds to the initial hidden state when data is passed to the layer.

After setting this property manually, calls to the resetState function set the hidden state to this value.

If HasStateInputs is true, then the HiddenState property must be empty.

Data Types: single | double

Parameters and Initialization

InputWeightsInitializer — Function to initialize input weights

'glorot' (default) | 'he' | 'orthogonal' | 'narrow-normal' | 'zeros' | 'ones' | function handle

Function to initialize the input weights, specified as one of the following:

• 'glorot' – Initialize the input weights with the Glorot initializer [1] (also known as Xavier initializer). The Glorot initializer independently samples from a uniform distribution with zero mean and variance 2/(InputSize + numOut), where numOut = 8*NumHiddenUnits.

• 'he' – Initialize the input weights with the He initializer [2]. The He initializer samples from a normal distribution with zero mean and variance 2/InputSize.

• 'orthogonal' – Initialize the input weights with Q, the orthogonal matrix given by the QR decomposition of Z = QR for a random matrix Z sampled from a unit normal distribution. [3]

• 'narrow-normal' – Initialize the input weights by independently sampling from a normal distribution with zero mean and standard deviation 0.01.

• 'zeros' – Initialize the input weights with zeros.

• 'ones' – Initialize the input weights with ones.

• Function handle – Initialize the input weights with a custom function. If you specify a function handle, then the function must be of the form weights = func(sz), where sz is the size of the input weights.

The layer only initializes the input weights when the InputWeights property is empty.

Data Types: char | string | function_handle

RecurrentWeightsInitializer — Function to initialize recurrent weights

'orthogonal' (default) | 'glorot' | 'he' | 'narrow-normal' | 'zeros' | 'ones' | function handle

Function to initialize the recurrent weights, specified as one of the following:

• 'orthogonal' – Initialize the input weights with Q, the orthogonal matrix given by the QR decomposition of Z = QR for a random matrix Z sampled from a unit normal distribution. [3]

• 'glorot' – Initialize the recurrent weights with the Glorot initializer [1] (also known as Xavier initializer). The Glorot initializer independently samples from a uniform distribution with zero mean and variance 2/(numIn + numOut), where numIn = NumHiddenUnits and numOut = 8*NumHiddenUnits.

• 'he' – Initialize the recurrent weights with the He initializer [2]. The He initializer samples from a normal distribution with zero mean and variance 2/NumHiddenUnits.

• 'narrow-normal' – Initialize the recurrent weights by independently sampling from a normal distribution with zero mean and standard deviation 0.01.

• 'zeros' – Initialize the recurrent weights with zeros.

• 'ones' – Initialize the recurrent weights with ones.

• Function handle – Initialize the recurrent weights with a custom function. If you specify a function handle, then the function must be of the form weights = func(sz), where sz is the size of the recurrent weights.

The layer only initializes the recurrent weights when the RecurrentWeights property is empty.

Data Types: char | string | function_handle

BiasInitializer — Function to initialize bias

"unit-forget-gate" (default) | "narrow-normal" | "ones" | function handle

Function to initialize the bias, specified as one of these values:

• "unit-forget-gate" — Initialize the forget gate bias with ones and the remaining biases with zeros.

• "narrow-normal" — Initialize the bias by independently sampling from a normal distribution with zero mean and a standard deviation of 0.01.

• "ones" — Initialize the bias with ones.

• Function handle — Initialize the bias with a custom function. If you specify a function handle, then the function must be of the form bias = func(sz), where sz is the size of the bias.

The layer only initializes the bias when the Bias property is empty.

The BiLSTMLayer object stores this property as a character vector or a function handle.

Data Types: char | string | function_handle

InputWeights — Input weights

[] (default) | matrix

Input weights, specified as a matrix.

The input weight matrix is a concatenation of the eight input weight matrices for the components (gates) in the bidirectional LSTM layer. The eight matrices are concatenated vertically in the following order:

1. Input gate (Forward)

2. Forget gate (Forward)

3. Cell candidate (Forward)

4. Output gate (Forward)

5. Input gate (Backward)

6. Forget gate (Backward)

7. Cell candidate (Backward)

8. Output gate (Backward)

The input weights are learnable parameters. When you train a neural network using the trainnet or trainNetwork function, if InputWeights is nonempty, then the software uses the InputWeights property as the initial value. If InputWeights is empty, then the software uses the initializer specified by InputWeightsInitializer.

At training time, InputWeights is an 8*NumHiddenUnits-by-InputSize matrix.

Data Types: single | double

RecurrentWeights — Recurrent weights

[] (default) | matrix

Recurrent weights, specified as a matrix.

The recurrent weight matrix is a concatenation of the eight recurrent weight matrices for the components (gates) in the bidirectional LSTM layer. The eight matrices are concatenated vertically in the following order:

1. Input gate (Forward)

2. Forget gate (Forward)

3. Cell candidate (Forward)

4. Output gate (Forward)

5. Input gate (Backward)

6. Forget gate (Backward)

7. Cell candidate (Backward)

8. Output gate (Backward)

The recurrent weights are learnable parameters. When you train an RNN using the trainnet or trainNetwork function, if RecurrentWeights is nonempty, then the software uses the RecurrentWeights property as the initial value. If RecurrentWeights is empty, then the software uses the initializer specified by RecurrentWeightsInitializer.

At training time, RecurrentWeights is an 8*NumHiddenUnits-by-NumHiddenUnits matrix.

Data Types: single | double

Bias — Layer biases

[] (default) | numeric vector

Layer biases, specified as a numeric vector.

The bias vector is a concatenation of the eight bias vectors for the components (gates) in the bidirectional LSTM layer. The eight vectors are concatenated vertically in the following order:

1. Input gate (Forward)

2. Forget gate (Forward)

3. Cell candidate (Forward)

4. Output gate (Forward)

5. Input gate (Backward)

6. Forget gate (Backward)

7. Cell candidate (Backward)

8. Output gate (Backward)

The layer biases are learnable parameters. When you train a neural network, if Bias is nonempty, then the trainnet and trainNetwork functions use the Bias property as the initial value. If Bias is empty, then software uses the initializer specified by BiasInitializer.

At training time, Bias is an 8*NumHiddenUnits-by-1 numeric vector.

Data Types: single | double

Learning Rate and Regularization

InputWeightsLearnRateFactor — Learning rate factor for input weights

1 (default) | numeric scalar | 1-by-8 numeric vector

Learning rate factor for the input weights, specified as a numeric scalar or a 1-by-8 numeric vector.

The software multiplies this factor by the global learning rate to determine the learning rate factor for the input weights of the layer. For example, if InputWeightsLearnRateFactor is 2, then the learning rate factor for the input weights of the layer is twice the current global learning rate. The software determines the global learning rate based on the settings you specify with the trainingOptions function.

To control the value of the learning rate factor for the four individual matrices in InputWeights, assign a 1-by-8 vector, where the entries correspond to the learning rate factor of the following:

1. Input gate (Forward)

2. Forget gate (Forward)

3. Cell candidate (Forward)

4. Output gate (Forward)

5. Input gate (Backward)

6. Forget gate (Backward)

7. Cell candidate (Backward)

8. Output gate (Backward)

To specify the same value for all the matrices, specify a nonnegative scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

RecurrentWeightsLearnRateFactor — Learning rate factor for recurrent weights

1 (default) | numeric scalar | 1-by-8 numeric vector

Learning rate factor for the recurrent weights, specified as a numeric scalar or a 1-by-8 numeric vector.

The software multiplies this factor by the global learning rate to determine the learning rate for the recurrent weights of the layer. For example, if RecurrentWeightsLearnRateFactor is 2, then the learning rate for the recurrent weights of the layer is twice the current global learning rate. The software determines the global learning rate based on the settings you specify using the trainingOptions function.

To control the value of the learn rate for the four individual matrices in RecurrentWeights, assign a 1-by-8 vector, where the entries correspond to the learning rate factor of the following:

1. Input gate (Forward)

2. Forget gate (Forward)

3. Cell candidate (Forward)

4. Output gate (Forward)

5. Input gate (Backward)

6. Forget gate (Backward)

7. Cell candidate (Backward)

8. Output gate (Backward)

To specify the same value for all the matrices, specify a nonnegative scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

BiasLearnRateFactor — Learning rate factor for biases

1 (default) | nonnegative scalar | 1-by-8 numeric vector

Learning rate factor for the biases, specified as a nonnegative scalar or a 1-by-8 numeric vector.

The software multiplies this factor by the global learning rate to determine the learning rate for the biases in this layer. For example, if BiasLearnRateFactor is 2, then the learning rate for the biases in the layer is twice the current global learning rate. The software determines the global learning rate based on the settings you specify using the trainingOptions function.

To control the value of the learning rate factor for the four individual matrices in Bias, assign a 1-by-8 vector, where the entries correspond to the learning rate factor of the following:

1. Input gate (Forward)

2. Forget gate (Forward)

3. Cell candidate (Forward)

4. Output gate (Forward)

5. Input gate (Backward)

6. Forget gate (Backward)

7. Cell candidate (Backward)

8. Output gate (Backward)

To specify the same value for all the matrices, specify a nonnegative scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

InputWeightsL2Factor — L2 regularization factor for input weights

1 (default) | numeric scalar | 1-by-8 numeric vector

L2 regularization factor for the input weights, specified as a numeric scalar or a 1-by-8 numeric vector.

The software multiplies this factor by the global L₂ regularization factor to determine the L₂ regularization factor for the input weights of the layer. For example, if InputWeightsL2Factor is 2, then the L₂ regularization factor for the input weights of the layer is twice the current global L₂ regularization factor. The software determines the L₂ regularization factor based on the settings you specify using the trainingOptions function.

To control the value of the L2 regularization factor for the four individual matrices in InputWeights, assign a 1-by-8 vector, where the entries correspond to the L2 regularization factor of the following:

1. Input gate (Forward)

2. Forget gate (Forward)

3. Cell candidate (Forward)

4. Output gate (Forward)

5. Input gate (Backward)

6. Forget gate (Backward)

7. Cell candidate (Backward)

8. Output gate (Backward)

To specify the same value for all the matrices, specify a nonnegative scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

RecurrentWeightsL2Factor — L2 regularization factor for recurrent weights

1 (default) | numeric scalar | 1-by-8 numeric vector

L2 regularization factor for the recurrent weights, specified as a numeric scalar or a 1-by-8 numeric vector.

The software multiplies this factor by the global L₂ regularization factor to determine the L₂ regularization factor for the recurrent weights of the layer. For example, if RecurrentWeightsL2Factor is 2, then the L₂ regularization factor for the recurrent weights of the layer is twice the current global L₂ regularization factor. The software determines the L₂ regularization factor based on the settings you specify using the trainingOptions function.

To control the value of the L2 regularization factor for the four individual matrices in RecurrentWeights, assign a 1-by-8 vector, where the entries correspond to the L2 regularization factor of the following:

1. Input gate (Forward)

2. Forget gate (Forward)

3. Cell candidate (Forward)

4. Output gate (Forward)

5. Input gate (Backward)

6. Forget gate (Backward)

7. Cell candidate (Backward)

8. Output gate (Backward)

To specify the same value for all the matrices, specify a nonnegative scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

BiasL2Factor — L2 regularization factor for biases

0 (default) | nonnegative scalar | 1-by-8 numeric vector

L2 regularization factor for the biases, specified as a nonnegative scalar.

The software multiplies this factor by the global L₂ regularization factor to determine the L₂ regularization for the biases in this layer. For example, if BiasL2Factor is 2, then the L₂ regularization for the biases in this layer is twice the global L₂ regularization factor. The software determines the global L₂ regularization factor based on the settings you specify using the trainingOptions function.

To control the value of the L2 regularization factor for the four individual matrices in Bias, assign a 1-by-8 vector, where the entries correspond to the L2 regularization factor of the following:

1. Input gate (Forward)

2. Forget gate (Forward)

3. Cell candidate (Forward)

4. Output gate (Forward)

5. Input gate (Backward)

6. Forget gate (Backward)

7. Cell candidate (Backward)

8. Output gate (Backward)

To specify the same value for all the matrices, specify a nonnegative scalar.

Data Types: single | double | int8 | int16 | int32 | int64 | uint8 | uint16 | uint32 | uint64

Layer

Name — Layer name

"" (default) | character vector | string scalar

Layer name, specified as a character vector or a string scalar. For Layer array input, the trainnet, trainNetwork, assembleNetwork, layerGraph, and dlnetwork functions automatically assign names to layers with the name "".

The BiLSTMLayer object stores this property as a character vector.

Data Types: char | string

NumInputs — Number of inputs

1 | 3

This property is read-only.

Number of inputs to the layer.

If the HasStateInputs property is 0 (false), then the layer has one input with the name "in", which corresponds to the input data. In this case, the layer uses the HiddenState and CellState properties for the layer operation.

If the HasStateInputs property is 1 (true), then the layer has three inputs with the names "in", "hidden", and "cell", which correspond to the input data, hidden state, and cell state, respectively. In this case, the layer uses the values passed to these inputs for the layer operation. If HasStateInputs is 1 (true), then the HiddenState and CellState properties must be empty.

Data Types: double

InputNames — Input names

"in" | ["in" "hidden" "cell"]

This property is read-only.

Input names of the layer.

If the HasStateInputs property is 0 (false), then the layer has one input with the name "in", which corresponds to the input data. In this case, the layer uses the HiddenState and CellState properties for the layer operation.

If the HasStateInputs property is 1 (true), then the layer has three inputs with the names "in", "hidden", and "cell", which correspond to the input data, hidden state, and cell state, respectively. In this case, the layer uses the values passed to these inputs for the layer operation. If HasStateInputs is 1 (true), then the HiddenState and CellState properties must be empty.

The BiLSTMLayer object stores this property as a cell array of character vectors.

NumOutputs — Number of outputs

1 | 3

This property is read-only.

Number of outputs to the layer.

If the HasStateOutputs property is 0 (false), then the layer has one output with the name "out", which corresponds to the output data.

If the HasStateOutputs property is 1 (true), then the layer has three outputs with the names "out", "hidden", and "cell", which correspond to the output data, hidden state, and cell state, respectively. In this case, the layer also outputs the state values that it computes.

Data Types: double

OutputNames — Output names

"out" | ["out" "hidden" "cell"]

This property is read-only.

Output names of the layer.

If the HasStateOutputs property is 0 (false), then the layer has one output with the name "out", which corresponds to the output data.

If the HasStateOutputs property is 1 (true), then the layer has three outputs with the names "out", "hidden", and "cell", which correspond to the output data, hidden state, and cell state, respectively. In this case, the layer also outputs the state values that it computes.

The BiLSTMLayer object stores this property as a cell array of character vectors.

Examples

Create Bidirectional LSTM Layer

Create a bidirectional LSTM layer with the name 'bilstm1' and 100 hidden units.

layer = bilstmLayer(100,'Name','bilstm1')

layer =
  BiLSTMLayer with properties:

                       Name: 'bilstm1'
                 InputNames: {'in'}
                OutputNames: {'out'}
                  NumInputs: 1
                 NumOutputs: 1
             HasStateInputs: 0
            HasStateOutputs: 0

   Hyperparameters
                  InputSize: 'auto'
             NumHiddenUnits: 100
                 OutputMode: 'sequence'
    StateActivationFunction: 'tanh'
     GateActivationFunction: 'sigmoid'

   Learnable Parameters
               InputWeights: []
           RecurrentWeights: []
                       Bias: []

   State Parameters
                HiddenState: []
                  CellState: []

Use properties method to see a list of all properties.

Include a bidirectional LSTM layer in a Layer array.

inputSize = 12;
numHiddenUnits = 100;
numClasses = 9;

layers = [ ...
    sequenceInputLayer(inputSize)
    bilstmLayer(numHiddenUnits)
    fullyConnectedLayer(numClasses)
    softmaxLayer
    classificationLayer]

layers =
  5x1 Layer array with layers:

     1   ''   Sequence Input          Sequence input with 12 dimensions
     2   ''   BiLSTM                  BiLSTM with 100 hidden units
     3   ''   Fully Connected         9 fully connected layer
     4   ''   Softmax                 softmax
     5   ''   Classification Output   crossentropyex

Algorithms

Layer Input and Output Formats

Layers in a layer array or layer graph pass data to subsequent layers as formatted dlarray objects. The format of a dlarray object is a string of characters, in which each character describes the corresponding dimension of the data. The formats consists of one or more of these characters:

• "S" — Spatial

• "C" — Channel

• "B" — Batch

• "T" — Time

• "U" — Unspecified

For example, 2-D image data represented as a 4-D array, where the first two dimensions correspond to the spatial dimensions of the images, the third dimension corresponds to the channels of the images, and the fourth dimension corresponds to the batch dimension, can be described as having the format "SSCB" (spatial, spatial, channel, batch).

You can interact with these dlarray objects in automatic differentiation workflows such as developing a custom layer, using a functionLayer object, or using the forward and predict functions with dlnetwork objects.

This table shows the supported input formats of BiLSTMLayer objects and the corresponding output format. If the software passes the output of the layer to a custom layer that does not inherit from the nnet.layer.Formattable class, or a FunctionLayer object with the Formattable property set to 0 (false), then the layer receives an unformatted dlarray object with dimensions ordered corresponding to the formats in this table. The formats listed here are only a subset. The layer may support additional formats such as formats with additional "S" (spatial) or "U" (unspecified) dimensions.

Input Format	OutputMode	Output Format
"CB" (channel, batch)	"sequence"	"CB" (channel, batch)
	"last"
"CBT" (channel, batch, time)	"sequence"	"CBT" (channel, batch, time)
	"last"	"CB" (channel, batch)
"SB" (spatial, batch)	"sequence"	"CB" (channel, batch)
	"last"

In dlnetwork objects, BiLSTMLayer objects also support these input and output format combinations.

Input Format	OutputMode	Output Format
"SCB" (spatial, channel, batch)	"sequence"	"CB" (channel, batch)
	"last"
"SSCB" (spatial, spatial, channel, batch)	"sequence"
	"last"
"SSSCB" (spatial, spatial, spatial, channel, batch)	"sequence"
	"last"
"SCBT" (spatial, channel, batch, time)	"sequence"	"CBT" (channel, batch, time)
	"last"	"CB" (channel, batch)
"SSCBT" (spatial, spatial, channel, batch, time)	"sequence"	"CBT" (channel, batch, time)
	"last"	"CB" (channel, batch)
"SSSCBT" (spatial, spatial, spatial, channel, batch, time)	"sequence"	"CBT" (channel, batch, time)
	"last"	"CB" (channel, batch)
"SC" (spatial, channel)	"sequence"	"CU" (channel, unspecified)
	"last"
"SSC" (spatial, spatial, channel)	"sequence"
	"last"
"SSSC" (spatial, spatial, spatial, channel)	"sequence"
	"last"
"CT" (channel, time)	"sequence"	"CT" (channel, time)
	"last"	"CU" (channel, unspecified)
"SCT" (spatial, channel, time)	"sequence"	"CT" (channel, time)
	"last"	"CU" (channel, unspecified)
"SSCT" (spatial, spatial, channel, time)	"sequence"	"CT" (channel, time)
	"last"	"CU" (channel, unspecified)
"SSSCT" (spatial, spatial, channel, time)	"sequence"	"CT" (channel, time)
	"last"	"CU" (channel, unspecified)
"SSB" (spatial, spatial, batch)	"sequence"	"CB" (channel, batch)
	"last"
"SSSB" (spatial, spatial, spatial, batch)	"sequence"
	"last"
"BT" (batch, time)	"sequence"	"CBT" (channel, batch, time)
	"last"	"CB" (channel, batch)
"SBT" (spatial, batch, time)	"sequence"	"CBT" (channel, batch, time)
	"last"	"CB" (channel, batch)
"SSBT" (spatial, spatial, batch, time)	"sequence"	"CBT" (channel, batch, time)
	"last"	"CB" (channel, batch)
"SSSBT" (spatial, spatial, spatial, batch, time)	"sequence"	"CBT" (channel, batch, time)
	"last"	"CB" (channel, batch)

To use these input formats in trainNetwork workflows, convert the data to "CB" (channel, batch) or "CBT" (channel, batch, time) format using flattenLayer.

If the HasStateInputs property is 1 (true), then the layer has two additional inputs with the names "hidden" and "cell", which correspond to the hidden state and cell state, respectively. These additional inputs expect input format "CB" (channel, batch).

If the HasStateOutputs property is 1 (true), then the layer has two additional outputs with names "hidden" and "cell", which correspond to the hidden state and cell state, respectively. These additional outputs have output format "CB" (channel, batch).

References

[1] Glorot, Xavier, and Yoshua Bengio. "Understanding the Difficulty of Training Deep Feedforward Neural Networks." In Proceedings of the Thirteenth International Conference on Artificial Intelligence and Statistics, 249–356. Sardinia, Italy: AISTATS, 2010. https://proceedings.mlr.press/v9/glorot10a/glorot10a.pdf

[2] He, Kaiming, Xiangyu Zhang, Shaoqing Ren, and Jian Sun. "Delving Deep into Rectifiers: Surpassing Human-Level Performance on ImageNet Classification." In 2015 IEEE International Conference on Computer Vision (ICCV), 1026–34. Santiago, Chile: IEEE, 2015. https://doi.org/10.1109/ICCV.2015.123

[3] Saxe, Andrew M., James L. McClelland, and Surya Ganguli. "Exact Solutions to the Nonlinear Dynamics of Learning in Deep Linear Neural Networks.” Preprint, submitted February 19, 2014. https://arxiv.org/abs/1312.6120.

Extended Capabilities

C/C++ Code Generation

Generate C and C++ code using MATLAB® Coder™.

Usage notes and limitations:

For code generation in general, the HasStateInputs and HasStateOutputs properties must be set to 0 (false).

When generating code with Intel^® MKL-DNN or ARM^® Compute Library:

• The StateActivationFunction property must be set to 'tanh'.

• The GateActivationFunction property must be set to 'sigmoid'.

GPU Code Generation

Generate CUDA® code for NVIDIA® GPUs using GPU Coder™.

Usage notes and limitations:

• For GPU code generation, the StateActivationFunction property must be set to 'tanh'.

• For GPU code generation, the GateActivationFunction property must be set to 'sigmoid'.

• The HasStateInputs and HasStateOutputs properties must be set to 0 (false).

Version History

Introduced in R2018a

R2019a: Default input weights initialization is Glorot

Starting in R2019a, the software, by default, initializes the layer input weights of this layer using the Glorot initializer. This behavior helps stabilize training and usually reduces the training time of deep neural networks.

In previous releases, the software, by default, initializes the layer input weights using the by sampling from a normal distribution with zero mean and variance 0.01. To reproduce this behavior, set the 'InputWeightsInitializer' option of the layer to 'narrow-normal'.

R2019a: Default recurrent weights initialization is orthogonal

Starting in R2019a, the software, by default, initializes the layer recurrent weights of this layer with Q, the orthogonal matrix given by the QR decomposition of Z = QR for a random matrix Z sampled from a unit normal distribution. This behavior helps stabilize training and usually reduces the training time of deep neural networks.

In previous releases, the software, by default, initializes the layer recurrent weights using the by sampling from a normal distribution with zero mean and variance 0.01. To reproduce this behavior, set the 'RecurrentWeightsInitializer' option of the layer to 'narrow-normal'.
