CIC Decimation
Decimate signal using cascaded integratorcomb filter
Libraries:
DSP System Toolbox /
Filtering /
Multirate Filters
DSP System Toolbox HDL Support /
Filtering
Description
The CIC Decimation block performs a sample rate decrease (decimation) on an input signal by an integer factor. Cascaded IntegratorComb (CIC) filters are a class of linear phase FIR filters comprised of a comb part and an integrator part.
The block supports real and complex fixedpoint inputs. In its normal mode of operation, the CIC Decimation block allows the adder’s numeric values to overflow and wrap around [1] [3]. The FixedPoint infrastructure then causes overflow warnings to appear on the command line. This overflow is of no consequence.
The CIC Decimation block requires a FixedPoint Designer™ license.
Examples

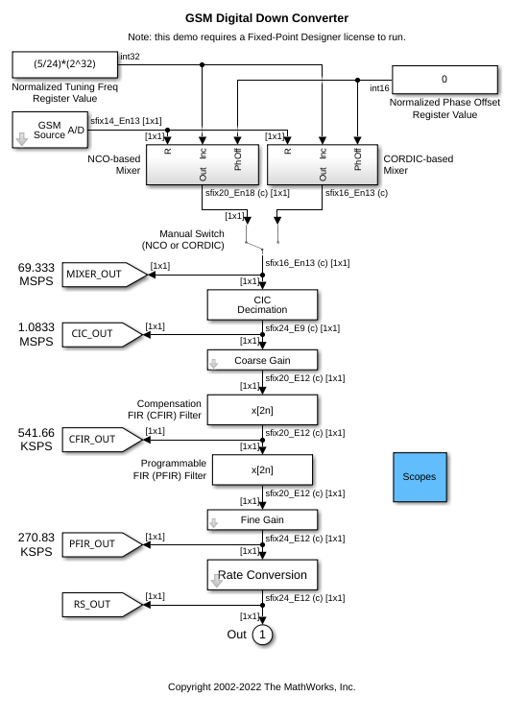

GSM Digital Down Converter in Simulink
Simulate steadystate behavior of a fixedpoint digital down converter for GSM (Global System for Mobile) baseband conversions. The example model uses blocks from Simulink® and the DSP System Toolbox™ to emulate the operation of the TI GC4016 Quad Digital Down Converter (DDC).
Ports
Input
Port_1 — Input signal
vector  matrix
Data input, specified as a vector or matrix. The number of input rows must be a multiple of the decimation factor.
If the input is fixed point, it must be a signed integer or a signed fixed point value with a poweroftwo slope and zero bias.
Data Types: int8
 int16
 int32
 int64
 fixed point
Complex Number Support: Yes
Output
Port_1 — CIC decimated output
vector  matrix
CIC decimated output, returned as a vector or a matrix. The data type of the output is determined by the settings in the block dialog. The complexity of the output matches that of the input. The number of output rows is (1/R)✕Num, where R is the decimation factor and Num is the number of input rows.
Data Types: int8
 int16
 int32
 int64
 fixed point
Complex Number Support: Yes
Parameters
Coefficient source — Source of the filter information
Dialog parameters
(default)  Filter object
Source of the filter information, specified as one of the following:
Dialog parameters
— Enter information about the filter, such as Decimation factor (R), Differential delay (M) and Number of sections (N), in the block dialog.Filter object
— Specify the filter using adsp.CICDecimator
System object™.
Different items appear on the CIC Decimation block dialog depending
on whether you select Dialog parameters
or
Filter object
in the Coefficient
source parameter.
Decimation factor (R) — Decimation factor
2
(default)  integer
Decimation factor of the filter, specified as an integer greater than 1.
Dependencies
This parameter appears when you set Coefficient source to
Dialog parameters
.
Differential Delay (M) — Differential delay
1
(default)  positive integer
Specify the differential delay of the comb part of the filter, M, as a positive integer. For more details, see CIC Decimation Filter.
Dependencies
This parameter appears when you set Coefficient source to
Dialog parameters
.
Number of sections (N) — Number of filter sections
2
(default)  positive integer
Specify the number of filter sections. The number you specify determines the number of sections in either the comb part of the filter or the integrator part of the filter. This value does not represent the total number of sections in the comb and integrator parts combined.
Dependencies
This parameter appears when you set Coefficient source to
Dialog parameters
.
Data type specification mode — Specify word length and fraction length of filter sections and output
Full precision
(default)  Minimum section word lengths
 Specify word lengths
 Binary point scaling
Choose how you specify the fixedpoint word length and fraction length of the filter sections and/or output:
Full precision
— The word and fraction lengths of the filter sections and outputs are automatically selected for you. All word lengths (WL) are set to:$$\text{WL}=\mathrm{ceil}(N\times {\mathrm{log}}_{2}(M\times R))+I$$
where,
I –– Input word length
M –– Differential delay
N –– Number of sections
R –– Decimation factor
All fraction lengths are set to the input fraction length.
Minimum section word lengths
— Specify the word length of the filter output in the Output word length parameter. The block automatically selects the word lengths of the filter sections and all fraction lengths such that each of the section word lengths is as small as possible. The precision of each filter section is less than inFull precision
mode, but the range of each section is preserved.Specify word lengths
— Specify the word lengths of the filter sections and output in the Section word lengths and Output word length parameters. The block automatically selects fraction lengths for the filter sections and output such that the range of each section is preserved when the least significant bits are discarded.Binary point scaling
— Specify the word and fraction lengths of the filter sections and output in the Section word lengths, Section fraction lengths, Output word length, and Output fraction length parameters.
Dependencies
This parameter appears when you set Coefficient source to
Dialog parameters
.
Section word lengths — Word length of filter sections
[16 16 16 16
] (default)  scalar  row vector
Word lengths of filter sections, specified as a scalar or a vector of length equal to 2N, where N is the number of filter sections. The section word length must be in the range [2, 128].
Dependencies
This parameter appears when you set Coefficient source to
Dialog parameters
and Data type specification
mode to either Specify word lengths
or
Binary point scaling
.
Section fraction lengths — Fraction lengths of filter sections
0
(default)  integer
Fraction lengths of filter sections, specified as an integer.
Dependencies
This parameter appears when you set Coefficient source to
Dialog parameters
and Data type specification
mode to Binary point scaling
.
Output word length — Word length of filter output
32
(default)  integer
Word length of the filter output, specified as an integer in the range [2, 128].
Dependencies
This parameter appears when you set Coefficient source to
Dialog parameters
and Data type specification
mode to any option other than Full
precision
.
Output fraction length — Fraction length of filter output
0
(default)  integer
Fraction length of the filter output, specified as an integer.
Dependencies
This parameter appears when you set Coefficient source to
Dialog parameters
and Data type specification
mode to Binary point scaling
.
Rate options — Rate processing rule
Enforce singlerate processing
(default)  Allow multirate processing
Specify the rate processing rule for the block:
Enforce singlerate processing
— The block performs framebased processing and produces an output that has the same sample rate as the input. To decimate the signal while maintaining the input sample rate, the block decreases the output frame size. In this mode, the input column size must be a multiple of Decimation Factor (R).Allow multirate processing
— In this mode, the block produces an output with a sample rate that isR
times slower than the input sample rate.
Filter object — Multirate filter object
dsp.CICDecimator
dsp.CICDecimator
Specify the name of the multirate filter object that you want the block to
implement. You must specify the filter as a dsp.CICDecimator
System object.
You can define the System object in the block dialog or in a MATLAB^{®} workspace variable.
For information on creating System objects, see Define Basic System Objects.
Dependencies
This parameter appears when you set Coefficient source to
Filter object
.
View Filter Response — View filter response
gui button
This button opens the Filter Visualization Tool (FVTool) from the Signal Processing Toolbox™ product and displays the filter response of the filter defined in the block. For more information on FVTool, see the Signal Processing Toolbox documentation.
Note
If you specify a filter in the Filter object parameter, you must apply the filter by clicking the Apply button before using the View Filter Response button.
Block Characteristics
Data Types

Direct Feedthrough

Multidimensional Signals

VariableSize Signals

ZeroCrossing Detection

More About
CIC Filter
CIC filters are an optimized class of linear phase FIR filters composed of a comb part and an integrator part.
The CIC decimation filter is conceptually given by a single rate CIC filter, H(z) which is a lowpass antiimaging filter, followed by a downsampler. The CIC decimation filter decreases the sample rate of an input signal by an integer factor using a cascaded integratorcomb (CIC) filter.
In a more efficient implementation, the single rate CIC filter H(z) is factorized this way:
$$H(z)={\left[{\displaystyle \sum _{k=0}^{RM1}{z}^{k}}\right]}^{N}=\frac{{\left(1{z}^{RM}\right)}^{N}}{{\left(1{z}^{1}\right)}^{N}}=\frac{1}{{\left(1{z}^{1}\right)}^{N}}\xb7\frac{{\left(1{z}^{RM}\right)}^{N}}{1}={H}_{\text{I}}{}^{N}(z)\xb7{H}_{\text{c}}{}^{N}(z)$$
where,
H_{I} is the transfer function of the integrator part of the filter containing N stages of integrators.
H_{C} is the transfer function of the N sections of the cascaded comb filters, each with a width of RM.
N is the number of sections. The number of sections in a CIC filter is defined as the number of sections in either the comb part or the integrator part of the filter. This value does not represent the total number of sections throughout the entire filter.
R is the decimation factor.
M is the differential delay.
In the overall multirate realization, the algorithm applies the noble identity for decimation and moves the rate change factor, R, to follow after the N sections of the cascaded integrators. The transfer function of the resulting filter is given by the following equation:
$$H(z)=\frac{{\left(1{z}^{M}\right)}^{N}}{{\left(1{z}^{1}\right)}^{N}}.$$
For a block diagram that shows the multirate implementation, see Algorithms.
Algorithms
CIC Decimation Filter
The CIC decimation filter in More About is realized as a cascade of N sections of the integrators followed by a rate change factor of R, followed by N sections of comb filters.
This diagram shows two sections of cascaded integrators and two sections of cascaded comb filters. The unit delay in the integrator portion of the CIC filter can be located in either the feedforward or the feedback path. These two configurations yield identical filter frequency response. However, the numerical outputs from these two configurations are different due to the latency. This block puts the unit delay in the feedforward path of the integrator because it is a preferred configuration for HDL implementation.
References
[1] Hogenauer, E.B. “An Economical Class of Digital Filters for Decimation and Interpolation.” IEEE Transactions on Acoustics, Speech and Signal Processing. Vol. 29, Number 2, 1981, pp. 155–162.
[2] MeyerBaese, U. Digital Signal Processing with Field Programmable Gate Arrays. New York: Springer Verlag, 2001.
[3] Harris, Fredric J., Multirate Signal Processing for Communication Systems. Upper Saddle River, NJ: Prentice Hall PTR, 2004.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using Simulink® Coder™.
Generated code relies on the memcpy
or
memset
function (string.h
) under certain
conditions.
HDL Code Generation
Generate VHDL, Verilog and SystemVerilog code for FPGA and ASIC designs using HDL Coder™.
HDL Coder™ provides additional configuration options that affect HDL implementation and synthesized logic.
The block has HDLDataPath
as a default architecture. This
architecture provides additional configuration options that affect HDL implementation and
synthesized logic.
HDL Block Properties  Description

InputPipeline  Number of input pipeline stages to insert in the generated code.
Distributed pipelining and constrained output pipelining can move these
registers. The default is
OutputPipeline  Number of output pipeline stages to insert in the generated code.
Distributed pipelining and constrained output pipelining can move these
registers. The default is
ConstrainedOutputPipeline  Number of registers to place at the outputs by moving existing delays
within your design. Distributed pipelining does not redistribute these
registers. The default is
AddPipelineRegisters  Insert a pipeline register between stages of computation in a filter. See also AddPipelineRegisters (HDL Coder).
The block supports these data types for HDL code generation:
Input Port  Dimension  FixedPoint  FloatingPoint  Builtin Integers  Bus  Boolean  Enumerated  Complex Signal

Port_1  Scalar  Yes  Half Single Double  Yes  No  Yes  Yes  Yes
These block parameter configurations are incompatible with HDL code generation.
Block Parameter  Limitations

Rate options  Parameter value Enforce singlerate processing
is not supported.
The block participates in these HDL optimizations to optimize the speed, and area.
Area Optimization
Optimization  Description

Resource Sharing (HDL Coder)  Resource sharing is an area optimization in which HDL Coder identifies multiple functionally equivalent resources and replaces them with a single resource.
Streaming (HDL Coder)  Streaming is an area optimization in which HDL Coder transforms a vector data path to a scalar data path (or to several smallersized vector data paths).
Speed Optimization
Optimization  Description

Distributed Pipelining (HDL Coder)  Distributed pipelining, or register retiming, is a speed optimization that moves existing delays in a design to reduce the critical path while preserving functional behavior.
ClockRate Pipelining (HDL Coder)  Clockrate pipelining is an optimization framework in HDL Coder that allows other speed and area optimizations to introduce latency at the clock rate.
Adaptive Pipelining (HDL Coder)  Adaptive pipelining optimization creates patterns or combination of blocks with registers that can improve the achievable clock frequency and reduce the area usage on the FPGA boards by inserting pipeline registers to the blocks in your design.
Critical Path Estimation (HDL Coder)  To quickly identify the most likely critical path in your design, use Critical Path Estimation. Critical path estimation speeds up the iterative process of finding the critical path. To know blocks that are characterized in critical path estimation, see Characterized Blocks (HDL Coder).
Vector and frame inputs are not supported for HDL code generation.
When you use AddPipelineRegisters, registers are placed based on the filter structure. The pipeline register placement determines the latency.
Pipeline Register Placement  Latency (clock cycles)

A pipeline register is added between the comb stages of the differentiators.  NS1 , where NS is number of sections
(at the output side).
Note
For an HDLoptimized filter architecture with hardwarefriendly control signals, use the CIC Decimator (DSP HDL Toolbox) block. The DSP HDL Toolbox™ block simulates the latency of the HDL algorithm in Simulink^{®}.
Version History
Introduced before R2006a
See Also
Functions
Objects
dsp.CICDecimator
dsp.CICInterpolator
dsp.FIRDecimator
dsp.FIRInterpolator
dsp.CICCompensationDecimator
dsp.CICCompensationInterpolator
dsp.FIRHalfbandDecimator
dsp.FIRHalfbandInterpolator
Blocks
MATLAB Command
