Least Squares Polynomial Fit

Compute polynomial coefficients that best fit input data in least-squares sense

  • Least Squares Polynomial Fit block

Libraries:
DSP System Toolbox / Math Functions / Polynomial Functions

Description

The Least Squares Polynomial Fit block computes the coefficients of the nth order polynomial that best fits the input data in the least-squares sense, where n is the value you specify in the Polynomial order parameter. The block computes a distinct set of n+1 coefficients for each column of the M-by-N input u.

Examples

expand all

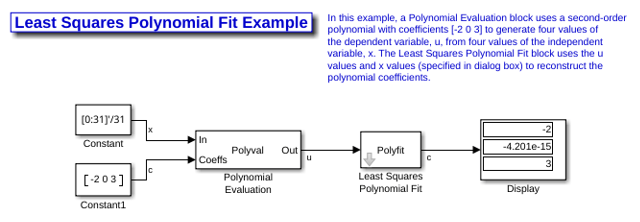

Open the ex_leastsquarespolyfit_ref model. The Polynomial Evaluation block uses this second-order polynomial to generate four values of dependent variable y from four values of independent variable u received at the In port.

The polynomial coefficients are supplied in the vector [-2 0 3] at the Coeffs port. Note that the coefficient of the first-order term is zero.

The Control points parameter of the Least Squares Polynomial Fit block is configured with the same four values of independent variable u that are used as input to the Polynomial Evaluation block, [1 2 3 4]. The Least Squares Polynomial Fit block uses these values together with the input values of dependent variable y to reconstruct the original polynomial coefficients.

Ports

Input

expand all

Specify the input data as a vector or a matrix of size M-by-N. The block treats a length-M unoriented vector input as an M-by-1 matrix.

Data Types: single | double

Output

expand all

Coefficients of the polynomial that best fits the input data in the least-squares sense, returned as a column vector or a matrix of size (n+1)-by-N, where n is the value you specify in the Polynomial order parameter.

Each column of the (n+1)-by-N output matrix c represents a set of n+1 coefficients describing the best-fit polynomial for the corresponding column of the input. The coefficients in each column are arranged in order of descending exponents, c1, c2, ..., cn+1.

For more information on how this block computes the polynomial coefficients, see Algorithms.

Data Types: single | double

Parameters

expand all

Specify the values of the independent variable to which the data in each input column correspond. For an M-by-N input, this parameter must be a length-M vector.

Tunable: Yes

Specify the order n of the polynomial that the block uses to construct the best fit. The number of coefficients is n+1.

Block Characteristics

Data Types

double | single

Direct Feedthrough

no

Multidimensional Signals

no

Variable-Size Signals

no

Zero-Crossing Detection

no

Algorithms

For a given input column, the block computes the set of coefficients, c1, c2, ..., cn+1, that minimizes the quantity i=1M(uiu^i)2, where ui is the ith element in the input column and is given by

u^i=f(xi)=c1xin+c2xin1+ ... +cn+1.

The values of the independent variable, x1, x2, ..., xM are specified as a length-M vector by the Control points parameter. The same M control points are used for all N polynomial fits, and can be equally or unequally spaced.

The equivalent MATLAB® code is shown here.

c = polyfit(x,u,n)

Extended Capabilities

Version History

Introduced before R2006a
