demod

Demodulation for communications simulation

Description

example

x = demod(y,fc,fs,method) demodulates the real carrier signal y with a carrier frequency fc and sample rate fs using the method specified in method.

x = demod(y,fc,fs,method,opt) demodulates the real carrier signal y using the additional options specified in opt.

Examples

collapse all

Generate a 150 Hz sinusoid sampled at 8 kHz for 1 second. Embed the modulated signal in white Gaussian noise of variance 0.1².

fs = 8e3;

t = 0:1/fs:1-1/fs;
s = cos(2*pi*150*t) + randn(size(t))/10;

Frequency modulate the signal at a carrier frequency of 3 kHz using a modulation constant of 0.1.

fc = 3e3;
rx = modulate(s,fc,fs,'fm',0.1);

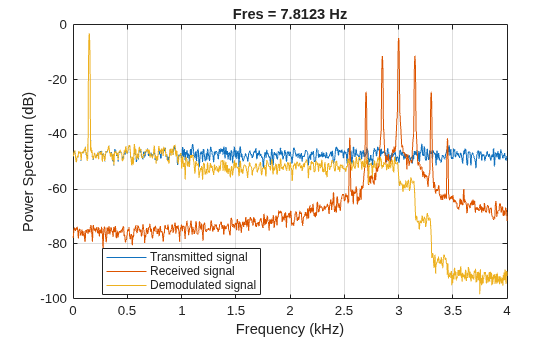

Frequency demodulate the signal using the same carrier frequency and modulation constant. Compute and plot power spectrum estimates for the transmitted, received, and demodulated signals.

y = demod(rx,fc,fs,'fm',0.1);

pspectrum([s;rx;y]',fs,'Leakage',0.85)

legend('Transmitted signal','Received signal','Demodulated signal','Location','best')

Input Arguments

collapse all

Modulated message signal, specified as a real vector or matrix. Except for the methods pwm and ppm, y is the same size as x.

Carrier frequency used to modulate the message signal, specified as a real positive scalar.

Sample rate, specified as a real positive scalar.

Method of modulation used, specified as one of:

  • am or amdsb-sc — Amplitude demodulation, double sideband, suppressed carrier. Multiplies y by a sinusoid of frequency fc and applies a fifth-order Butterworth lowpass filter using filtfilt.

    x = y.*cos(2*pi*fc*t);
    [b,a] = butter(5,fc*2/fs);
    x = filtfilt(b,a,x);
  • amdsb-tc — Amplitude demodulation, double sideband, transmitted carrier. Multiplies y by a sinusoid of frequency fc and applies a fifth-order Butterworth lowpass filter using filtfilt.

    x = y.*cos(2*pi*fc*t);
    [b,a] = butter(5,fc*2/fs);
    x = filtfilt(b,a,x);

    If you specify opt, demod subtracts scalar opt from x. The default value for opt is 0.

  • amssb — Amplitude demodulation, single sideband. Multiplies y by a sinusoid of frequency fc and applies a fifth-order Butterworth lowpass filter using filtfilt..

    x = y.*cos(2*pi*fc*t);
    [b,a] = butter(5,fc*2/fs);
    x = filtfilt(b,a,x);
  • fm — Frequency demodulation. Demodulates the FM waveform by modulating the Hilbert transform of y by a complex exponential of frequency -fc Hz and obtains the instantaneous frequency of the result..

    y=cos(2*pi*fc*t + opt*cumsum(x))

    cumsum is a rectangular approximation of the integral of x. modulate uses opt as the constant of frequency modulation. If you do not specify the opt parameter, modulate uses a default of opt = (fc/fs)*2*pi/(max(max(x))) so the maximum frequency excursion from fc is fc Hz.

  • pm — Phase demodulation. Demodulates the PM waveform by modulating the Hilbert transform of y by a complex exponential of frequency -fc Hz and obtains the instantaneous phase of the result.

    y=cos(2*pi*fc*t + opt*x)

    modulate uses opt as the constant of phase modulation. If you do not specify the opt parameter, modulate uses a default of opt = pi/(max(max(x))) so the maximum phase excursion is π radians.

  • pwm — Pulse-width demodulation. Finds the pulse widths of a pulse-width modulated signal y. demod returns in x a vector whose elements specify the width of each pulse in fractions of a period. The pulses in y should start at the beginning of each carrier period, that is, they should be left justified. modulate(x,fc,fs,'pwm','centered') yields pulses centered at the beginning of each period. The length of y is length(x)*fs/fc.

  • ppm — Pulse-position demodulation. Finds the pulse positions of a pulse-position modulated signal y. For correct demodulation, the pulses cannot overlap. x is length length(t)*fc/fs.

  • qam— Quadrature amplitude demodulation. [x1,x2] = demod(y,fc,fs,'qam') multiplies y by a cosine and a sine of frequency fc and applies a fifth-order Butterworth lowpass filter using filtfilt.

    x1 = y.*cos(2*pi*fc*t);
    x2 = y.*sin(2*pi*fc*t);
    [b,a] = butter(5,fc*2/fs);
    x1 = filtfilt(b,a,x1);
    x2 = filtfilt(b,a,x2);

    The input argument opt must be the same size as y.

Optional input, specified for some methods. Refer to method for more details on how to use opt.

Output Arguments

collapse all

Demodulated message signal, returned as a real vector or matrix.

Introduced before R2006a
