Sampled aperiodic rectangle
y = rectpuls(t)
y = rectpuls(t,w)
y = rectpuls(t) returns a continuous, aperiodic, unit-height rectangular pulse at the sample times indicated in array t, centered about t = 0.
y
t
0
example
y = rectpuls(t,w) generates a rectangle of width w.
w
collapse all
Generate 200 ms of a rectangular pulse with a sample rate of 10 kHz and a width of 20 ms.
fs = 10e3; t = -0.1:1/fs:0.1; w = 20e-3; x = rectpuls(t,w);
Generate two copies of the same pulse:
One displaced 45 ms into the past.
tpast = -45e-3; xpast = rectpuls(t-tpast,w);
One displaced 60 ms into the future and half as wide.
tfutr = 60e-3; xfutr = rectpuls(t-tfutr,w/2);

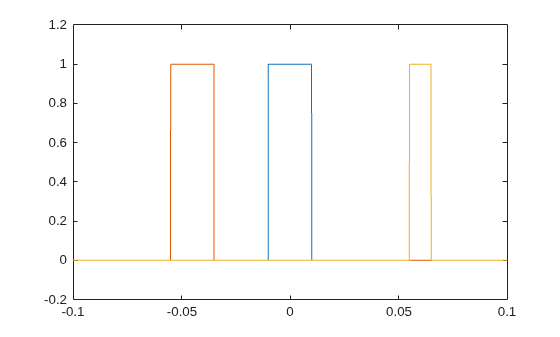

Plot the original pulse and the two copies on the same axes.
plot(t,x,t,xpast,t,xfutr) ylim([-0.2 1.2])
Sample times of unit rectangular pulse, specified as a vector.
Data Types: single | double
single
double
1
Rectangle width, specified as a positive number.
Rectangular pulse of unit amplitude, returned as a vector.
Note
The interval of nonzero amplitude is defined to be open on the right, that is, rectpuls(-0.5) = 1 while rectpuls(0.5) = 0.
rectpuls(-0.5)
rectpuls(0.5)
rectpuls can be used in conjunction with the pulse train generating function pulstran.
rectpuls
pulstran
chirp | cos | diric | gauspuls | pulstran | sawtooth | sin | sinc | square | tripuls
chirp
cos
diric
gauspuls
sawtooth
sin
sinc
square
tripuls
