sawtooth

Sawtooth or triangle wave

Description

example

x = sawtooth(t) generates a sawtooth wave with period 2π for the elements of the time array t. sawtooth is similar to the sine function but creates a sawtooth wave with peaks of –1 and 1. The sawtooth wave is defined to be –1 at multiples of 2π and to increase linearly with time with a slope of 1/π at all other times.

example

x = sawtooth(t,xmax) generates a modified triangle wave with the maximum location at each period controlled by xmax. Set xmax to 0.5 to generate a standard triangle wave.

Examples

collapse all

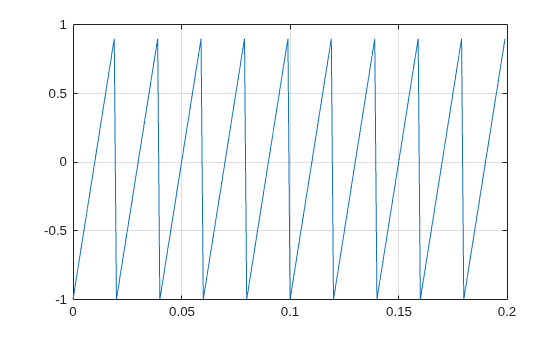

Generate 10 periods of a sawtooth wave with a fundamental frequency of 50 Hz. The sample rate is 1 kHz.

T = 10*(1/50);

fs = 1000;
t = 0:1/fs:T-1/fs;

x = sawtooth(2*pi*50*t);

plot(t,x)
grid on

Plot the power spectrum of the wave.

pspectrum(x,fs,'Leakage',0.91)

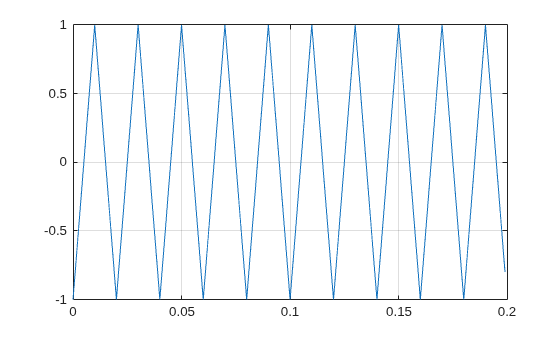

Generate 10 periods of a triangle wave with a fundamental frequency of 50 Hz. The sample rate is 1 kHz.

T = 10*(1/50);

fs = 1000;
t = 0:1/fs:T-1/fs;

x = sawtooth(2*pi*50*t,1/2);

plot(t,x)
grid on

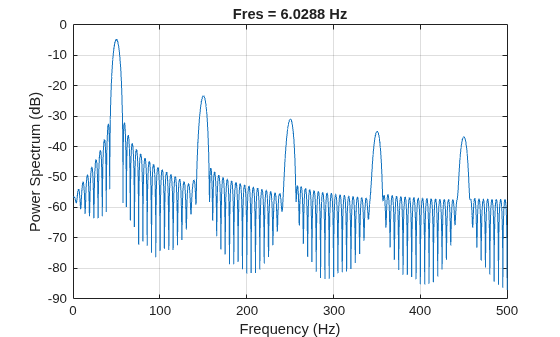

Plot the power spectrum of the wave.

pspectrum(x,fs,'Leakage',0.91)

Input Arguments

collapse all

Time array, specified as a vector, matrix, or N-D array. sawtooth operates along the first array dimension of t with size greater than 1.

Data Types: double

Wave maximum location, specified as a scalar between 0 and 1. xmax determines the point between 0 and 2π at which the wave reaches its maximum. The function increases from –1 to 1 on the interval 0 to 2π × xmax, then decreases linearly from 1 to –1 on the interval 2π × xmax to 2π. The shape then repeats with a period of 2π.

Example: xmax = 0.5 specifies a standard triangle wave, symmetric about time π with a peak-to-peak amplitude of 1.

Data Types: double

Output Arguments

collapse all

Sawtooth wave, returned as a vector, matrix, or N-D array.

Extended Capabilities

C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.

Introduced before R2006a
