convertToChart
Description
Examples
Convert State Transition Table to Chart
This example shows how to convert a state transition table to a Stateflow® chart.

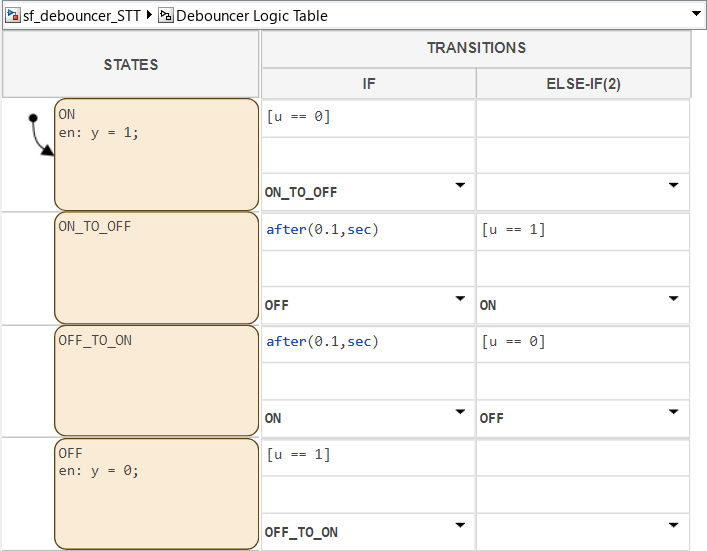

Open the example model and access the Stateflow.StateTransitionTableChart
object.
load_system("convertToChartModel.slx") ch = find(sfroot,"-isa","Stateflow.StateTransitionTableChart");
Convert the state transition table to a Stateflow chart.
convertedChart = ch.convertToChart
convertedChart = Chart with properties: Path: 'convertToChartModel/Chart' RequirementInfo: '' AllowGlobalAccessToExportedFunctions: 1 EnableZeroCrossings: 1 NoCodegenForCustomTargets: 0 NonTerminalMaxCounts: 1000 RegisterExportedFunctionsWithSimulink: 0 Editor: [1x1 Stateflow.Editor] ActionLanguage: 'MATLAB' ChartColor: [1 0.9608 0.8824] SelectionColor: [1 0 0.5176] ConstantFoldingTimeOut: 40000 DerivativesFormatString: '$N_dot' EmlDefaultFimath: 'Same as MATLAB Default' EnableBitOps: 0 EnableNonTerminalStates: 0 ExecuteAtInitialization: 0 ErrorColor: [1 0 0] ExportChartFunctions: 0 InitializeOutput: 0 FimathForFiConstructors: 'Same as FIMATH for fixed-point input signals' InputFimath: 'fimath(......' PortFontSize: 12 JunctionColor: [0.6824 0.3294 0] OutputData: [] SaturateOnIntegerOverflow: 1 StateColor: [0 0 0] StateLabelColor: [0 0 0] StateFont: [1x1 Stateflow.StateFont] TransitionColor: [0.2902 0.3294 0.6039] TransitionLabelColor: [0.2902 0.3294 0.6039] TreatAsFi: 'Fixed-point' TreatUndefinedSymbolsAsExtrinsic: 0 StateMachineType: 'Classic' Visible: 1 HasOutputData: 0 OutputMonitoringMode: 'ChildActivity' StateActivityOutputDataType: 'Enum' Debug: [1x1 Stateflow.ChartDebug] TransitionFont: [1x1 Stateflow.TransFont] Machine: [1x1 Stateflow.Machine] Decomposition: 'EXCLUSIVE_OR' NonTerminalUnstableBehavior: 'Proceed' VariantActivationTime: 'update diagram analyze all choices' Name: 'Chart' SampleTime: '-1' hadBreakpoints: 0 Description: '' Dirty: 1 Document: '' Iced: 0 Locked: 0 SupportVariableSizing: 1 TreatDimensionOfLengthOneAsFixedSize: 1 Tag: [] Id: 177 ChartUpdate: 'INHERITED' StatesWhenEnabling: 'held' PaperOrientation: 'landscape' PaperPositionMode: 'auto' PaperPosition: [1.9444 2.9028 7.1111 2.6944] PaperSize: [11 8.5000] PaperUnits: 'inches' PaperType: 'usletter' TiledPaperMargins: [0.5000 0.5000 0.5000 0.5000] TiledPageScale: 1 ShowPageBoundaries: 'off'
Input Arguments
table
— State transition table to convert
Stateflow.StateTransitionTableChart
object
Stateflow state transition table to convert, specified as a Stateflow.StateTransitionTableChart
object.
Version History
Introduced in R2023b
