ransac
Fit model to noisy data
Syntax
Description
[
fits a model to noisy data using the M-estimator sample consensus (MSAC) algorithm,
a version of the random sample consensus (RANSAC) algorithm.model
,inlierIdx
]
= ransac(data
,fitFcn
,distFcn
,sampleSize
,maxDistance
)
Specify your function for fitting a model, fitFcn
, and your
function for calculating distances from the model to your data,
distFcn
. The ransac
function takes
random samples from your data
using
sampleSize
and uses the fit function to maximize the number
of inliers within maxDistance
.
[___] = ransac(___,
additionally specifies one or more Name,Value
)Name,Value
pair
arguments.
Examples
Fit Line to 2-D Points Using Least Squares and RANSAC Algorithms

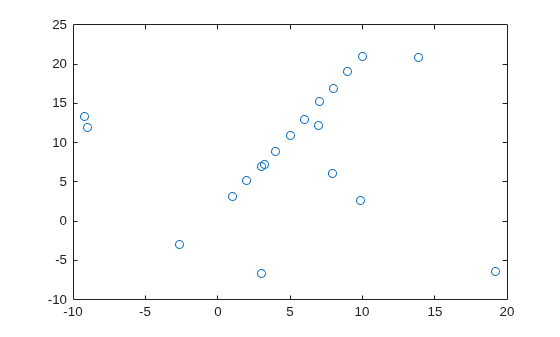

Load and plot a set of noisy 2-D points.
load pointsForLineFitting.mat plot(points(:,1),points(:,2),'o'); hold on

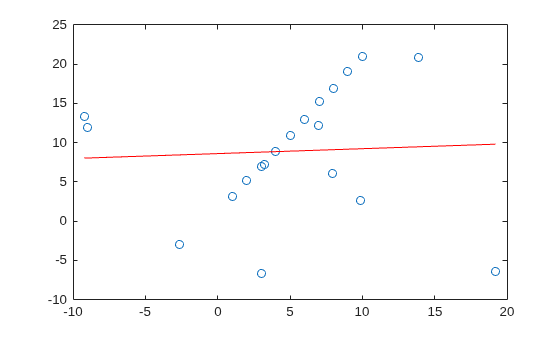

Fit a line using linear least squares. Due to outliers, the line is not a good fit.
modelLeastSquares = polyfit(points(:,1),points(:,2),1);
x = [min(points(:,1)) max(points(:,1))];
y = modelLeastSquares(1)*x + modelLeastSquares(2);
plot(x,y,'r-')
Fit a line to the points using the MSAC algorithm. Define the sample size, the maximum distance for inliers, the fit function, and the distance evaluation function. Call ransac
to run the MSAC algorithm.
sampleSize = 2; % number of points to sample per trial maxDistance = 2; % max allowable distance for inliers % Define the fit function using polyfit. fitLineFcn = @(points)polyfit(points(:,1),points(:,2),1); % Define the distance function to classify each point as an inlier or outlier % based on the maxDistance threshold. distLineFcn = @(model,points)(points(:, 2) - polyval(model, points(:,1))).^2; [modelRANSAC,inlierIdx] = ransac(points,fitLineFcn,distLineFcn, ... sampleSize,maxDistance);
Refit a line to the inliers using polyfit
.
modelInliers = polyfit(points(inlierIdx,1),points(inlierIdx,2),1);

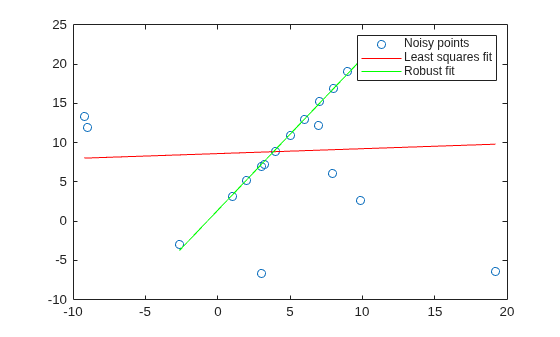

Display the final fit line. This line is robust to the outliers that ransac
identified and ignored.
inlierPts = points(inlierIdx,:); x = [min(inlierPts(:,1)) max(inlierPts(:,1))]; y = modelInliers(1)*x + modelInliers(2); plot(x, y, 'g-') legend('Noisy points','Least squares fit','Robust fit'); hold off
Input Arguments
data
— Data to be modeled
m-by-n matrix
Data to be modeled, specified as an m-by-n matrix. Each row corresponds to a data point in the set to be modeled. For example, to model a set of 2-D points, specify the point data as an m-by-2 matrix.
Data Types: single
| double
fitFcn
— Function to fit a subset of data
function handle
Function to fit a subset of data
, specified as a
function handle. The function must be of the
form:
model = fitFcn(data)
If it is possible to fit multiple models to the data, then
fitFcn
returns the model parameters as a cell
array.
distFcn
— Function to compute distances from model
function handle
Function to compute distances from the model to the data, specified as a function handle. The function must be of the form:
distances = distFcn(model,data)
If model
is an n-element array,
then distances must be an m-by-n
matrix. Otherwise, distances
must be an
m-by-1 vector.
maxDistance
— Maximum distance for inlier points
positive scalar
Maximum distance from the fit curve to an inlier point, specified as a
positive scalar. Any points further away than this distance are considered
outliers. The distance is defined by distFcn
. The
RANSAC algorithm creates a fit from a small sample of points, but tries to
maximize the number of inlier points. Lowering the maximum distance improves
the fit by putting a tighter tolerance on inlier points.
Name-Value Arguments
Specify optional pairs of arguments as
Name1=Value1,...,NameN=ValueN
, where Name
is
the argument name and Value
is the corresponding value.
Name-value arguments must appear after other arguments, but the order of the
pairs does not matter.
Before R2021a, use commas to separate each name and value, and enclose
Name
in quotes.
Example: 'MaxNumTrials',2000
ValidateModelFcn
— Function to validate model
function handle
Function to validate model, specified as the comma-separated pair
consisting of 'ValidateModelFcn
' and a function
handle. The function returns true
if the model is
accepted based on criteria defined in the function. Use this function to
reject specific fits. The function must be of the
form:
isValid = validateModelFcn(model,varargin)
If no function is specified, all models are assumed to be valid.
MaxSamplingAttempts
— Maximum number of sampling attempts
100 (default) | integer
Maximum number of attempts to find a sample that yields a valid model,
specified as the comma-separated pair consisting of
'MaxSamplingAttempts
' and an integer.
MaxNumTrials
— Maximum number of random trials
1000
(default) | integer
Maximum number of random trials, specified as the comma-separated pair
consisting of 'MaxNumTrials
' and an integer. A
single trial uses a minimum number of random points from
data
to fit a model. Then, the trial checks the
number of inliers within the maxDistance
from the
model. After all trials, the model with the highest number of inliers is
selected. Increasing the number of trials improves the robustness of the
output at the expense of additional computation.
Confidence
— Confidence of final solution
99
(default) | scalar from 0 to 100
Confidence that the final solution finds the maximum number of inliers
for the model fit, specified as the comma-separated pair consisting of
'Confidence
' and a scalar from 0 to 100.
Increasing this value improves the robustness of the output at the
expense of additional computation.
Output Arguments
model
— Best fit model
parameters defined in fitFcn
Best fit model, returned as the parameters defined in the
fitFcn
input. This model maximizes the number of
inliers from all the sample attempts.
inlierIdx
— Inlier points
logical vector
Inlier points, returned as a logical vector. The vector is the same length
as data
, and each element indicates if that point is an
inlier for the model fit based on maxDistance
.
References
[1] Torr, P. H. S., and A. Zisserman. "MLESAC: A New Robust Estimator with Application to Estimating Image Geometry." Computer Vision and Image Understanding. Vol. 18, Issue 1, April 2000, pp. 138–156.
Extended Capabilities
C/C++ Code Generation
Generate C and C++ code using MATLAB® Coder™.
Version History
Introduced in R2017a
