stereoParameters

Object for storing stereo camera system parameters

Description

The stereoParameters object stores the intrinsic and extrinsic parameters of two cameras and their geometric relationship.

Creation

You can create a stereoParameters object using the stereoParameters function described here. You can also create a stereoParameters object by using the estimateCameraParameters with an M-by-2-by-numImages-by-2 array of input image points, where M is the number of keypoint coordinates in each pattern.

Description

example

stereoParams = stereoParameters(cameraParameters1,cameraParameters2,poseCamera2) returns a stereo camera system parameters object using the camera parameters from two cameras and the pose of camera 2. cameraParameters1 and cameraParameters2 are cameraParameters or cameraIntrinsics objects that contain the intrinsics of camera 1 and camera 2, respectively. The three input arguments set the CameraParameters1, CameraParameters2, and PoseCamera2 properties, respectively.

stereoParams = stereoParameters(paramStruct) creates an identical stereoParameters object from an existing stereoParameters object with parameters stored in paramStruct.

Input Arguments

expand all

Stereo parameters, specified as a stereo parameters struct. To get a paramStruct from an existing stereoParameters object, use the toStruct function.

Properties

expand all

Intrinsic and extrinsic parameters of the two cameras

Parameters of camera 1, specified as a cameraParameters object. The object contains the intrinsic, extrinsic, and lens distortion parameters of a camera.

Parameters of camera 2, specified as a cameraParameters object. The object contains the intrinsic, extrinsic, and lens distortion parameters of a camera.

Geometric relationship between the two cameras

Relative pose of the second camera, specified as a rigidtform3d object. The R and the Translation properties of the object represent the relative rotation and translation between camera 1 and camera 2, respectively. They convert camera 2 coordinates back to camera 1 coordinates using:

orientation1 = orientation2 * R
location1 = orientation2 * Translation + location2
orientation1 and location1 represent the absolute pose of camera 1, and orientation2 and location2 represent the absolute pose of camera 2.

Camera 2 displayed in camera 1 coordinate system, with the axis origin at the optical center of camera 1.

You cannot set the value of PoseCamera2 after you create the stereoParameters object.

Fundamental matrix, stored as a 3-by-3 matrix. The fundamental matrix relates the two stereo cameras, such that the following equation must be true:

[P11]*FundamentalMatrix*[P21]=0

P1, the point in image 1, corresponds to the point, P2, in image 2. Both points are expressed in pixel coordinates.

Essential matrix, stored as a 3-by-3 matrix. The essential matrix relates the two stereo cameras, such that the following equation must be true:

[P11]*EssentialMatrix*[P21]=0

P1, the point in image 1, corresponds to P2, the point in image 2. Both points are expressed in normalized image coordinates, where the origin is at the camera’s optical center. The x and y pixel coordinates are normalized by the focal length fx and fy.

Accuracy of estimated parameters

Average Euclidean distance between reprojected points and detected points over all image pairs, specified in pixels.

Settings for camera parameter estimation

Number of calibration patterns that estimate the extrinsics of the two cameras, stored as an integer.

World coordinates of key points in the calibration pattern, specified as an M-by-2 array. M represents the number of key points in the pattern.

World points units, specified as a character vector. The character vector describes the units of measure.

Object Functions

toStructConvert a stereo parameters object into a struct

Examples

collapse all

Specify calibration images.

leftImages = imageDatastore(fullfile(toolboxdir("vision"),"visiondata", ...
    "calibration","stereo","left"));
rightImages = imageDatastore(fullfile(toolboxdir("vision"),"visiondata", ...
    "calibration","stereo","right"));

Detect the checkerboards.

[imagePoints,boardSize] = ...
  detectCheckerboardPoints(leftImages.Files,rightImages.Files);

Specify the world coordinates of the checkerboard keypoints. Square size is in millimeters.

squareSize = 108;
worldPoints = generateCheckerboardPoints(boardSize,squareSize);

Calibrate the stereo camera system. Both cameras have the same resolution.

I = readimage(leftImages,1);
imageSize = [size(I,1) size(I,2)];
params = estimateCameraParameters(imagePoints,worldPoints, ...
    "ImageSize",imageSize);

Visualize the calibration accuracy.

showReprojectionErrors(params)

Figure contains an axes object. The axes object with title Mean Reprojection Error per Image, xlabel Image Pairs, ylabel Mean Error in Pixels contains 5 objects of type bar, line. These objects represent Camera 1, Camera 2, Overall Mean Error: 0.06 pixels.

Visualize camera extrinsics.

figure
showExtrinsics(params)

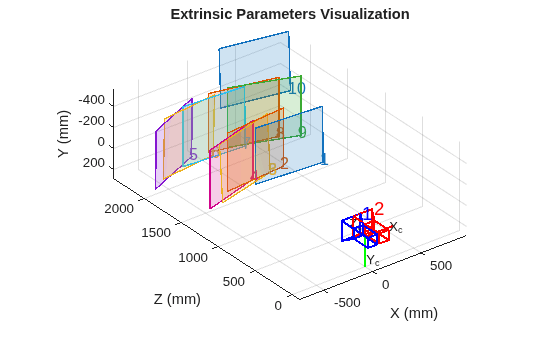

Figure contains an axes object. The axes object with title Extrinsic Parameters Visualization, xlabel X (mm), ylabel Z (mm) contains 28 objects of type patch, text, line.

References

[1] Zhang, Z. "A Flexible New Technique for Camera Calibration." IEEE Transactions on Pattern Analysis and Machine Intelligence 22, no. 11 (November 2000): 1330–34. https://doi.org/10.1109/34.888718..

[2] Heikkila, J., and O. Silven. “A Four-Step Camera Calibration Procedure with Implicit Image Correction.” In Proceedings of IEEE Computer Society Conference on Computer Vision and Pattern Recognition, 1106–12. San Juan, Puerto Rico: IEEE Comput. Soc, 1997. https://doi.org/10.1109/CVPR.1997.609468.

Extended Capabilities

Version History

Introduced in R2014a
