Sensor Fusion and Tracking Toolbox

Design, simulate, and test multisensor tracking and positioning systems

Sensor Fusion and Tracking Toolbox™ includes algorithms and tools for designing, simulating, and testing systems that fuse data from multiple sensors to maintain situational awareness and localization. Reference examples provide a starting point for multi-object tracking and sensor fusion development for surveillance and autonomous systems, including airborne, spaceborne, ground-based, shipborne, and underwater systems.

You can fuse data from real-world sensors, including active and passive radar, sonar, lidar, EO/IR, IMU, and GPS. You can also generate synthetic data from virtual sensors to test your algorithms under different scenarios. The toolbox includes multi-object trackers and estimation filters for evaluating architectures that combine grid-level, detection-level, and object- or track-level fusion. It also provides metrics, including OSPA and GOSPA, for validating performance against ground truth scenes.

For simulation acceleration or rapid prototyping, the toolbox supports C and C++ code generation.

Get Started:

Tracking for Surveillance Systems
Tracking for Autonomous Systems
Multi-object Tracking
Centralized vs. Decentralized Tracking
Tracking Scenario Simulation
Localization for Tracking Platforms
Visualization and Analytics
Algorithm Acceleration and Code Generation

Tracking for Surveillance Systems

Track targets in surveillance regions using data from active and passive sensors mounted on stationary and moving platforms.

Airspace Surveillance

Track multiple objects using data from active and passive sensors such as radar, ADS-B, and EO/IR sensors. Customize trackers to handle maneuvering objects.

Air Traffic Control

Simulate and Track En-Route Air Traffic with Earth-Centered Scenarios

Simulate, Detect, and Track Anomalies in a Landing Approach

Tracking Using Distributed Synchronous Passive Sensors

Search and Track Scheduling for Multifunction Phased Array Radar

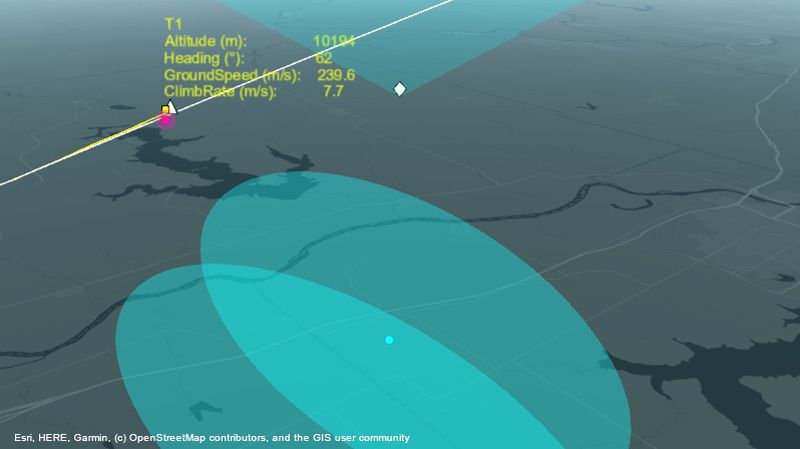

Radar system tracking aircraft over route.
